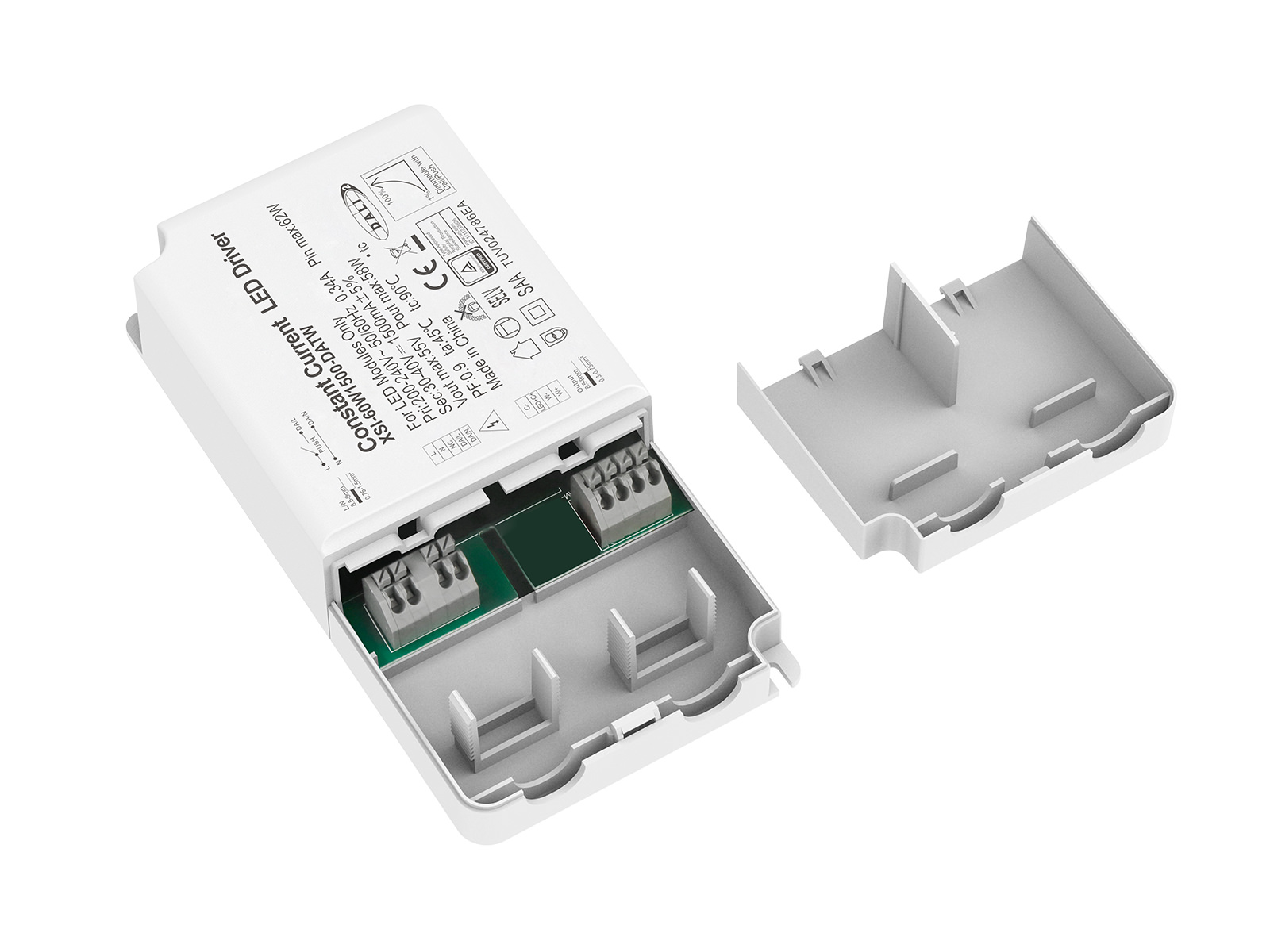

XSI-XXWXXX-DATW Independent Fxed Output LED Driver

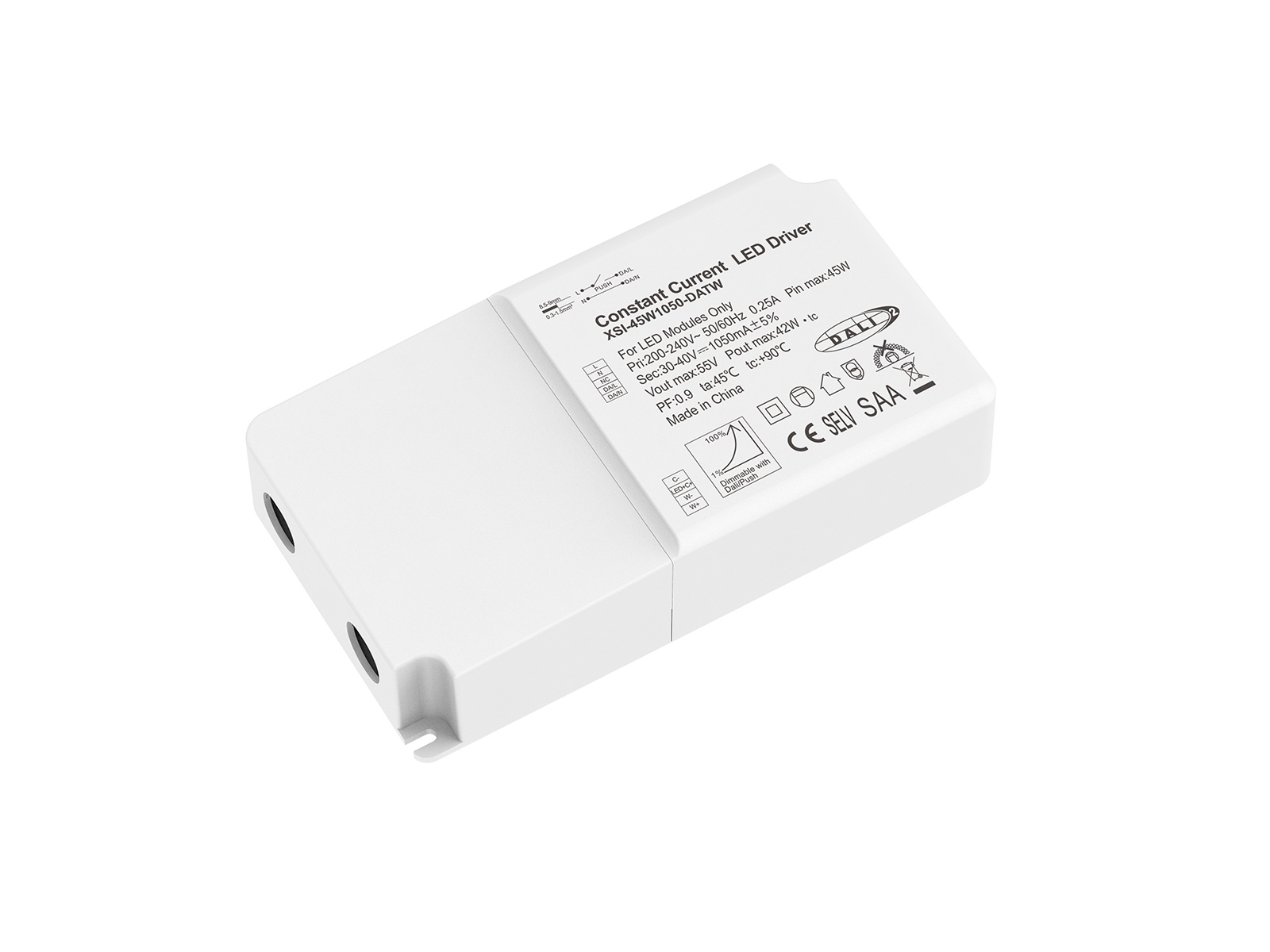

XSI 45W1050 DATW

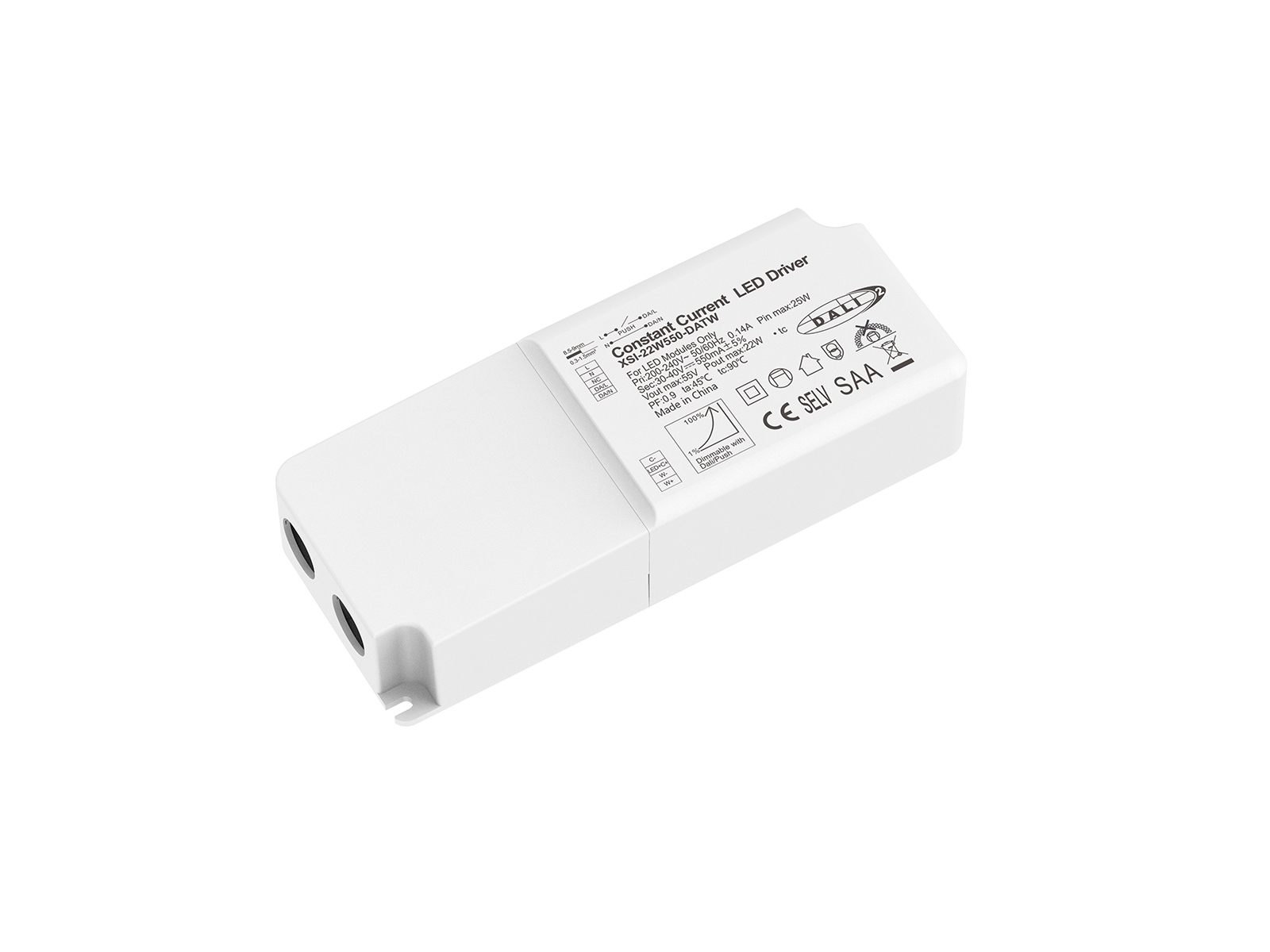

XSI 22W550 DATW

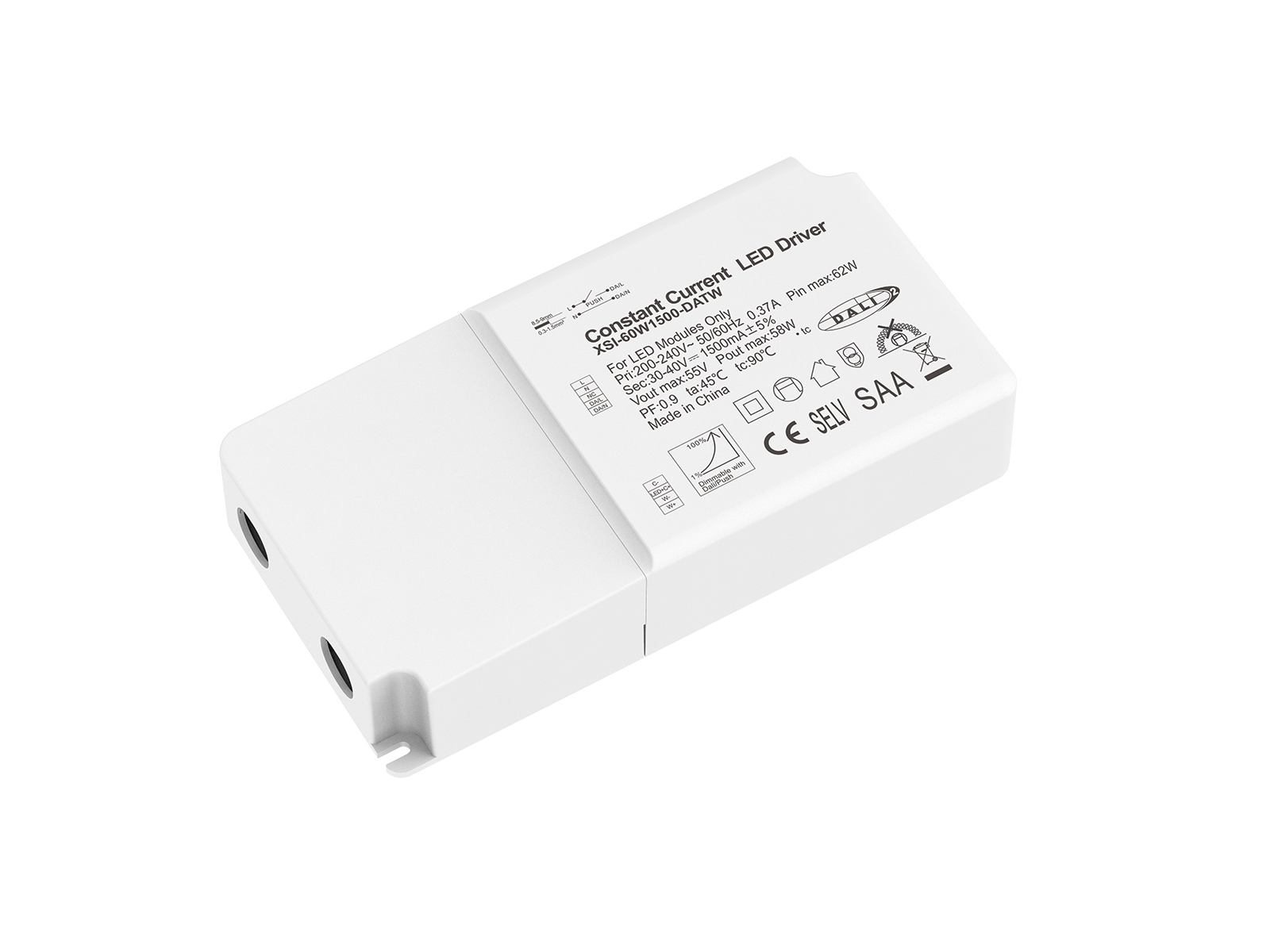

XSI-XXWXXX-DATW Independent Fxed Output LED Driver

Independent fixed output LED Driver
Constant current
Specific, optimized output current and voltage
Dali step-less dimming with step-less CCT
The whole range is featured with flicker-free performance
Idea circuit design overcomes luminarie flickering with voltage fluctuation
For luminaires of protection class I and protection class II
Temperature protection as per EN / IEC61347
Small, super compact dimensions
DALI signal:16 bit Manchester Code Speed 1 % to 100 %
Compatible for the common anode and non-common anode wiring

tuv

1.1

1.2

1.3

dali2.0

push-dim

rohs

saa

selv

dimming

Specification Files

Overview

Driver Datasheet (Dali-dimmable)
Code		XSI-08W180-DATW	XSI-22W550-DATW	XSI-45W1050-DATW	XSI-60W1500-DATW
	Input Power	5-7W	8-22W	24-45W	45-60W
Input	Input Voltage	200-264V
	Rated Input Voltage(V)	200-240V
	Frequency	50/60Hz
	Input Current	≤0.04A	≤0.14A	≤0.25A	≤0.37A
	Rated Input Current	≤0.038A	≤0.12A	≤0.23A	≤0.28A
	Power Factor (Typ)	0.9
	Total Harmonic Distortion(Thd)	<20% @230V
	Efficiency (Typ)	≥75%	≥86%	≥88%	≥90%
	Inrush Current (Typ.)	18.2A/52.1uS	21.4A/59.6uS	25A/52uS	35A/29.4uS
	Max Circuit Breaker	Please refer to" Circuit breaker Specification"
	Leakage Current	<0.5mA/240V
	No Load Wattage	<0.5W @230V
Output	Output Voltage Range	30-40V
	Rated Output Current	100-180mA	200-550mA	600-1050mA	1050-1500mA
	Line Regulation	±5%
	Open Circuit Voltage (Max)	55V
	Setup Time(Note1)	<1s @230V
	Flickering Index(IEEEStd 1789)	3%(NO RISK)		6%(NO RISK)
Environment	Ambient temperature range ta	-20~+45 °C
	Maximum case temperature tc	90°C (Measured on tc point indicated of the product label, tc not exceeded)
	Operating temperature	-20~+45 °C
	Storage temperature/humidity	-25~+85 °C; 5~95% RH
	Relative humidity	5~85%
	Environmental rating	Indoor
	IP rating	IP20
	Life time	>50,000H @25°C
Protection	Short Circuit Protection	Constant current limiting, recovers automatically after fault condition is removed
	Over Voltage Protection	Shut down o/p voltage
	Over Temperature Protection	Shut down o/p voltage, recovers automatically after temperature goes down
Safety & EMC	Safety Standards	IEC/EN61347-1, IEC/EN61347-2-13, IEC/EN62384 independent,GB19510.14,GB19510.1 approved
	Withstand Voltage	I/P-O/P:3.75KVac,<5mA 60S; I/P-FG:1.6KVac,<5mA 60S; O/P-FG:0.5KVac,<5mA 60S
	Isolation Resistance	I/P-O/P: 500VDC, ≥100M Ω
	Surge	IEC/EN61000-4-5(L-N:0.5KV, )		IEC/EN61000-4-5(L-N:1KV, )
	EMC Emission	IEC/EN55015, IEC/EN61000-3-2
	EMC Immunity	IEC/EN61000-4-2,3,4,5,6,8,11; IEC/EN61547
Other	Dimension(mm)	1315026	143.058.030.0	144.080.032.0	156.080.032.0
Other	Weight	0.09Kg	0.12Kg	0.18Kg	0.24Kg
