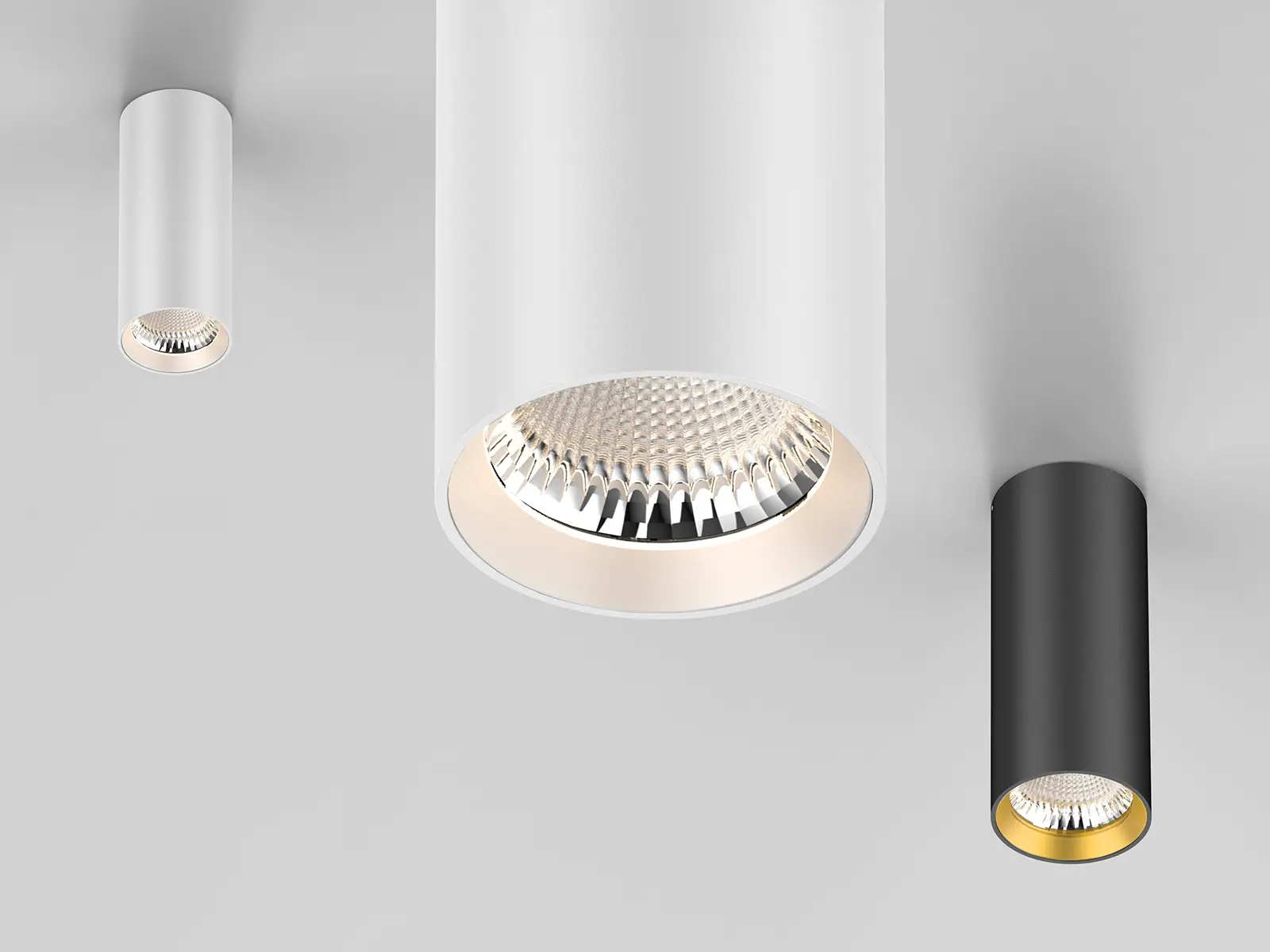

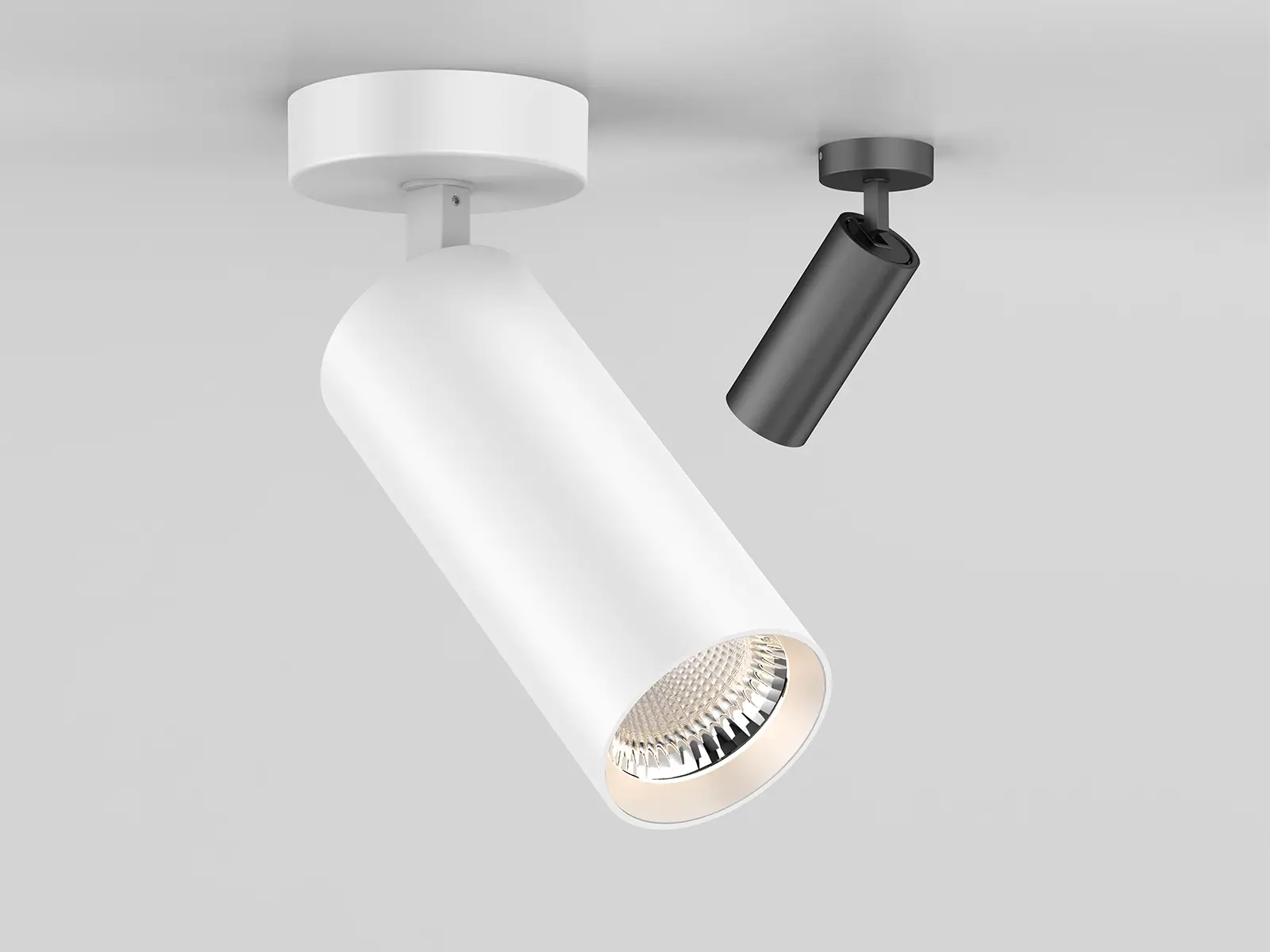

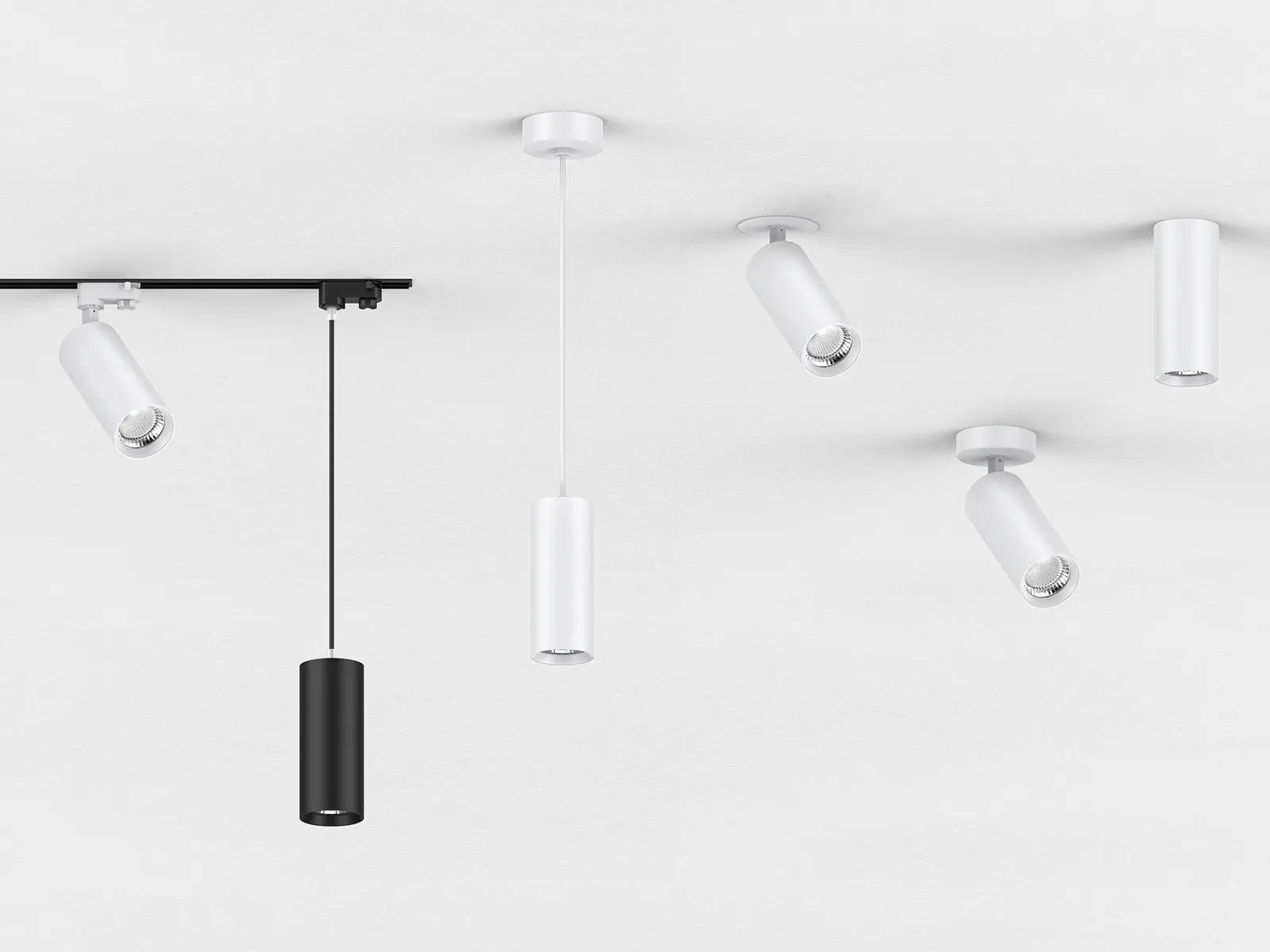

This is a DIY modular series with an exquisite appearance and anti-glare UGR19 design. It shares one module lamp body but is compatible with 6 kinds of installation accessories (track/track pendant/surface pendant/surface mounted/ ceiling canopy/recessed) and 3 replaceable reflectors which realized a liberalization DIY modularization. The lamp adopts Bridgelux brand COB light source, and the lumen efficiency reaches 120lm/W so it can do more energy saving.
Application Areas: Applicable for commercial lighting in offices, hotels, restaurants, shops, supermarkets, art galleries, museums, etc; Also suitable for residential lighting for bedrooms, living rooms, corridors, etc.
|
Code No. |
338-55-6W |
338-55-10W |
338-65-10W |
338-65-15W |
338-65-15W-A3 |
338-85-20W |
338-85-25W |
338-85-25W-A3 |
338-100-30W |
338-100-35W |
338-100-35W-A3 |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Dimension(mm) |
55*160 |
65*180 |
85*206 |
100*220 |
|||||||||
|
Cutout (mm) |
- |
||||||||||||
|
Watt(W) |
6W |
10W |
10W |
15W |
10W/12W/15W |
20W |
25W |
15W/20W/25W |
30W |
35W |
25W/30W/35W |
||
|
Rated Input Voltage(V) |
AC230V |
||||||||||||
|
Input Voltage(V) |
AC220-240V |
||||||||||||
|
LED Module Input |
- |
||||||||||||
|
Light Source |
COB |
||||||||||||
|
SDCM |
<5 |
||||||||||||
|
CCT(K) |
1-CCT: 2700K/3000K/4000K/5000K//3-CCT: 3000K + 4000K + 5000K |
||||||||||||
|
CCT Selection DIP Switch |
- |
YES |
|||||||||||
|
Luminous Flux (lm) ±5% (White CRI80) |
Non-DIM |
1-CCT |
600-750 |
1030-1200 |
1030-1200 |
1550-1750 |
10W: 1100-1250 12W: 1250-1400 15W: 1550-1750 |
2300-2550 |
2850-3150 |
15W: 1800-2000 20W: 2300-2550 25W: 2850-3150 |
3300-3650 |
3800-4100 |
25W: 2850-3150 30W: 3300-3650 35W: 3800-4100 |
|
|
DIM |
|
550-700 |
950-1150 |
950-1150 |
1500-1700 |
- |
2150-2450 |
2700-3000 |
- |
3200-3500 |
3650-4000 |
- |
|
Luminous Flux (lm) ±5% (White CRI90) |
Non-DIM |
1-CCT |
500-700 |
860-1050 |
860-1050 |
1350-1550 |
10W: 860-1050 12W: 1050-1600 15W: 1350-1550 |
1850-2200 |
2400-2700 |
15W: 1550-1750 20W: 1850-2200 25W: 2400-2700 |
2800-3100 |
3200-3500 |
25W: 2450-2700 30W: 2800-3100 35W: 3200-3500 |
|
|
DIM |
|
450-650 |
820-1000 |
820-1000 |
1300-1500 |
- |
1800-2100 |
2300-2600 |
- |
2650-3000 |
3050-3400 |
- |
|
|
Non-DIM |
3-CCT |
- |
- |
800-900 |
1200-1400 |
10W: 900-1000 12W: 1050-1150 15W: 1200-1400 |
1800-2000 |
2300-2500 |
15W: 1380-1500 20W: 1900-2050 25W: 2050-2400 |
2750-3050 |
2900-3300 |
25W: 2300-2500 30W: 2600-2900 35W: 2900-3300 |
|
|
DIM |
|
- |
- |
740-850 |
1150-1350 |
- |
1700-1900 |
2150-2350 |
- |
2550-2850 |
2750-3100 |
- |
|
Black color decrease 10% lumen |
|||||||||||||
|
CRI |
80 / 90(1-CCT) / 90(3-CCT) |
||||||||||||
|
Beam Angle (°) |
24° / 36° / 60° |
||||||||||||
|
UGR |
24°/36° |
<19 |
|||||||||||
|
|
60° |
<22 |
|||||||||||
|
LED Driver |
Built-in |
||||||||||||
|
Dimming Option |
Triac |
Triac / DALI |
- |
Triac / DALI |
- |
Triac / DALI |
- |
||||||
|
Sensor |
NO |
||||||||||||
|
Emergency Kits |
NO |
||||||||||||
|
Electrical Class |
ClassI |
||||||||||||
|
Ingress Protection (IP Rating) |
IP20 |
||||||||||||
|
Impact Resistance (IK Rating) |
- |
||||||||||||
|
Product Finishing(Base) |
Black RAL9005/White RAL9016 |
||||||||||||
|
Materials of Optics |
Aluminum+transparent tempered glass |
||||||||||||
|
Materials of Housing |
Aluminum |
||||||||||||
|
Lifetime (hr) |
50,000h |
||||||||||||
|
Glow wire test (℃ ) |
650°C |
||||||||||||
|
Operating Temp. (℃ ) |
-20°C~40°C |
||||||||||||
|
Storage Temp. (℃ ) |
-20°C~60°C |
||||||||||||
|
Installation |
Sufrace mount/Pendant/Recessed/Track |
||||||||||||
