AL101/ AL101D/ AL101E LED Bulkhead Light is a high-cost performance ceiling light. Adopting high lumen 2835 SMD chip and PC diffuser, the whole design has a large lighting area and lightweight. Easy to install: laboursaving with quick terminal block. Cost saving with driver replaceable design. High waterproof level with multiple functions.
AL101 standard one: Non-isolated and flicker-free driver.
AL101D improved one: Isolated and flicker-free driver.

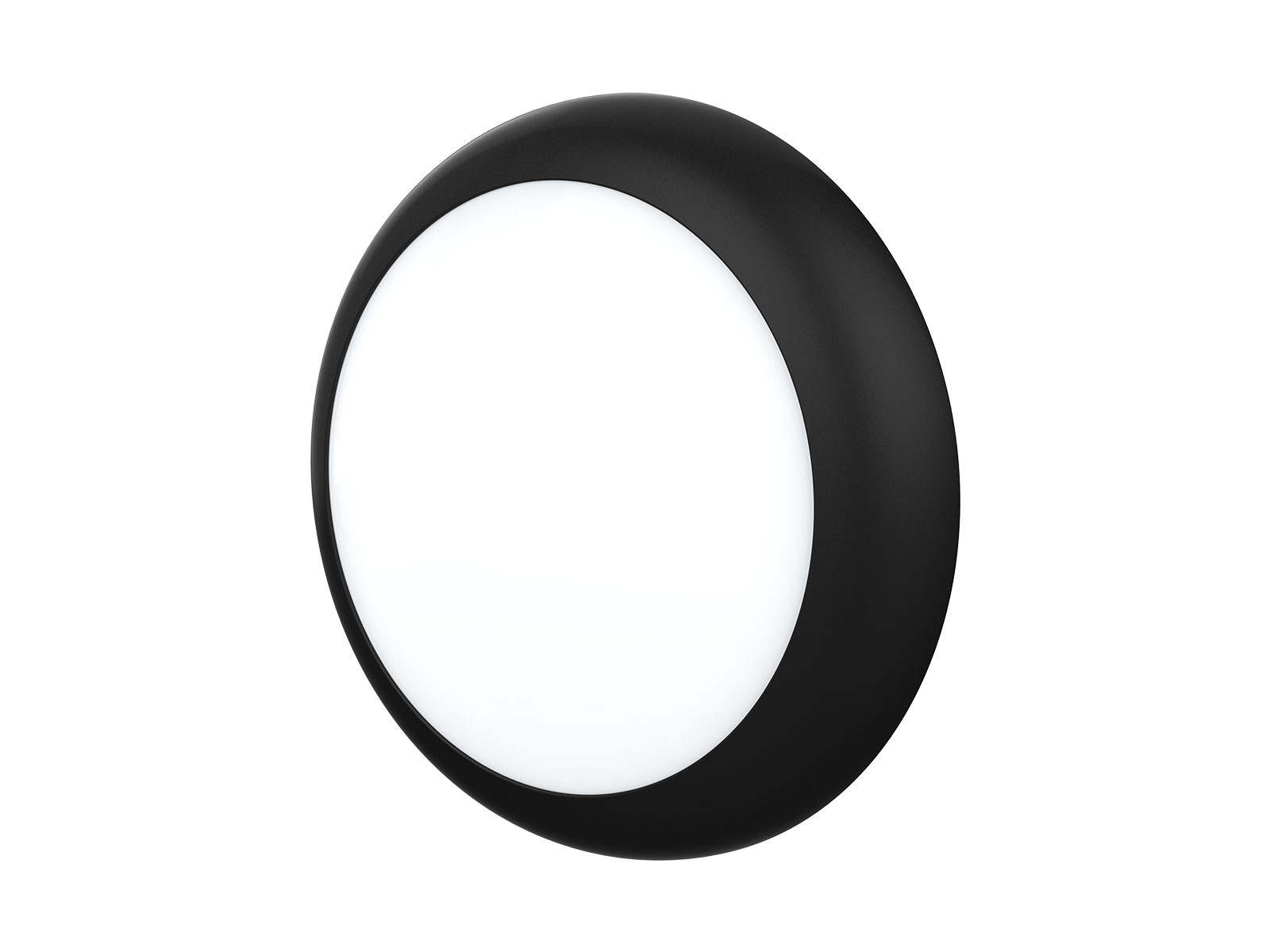

AL101E isolated driver as multi-function as Interchangeable power, adjustable sensor meanwhile with Stand-by function.
Application Areas: It is designed for general lighting applications in office, supermarket, shop, school, hotel, etc. It is also widely used for public areas, such as stairway, lobby, reception, corridors etc.
| Model No. | AL101E-12-20W-A4S | AL101-12-12W | AL101-12-16W | AL101-12-20W | AL101D-12-12W | AL101D-12-14W | AL101D-12-16W | AL101D-12-20W | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimension(mm) | Ø300*90.8(Ø330*90.8 with ring) | Ø300*90.8(Ø330*90.8 with ring) | Ø300*90.8(Ø330*90.8 with ring) | ||||||||
| Watt(W) | 13W / 15W / 18W / 20W | 12W | 16W | 20W | 12W | 14W | 16W | 20W | |||
| Rated Input Voltage(V) | AC230V | AC230V | AC230V | ||||||||
| Input Voltage(V) | AC200-240V | AC200-240V | AC200-240V | ||||||||
| Light Source | SMD2835 | SMD2835 | SMD2835 | ||||||||
| SDCM | <6 | <6 | <6 | ||||||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT: 3000K + 4000K + 5700K | 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT: 3000K + 4000K + 5700K | 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT: 3000K + 4000K + 5700K | ||||||||
| CCT Selection DIP Switch | YES | YES | YES | ||||||||
| Non-DIM 1-CCT Luminous Flux (lm) ±5% | 1170~1260 | 1330~1440 | 1570~1680 | 1750~2100 | 1170~1260 | 1570~1680 | 1750~2100 | 1170~1260 | 1330~1440 | 1570~1680 | 1750~2100 |
| Non-DIM 3-CCT Luminous Flux (lm) ±5% | 1200~ 1270 | 1330~1440 | 1510~1690 | 1960~2120 | 1200~ 1270 | 1510~1690 | 1960~2120 | 1200~ 1270 | 1330~1440 | 1510~1690 | 1960~2120 |
| CRI | 80 | ≥80 | 80 | ||||||||
| Beam Angle (°) | 120° | 120° | 120° | ||||||||
| LED Driver | Built-in | Built-in | Built-in | ||||||||
| Sensor | Adjustable sensor | Adjustable sensor | Adjustable sensor | ||||||||
| Emergency Kits | YES | YES | YES | ||||||||
| Electrical Class | Class Ⅱ | Class Ⅱ | Class Ⅱ | ||||||||
| Ingress Protection (IP Rating) | IP65 | IP65 | IP65 | ||||||||
| Impact Resistance (IK Rating) | IK10 | IK10 | IK10 | ||||||||
| Product Finishing(Base) | White RAL 9016 | White RAL 9016 / RAL 9005 | White RAL 9016 | ||||||||
| Materials of Optics | PC | PC | PC | ||||||||
| Materials of Housing | ABS | ABS | ABS | ||||||||
| Lifetime (hr) | L 70B50 50,000h | 50,000h | L 70B50 50,000h | ||||||||
| Glow wire test (C ) | 650C | 650C | 650C | ||||||||
| Operating Temp. (C ) | -20C ~45C | -20C ~45C | -20C ~45C | ||||||||
| Storage Temp. (C ) | -20C ~65C | -20C ~65C | -20C ~65C | ||||||||
| Installation | Surface mount | Surface mount | Surface mount | ||||||||
