AL173 LED Ceiling Light

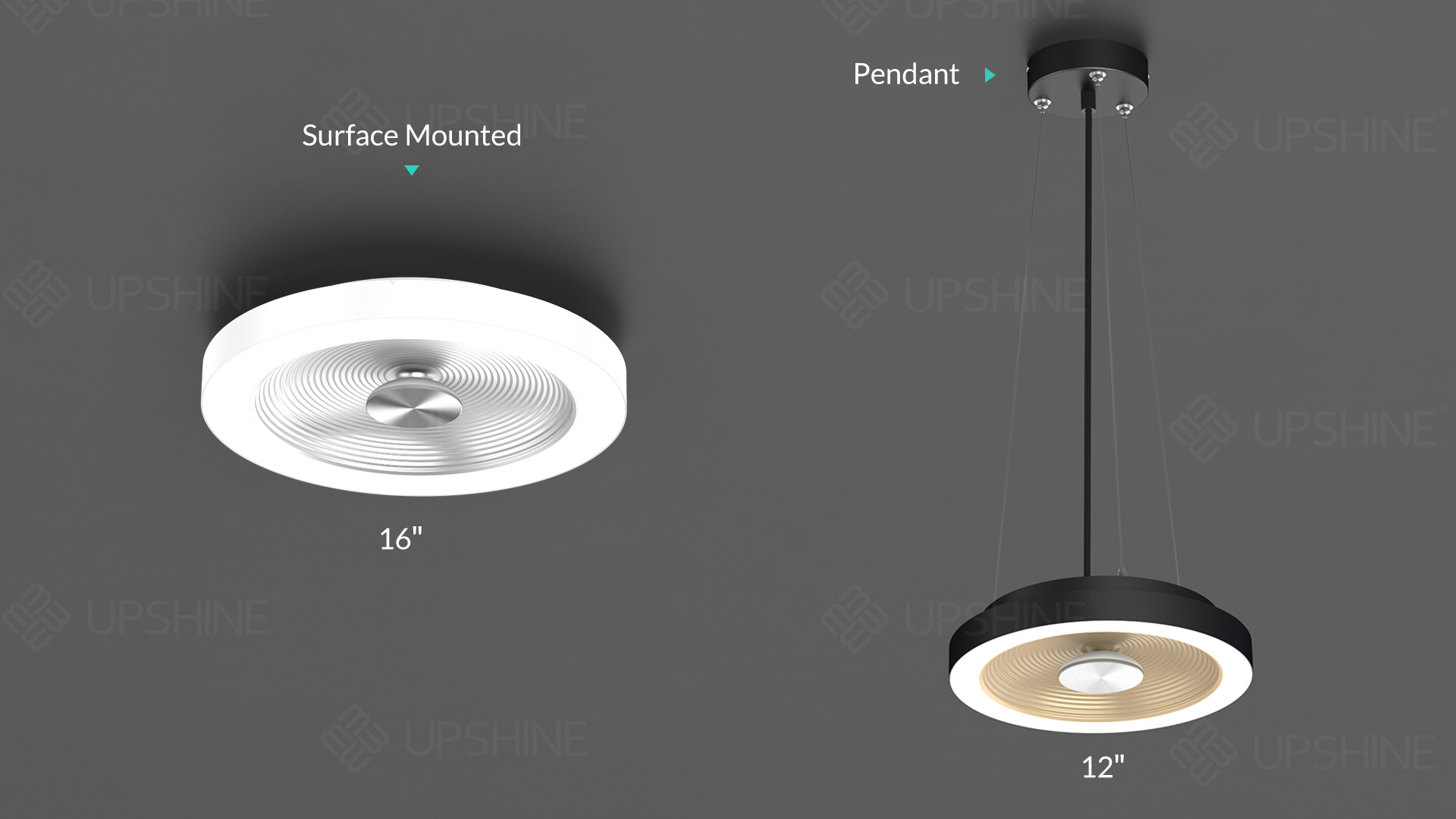

This ceiling lamp supports both surface mounting and suspension install. It has two light sources, the main light source is illuminated from the edge for lighting use, and another light source is illuminated from the top and the wavy lines of diffuse reflection create a soft and warm atmosphere. The decorative cover adopts CD pattern processing technology, which makes the whole lamp highly recognizable, aesthetic, and advanced visual perception.

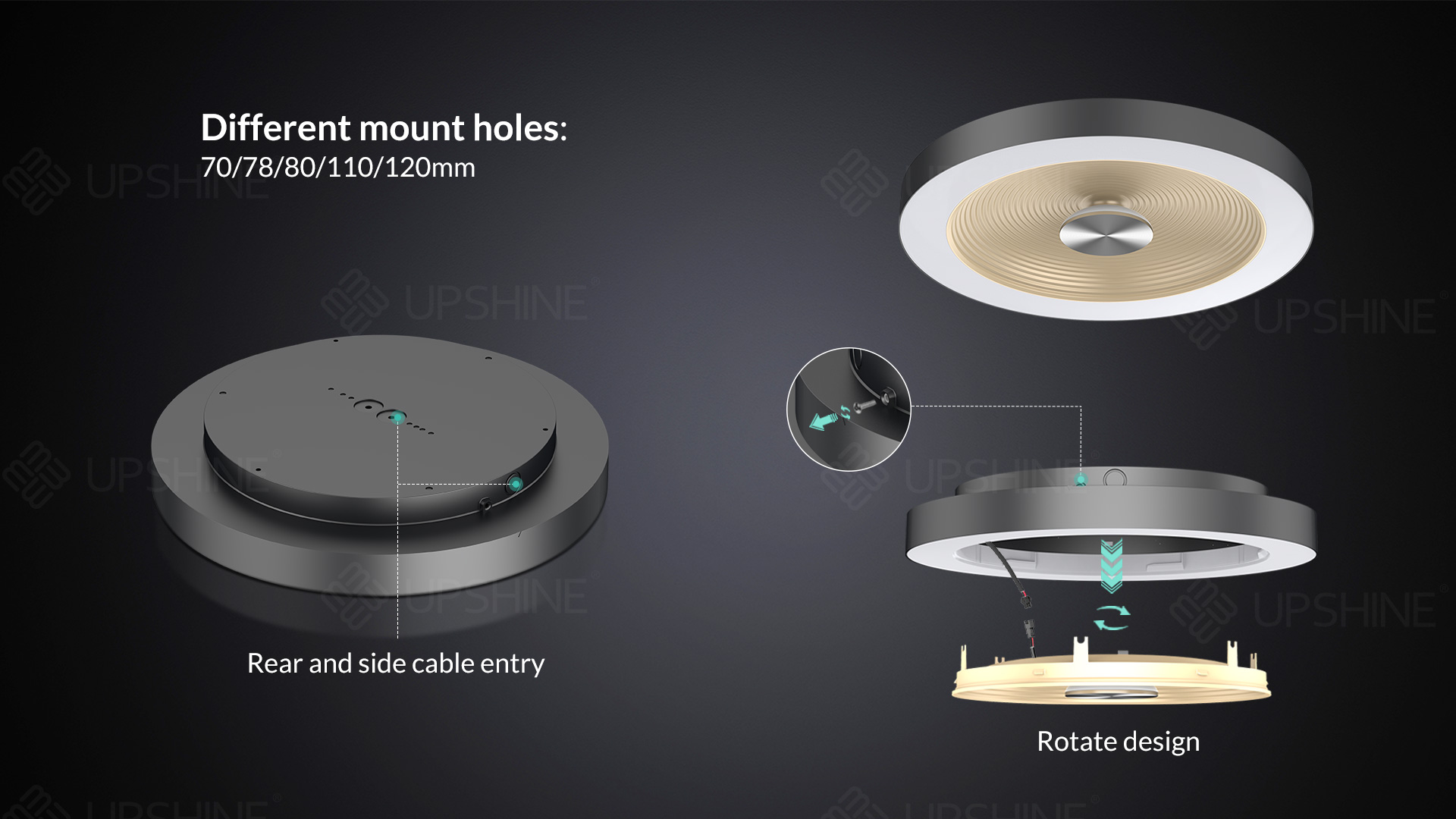

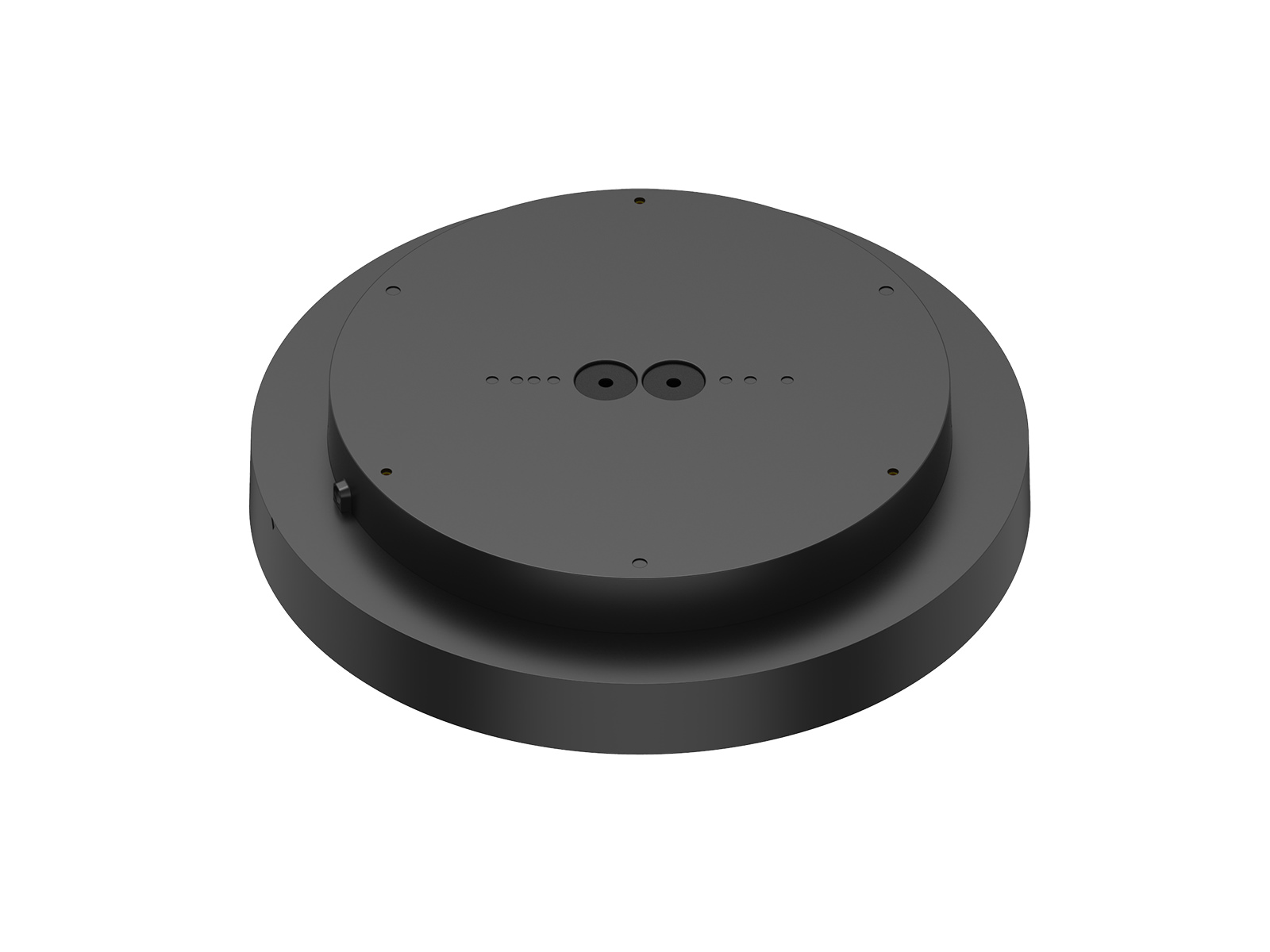

  • Rotate design for quick install, available for both rear and side cable entry.

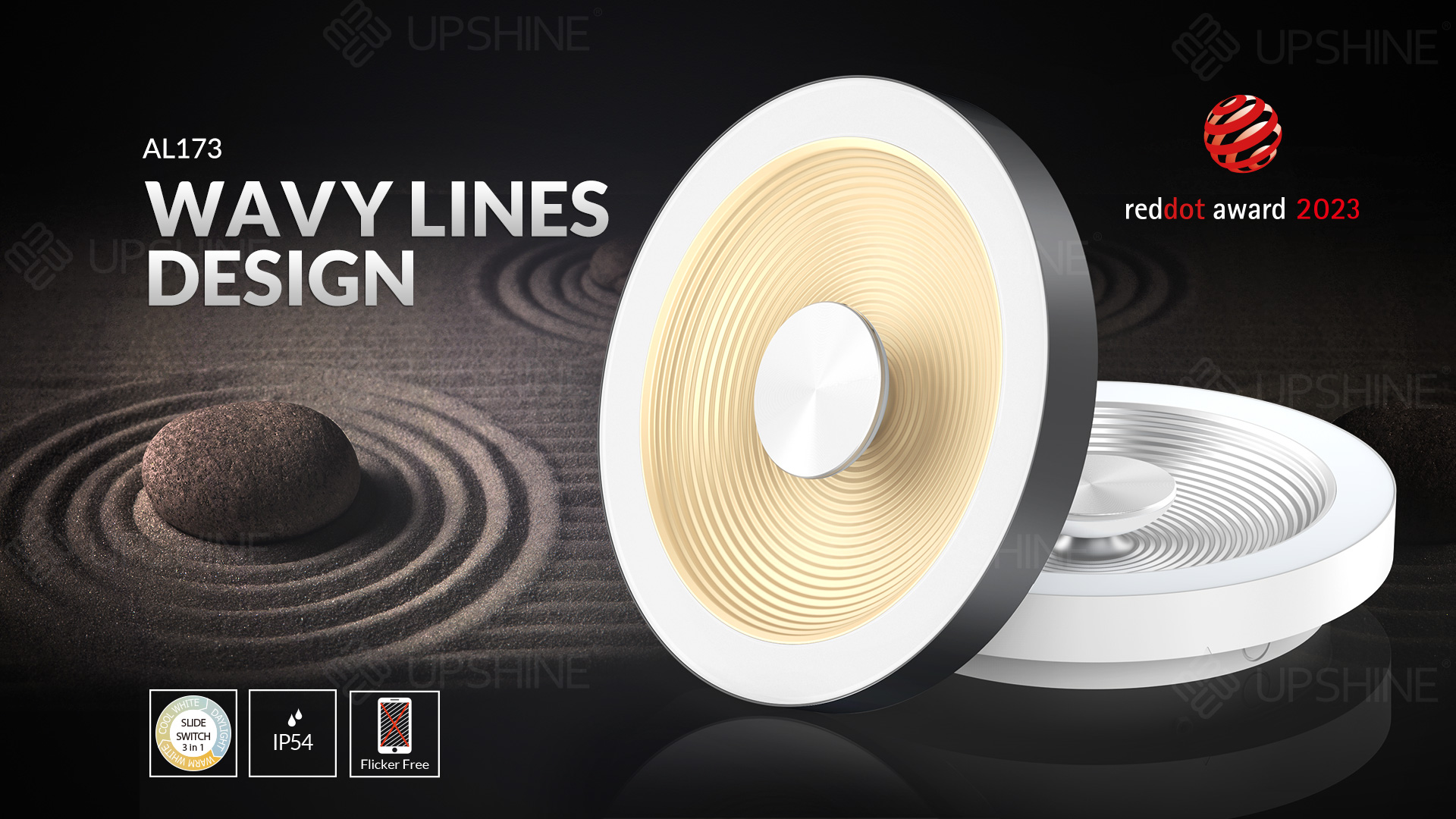

  • The wavy lines of diffuse reflection create a soft and warm atmosphere.
  • Interchangeable CCT(3000K+4000K+5700K) by slide switch.

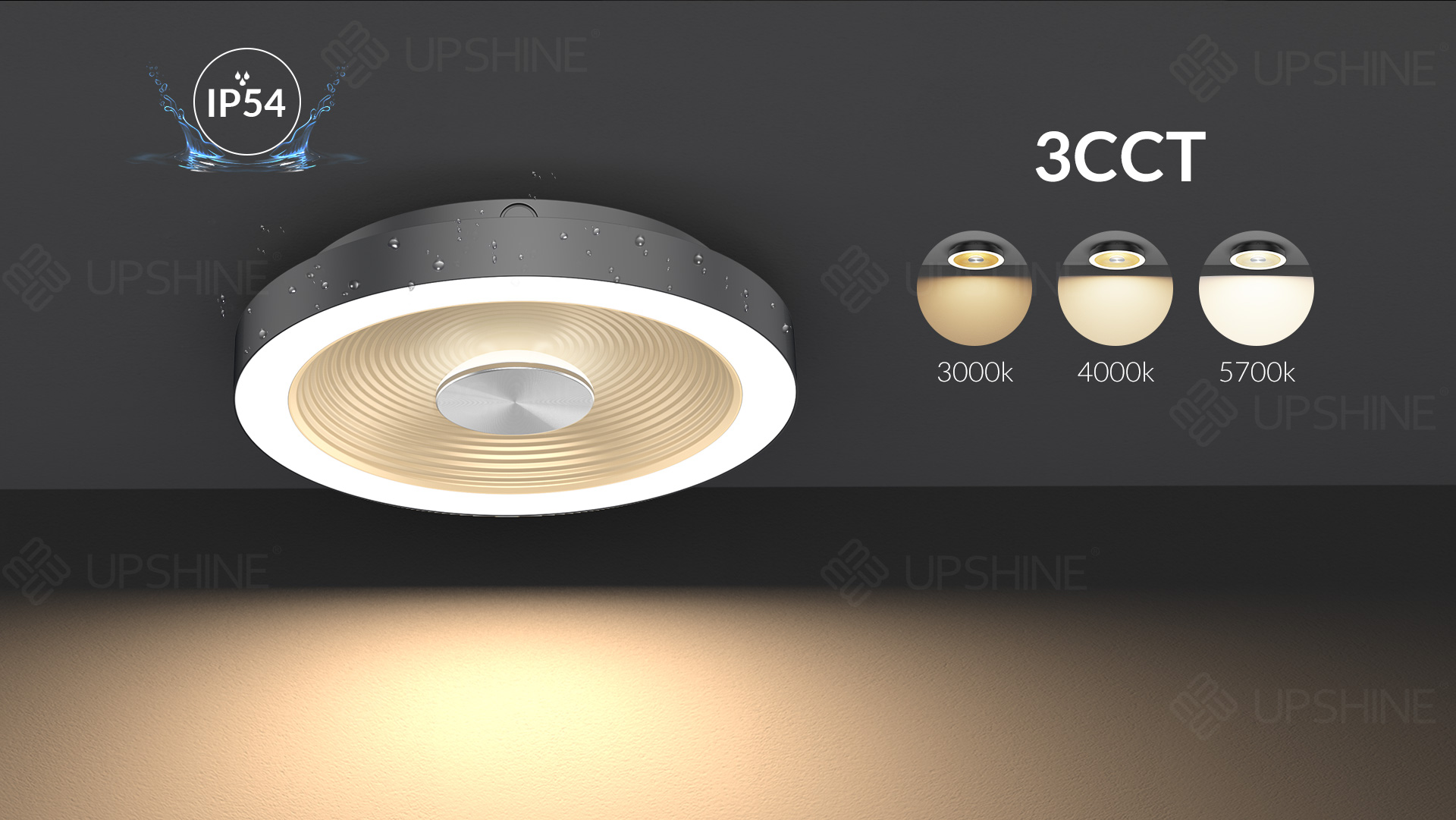

  • IP54 for the whole lamp.
  • Internal flicker-free driver.
  • Triac dimming is available.

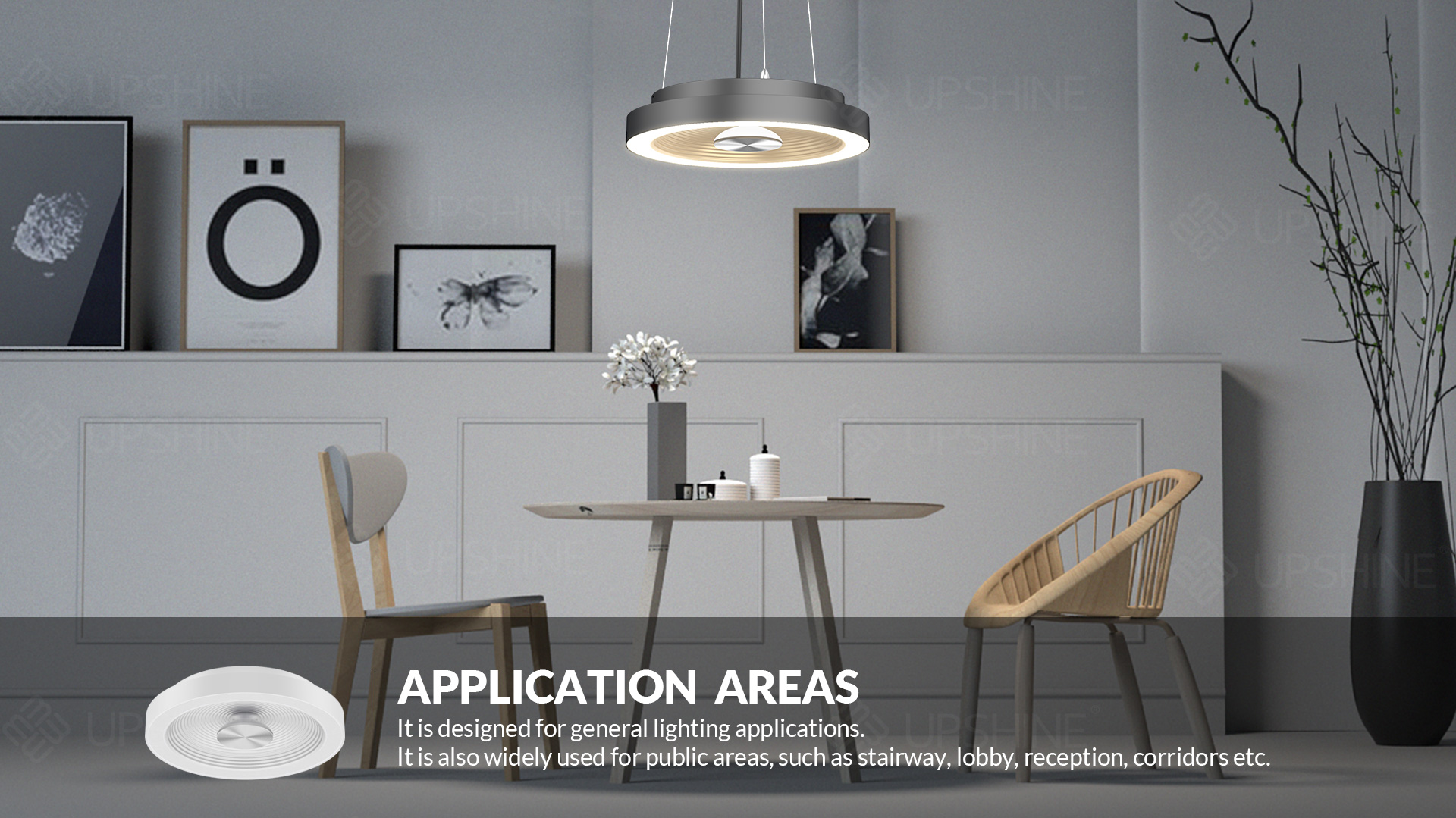

Application Areas: It is designed for general lighting applications. It is also widely used for public areas, such as stairways, lobbies, reception, corridors, etc.

AL173 redot award_01AL173  IP54 _02AL173 rotate design_03AL173pendat design_04AL173pendant light 05
Code No. AL173-12-18W AL173-16-25W
Dimension(mm) Ø320*64 Ø400*64
Cutout (mm) -
Watt(W) 18W 25W
Rated Input Voltage(V) 220-240V
Input Voltage(V) 200-240V
Light Source SMD
SDCM ≤6
CCT(K) 1-CCT: 3000K/4000K/5000K/5700K  ||  3-CCT: 3000K + 4000K+5700K
CCT Selection DIP Switch YES
Non-DIM 1-CCT Luminous Flux (lm) ±5%        (White finish & White ring) 1050- 1200 1520- 1750
DIM 1-CCT Luminous Flux (lm) ±5%        (White finish & White ring) 1030- 1180 1510- 1730
Non-DIM 3-CCT Luminous Flux (lm) ±5%   (White finish & White ring) 1050- 1200 1520- 1750
DIM 3-CCT Luminous Flux (lm) ±5%   (White finish & White ring) 1030- 1180 1510- 1730
Non-DIM 1-CCT Luminous Flux (lm) ±5%       (Black finish & Gloden ring) 600-750 990- 1250
DIM 1-CCT Luminous Flux (lm) ±5%       (Black finish & Gloden ring) 590-740 980- 1230
Non-DIM 3-CCT Luminous Flux (lm) ±5%       (Black finish & Gloden ring) 600-750 990- 1250
DIM 3-CCT Luminous Flux (lm) ±5%       (Black finish & Gloden ring) 590-740 980- 1230
CRI ≥80
Beam Angle (°) 120°
LED Driver Built-in
Dimming  Option Triac
Electrical Class Class Ⅱ
Ingress Protection (IP Rating) IP54(Pendant installation IP20 only)
Impact Resistance (IK Rating) IK06
Product Finishing White RAL9016 & Black RAL9005 & Golden
Materials of Optics PC
Materials of Housing PC
Lifetime (hr) 50,000h
Glow wire test (°C) 750°C
Operating Temp. (°C) -20°C~45°C
Storage Temp. (°C) -20°C~65°C
Installation Surface mount / Pendant
