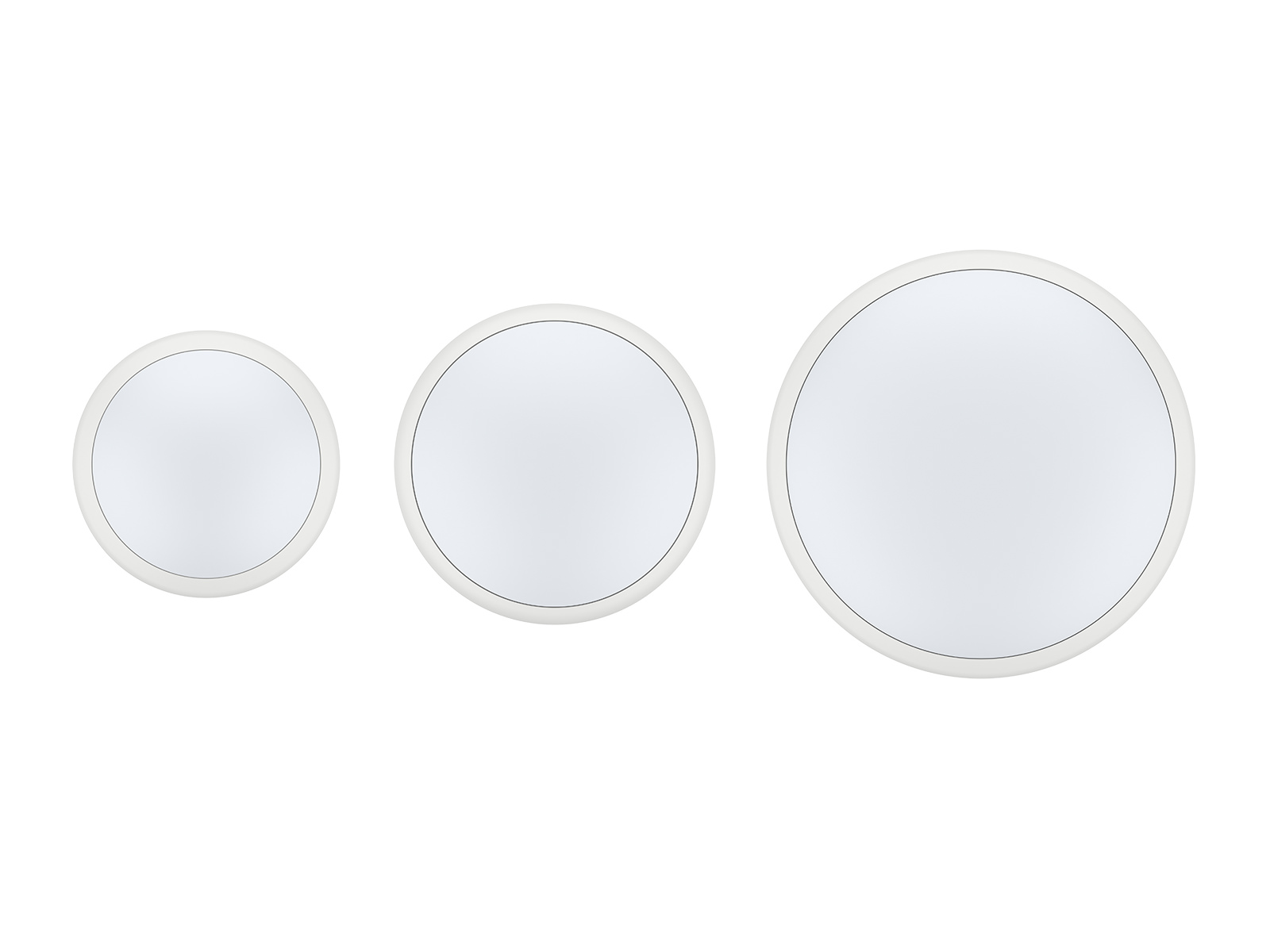

This is a smooth-edge IP65 waterproof ceiling lamp with a wider lighting surface . It has complete size for option(250mm/300mm/400mm) . To meet various application demand, it has

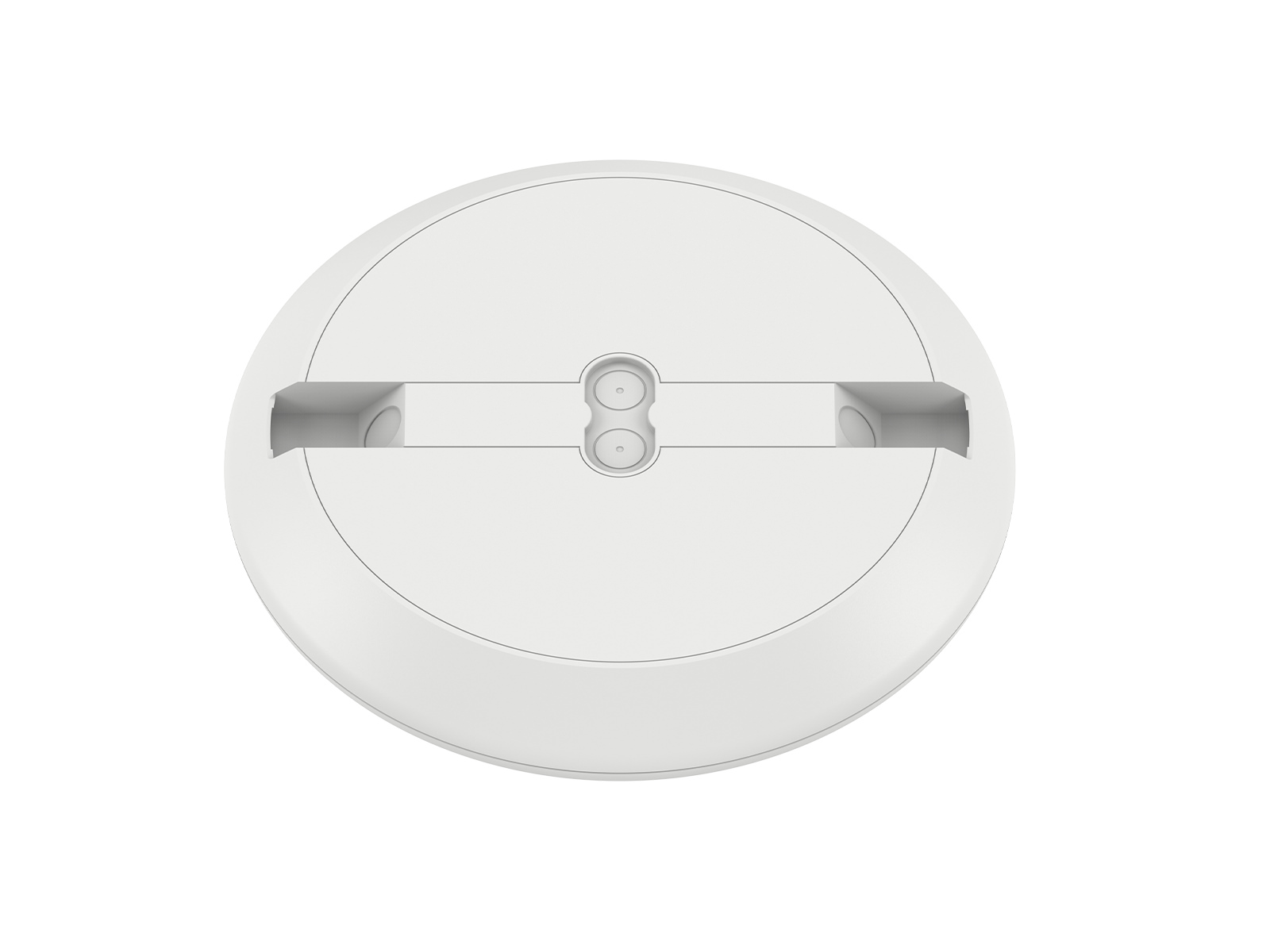

adjustable CCT version, microwave sensor, triac dim, DALI dim. Screwless on surface, rotatable install for lamp cover, both edge cable entry and back cable entry available, so it can do quick
install to save labor cost.
Application Areas: It is designed for general lighting applications in office, supermarket, shop, school, hotel, etc. It is also widely used for public areas, such as stairway, lobby, reception, corridors etc.
Code No. | AL174-10-12W | AL174-12-18W | AL174-12-25W | AL174-16-25W | AL174-16-30W |
---|---|---|---|---|---|
Dimension(mm) | Ø250*70 | Ø300*70 | Ø400*79 | ||
Watt(W) | 12W | 18W | 25W | 25W | 30W |
Rated Input Voltage(V) | AC220-240V | ||||
Input Voltage(V) | AC230V | ||||
Light Source | SMD2835 | ||||
SDCM | ≤6 | ||||
CCT(K) | 1-CCT:3000K/4000K/5000K/5700K 3-CCT:3000K/4000K/5700K | ||||
CCT Selection DIP Switch | YES | ||||
Non-DIM 1-CCT Luminous Flux (lm) ±5% | 1210- 1320 | 1830-2020 | 2470-2650 | 2480-2650 | 2900-3160 |
DIM 1-CCT Luminous Flux (lm) ±5% | 1190- 1300 | 1820- 1980 | - | 2380-2620 | 2830-3140 |
Non-DIM 3-CCT Luminous Flux (lm) ±5% | 1220- 1350 | 1850-2030 | 2450-2670 | 2400-2750 | 2950-3350 |
DIM 3-CCT Luminous Flux (lm) ±5% | 1190- 1330 | 1840-2020 | - | 2380-2700 | 2850-3300 |
CRI | 80 | ||||
Beam Angle (°) | 120° | ||||
LED Driver | Built-in | ||||
Dimming Option | Triac | Triac / DALI | DALI | Triac / DALI | |
Sensor | YES(Daylight & Microwave Sensor) | ||||
Electrical Class | Class II | ||||
Ingress Protection (IP Rating) | IP65 | ||||
Impact Resistance (IK Rating) | IK06 | ||||
Product Finishing(Base) | White RAL 9016 | ||||
Materials of Optics | PC | ||||
Materials of Housing | PC | ||||
Lifetime (hr) | 50,000hr | ||||
Glow wire test (°C) | 750°C | ||||
Operating Temp. (°C) | 20-45°C | ||||
Storage Temp. (°C) | -20°C ~60°C | ||||
Installation | Surface mount / Wall Mount | ||||
