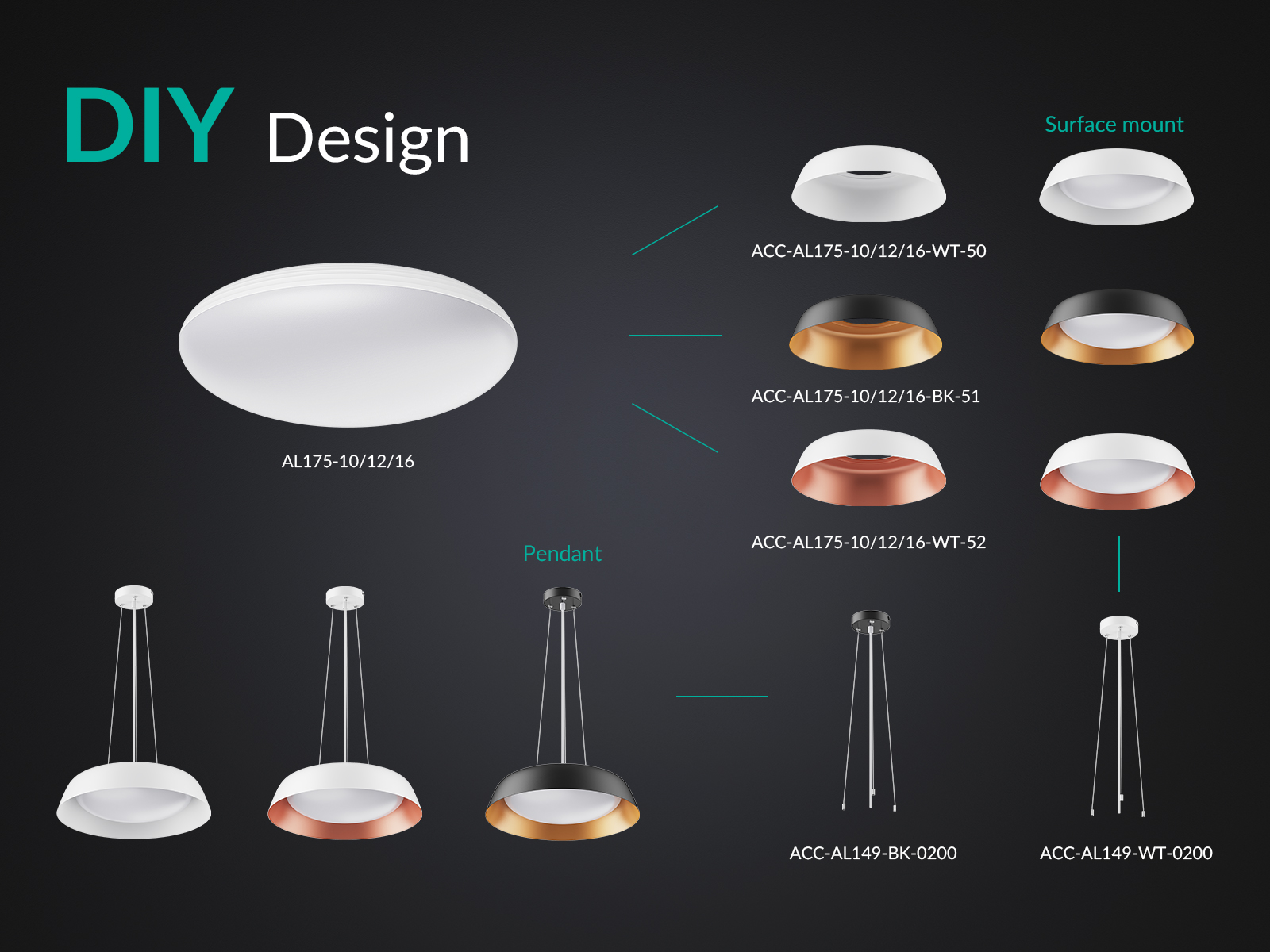

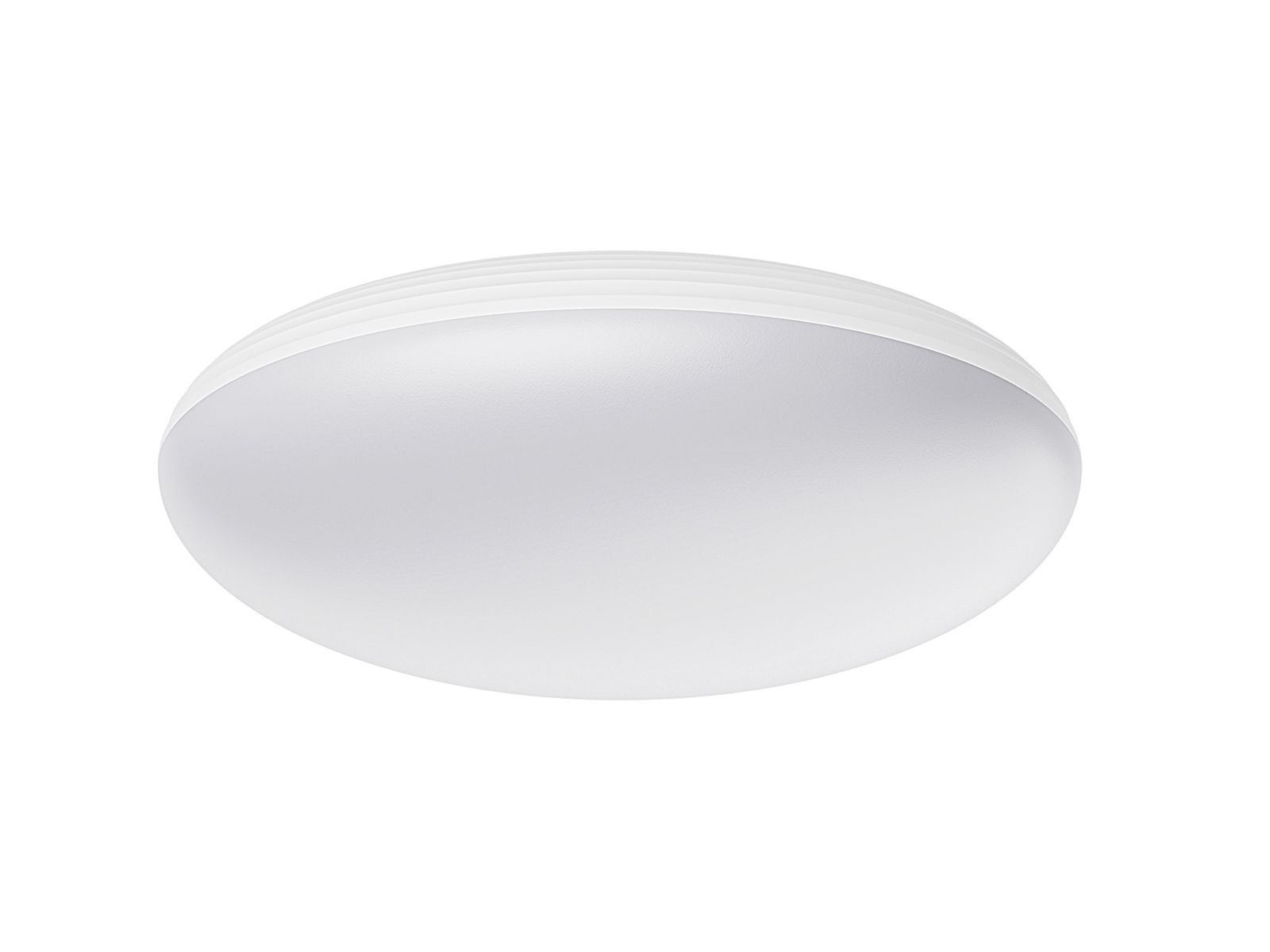

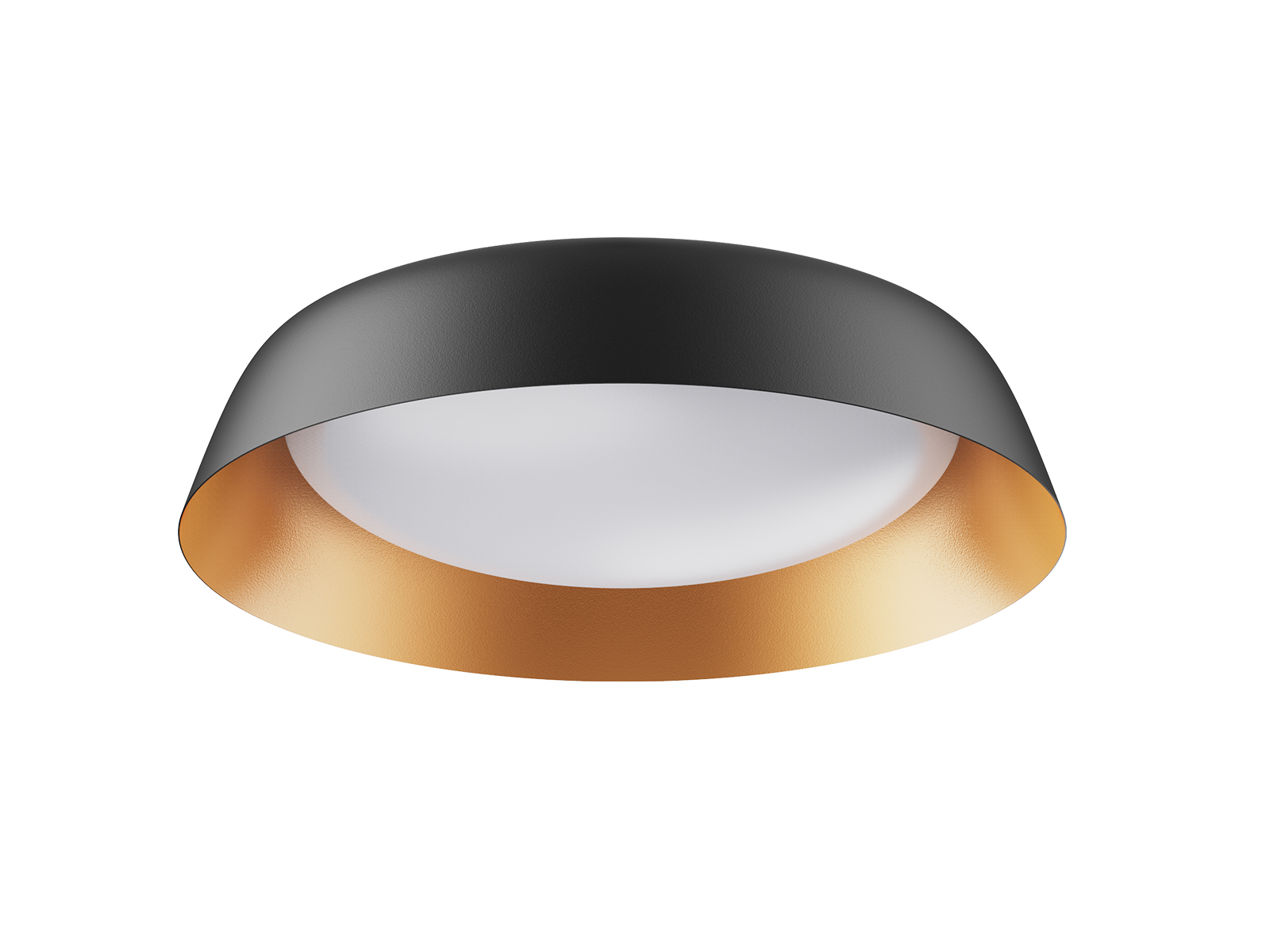

This is a high lumen efficiency ceiling lamp. The whole lamp adopts frameless cobblestone shape design, so it will have a smoothly and uniform light output. Besides, this round, minimalist LED ceiling light is versatile in its use, due to its simple appearance, it fits into a wide variety of interiors with surface mounted, suspended installation ways. Aluminum housing(white/black) can be matched with gold/copper decorative ring, which
makes this light look elegant and textured.
Application Areas: It is designed for general lighting indoor applications: hotel, home, canteen, office, shopping malletc.
|
Code No. |
AL175-10-12W |
AL175-12-18W |
AL175-16-25W |
|
|---|---|---|---|---|
|
Dimension(mm) |
Ø250*H93 |
Ø300*H93 |
Ø400*H93 |
|
|
Watt(W) |
12W |
18W |
25W |
|
|
Rated Input Voltage(V) |
AC220-240V |
|||
|
Input Voltage(V) |
AC198-264V |
|||
|
Light Source |
SMD |
|||
|
LED CCT |
3000K / 4000K / 5000K / 5700K |
|||
|
Luminaire CCT ± 2%(White) |
3000K / 4000K / 5000K / 5700K |
|||
|
Luminaire CCT ± 2%(Golden) |
2900K / 3850K / 4800K / 5450K |
|||
|
Luminaire CCT ± 2%(Purple bronze) |
2900K / 3850K / 4800K / 5450K |
|||
|
CCT Selection DIP Switch |
YES |
|||
|
Luminous Flux (lm) ±5%
|
1-CCT Non-DIM |
1320-1500 |
2150-2350 |
3000-3300 |
|
1-CCT DIM |
1320-1500 |
2150-2350 |
3000-3300 |
|
|
3-CCT Non-DIM |
1320-1500 |
2150-2350 |
3000-3300 |
|
|
3-CCT DIM |
1320-1500 |
2150-2350 |
3000-3300 |
|
|
Luminous Flux (lm) ±5%
|
1-CCT Non-DIM |
1200-1380 |
2000-2200 |
2820-3120 |
|
1-CCT DIM |
1200-1380 |
2000-2200 |
2820-3120 |
|
|
3-CCT Non-DIM |
1200-1380 |
2000-2200 |
2820-3120 |
|
|
3-CCT DIM |
1200-1380 |
2000-2200 |
2820-3120 |
|
|
Luminous Flux (lm) ±5%
|
1-CCT Non-DIM |
1080-1260 |
1850-2050 |
2700-3000 |
|
1-CCT DIM |
1080-1260 |
1850-2050 |
2700-3000 |
|
|
3-CCT Non-DIM |
1080-1260 |
1850-2050 |
2700-3000 |
|
|
3-CCT DIM |
1080-1260 |
1850-2050 |
2700-3000 |
|
|
CRI |
≥80 |
|||
|
Beam Angle (°) |
120° |
|||
|
LED Driver |
Built-in |
|||
|
Dimming Option |
Triac |
|||
|
Electrical Class |
Class II |
|||
|
Ingress Protection (IP Rating) |
IP54 (Pendant installation IP20 only) |
|||
|
Impact Resistance (IK Rating) |
IK06 |
|||
|
Product Finishing(Base) |
White RAL9016 |
|||
|
Product Finishing |
White RAL9016/White RAL9016+Purple bronze RAL3012/Black RAL9005+Golden RAL1034 |
|||
|
Materials of Optics |
PC |
|||
|
Materials of Housing |
PC (LED module) + Iron (Decorative ring) |
|||
|
Lifetime (hr) |
50,000h |
|||
|
Glow wire test (°C) |
750°C |
|||
|
Operating Temp. (°C) |
-20°C~45°C |
|||
|
Storage Temp. (°C) |
-20°C~65°C |
|||
|
Installation |
Surface mount / Pendant |
|||
