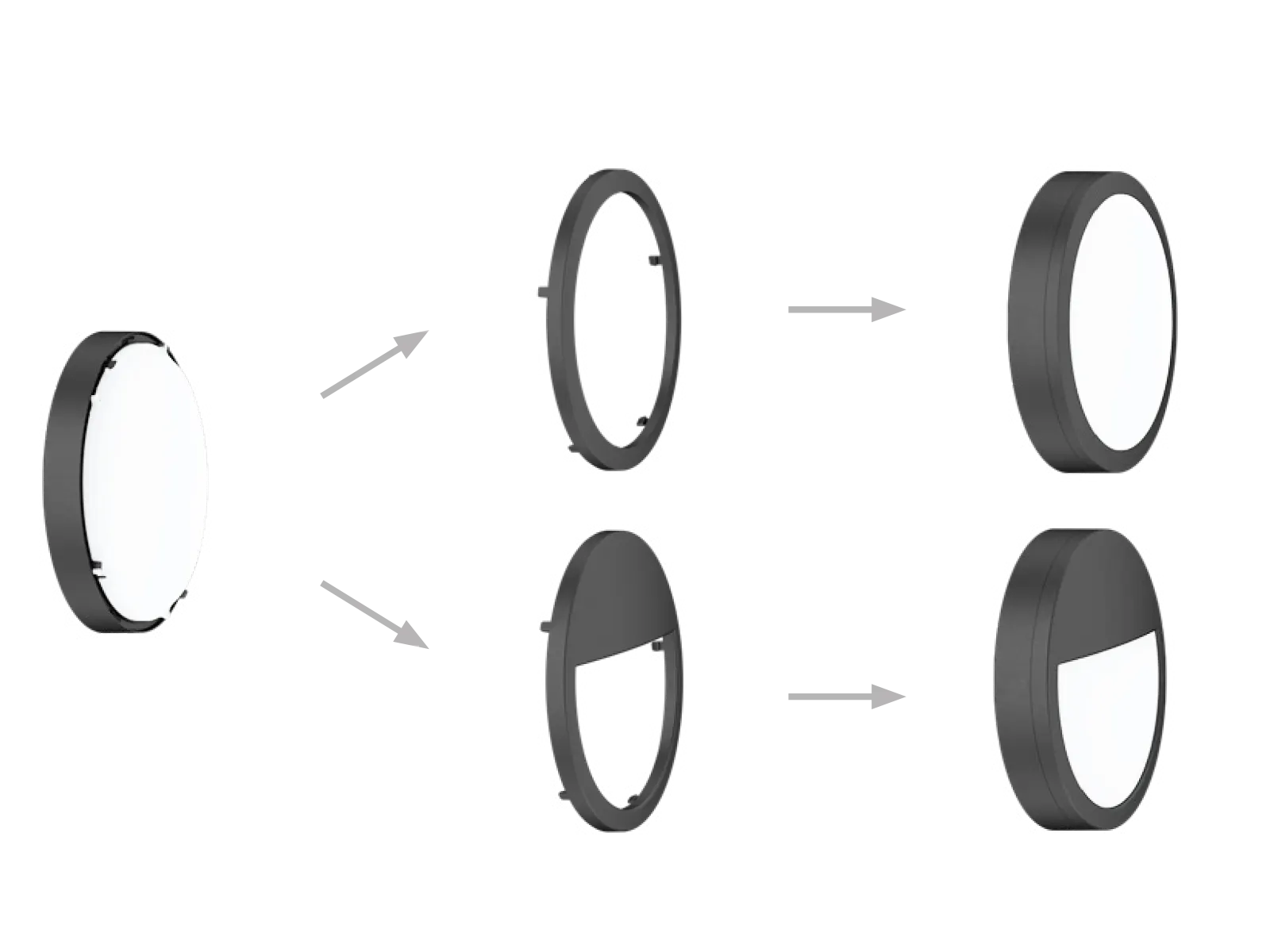

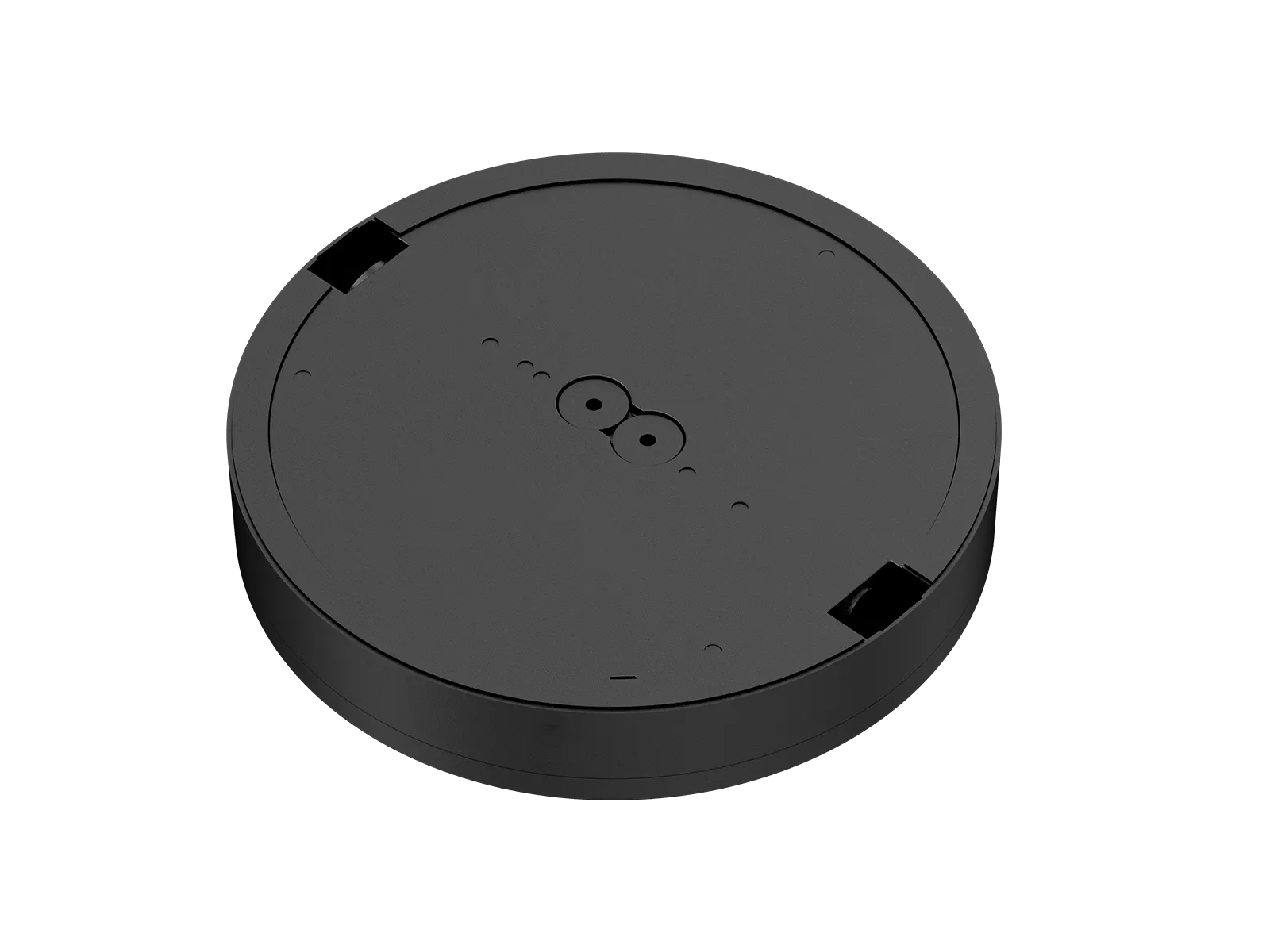

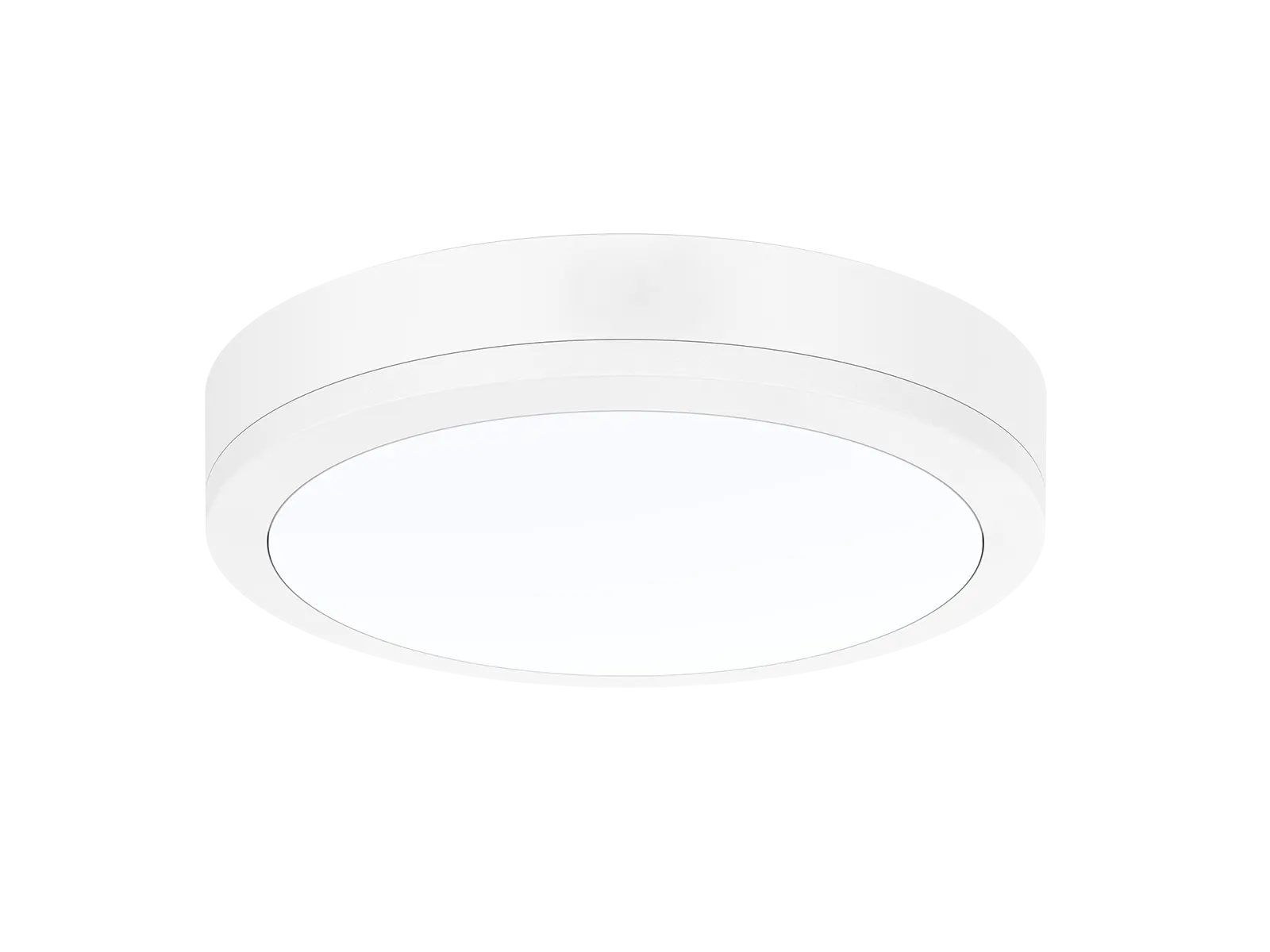

AL96 is a new design ceiling light. Adopt high lumen SMD LED and lighter weight fire-rated material to ensure better heat resistance and corrosion resistance. Wall mounted and surface mounted available. The base and shade are detachable which make easier maintenance and installation.
Surfaced mounted ceiling light features:
| Code No. | 8" | 11" (Circular) | 11"(Semicircle) | 14" | |||||
|---|---|---|---|---|---|---|---|---|---|
| AL96-8- 12W | AL96-11- 12W | AL96-11- 18W | AL96-11- 25W | AL96-11- 12W | AL96-11- 18W | AL96-11- 25W | AL96-14- 25W | AL96-14- 30W | |
| Dimension(mm) | Ø200*60 | Ø275*60 | Ø350*60 | ||||||
| Watt(W) | 12W | 12W | 18W | 25W | 12W | 18W | 25W | 25W | 30W |
| Rated Input Voltage(V) | AC100-240V || AC230V | ||||||||
| Input Voltage(V) | AC85-265V || AC200-240V | ||||||||
| Light Source | SMD | ||||||||
| SDCM | <6 (@3000K 4000K 5000K) | ||||||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT: 3000K + 4000K + 5700K | ||||||||
| CCT Selection DIP Switch | YES | ||||||||
| Non-DIM 1-CCT Luminous Flux (lm) ±5% | 1050-1250 | 1050-1250 | 1580-1850 | 2240-2520 | 740-800 | 940-1100 | 1400-1550 | 2240-2520 | 2620-2900 |
| DIM 1-CCT Luminous Flux (lm) ±5% | 1000-1200 | 1000-1200 | 1550-1820 | 2220-2500 | 720-780 | 920-1000 | 1350-1500 | 2220-2500 | 2600-2880 |
| Non-DIM 3-CCT Luminous Flux (lm) ±5% | 1050-1300 | 1050-1300 | 1580-1880 | 2240-2550 | 740-820 | 940-1200 | 1400-1600 | 2240-2550 | 2620-2950 |
| DIM 3-CCT Luminous Flux (lm) ±5% | 1000-1250 | 1000-1250 | 1580-1850 | 2220-2530 | 720-800 | 920-1100 | 1350-1550 | 2220-2530 | 2600-2920 |
| CRI | ≥80 | ||||||||
| Beam Angle (°) | 110° | ||||||||
| LED Driver | Built-in | ||||||||
| Dimming Option | Triac/ DALI/ 0-10V | ||||||||
| Sensor | Adjustable sensor | ||||||||
| Emergency Kits | YES | ||||||||
| Electrical Class | Class II | ||||||||
| Ingress Protection (IP Rating) | IP65 | ||||||||
| Impact Resistance (IK Rating) | IK10 | ||||||||
| Product Finishing(Base) | BLACK RAL 9005 / WHITE RAL9016 | ||||||||
| Materials of Optics | PC | ||||||||
| Materials of Housing | PC | ||||||||
| Lifetime (hr) | 50,000h @ L70B50 | ||||||||
| Glow wire test (℃ ) | 750℃ (Cover) 850℃ (Lamp Base) | ||||||||
| Operating Temp. (℃ ) | -20℃ ~45℃ | ||||||||
| Storage Temp. (℃ ) | -20℃ ~65℃ | ||||||||
| Installation | Surface mount / Wall mount | ||||||||
