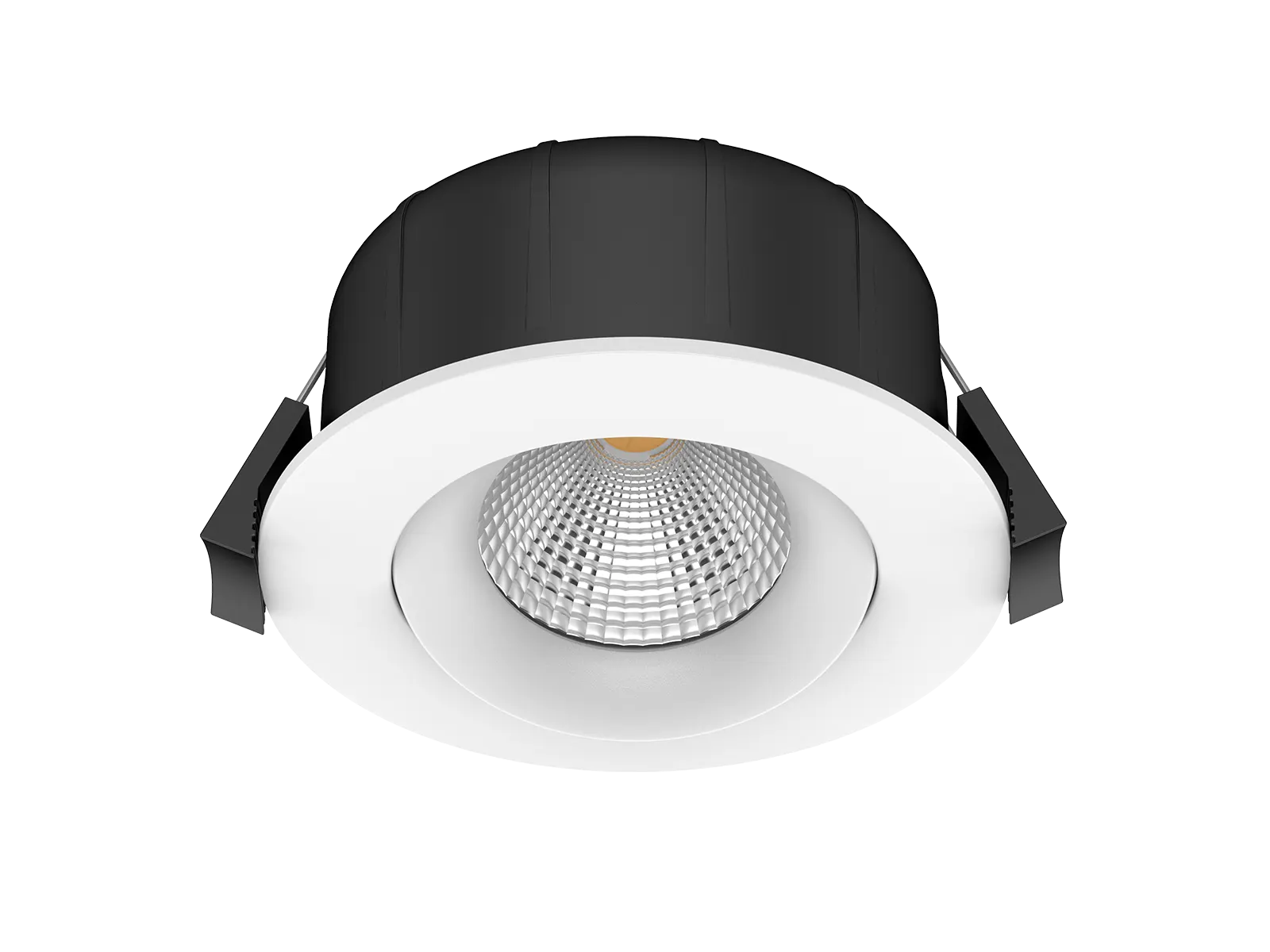

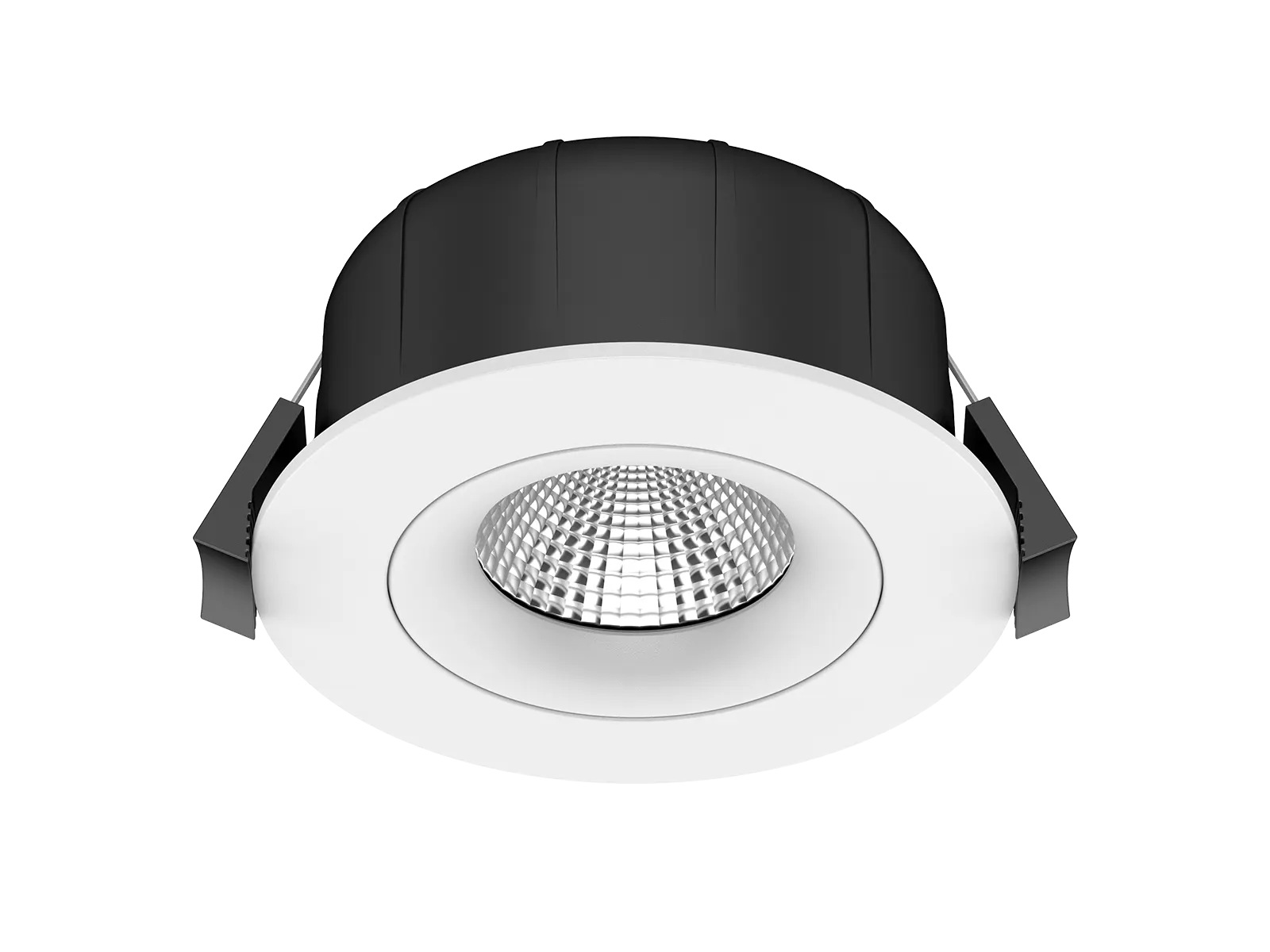

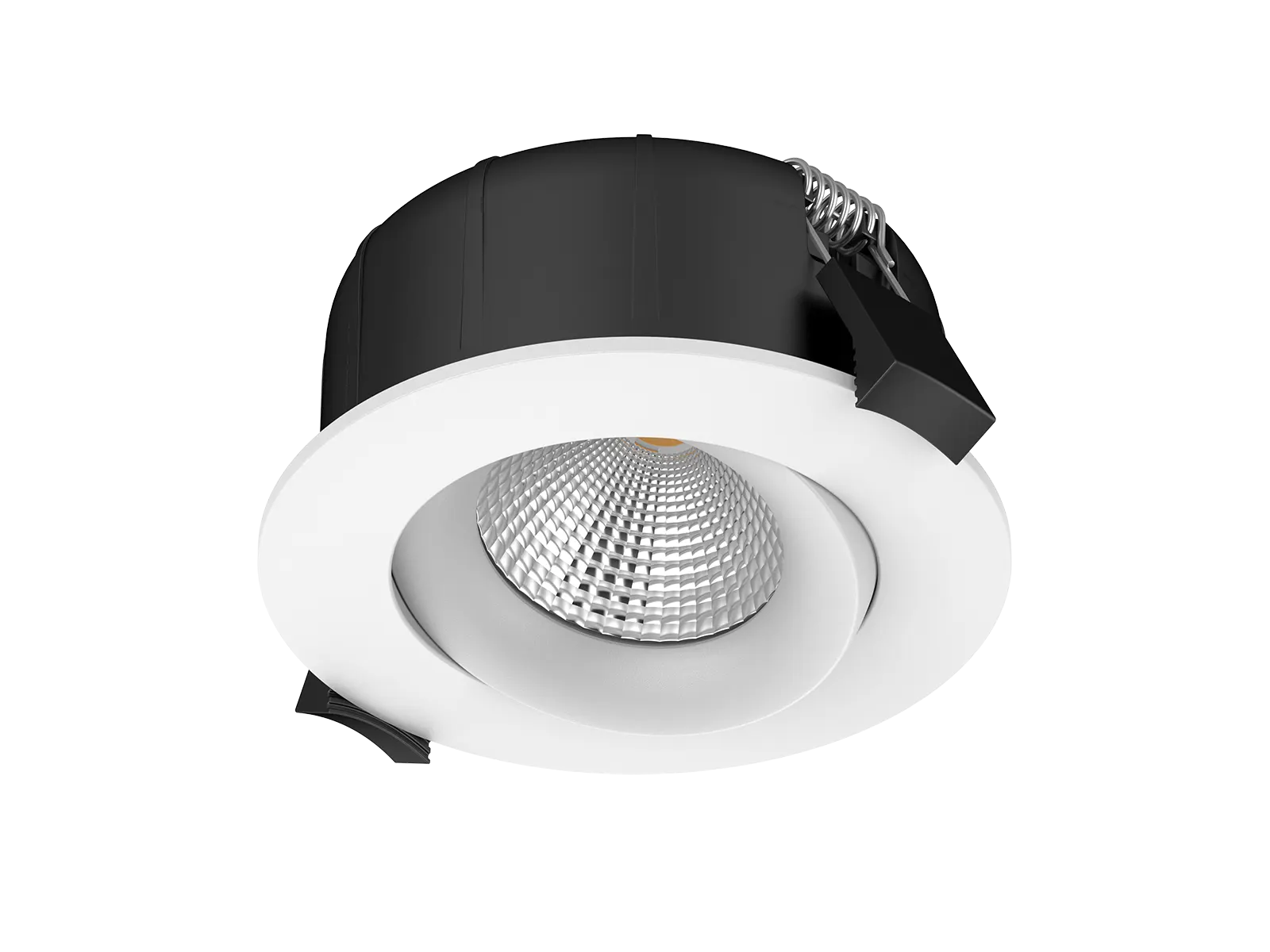

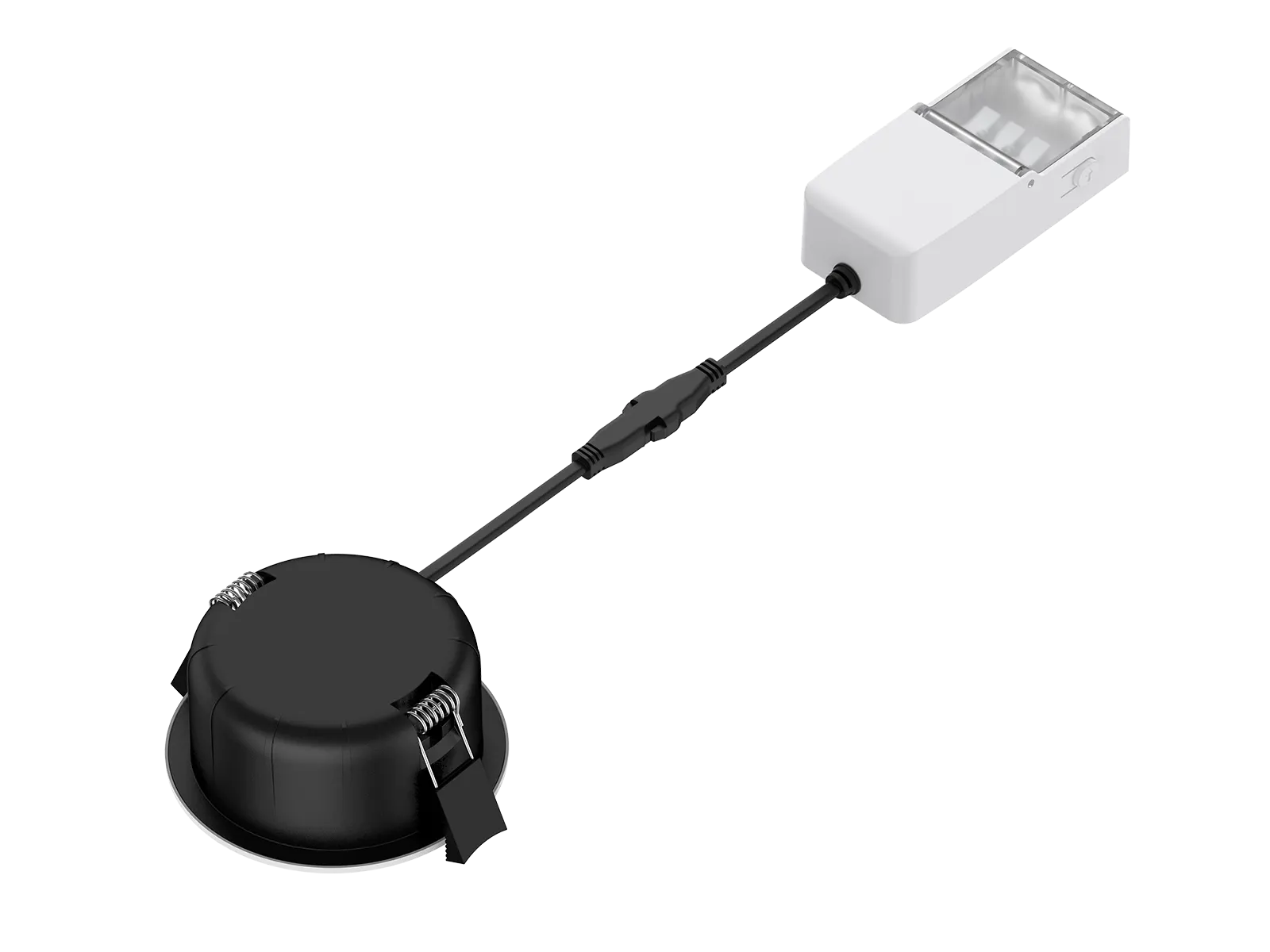

This downlight is a gyro design, it has a rear cover which is suitable for covering with insulation material directly. Adopt a high-lumen COB light source, ADC12 aluminum housing provides great heat dissipation. 15°/24°/36°/60° beam angle provided, available for Dim to warm 2000-3000K. The lamp has a female plug, and the driver has a male plug, which makes installation easier.
LED COB downlight features:
| Model No. | CL140-2.5-8W-D | CL140-2.5-8W-DW | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimension(mm) | Φ96*43.7mm | ||||||||||
| Cutout (mm) | 83mm | ||||||||||
| Watt(W) | 8W | ||||||||||
| Rated Input Voltage(V) | 230V | ||||||||||
| Input Voltage(V) | 200-240V | ||||||||||
| LED Module Input | DC33-38V | ||||||||||
| Light Source | COB | ||||||||||
| SDCM | <6 | ||||||||||
| CCT(K) | 1-CCT: 2700K/3000K/4000K/5000K | WW: 2000-3000K | |||||||||
| CCT Selection DIP Switch | NO | YES | |||||||||
| Non-DIM 1-CCT Luminous Flux (lm) ±5% |
730-890 | 650-785 | 500-687 | 380-497 | |||||||
| DIM 1-CCT Luminous Flux (lm) ±5% |
700-850 | 620-750 | 450-618 | 350-448 | |||||||
| CRI | 80 | 90 | 95 | 90-97 | |||||||
| Beam Angle (°) | 15º/24º/36º/60º | ||||||||||
| LED Driver | Built-out | ||||||||||
| Dimming Option | Triac/ DALI/ 0-10V | ||||||||||
| Electrical Class | Class II | ||||||||||
| Ingress Protection(IP Rating) | IP54(Below Ceiling) | ||||||||||
| Product Finishing | White RAL 9016/Black RAL9005 | ||||||||||
| Optics Material | PC | ||||||||||
| Housing Material | PC / Die-casting | ||||||||||
| Lifetime (hr) | 50000h | ||||||||||
| Glow wire test (°C) | 750°C | ||||||||||
| Operating Temp.(°C) | —20°C~45°C | ||||||||||
| Storage Temp.(°C) | —20°C~65°C | ||||||||||
| Installation | Recessed | ||||||||||
