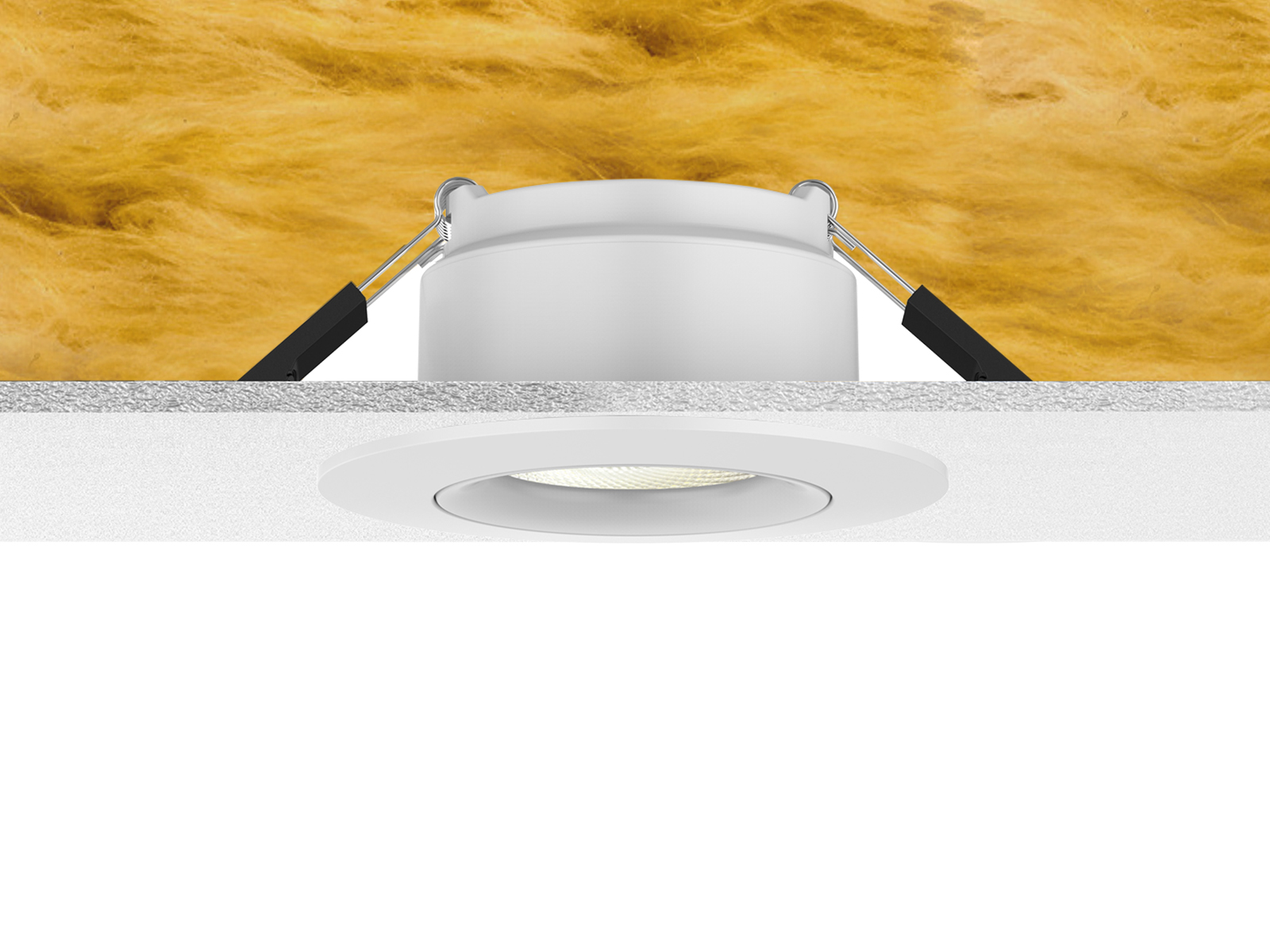

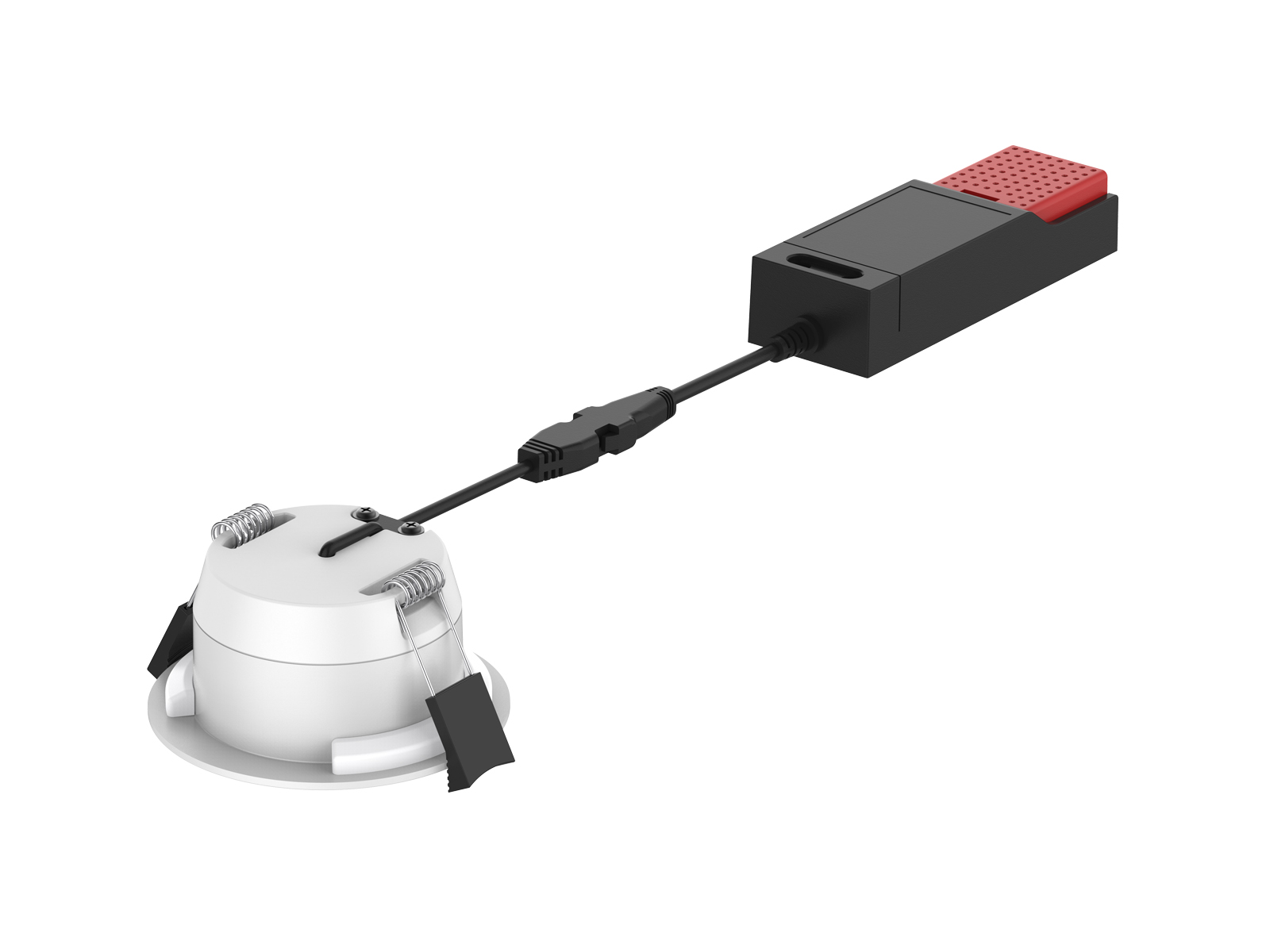

This downlight is a gyro design. Adopt lumen lumen-branded COB light source, ADC12 aluminum housing provides great heat dissipation. The luminaire is tilted 23° in all directions (360°), perfectly meeting the demands of different lighting angles. It is available for the Dim to Warm version (2000K~3000K), suitable for covering directly under insulation material. Two cutout size options: 68mm without ring, and 83mm with ring. Please keep at least 50mm height space above the ceiling when installing the lamp. For installation, the driver with fast connector inside, very convenient for wire connection.
COB LED downlight features:
| Code No. | CL148-2.5-6W-D | CL148-2.5-8W-D | CL148-2.5-6W-DW | CL148-2.5-8W-DW | ||||
|---|---|---|---|---|---|---|---|---|
| Dimension(mm) | Ø90*48mm | |||||||
| Cutout (mm) | 68mm without extension ring / 83mm with extension ring | |||||||
| Watt(W) | 6W | 8W | 6W | 8W | ||||
| Rated Input Voltage(V) | AC230V | |||||||
| Input Voltage(V) | AC220-240V | |||||||
| LED Module Input | DC33-38V | |||||||
| Light Source | COB | |||||||
| SDCM | <6 | |||||||
| CCT(K) | 1-CCT: 2700K/3000K/4000K | WW: 2000-2800K | WW: 2000K-3000K | |||||
| CCT Selection DIP Switch | NO | YES | ||||||
| DIM 1-CCT Luminous Flux (lm) ±5% | 450-650 | 350-550 | 300-500 | 600-800 | 450-700 | 380-650 | – | |
| CRI | 80 | 90 | 95 | 80 | 90 | 95 | 90-97 | |
| Beam Angle (°) | 15º/24º/36º/60º | |||||||
| LED Driver | Built-out | |||||||
| Dimming Option | Triac/Dali /0-10V | |||||||
| Electrical Class | Class II | |||||||
| Ingress Protection (IP Rating) | IP54(only for the LED cover) | |||||||

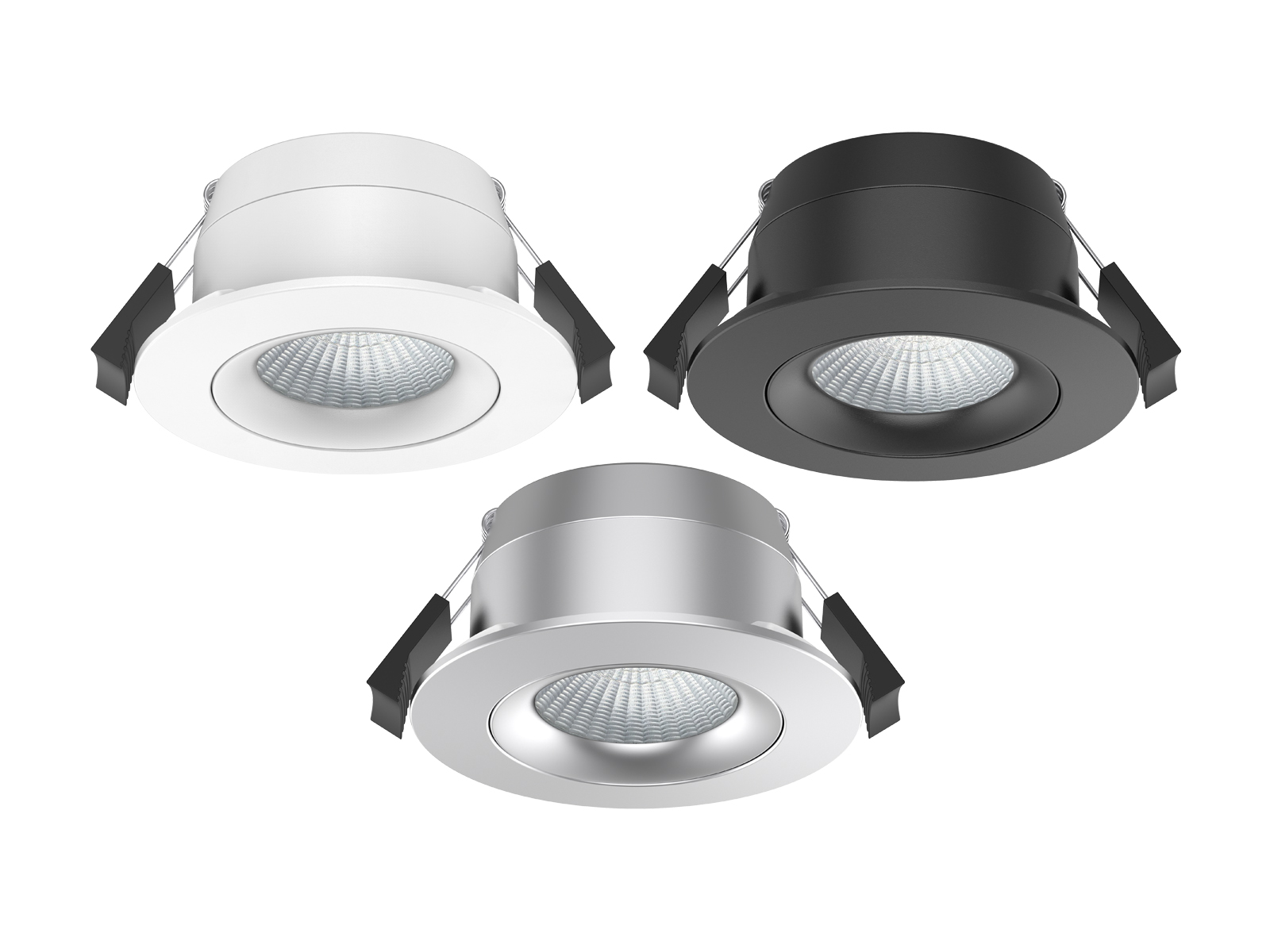

| Product Finishing(Base) | White/Black/Silver | |||||||
| Materials of Optics | PC | |||||||
| Materials of Housing | Die-casting | |||||||
| Lifetime (hr) | 50000h | |||||||
| Glow wire test (℃ ) | 750℃ | |||||||
| Operating Temp. (℃ ) | -20℃ ~45℃ | |||||||
| Storage Temp. (℃ ) | -20℃ ~65℃ | |||||||
| Inst allation | Recessed | |||||||
