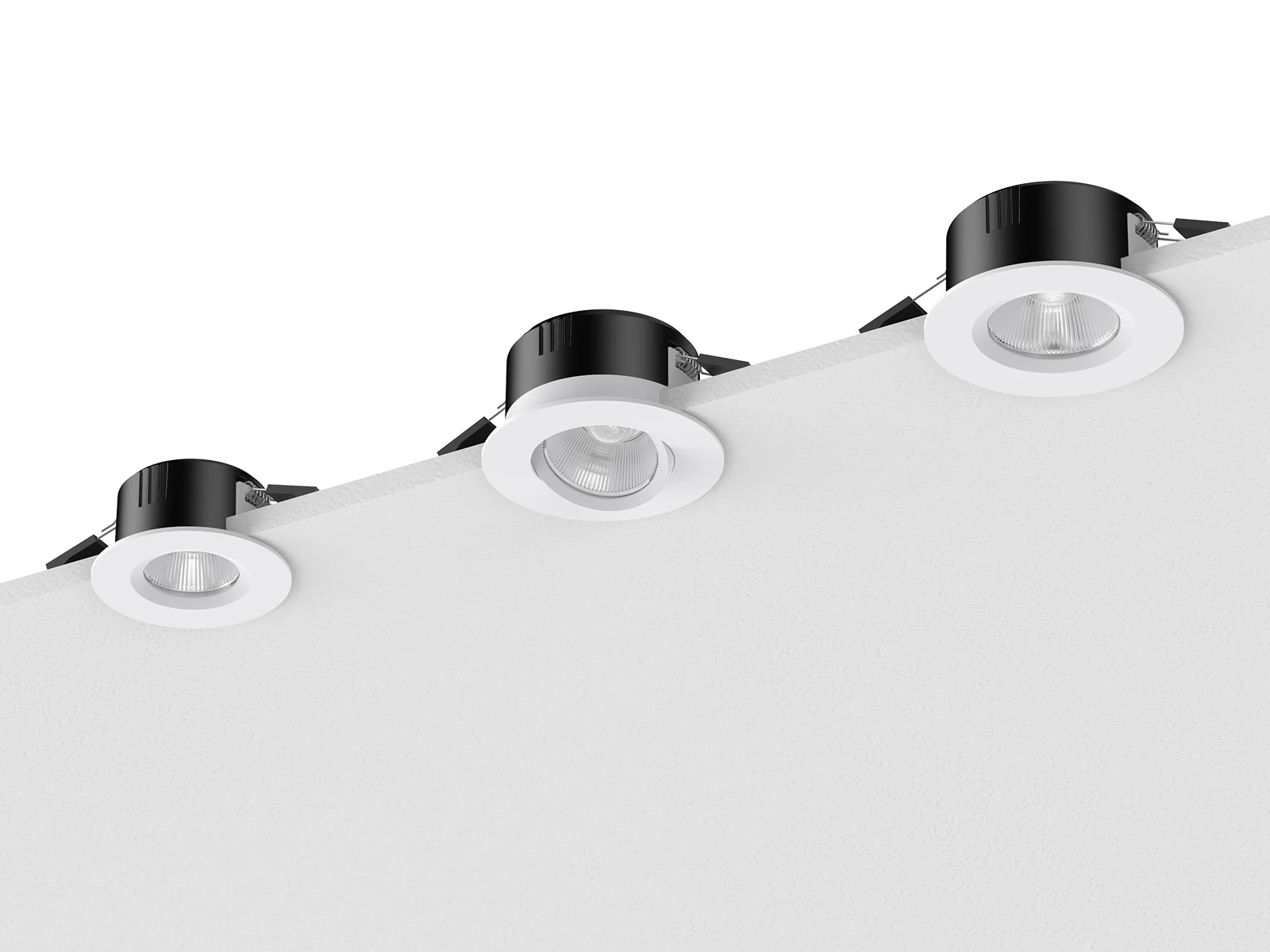

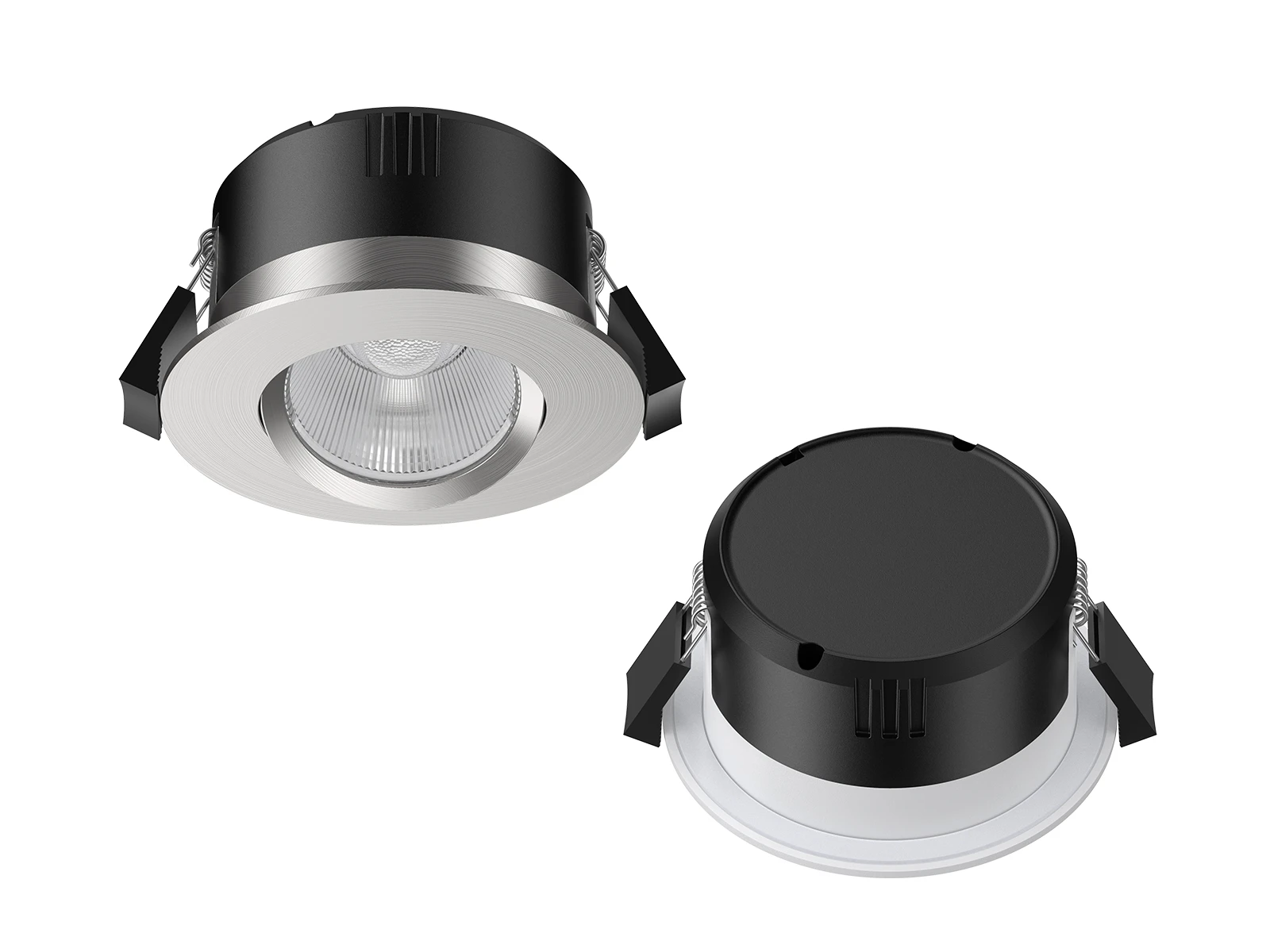

DL441/CL441 is a minimalist recessed downlight that perfectly showcases the clean lines and modern aesthetics of a space. It utilizes a micro-prismatic reflector and lens design to enhance the lighting efficiency of the fixture. It offers optional beam angles of 36° and 60° . There are two designs available: fixed and adjustable, both featuring an IP65 waterproof structure. The lamp adopts ADC12 aluminum housing to reach a great thermal management and ensure a steady and long lifespan. The high-lumen COB light source is available for CCT adjustment.
Application Areas: It is designed for general lighting applications in hotel rooms, shopping mall stores, villa, home office and ect.
|
Code |
CL441-2-5W |
CL441-2.5-8W |
CL441-3-10W |
DL441-2-5W |
DL441-2.5-8W |
DL441-3-10W |
||
|---|---|---|---|---|---|---|---|---|
|
Dimension(mm) |
Ø80*46 |
Ø95*49 |
Ø100*51 |
Ø80*40 |
Ø95*43 |
Ø100*45 |
||
|
Cutout(mm) |
Ø68 |
Ø83 |
Ø90 |
Ø68 |
Ø83 |
Ø90 |
||
|
Watt(W) |
5W |
8W |
10W |
5W |
8W |
10W |
||
|
Rated Input Voltage |
AC220-240V |
|||||||
|
Input Voltage |
AC198-264V |
|||||||
|
LED Module Input |
DC36V |
|||||||
|
Light Source |
COB |
|||||||
|
SDCM |
<6 |
|||||||
|
CCT(K) |
1-CCT: 3000K/4000K/5000K/ || 3-CCT: 3000K + 4000K + 5000K |
|||||||
|
CCT Selection DIP Switch |
YES |
|||||||
|
Luminous Flux (lm) ±5% CRI80 |
1-CCT |
Non-DIM |
530~580 |
850~880 |
1100~1200 |
530~580 |
850~880 |
1100~1200 |
|
|
|
DIM |
500~560 |
800~850 |
1090~1190 |
500~560 |
800~850 |
1090~1190 |
|
Luminous Flux (lm) ±5% CRI90 |
3-CCT |
Non-DIM |
340~360 |
530~600 |
700~770 |
340~360 |
530~600 |
700~770 |
|
|
|
DIM |
340~360 |
520~600 |
650~700 |
340~360 |
520~600 |
650~700 |
|
CRI |
80/90 |
|||||||
|
Beam Angle (°) |
36°/60° |
|||||||
|
UGR |
- |
|||||||
|
LED Driver |
Driver built-out |
|||||||
|
Dimming Option |
Triac |
|||||||
|
Sensor |
No |
|||||||
|
Emergency Kits |
No |
|||||||
|
Electrical Class |
Class II |
|||||||
|
Ingress Protection(IP Rating) |
IP65(Only for LED cover) IP20(For other part) |
|||||||
|
Impact Resistance(IK Rating) |
- |
|||||||
|
Product Finishing |
White RLA9016 / Nickel Brushed |
|||||||
|
Optics Material |
PC |
|||||||
|
Housing Material |
Die-Casting Aluminium & PC |
|||||||
|
Lifetime (hr) |
50,000h |
|||||||
|
Glow wire test (°C) |
750°C |
|||||||
|
Operating Temp.(°C) |
-20°C-45°C |
|||||||
|
Storage Temp.(°C) |
-20°C~65°C |
|||||||
|
Installation |
Recessed |
|||||||
