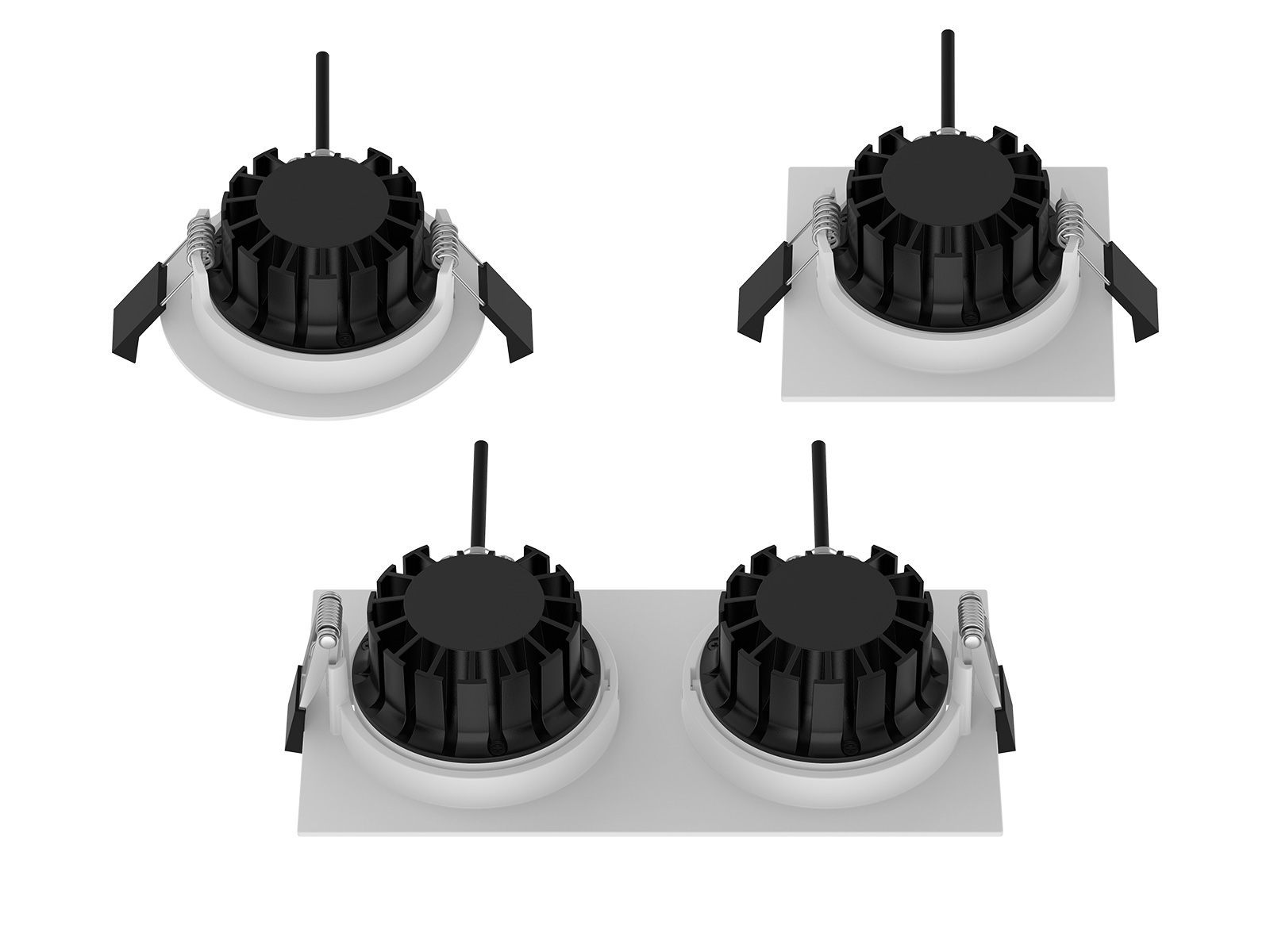

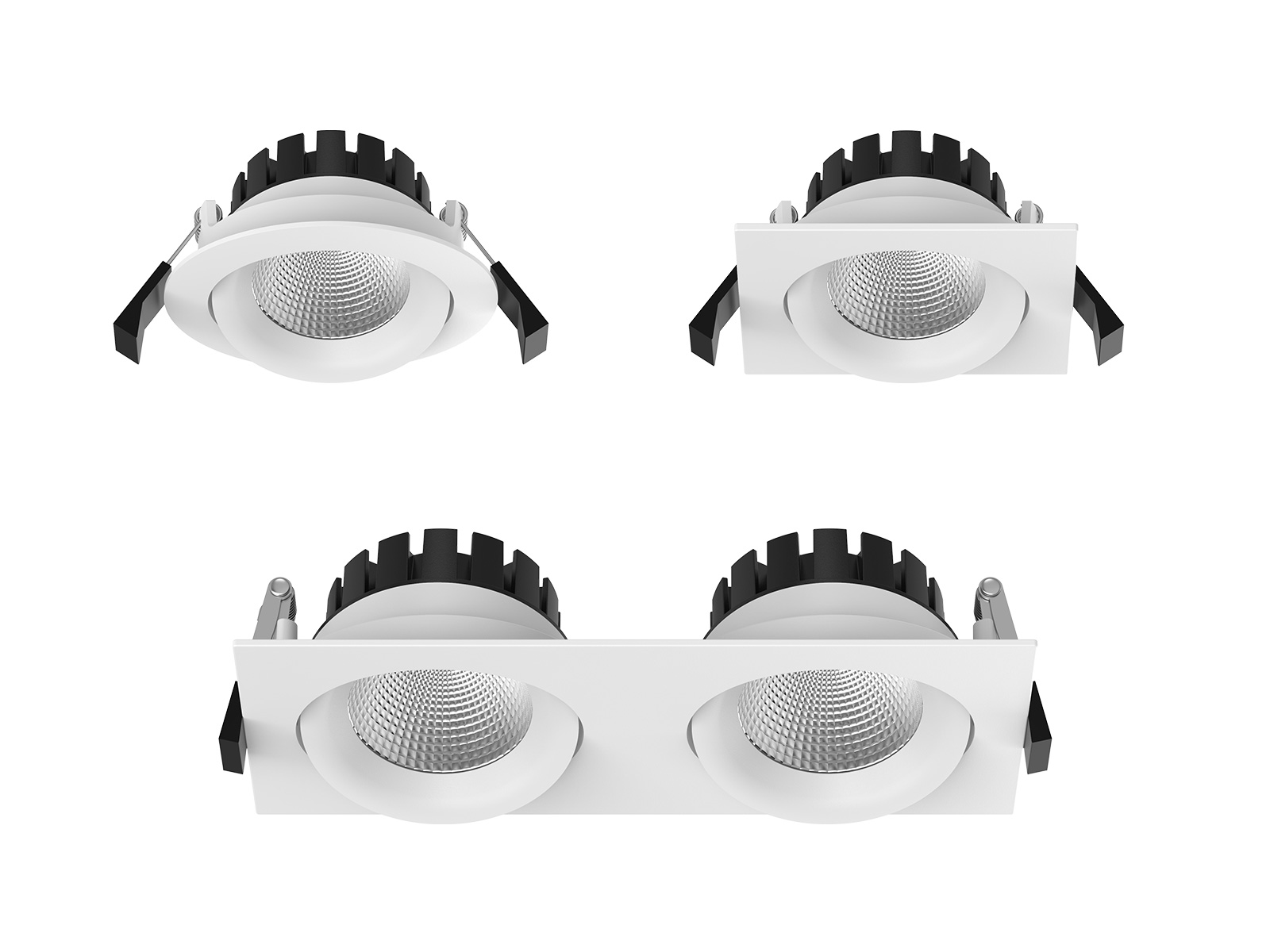

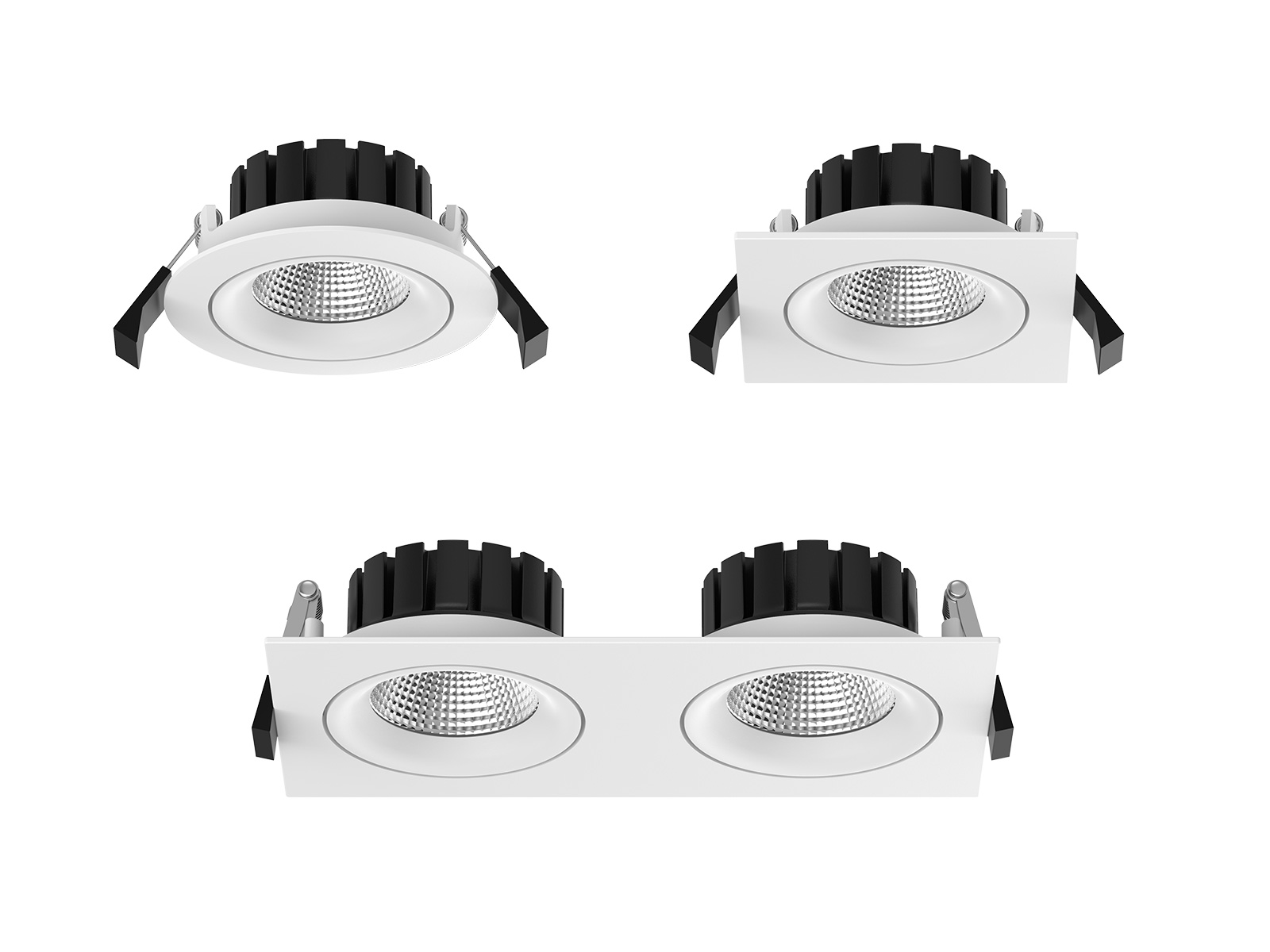

The Up-shine mini downlight CL76/CL76B is specifically designed for the European market, offering both circular and square shape options. Both shapes can be tilted at a 25-degree angle, with beam angle options of 15°/24°/36°/60° to choose from. Additionally, it is also available in Dim to Warm (2000K~3000K) and CCT changeable versions, catering perfectly to various demands.
APPLICATIONS：It is designed for general lighting applications in office, supermarket, shop, school, hotel, etc. It is also widely used for public areas, such as stairway, lobby, reception, corridors etc.
| CODE | CL76-3-8W | CL76-3-10W | CL76-3-10W-P | CL76B-3-8W | CL76B-3-10W | CL76B-20W | ||
|---|---|---|---|---|---|---|---|---|
| Dimension(mm) | Ø95*55 | 95*95*55 | 190*95*55 | |||||
| Cutout(mm) | Ø82-88 | 182*85 | ||||||
| Watt(W) | 8W | 10W | 10W | 8W | 10W | 2X10W | ||
| Input Voltage | AC200-240V | |||||||
| LED Module Input | DC33-38V | |||||||
| Light Source | COB | |||||||
| CCT(K) | 1-CCT: 2700K / 3000K / 4000K/5000K||2- CCT: 3000K+4000K | 2000K-3000K | 1-CCT: 2700K / 3000K / 4000K/5000K||2-CCT: 3000K+4000K | |||||
| CCT Selection DIP Switch | - | |||||||
| Luminous Flux (lm) ±5% CRI90 | 1-CCT | Non-DIM | 520-570 | 650-770 | - | 520-570 | 650-770 | 1400-1850 |
| DIM | 600-730 | 610-720 | 450 | 520-570 | 600-730 | 1300-1750 | ||
| 2-CCT | Non-DIM | 630-690 | 810-880 | - | 630-690 | 810-880 | 1700-1800 | |
| DIM | 580-620 | 750-810 | - | 580-620 | 750-810 | 1600-1700 | ||
| Beam Angle (°) | 15° / 24° / 36° / 60° | |||||||
| UGR | - | |||||||
| Dimming Option | Triac | |||||||
| Product weight(Kg) | N.W/PC | 0.34 | 0.34 | 0.34 | 0.34 | 0.34 | 0.5 | |
| G.W/PC | 0.38 | 0.38 | 0.38 | 0.38 | 0.38 | 0.65 | ||
| Package weight(Kg) | N.W/CTN | 16.32 | 16.32 | 16.32 | 16.32 | 16.32 | 12 | |
| G.W/CTN | 18.3 | 18.3 | 18.3 | 18.3 | 18.3 | 16.57 | ||
| Qty/CTN (PCS) | 48 | 48 | 48 | 48 | 48 | 24 | ||
| Carton Size(mm) | 460*460*295 | 460*460*295 | 460*460*295 | 460*460*295 | 460*460*295 | 480*360*455 | ||
| 20GP(pcs) | 16128 | 16128 | 16128 | 16128 | 16128 | 9000 | ||
| 40HQ(pcs) | 38400 | 38400 | 38400 | 38400 | 38400 | 18120 | ||
