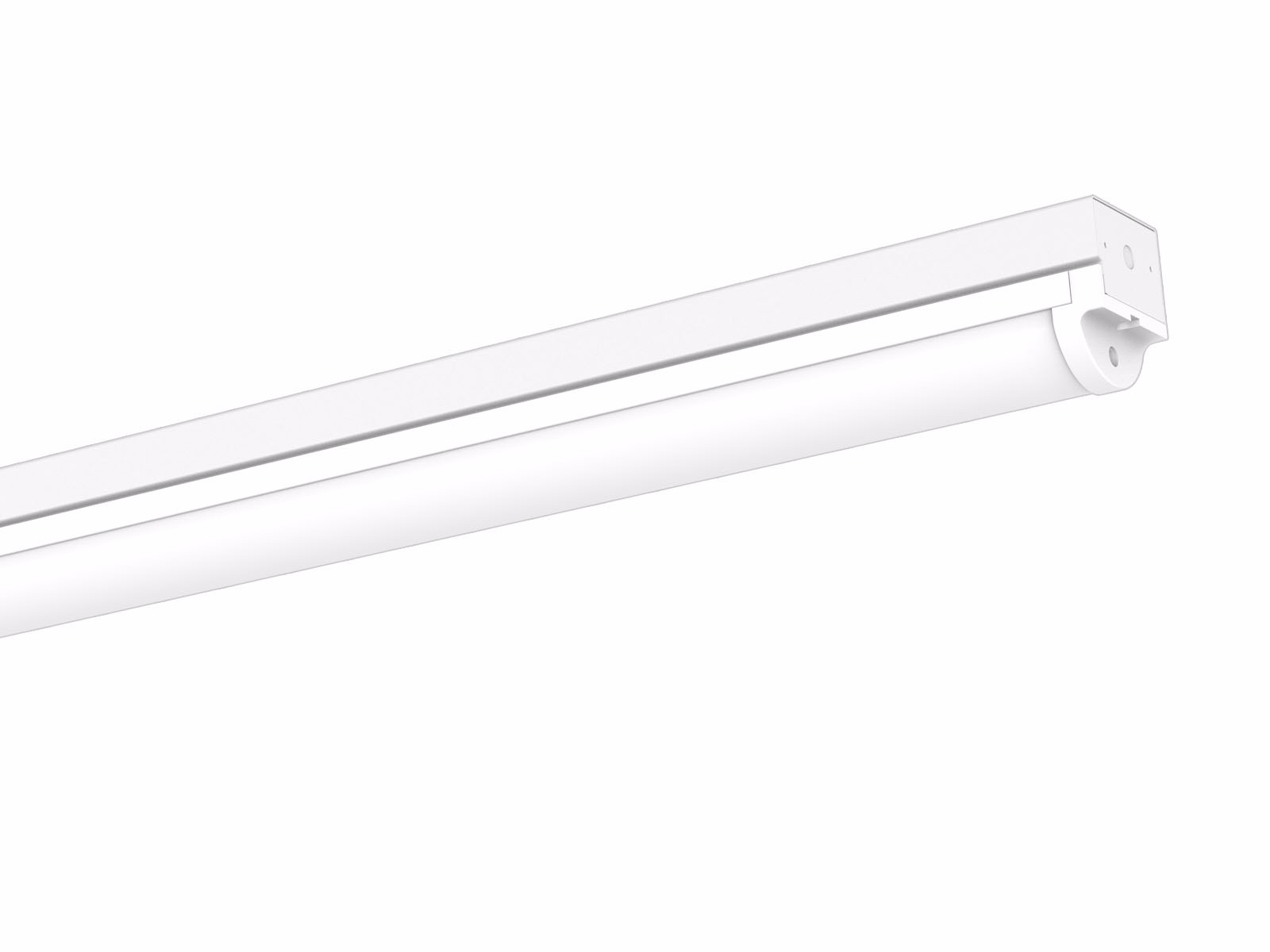

DB09 LED Batten

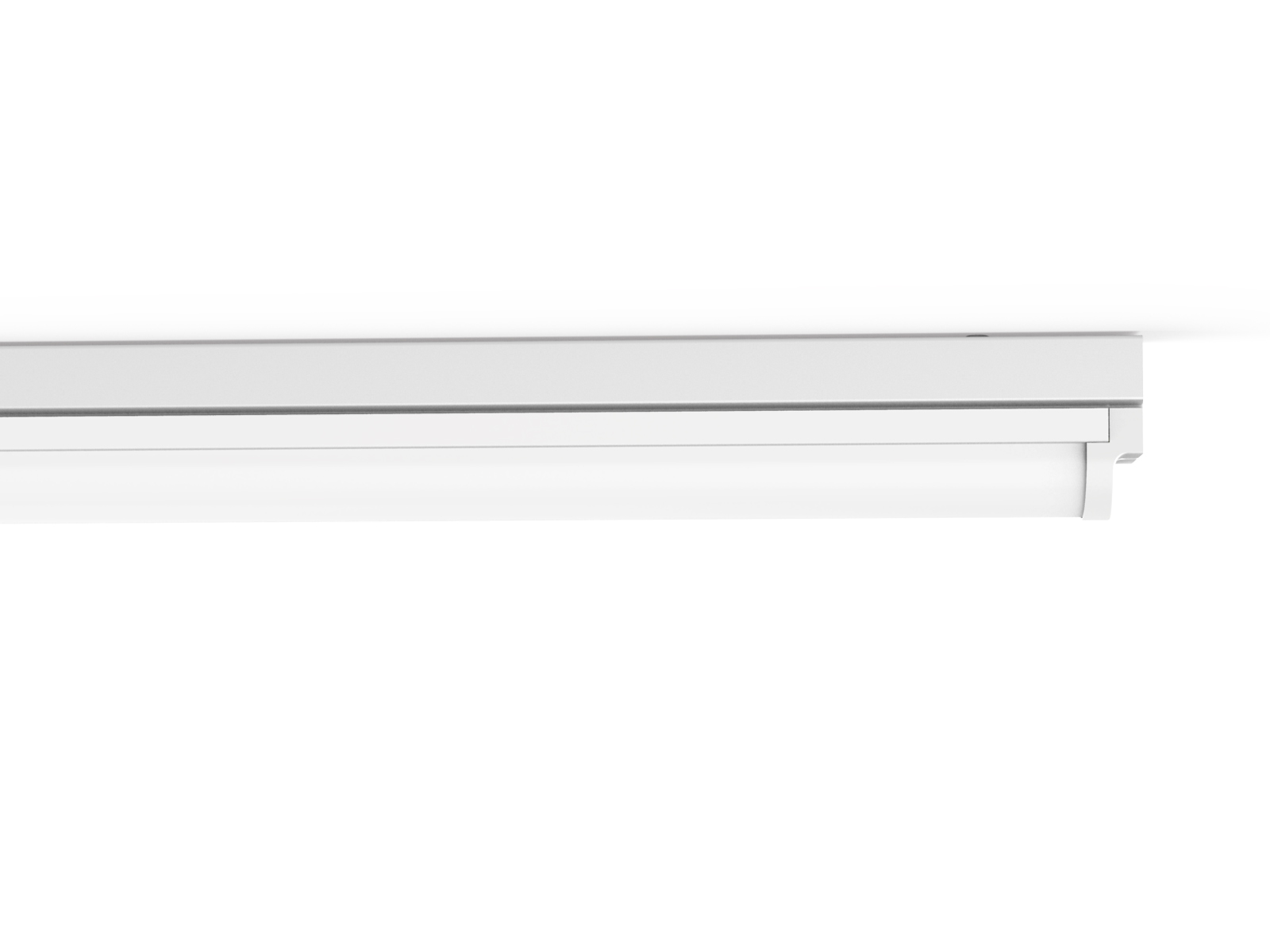

DB09 1 Surface Mounted LED Batten

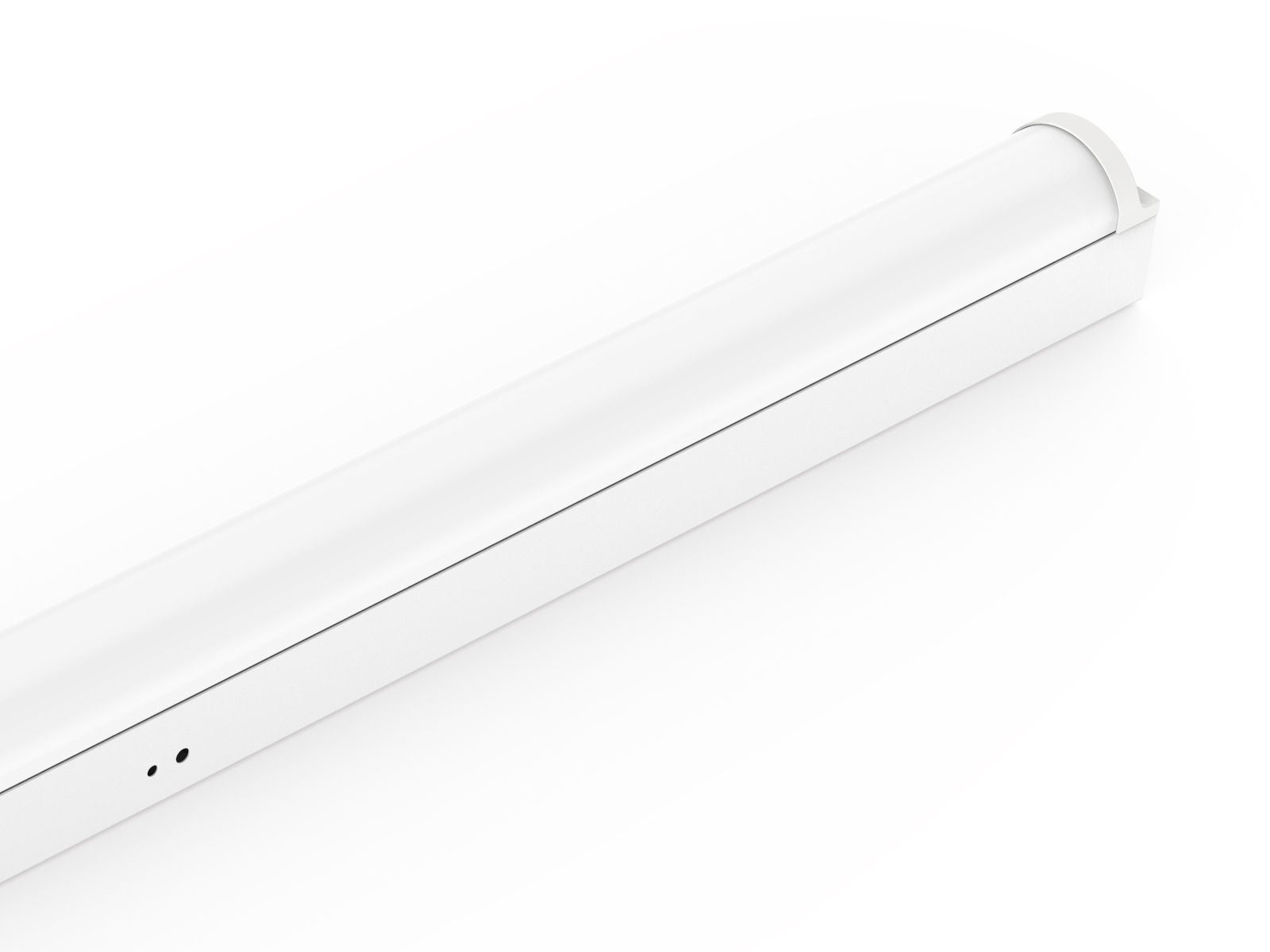

DB09 2 105lmW LED Linear

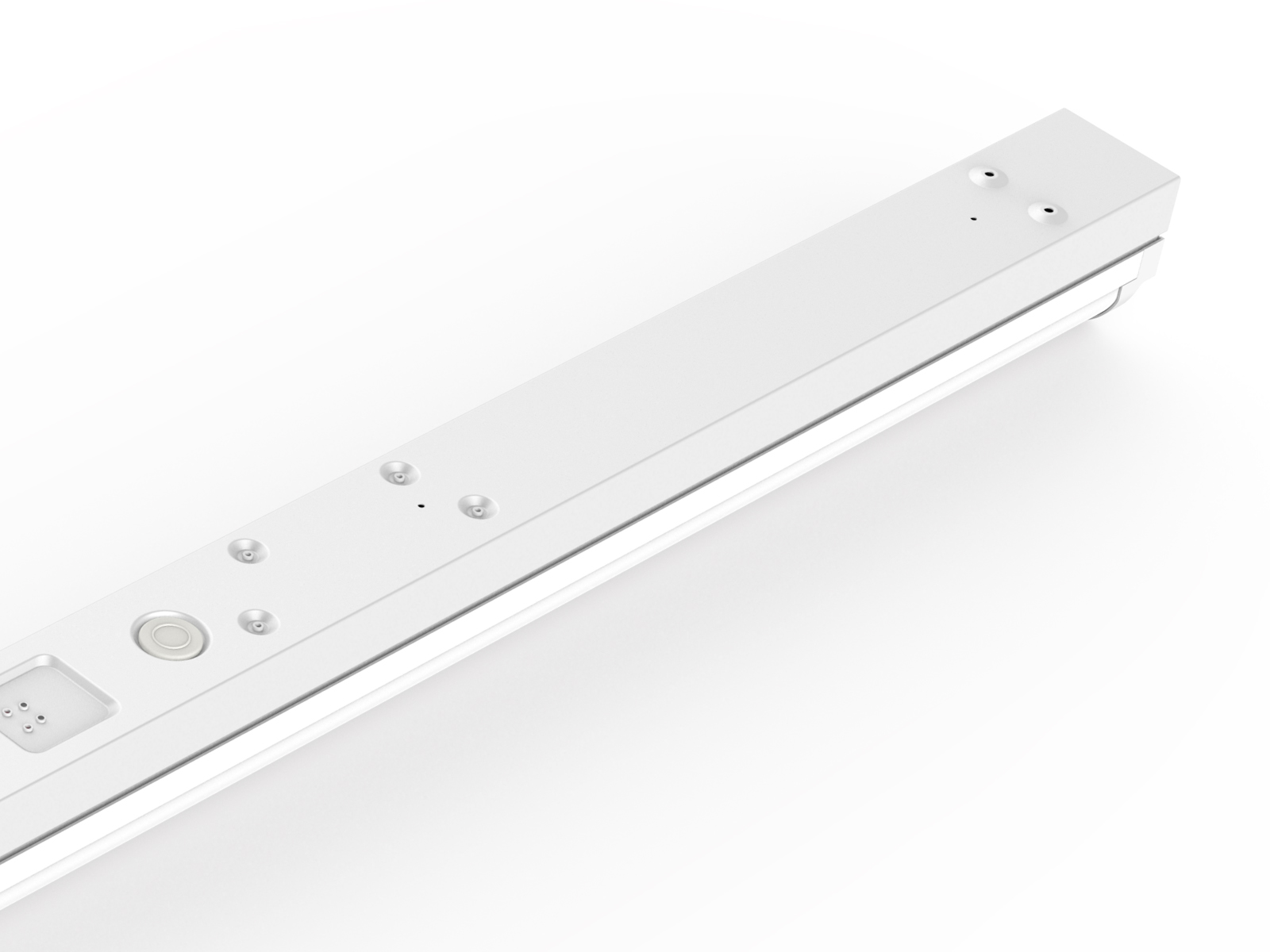

IP54 waterproof DB09 3 LED Linear Batten
DB09 LED Batten
DB09 1 Surface Mounted LED Batten
DB09 2 105lmW LED Linear
IP54 waterproof DB09 3 LED Linear Batten

DB09 LED Batten

The product has been discontinued online. Please contact our sales representative for more information.

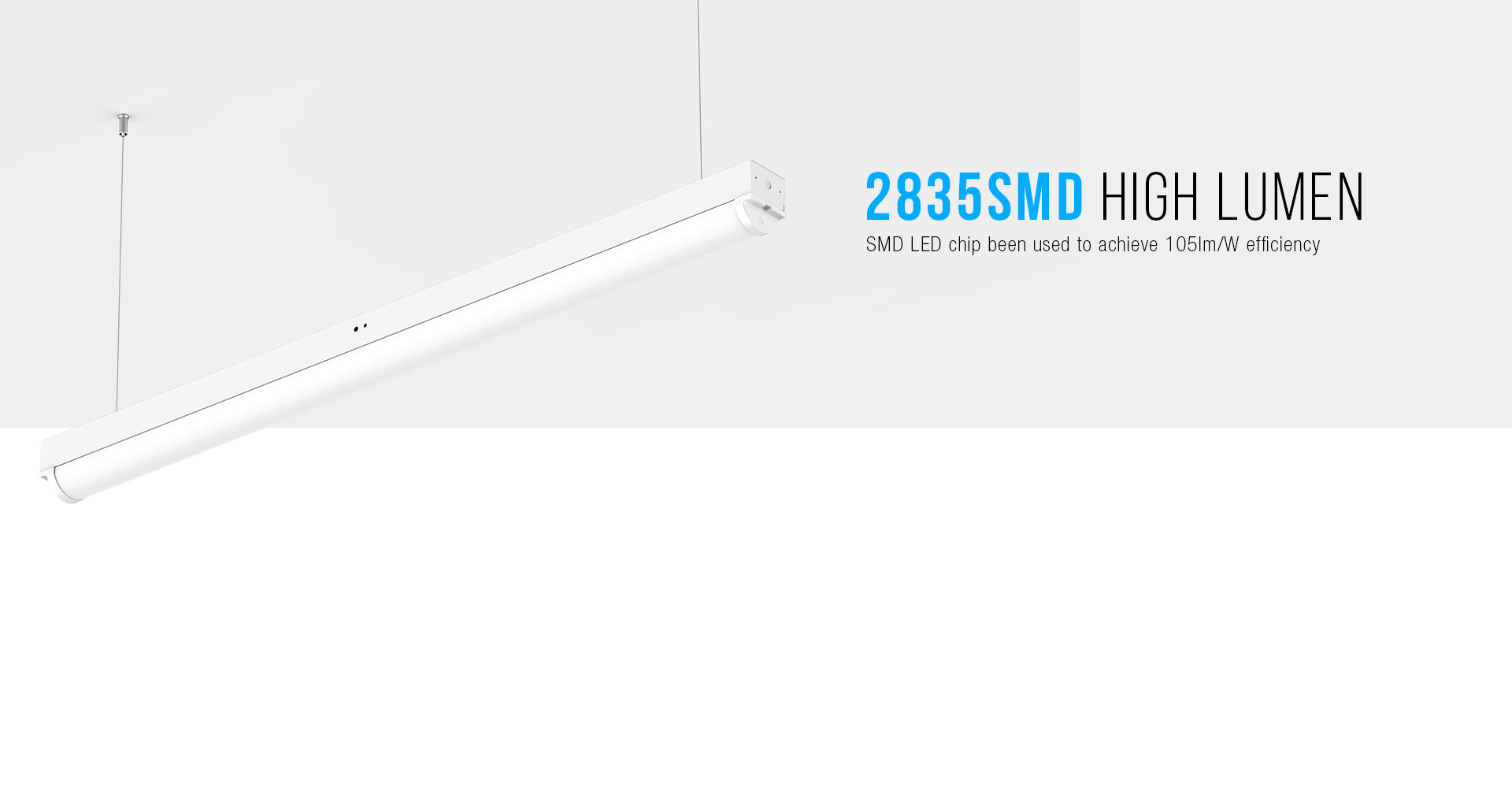

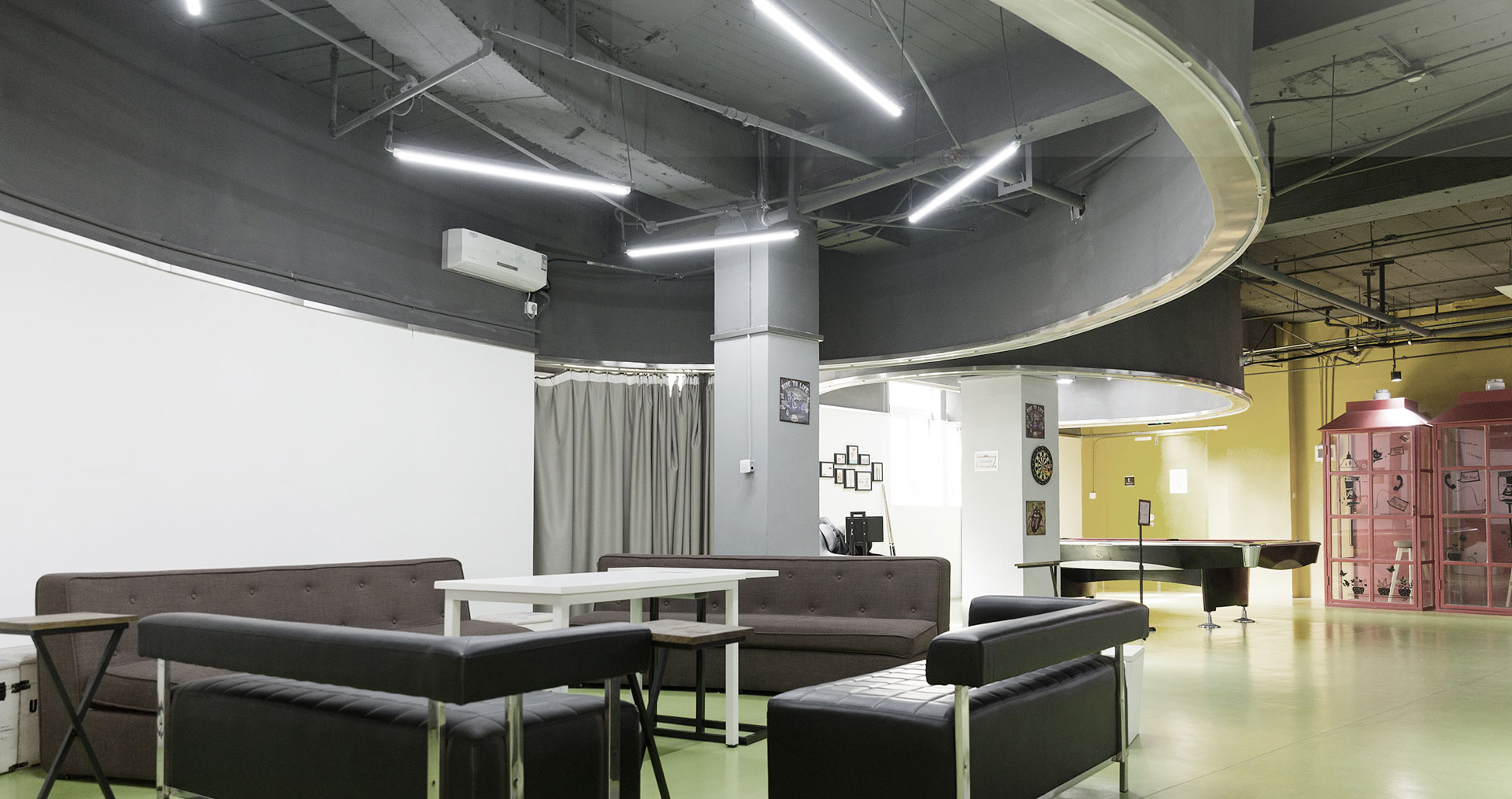

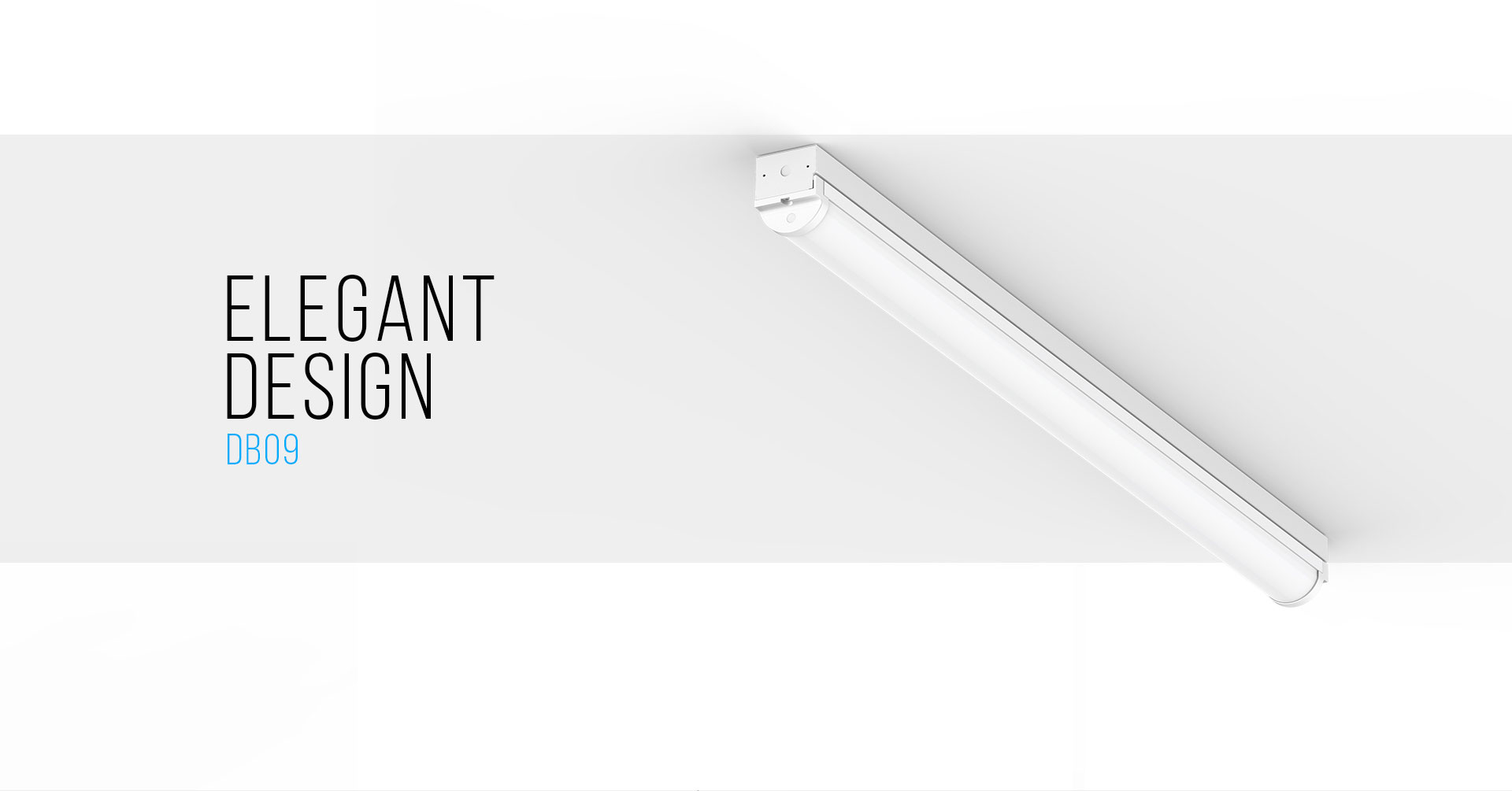

DB09 LED Linear is mainly designed for Oceania and European market, 2835 high lumen SMD LED chip been used to achieve 105lm/W efficiency. IP54 waterproof structural design, ideal replacement for damp location. Elegant design with 3 types of installation: suspended, surface mounted and recessed, suitable for meeting room, office, school, hospital etc.
Overview
Specifications

DB09 High Quality Batten Light_01105lmW LED Batten Lights_02IP54 Waterproof LED Batten_03Commercial LED Batten Lights_04


ip54 led batten lights
CE, RoHS approved led batten

CE, RoHS approved

High CRI IP65 LED Batten

SMD LED chips with excellent color rendering index

Code LEDChip Wattage BeamAngle CCT Lumens Dimension Download
UP-DB09-600-12W 2835SMD 12W 120° 3000K,4000K,5000K,5700K 1200-1260lm L620*W70.5*H83mm Specification
UP-DB09-1200-25W 2835SMD 25W 120° 3000K,4000K,5000K,5700K 2500-2620lm L1225*W70.5*H83mm Specification
UP-DB09-600-12W-S-E Microwavesensor 2835SMD 12W 120° 3000K,4000K,5000K,5700K 1200-1260lm L620*W70.5*H83mm Specification
UP-DB09-1200-22W-S-E Microwavesensor 2835SMD 22W 120° 3000K,4000K,5000K,5700K 2460-2600lm L1225*W70.5*H83mm Specification
UP-DB09-1200-25W-S-E Microwavesensor 2835SMD 25W 120° 3000K,4000K,5000K,5700K 2500-2620lm L1225*W70.5*H83mm Specification
