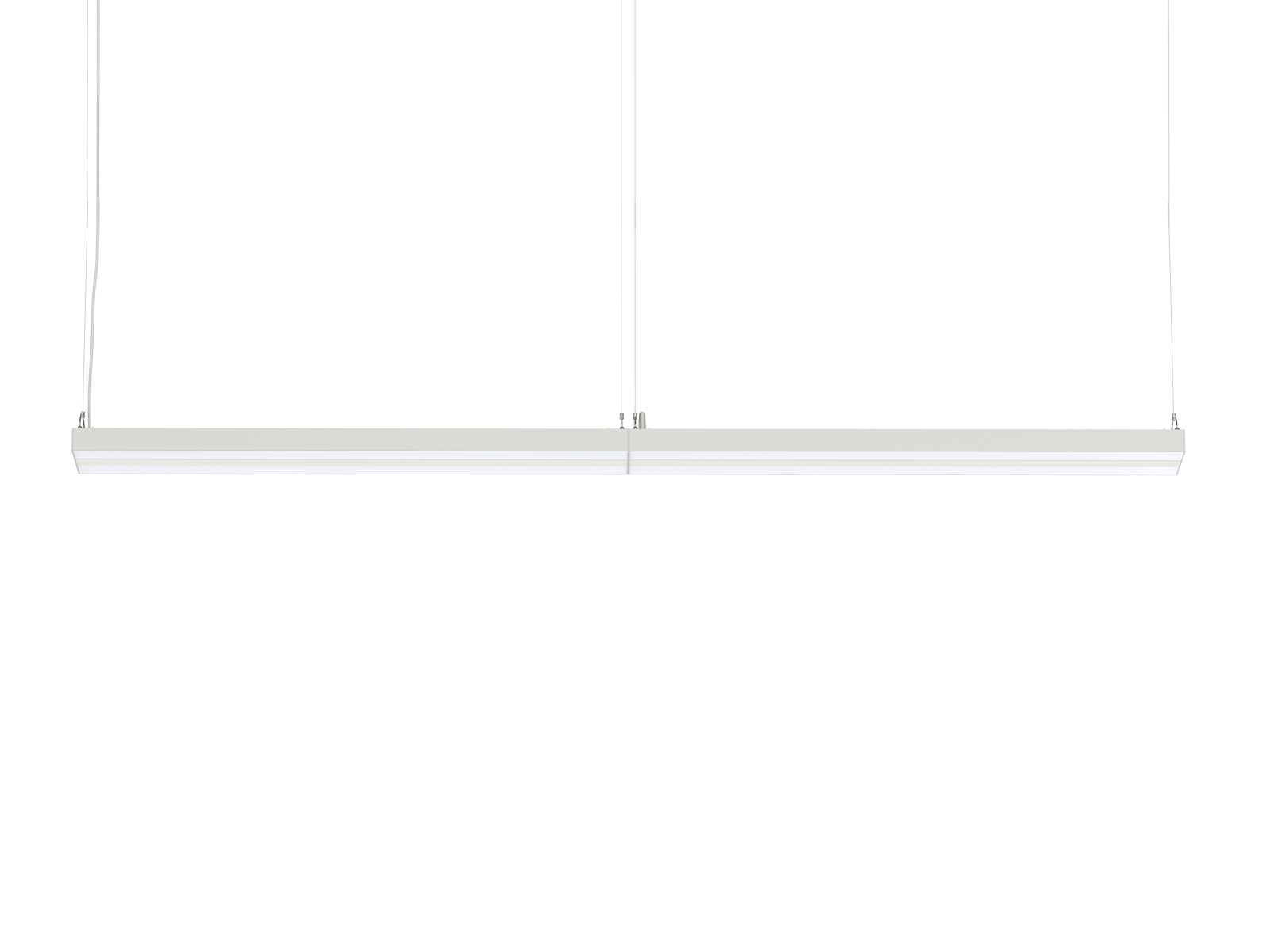

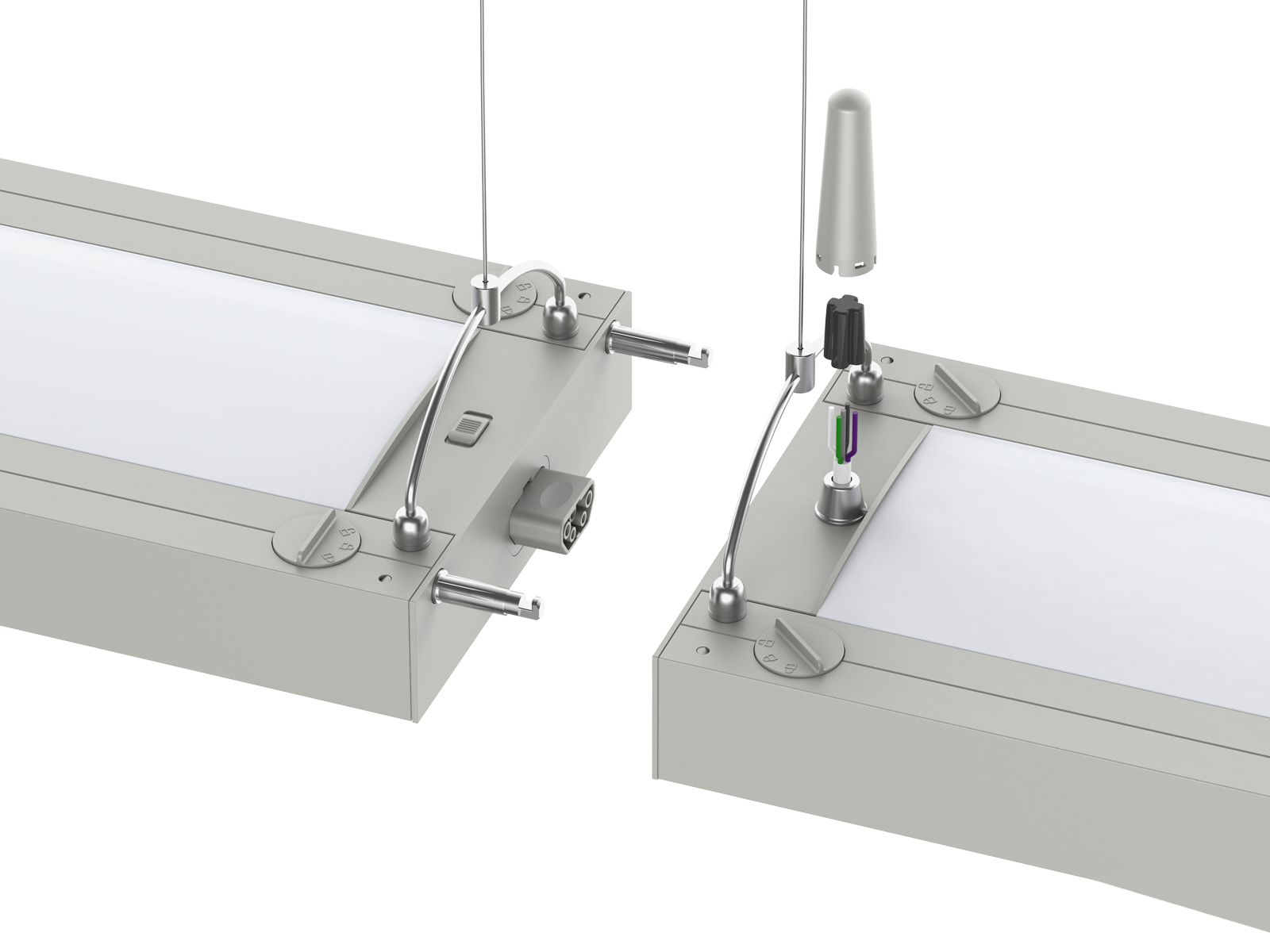

This batten light is a pluggable and seamless splicing design with patent. It adopts high lumen SMD LED chip, up & down lighting design offers a softer lighting output, anti-glare with UGR<19. It is screwless and snap assembly design, pluggable splicing, very convenient for installation and maintenance. Besides, slim lamp body with aluminium material, which provides a great thermal management.
LED linear light features:
Code No. | DB104A-1200-40W | DB104A-1200-40W-DA | DB104A-1200-40W-DAP2 | DB104A-1500-55W-DA | DB104A-1500-55W-DAP2 | |
---|---|---|---|---|---|---|
Dimension(mm) | 1200×200×50 | 1500×200×50 | ||||
Cutout (mm) | - | |||||
Watt(W) | 40W | 55W | ||||
Rated Input Voltage(V) | AC230V | AC200-240V | ||||
Input Voltage(V) | AC220-240V | AC180-264V | ||||
LED Module Input | DC36V 1050mA | DC36V 1500mA | ||||
Light Source | SMD | |||||
SDCM | <6 | |||||
CCT(K) | 3000K/4000K/5700K | 2-CCT:4000K/5700K | 3000K/4000K/5700K | 2-CCT:4000K/5700K | ||
CCT Selection DIP Switch | NO | YES | NO | YES | ||
Luminous Flux (lm) ±5% | 1-CCT | 4200-4600 | NO | 5700-6300 | NO | |
2-CCT | NO | 4200-4600 | NO | 5700-6300 | ||
CRI | Ra>80 | |||||
Beam Angle (°) | 100° | |||||
UGR | <19 | |||||
LED Driver | Built-in | |||||
Dimming Option | - | DALI | ||||
Sensor | - | |||||
Emergency Kits | - | |||||
Electrical Class | Class I | |||||
Ingress Protection (IP | IP20 | |||||
Rating) | ||||||
Impact Resistance (IK | - | |||||
Rating) | ||||||
Product Finishing(Base) | Gray | |||||
Materials of Optics | PC | |||||
Materials of Housing | Aluminum | |||||
Lifetime (hr) | 50,000h | |||||
Glow wire test (℃ ) | 750℃ | |||||
Operating Temp. (℃ ) | -20℃ ~45℃ | |||||
Storage Temp. (℃ ) | -20℃ ~65℃ | |||||
Installation | Pendant |
