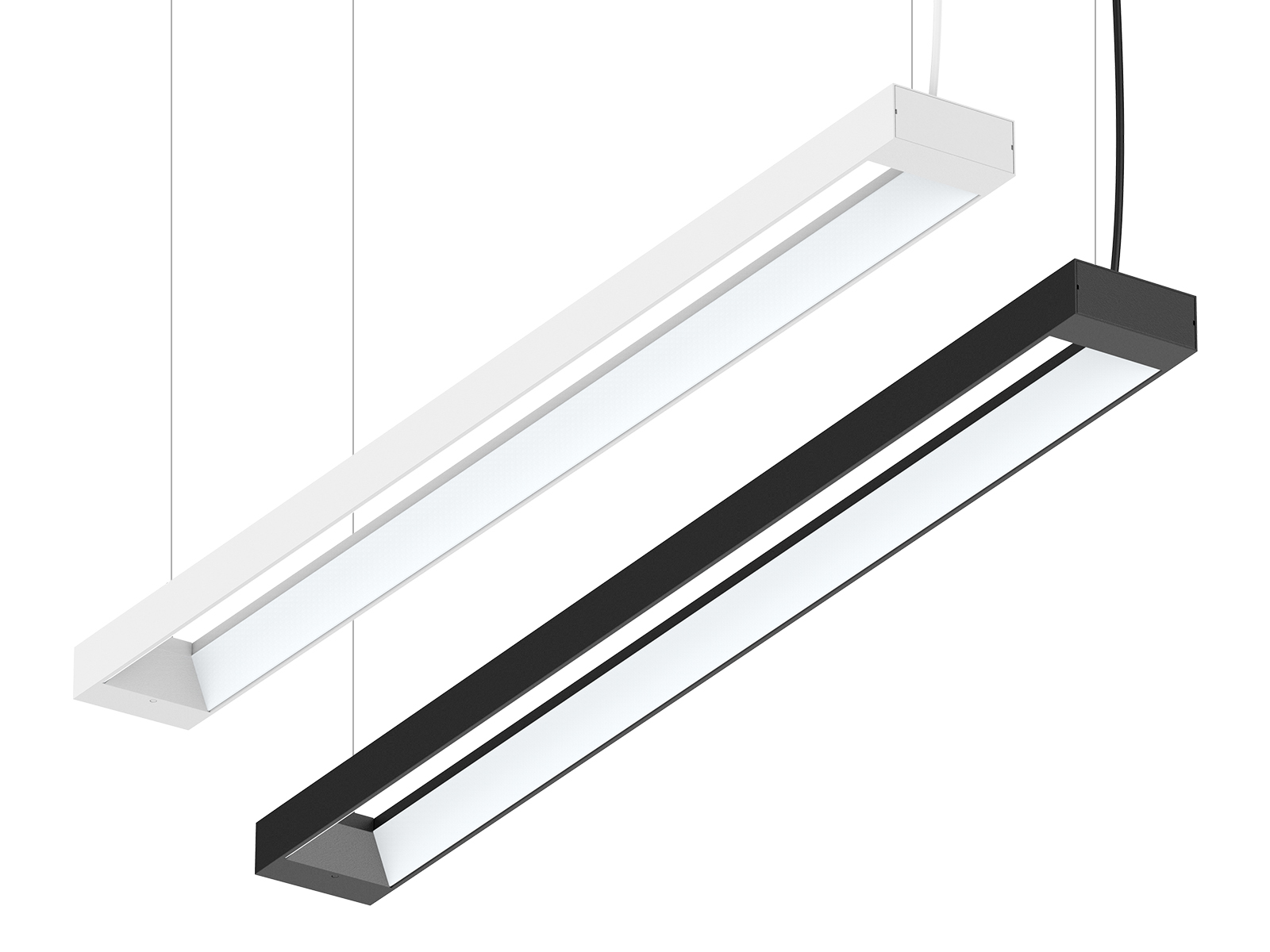

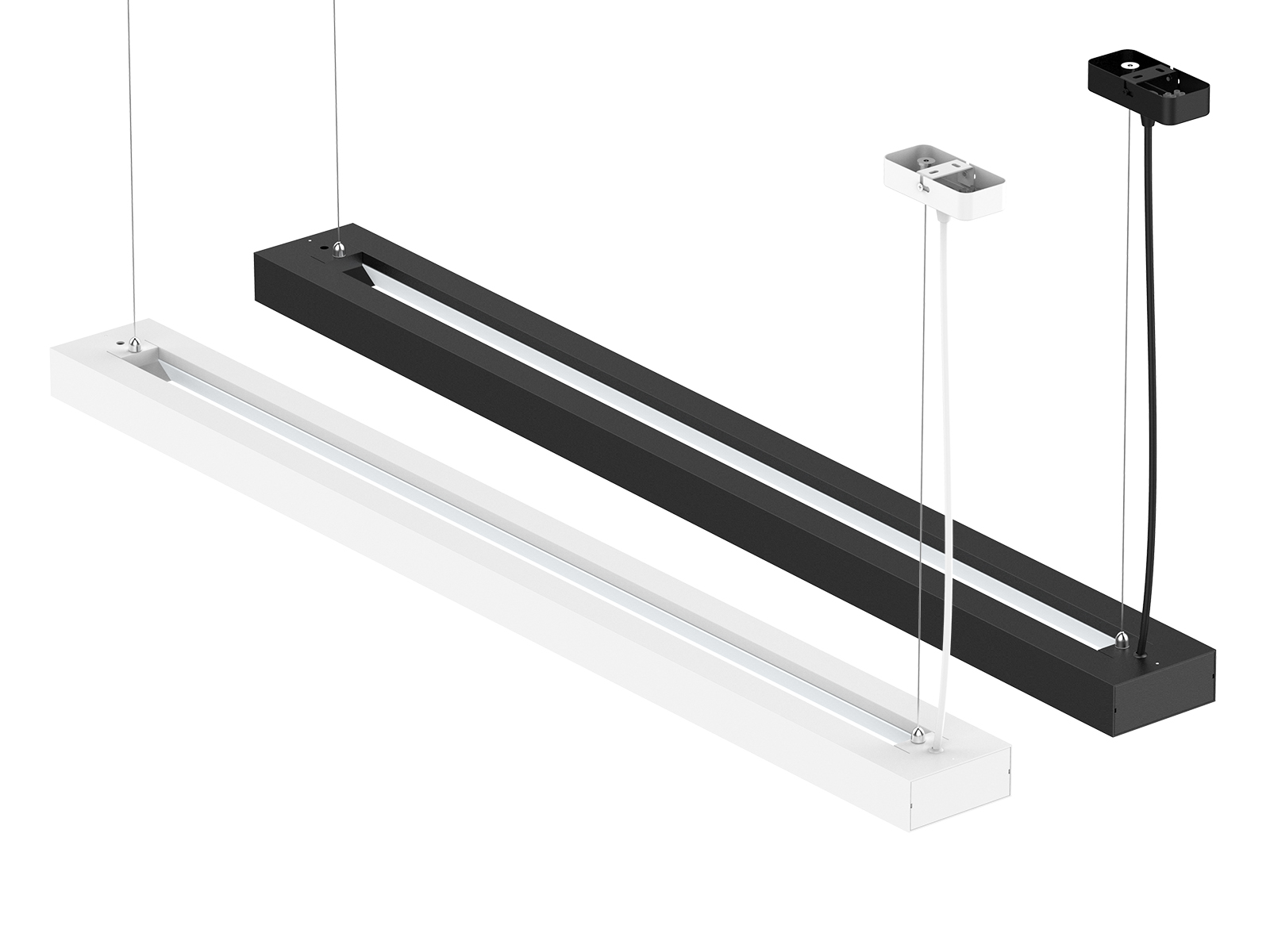

For a reliable and high-quality product, look no further than the UPSHINE pendant led linear light, it is replacing the old fluorescent T5 and T8 and is available in modules of different lengths(3ft, 4ft, and 5ft). They are designed for offices, meeting rooms, hotels, schools, etc. Suspended LED linear lighting features with a hollow design. significant up and down led linear can reduce the extra light decoration.
Features:
|
Code
|
DB25-900-20W-C3
|
DB25-1200-40W-C3
|
DB25-1600-60W
|
||
|---|---|---|---|---|---|
|
Watt(W)
|
20W
|
40W
|
60W
|
||
|
Dimension(mm)
|
922*115*48.8 / 36"*4.5"*1.9"
|
1222*115*48.8 / 48"*4.5"*1.9"
|
1622*115*48.8 / 63.8"*4.5"*1.9"
|
||
|
Rated Input Voltage(V)
|
AC230V
|
||||
|
Input Voltage(V)
|
AC200-240V
|
||||
|
LED
|
SMD
|
||||
|
SDCM
|
<6
|
||||
|
CCT(K)
|
1-CCT: 3000K / 4000K / 5000K / 5700K // 3-CCT: 3000K + 4000K + 5700K
|
||||
|
"Luminous Flux (lm) ±5%"
|
1-CCT
|
Non-DIM
|
–
|
–
|
4600-5000
|
|
DIM
|
–
|
–
|
|||
|
3-CCT
|
Non-DIM
|
1500-1800
|
3200-3600
|
5000-5800
|
|
|
DIM
|
–
|
–
|
–
|
||
|
CRI
|
≥80
|
||||
|
Beam Angle (°)
|
120°
|
||||
|
LED Driver
|
Built-in
|
||||
|
DIM
|
–
|
||||
|
CCT Selection Switch
|
Yes
|
||||
|
Protection Class
|
Class Ⅰ
|
||||
|
IP Rating
|
IP20
|
||||
|
Finishing color
|
White RAL 9016 / Black RAL 9005
|
||||
|
Material
|
Aluminium+PC
|
||||
|
Lifetime (hr)
|
50,000h
|
||||
|
Operating Temp.(°C)
|
-20℃~45℃
|
||||
|
Storage Temp.(°C)
|
-20℃~65℃
|
||||
|
Installation
|
Pendant
|
||||
|
Brand Driver option
|
–
|
||||
