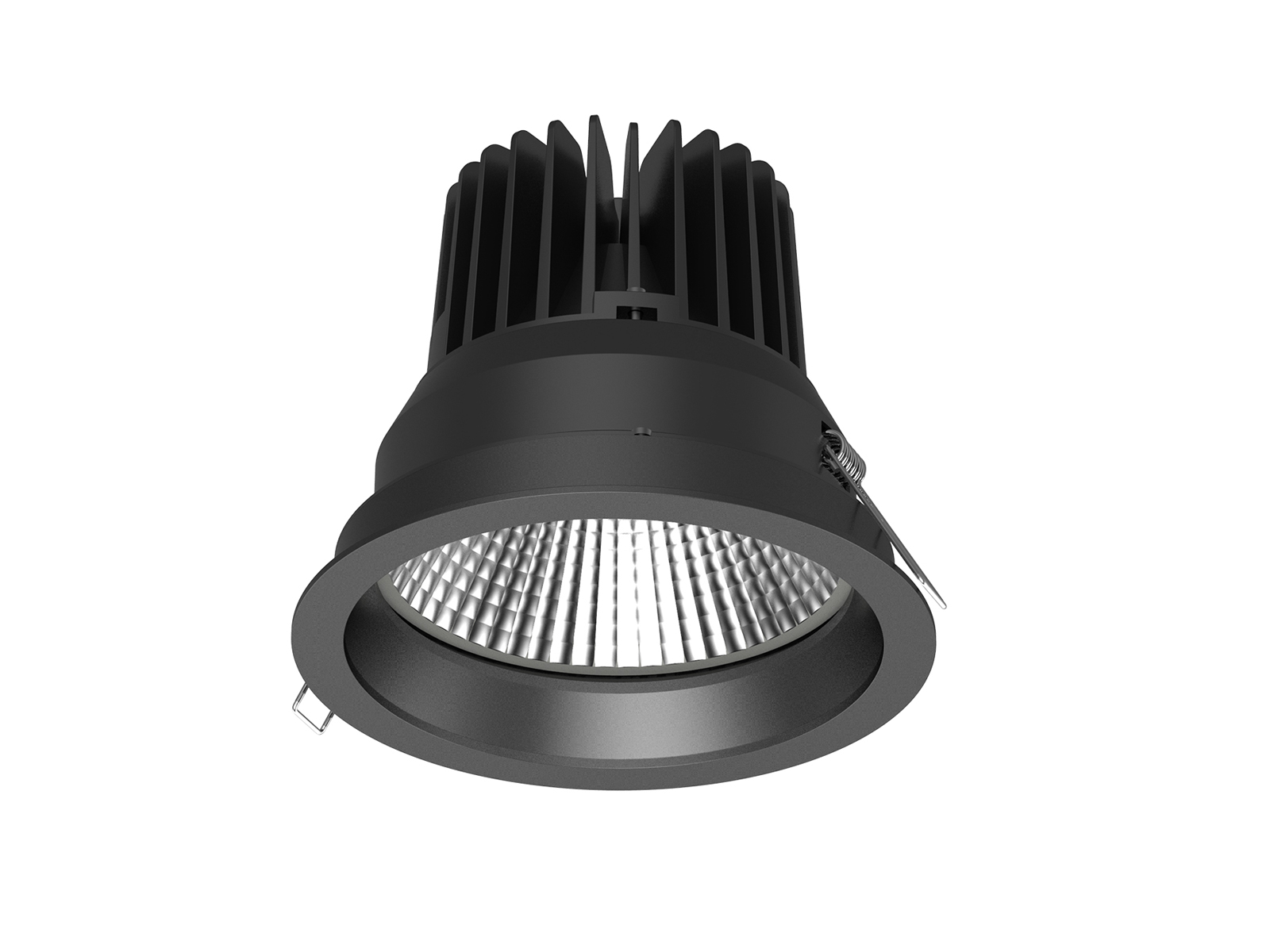

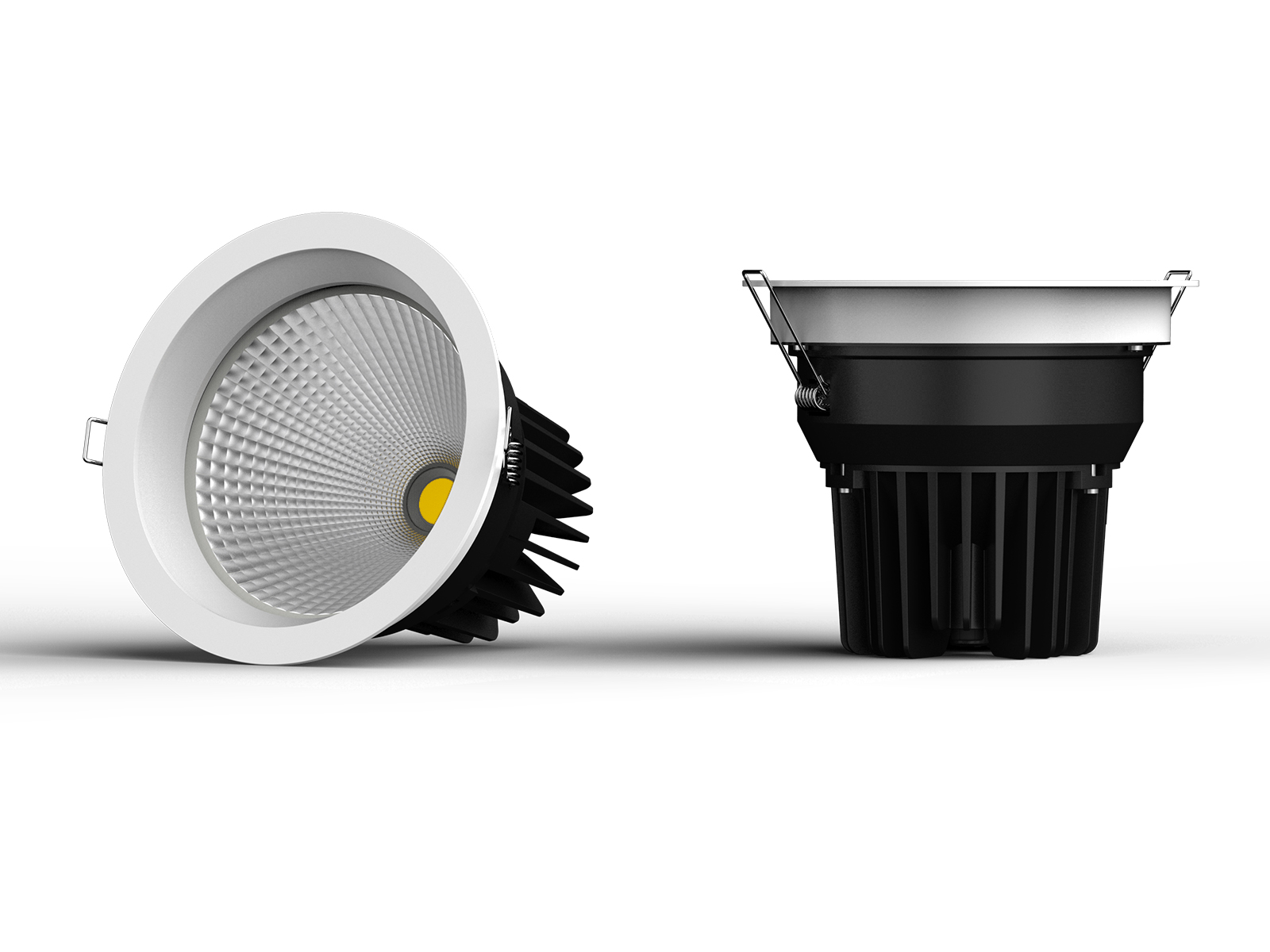

DL113 Deep Reflector COB Downlight

Up-shine COB downlight is unique designed with reflector and COB high power LED chip. ADC12 Aluminum profile provides excellent thermal dissipation. Short heatsink designed for any ceiling installations. Isolated driver solution both in dimmable and non-dimmable version achieves great dimming compatibility with worldwide brand dimmers.

Integrated Downlight Feature:

      ● Up to 70% energy saving compared to standard CFL
      ● Long lifetime of 50,000 hours
      ● Triac dim, 0-10V dim, DALI dim
      ● 60° wide beam angle
      ● 135-140mm cutout
      ● CCT: 2700K 3000K 4000K 5000K
      ● No UV/IR light
      ● Environment friendly, without Mercury or any other hazardous substances
      ● External Drive
Code  Power Voltage Power  Power Factor Lumen (±5%) Beam angle CCT  Lifespan   CRI  Dimmable  Dimension
UP-DL113-4-13W  AC230V 13W   ≥0.9 1410 60o 2700K  50000h  ≥80  No  Ø150*123mm cutout 135-140mm
20W 2090
25W 2560
UP-DL113-4-13W    13W 1440 3000K No
20W 2190
25W 2670
UP-DL113-4-13W  13W 1520 4000K No
20W 2280
25W 2810
UP-DL113-4-13W  13W 1490 5000K No
20W 2160
25W 2600
UP-DL113-4-13W-D  13W 1290 2700K Yes
20W 1970
25W 2320
UP-DL113-4-13W-D  13W 1360 3000K Yes
20W 2090
25W 2560
UP-DL113-4-13W-D  13W 1450 4000K Yes
20W 2200
25W 2590
UP-DL113-4-13W-D 13W 1430 5000K Yes
20W 2120
25W 2530
