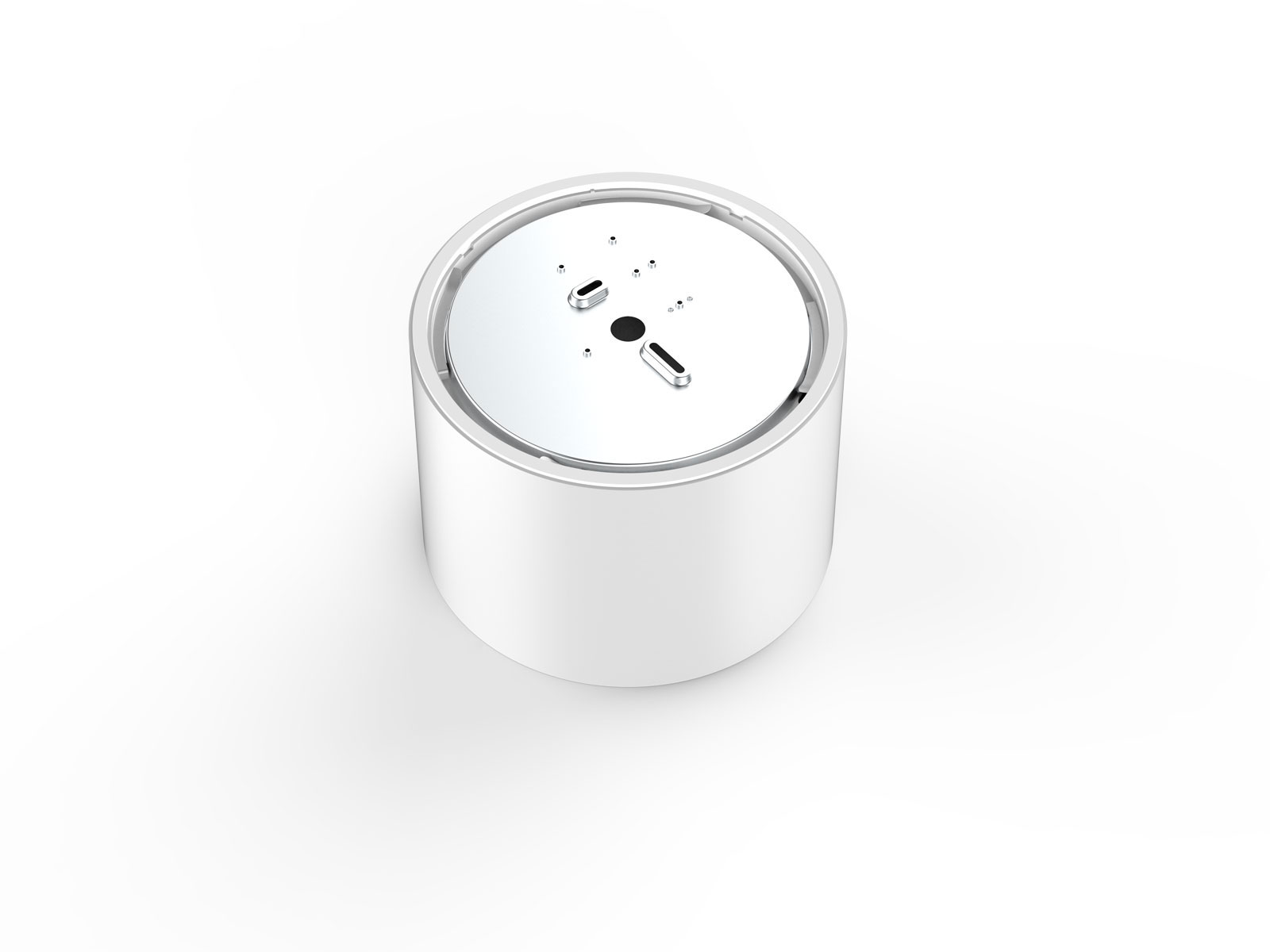

DL115 IP54 Surface mounted Downlight
DL115 1 UGR Optional Ceiling Mounted LED Downlight
DL115 1 UGR Optional Ceiling Mounted LED Downlight
DL115 1 UGR Optional Ceiling Mounted LED Downlight
DL115 IP54 Surface mounted Downlight
DL115 1 UGR Optional Ceiling Mounted LED Downlight
DL115 1 UGR Optional Ceiling Mounted LED Downlight
DL115 1 UGR Optional Ceiling Mounted LED Downlight

DL115 IP54 Surface mounted Downlight

IP54 Waterproof ceiling-mounted downlight utilizes an integrated reflector and superior aluminum material to achieve excellent dissipation. This ceiling-mounted LED downlight's reflector in anodizing finish provides much better performance on aging, yellowing, and corroding resistance than those in the normal plating finish. Extra wide beam angles are available in various reflectors. Dimmable and three UGR Levels ceiling surface-mounted led downlights are optional. Feel free to contact us and get UPSHINE factory direct prices.

  • Up to 70% energy saving compared to standard CFL
  • Long lifetime of 50, 000 hours
  • Dimmable when using triac dimmer
  • 60°/90° wide beam angle
  • CCT: 3000K 4000K 5000K 5700K
  • IP54 rating at room side
  • 3 UGR levels (19, 22, 25) are available
  • No UV/IR light
  • Environment friendly
  • Ideal for different applications

Model

Voltage

Power

Power Factor

Lumen (±5%)

CCT

Beam angle

UGR

Lifespan

CRI

Dimmable

Dimension



UP-DL115A-4-13W UP-DL115B-4-13W



AC100-277V



13W



≥0.9

1240

3000K



90°





50000h



≥80



No



Ø143*112mm

1460

4000K

1400

5000K

1420

5700K



UP-DL115A-4-13W-D UP-DL115B-4-13W-D



AC230V



13W



≥0.9

1200

3000K



90°





50000h



≥80



Yes



Ø143*112mm

1400

4000K

1350

5000K

1370

5700K



UP-DL115B-4-13W



AC100-277V



13W



≥0.9

1270

3000K



60°



≤19



50000h



≥80



No



Ø143*112mm

1400

4000K

1370

5000K

1330

5700K



UP-DL115B-4-13W-D



AC230V



13W



≥0.9

1250

3000K



60°



≤19



50000h



≥80



Yes



Ø143*112mm

1380

4000K

1340

5000K

1300

5700K



Model

Voltage

Power

Power Factor

Lumen (±5%)

CCT

Beam angle

UGR

Lifespan

CRI

Dimmable

Dimension



UP-DL115A-6-18W UP-DL115B-6-18W



AC100-277V



18W



≥0.9

1580

3000K



90o





50000h



≥80



No



Ø170*124mm

1890

4000K

1840

5000K

1850

5700K



UP-DL115A-6-18W-D UP-DL115B-6-18W-D



AC230V



18W



≥0.9

1530

3000K



90o





50000h



≥80



Yes



Ø170*124mm

1800

4000K

1730

5000K

1760

5700K



UP-DL115B-6-18W



AC100-277V



18W



≥0.9

1690

3000K



60o



≤19



50000h



≥80



No



Ø170*124mm

1890

4000K

1840

5000K

1800

5700K



UP-DL115B-6-18W-D



AC230V



18W



≥0.9

1660

3000K



60o



≤19



50000h



≥80



Yes



Ø170*124mm

1870

4000K

1800

5000K

1760

5700K



Model

Voltage

Power

Power Factor

Lumen (±5%)

CCT

Beam angle

UGR

Lifespan

CRI

Dimmable

Dimension



UP-DL115A-8-25W UP-DL115B-8-25W



AC100-277V



25W



≥0.9

2450

3000K



90o





50000h



≥80



No



Ø213*129mm









2930

4000K





















2850

5000K





















2880

5700K















UP-DL115A-8-25W-D UP-DL115B-8-25W-D



AC230V



25W



≥0.9

2330

3000K



90o





50000h



≥80



Yes



Ø213*129mm









2800

4000K





















2700

5000K





















2730

5700K















UP-DL115B-8-25W



AC100-277V



25W



≥0.9

2500

3000K



60o



≤22



50000h



≥80



No



Ø213*129mm









2850

4000K





















2800

5000K





















2750

5700K















UP-DL115B-8-25W-D



AC230V



25W



≥0.9

2450

3000K



60o



≤22



50000h



≥80



Yes



Ø213*129mm



Model

Voltage

Power

Power Factor

Lumen (±5%)

CCT

Beam angle

UGR

Lifespan

CRI

Dimmable

Dimension

UP-PD05A-4-13W UP-PD05B-4-13W



AC100-277V



13W



≥0.9

1240

3000K



90o





50000h



≥80



No



Ø143*110mm

1460

4000K

1400

5000K

1420

5700K

UP-PD05A-4-13W-D UP-PD05B-4-13W-D



AC230V



13W



≥0.9

1200

3000K



90o





50000h



≥80



Yes



Ø143*110mm

1400

4000K

1350

5000K

1370

5700K



UP-PD05B-4-13W



AC100-277V



13W



≥0.9

1270

3000K



60o



≤19



50000h



≥80



No



Ø143*110mm

1400

4000K

1370

5000K

1330

5700K



UP-PD05B-4-13W-D



AC230V



13W



≥0.9

1250

3000K



60o



≤19



50000h



≥80



Yes



Ø143*110mm

1380

4000K

1340

5000K

1300

5700K



Model

Voltage

Power

Power Factor

Lumen (±5%)

CCT

Beam angle

UGR

Lifespan

CRI

Dimmable

Dimension

UP-PD05A-8-25W UP-PD05B-8-25W



AC100-277V



25W



≥0.9

2450

3000K



90o





50000h



≥80



No



Ø213*127mm

2930

4000K

2850

5000K

2880

5700K

UP-PD05A-8-25W-D UP-PD05B-8-25W-D



AC230V



25W



≥0.9

2330

3000K



90o





50000h



≥80



Yes



Ø213*127mm

2800

4000K

2700

5000K

2730

5700K



UP-PD05B-8-25W



AC100-277V



25W



≥0.9

2500

3000K



60o



≤22



50000h



≥80



No



Ø213*127mm

2850

4000K

2800

5000K

2750

5700K



UP-PD05B-8-25W-D



AC230V



25W



≥0.9

2450

3000K



60o



≤22



50000h



≥80



Yes



Ø213*127mm

2780

4000K

2680

5000K

2630

5700K
