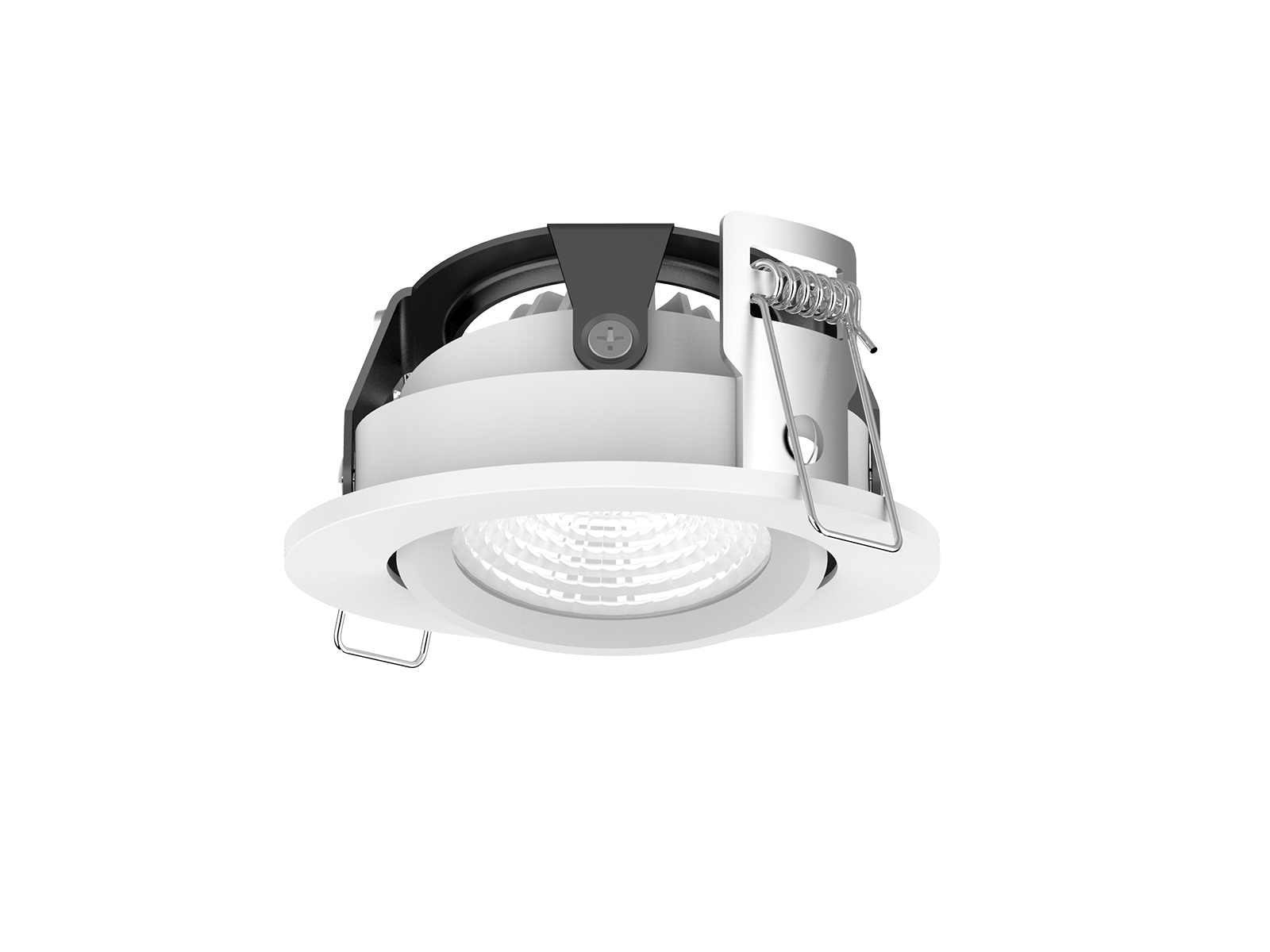

DL123 downlight is a reliable and flexible solution. With its high lumen output, high energy efficacy and high color rendering index and tight focus, DL123 downlight is ideally suited for a variety of applications. And because the luminaire is adjustable and rotatable, perfectly meet the demands of different lighting angle.
Up to 70% energy saving compared to standard CFL
Long lifetime of 50,000 hours
Dimmable when using triac dimmer
36° / 60° beam angle
Ø72-75mm cutout
CCT: 2700K 3000K 4000K 5000K
No UV/IR light
Environment friendly, without Mercury or any other hazardous substances
Application notes
Application Areas:It is designed for general lighting applications in office, supermarket, shop, school, hotel, etc. It is also widely used for public areas, such as stairway, lobby, reception, corridors etc.
Model | Voltage | Power | Power Factor | Lumen (±5%) | CCT | Beam angle | Lifespan | CRI | Dimmable | Dimension |
---|---|---|---|---|---|---|---|---|---|---|
580 | 2700K | |||||||||
600 | 3000K | |||||||||
UP-DL123-2.5-6W | AC230V | 6W | ≥0.5 | 615 | 4000K | 36°/60° | 50000h | ≥80 | No | Ø80*37mm cutout 72-75mm |
600 | 5000K | |||||||||
580 | 2700K | |||||||||
600 | 3000K | |||||||||
UP-DL123-2.5-6W-D | AC230V | 6W | ≥0.9 | 615 | 4000K | 36°/60° | 50000h | ≥80 | Yes | Ø80*37mm cutout 72-75mm |
600 | 5000K |
