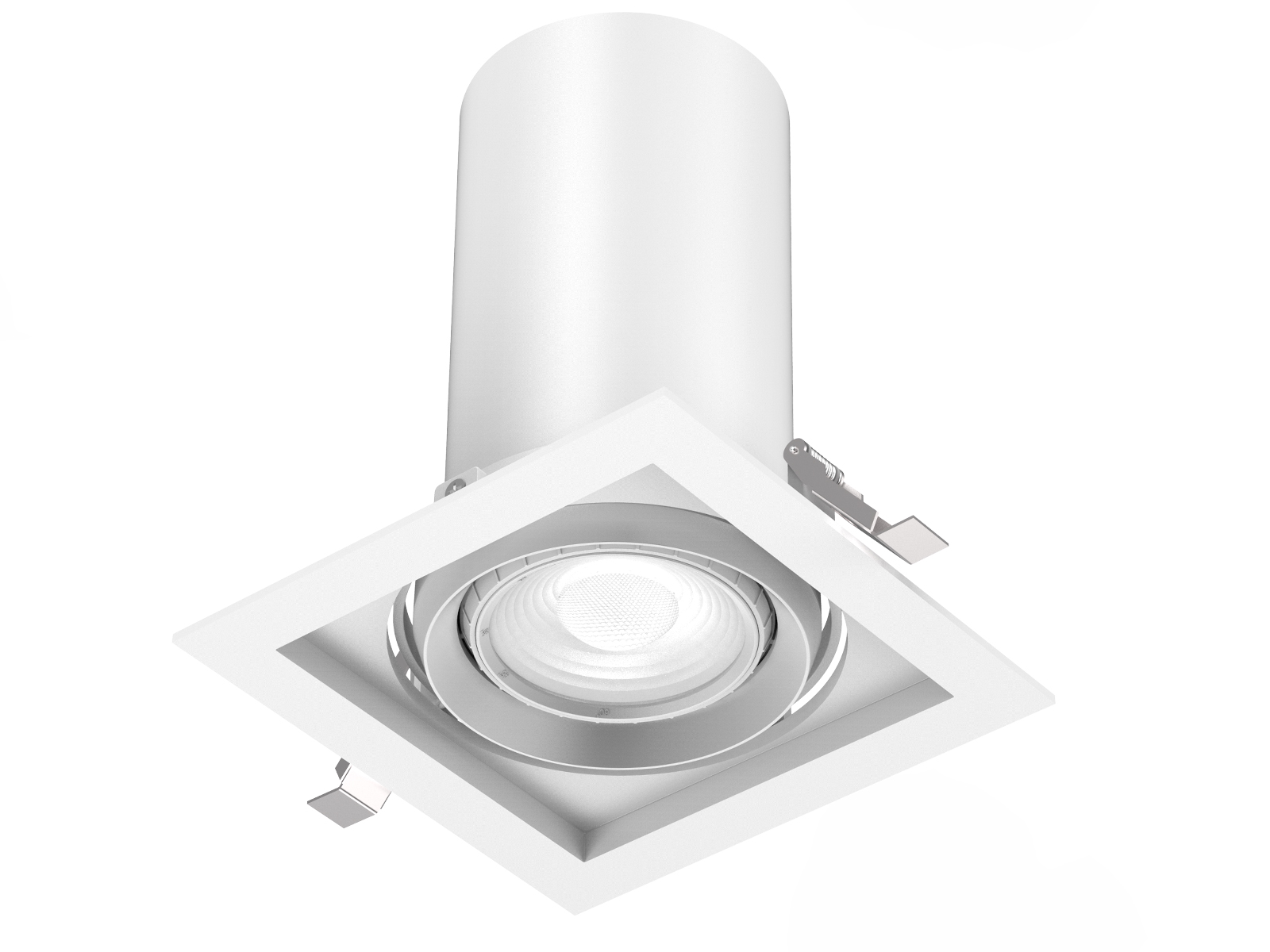

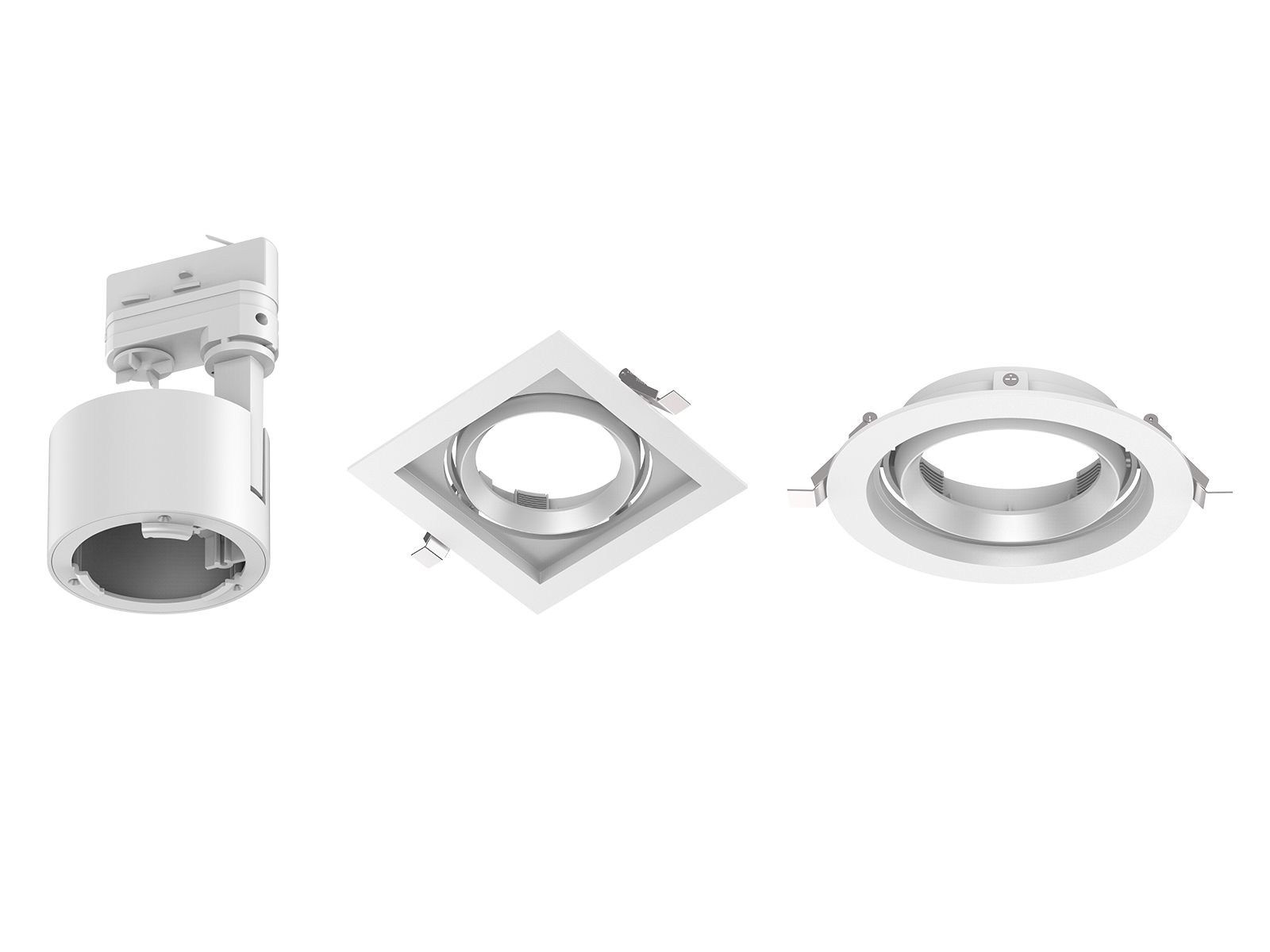

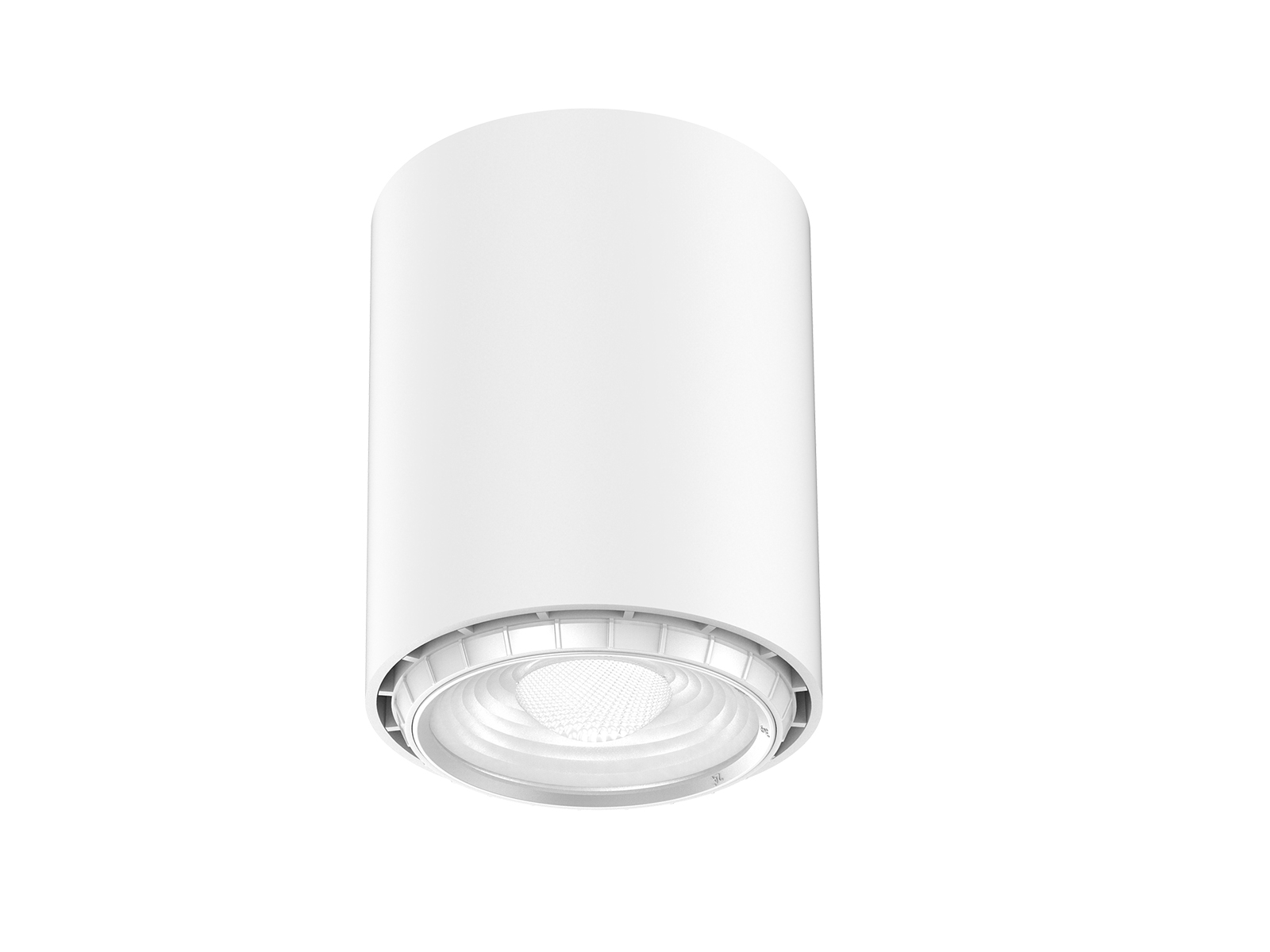

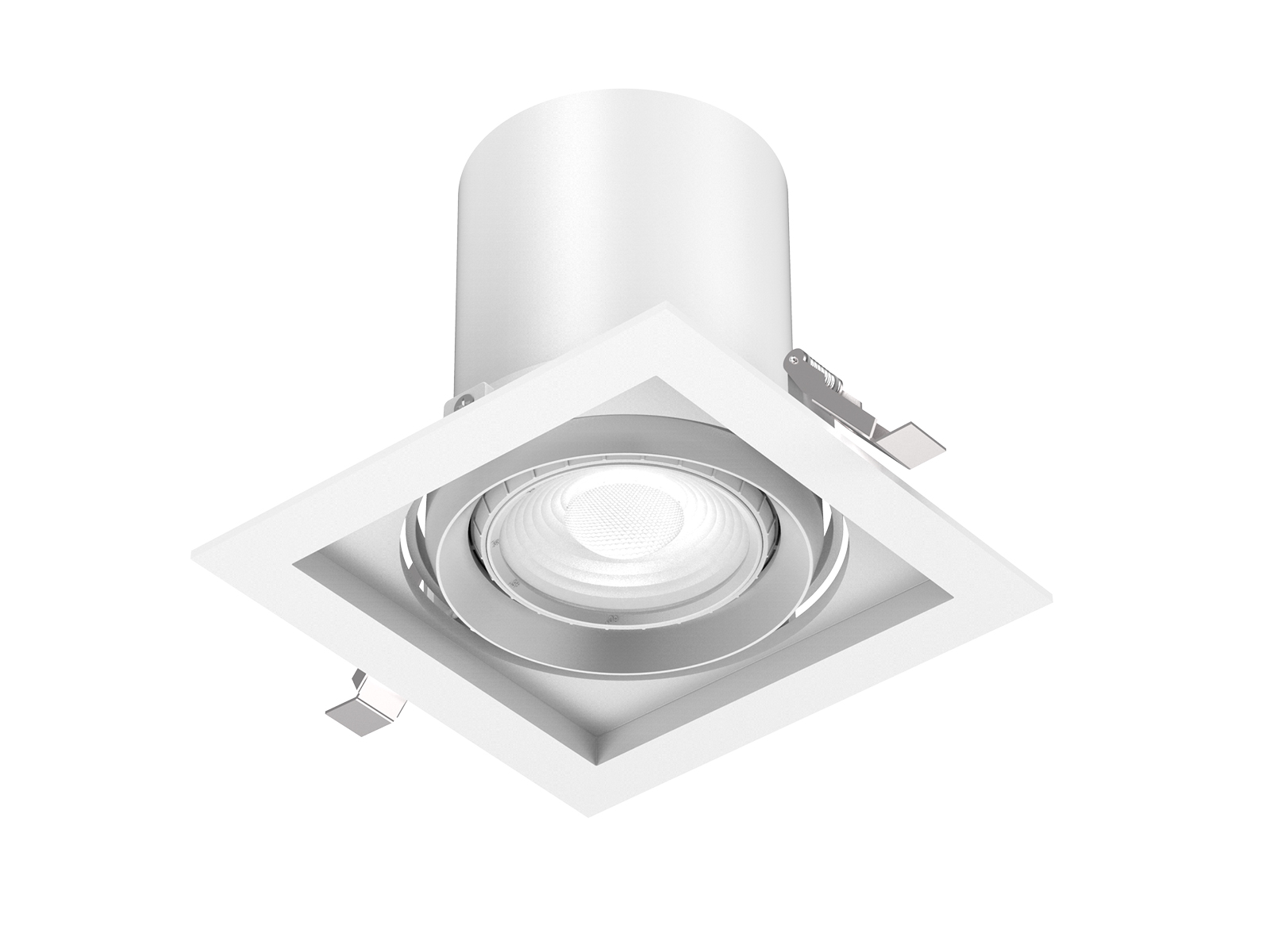

DL160 is a dynamic DIY module which can be flexibly assembled into track light, surface mounted down light and recessed down light when match with different fixture; the module beam angle adjusted from 20°to 70°makes the light change very evenly, this innovation cob led module has received many good reviews. Purchase our dimmable led module lights with best prices.
LED Module Lights Features:
|
Code
|
DL160-25W
|
|---|---|
|
Watt(W)
|
25W
|
|
Dimension(mm)
|
Ø00*131.5
|
|
Input Voltage(V)
|
AC100-240V || AC230V
|
|
Rated Input Voltage(V)
|
AC85-265V || AC200-240V
|
|
LED
|
COB
|
|
SDCM
|
6
|
|
CCT(K)
|
1-CCT: 2700K / 3000K / 4000K / 5000K
|
|
DIM 1-CCT Luminous Flux (lm) ±5%
|
2500-3100
|
| Non-DIM 1-CCT Luminous Flux (lm) ±5% |
2650-3250
|
|
CRI
|
≥80
|
|
Beam Angle (°)
|
20°~70°
|
|
LED Driver
|
Built-in
|
|
DIM
|
Triac
|
|
Protection Class
|
Class Ⅰ
|
|
IP Rating
|
IP20
|
|
Finishing color
|
White RAL 9016
|
|
Material
|
PC / Aluminium
|
|
Lifetime (hr)
|
50,000
|
|
Glow wire test (°C)
|
650℃
|
|
Operating Temp.(°C)
|
-20℃~45℃
|
|
Storage Temp.(°C)
|
-20℃~65℃
|
|
Installation
|
Track / Recessed / Surface mount
|
