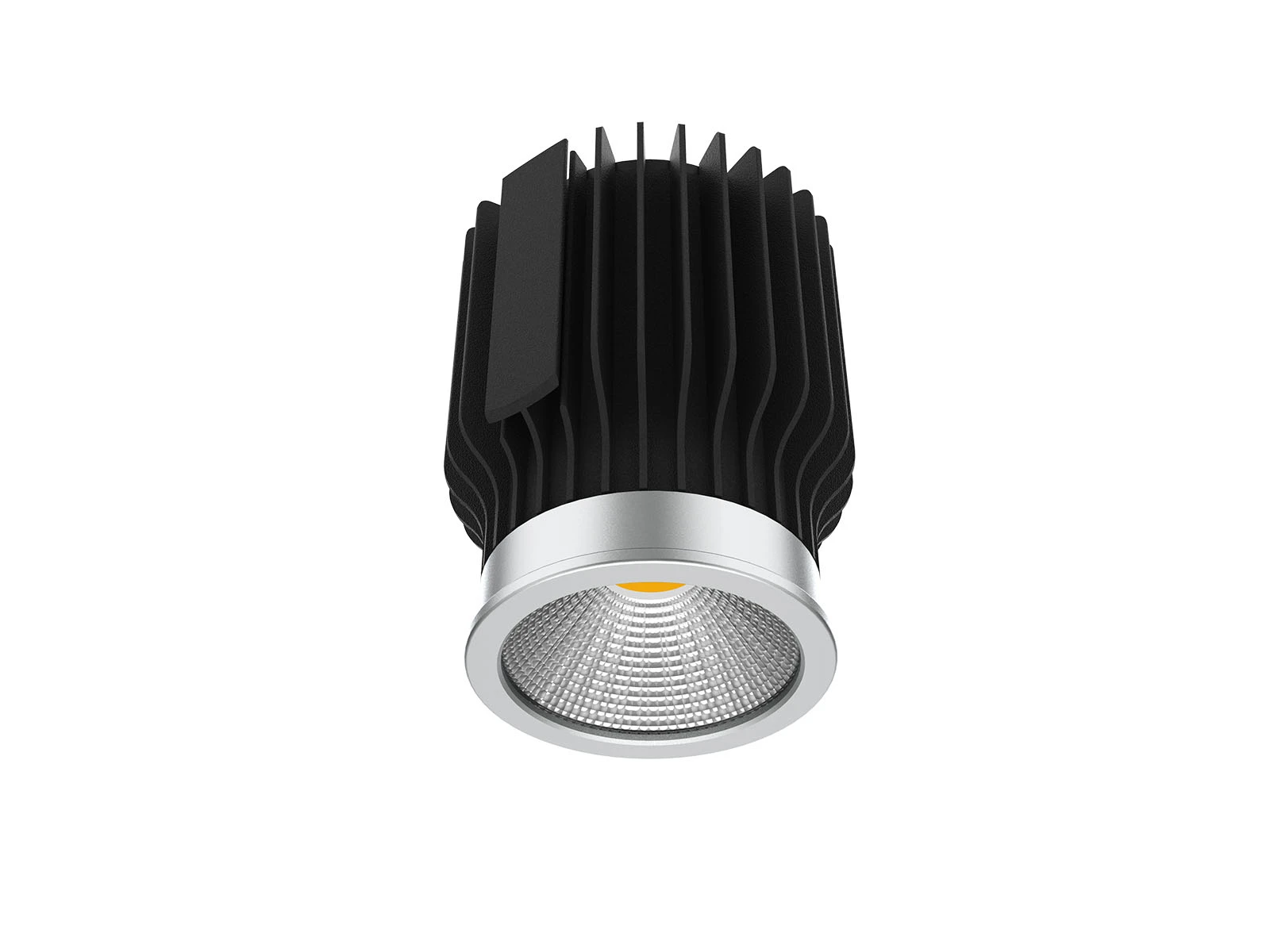

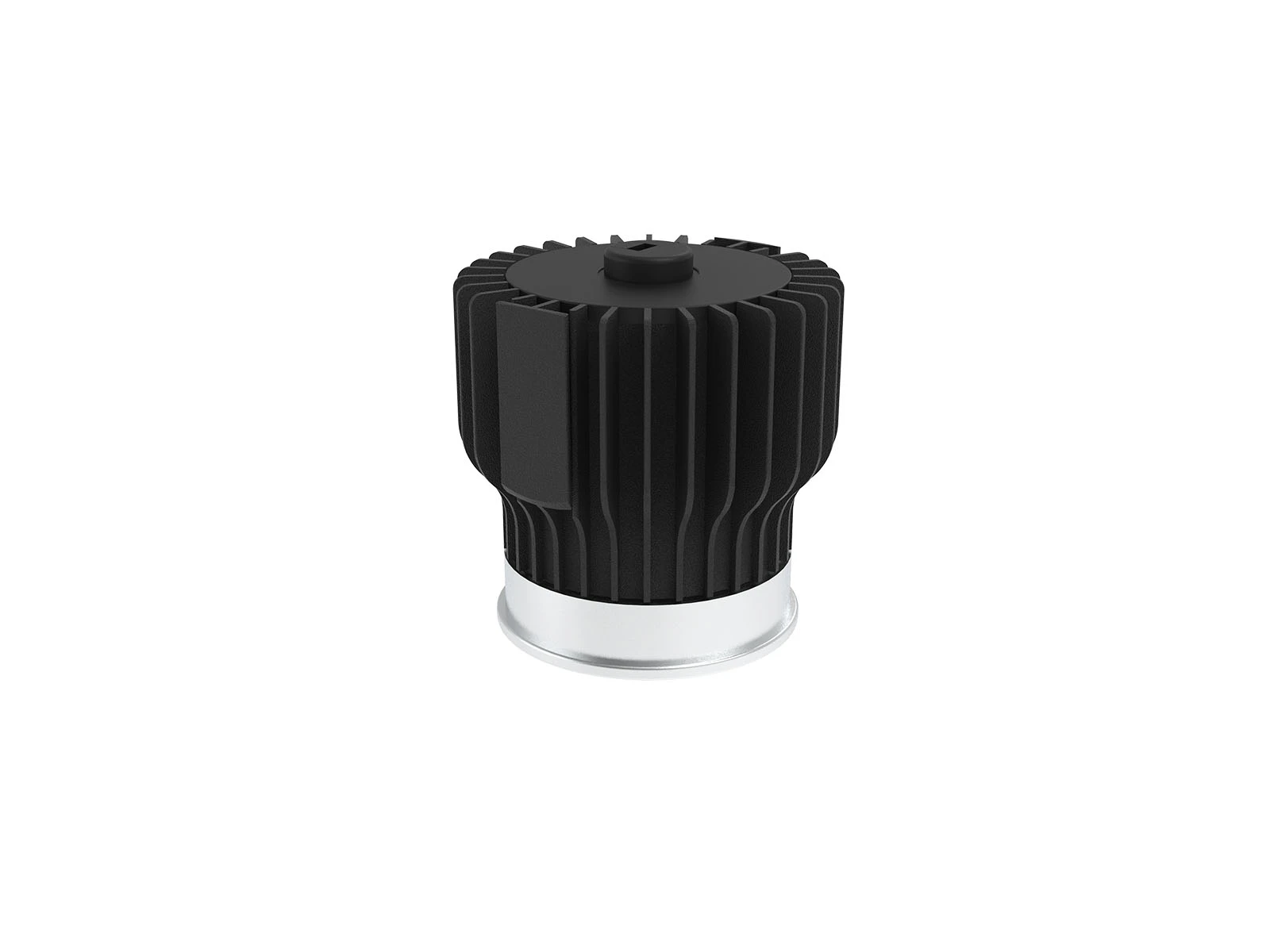

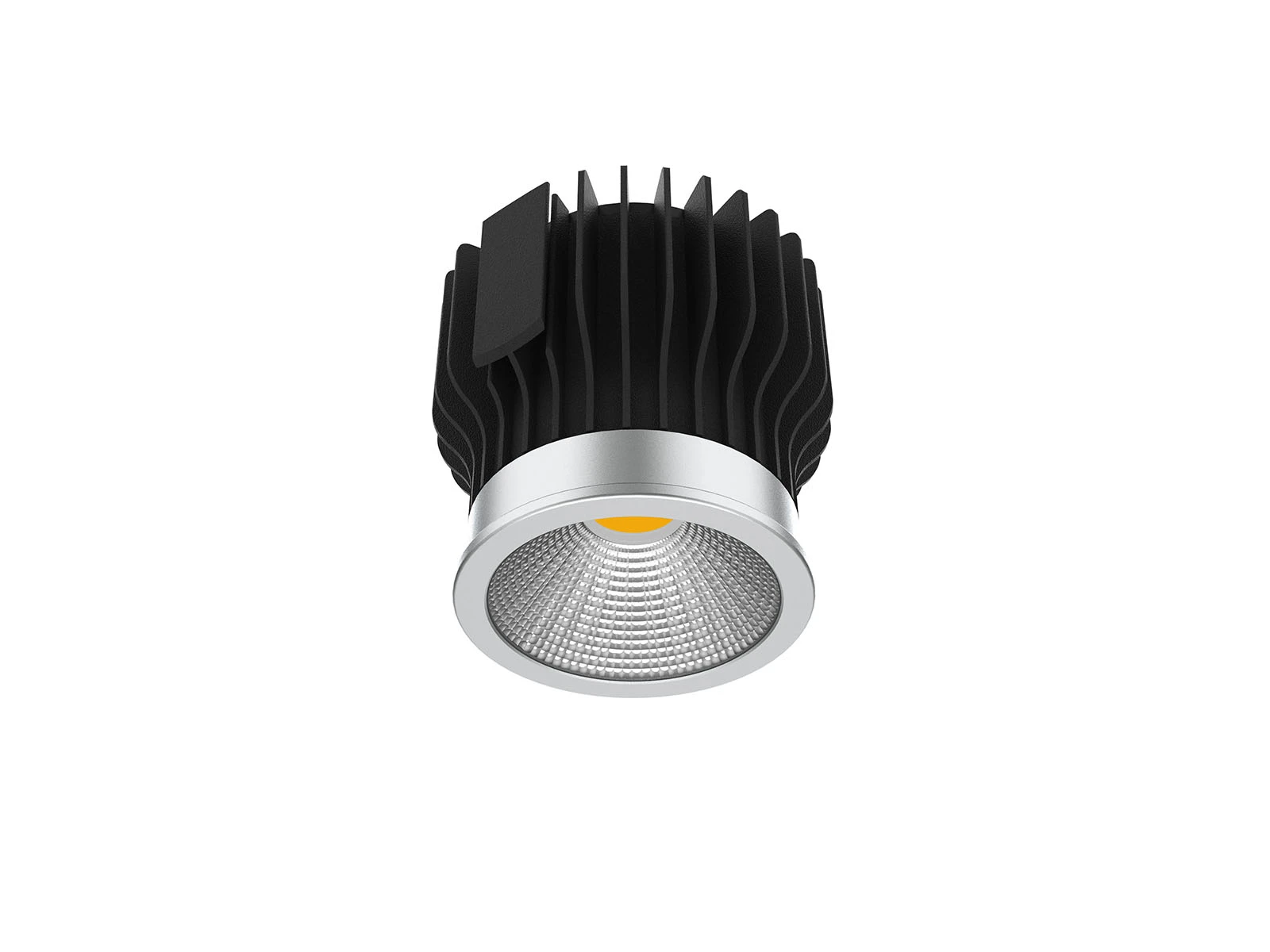

Highly recommended this led recessed downlight modules, a trim cover exchangeable modular downlight with two optional optical modules: reflector type and lens type, that can be switched by end user directly. Complete with high performance LED chips-COB, with a choice of 36° and 60° beam angle. LED downlight module for recessed lights are best replacement for halogen bulbs. They are the perfect lighting solutions for commercial projects such as office, supermarket, shop, school, hotel, etc.
LED Downlight Module Features:
| Code | DL170-10W | DL170-13W | DL170-18W | ||
| Watt(W) | 10W | 13W | 18W | ||
| Dimension(mm) | Ø50*81.2 | Ø50*81.2 | Ø50*81 | ||
| Input Voltage(V) | AC230V | ||||
| Rated Input Voltage(V) | AC220-240V | ||||
| LED | COB | ||||
| SDCM | <6 | ||||
| CCT(K) | 1-CCT: 2700K / 3000K / 4000K / 5000K | ||||
| "Luminous Flux (lm) ±5% | 1-CCT | DIM | 890-960 | 1200-1490 | 1930-2130 |
| Non-DIM | 900-1000 | 1180-1420 | 1900-2100 | ||
| CRI | ≥80 | ||||
| Beam Angle (°) | 36°/60° | ||||
| LED Driver | Built-out | ||||
| DIM | Triac | ||||
| Protection Class | Class Ⅱ | ||||
| IP Rating | IP20 | ||||
| IK Rating | IK03 | ||||
| Finishing color | RAL 9005 + RAL 9006 | ||||
| Material | PMMA / PC / Aluminium | ||||
| Lifetime (hr) | 50000 | ||||
| Glow wire test (°C) | 650℃ | ||||
| Operating Temp.(°C) | -20℃~40℃ | ||||
| Storage Temp.(°C) | -20℃~65℃ | ||||
| Installation | Recessed | ||||
| Brand Driver option | Philips, Tridonic, Meanwell | ||||
