DL176 Traditional Deep Reflector Focusing Downlight

DL176 downlight with traditional deep reflector (UGR<19) that provides the perfect combination of high lighting efficiency, comfortable lighting, and humanization design, without compromising on light performance(color rendering and color uniformity); It offers a wide choice of options for creating the desired ambiance.

Deep reflector downlight features

  • High luminous efficiency.
  • 24°, 36°, 60°beam angle optional.
  • Easy installation and maintenance.
  • UGR<19 (not available for 25/35W 60°beam angle).
DL176 tradictional deep reflector_01DL176 high efficiency_02DL176 LED DOWNLIGHT_03DL176 GENERAL LIGHTING _04

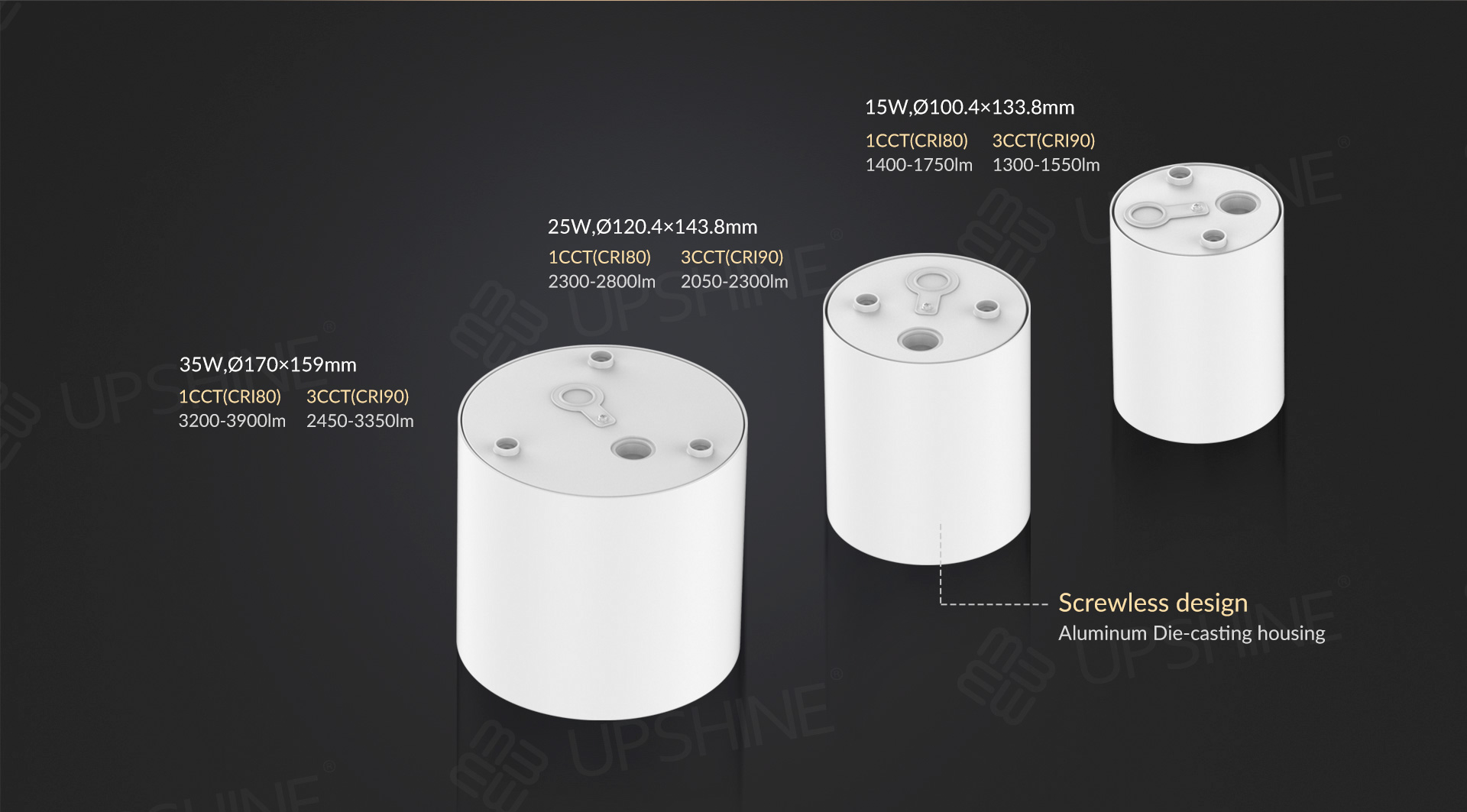

Code No. DL176-15W DL176-25W DL176-35W
Dimension(mm) Ø100.4*133.8 Ø120.4*143.8 Ø170*159
Watt(W) 15W 25W 35W
Rated Input Voltage(V) AC230V
Input Voltage(V) AC200-240V
Light Source COB
CCT(K) 1-CCT: 2700K/3000K/4000K/5000K
Non-DIM 1-CCT Luminous Flux (lm) ±5% 1400-1750 2300-2800 3200-3900
DIM 1-CCT Luminous Flux (lm) ±5% 1300~1670 2050-2660 2900-3710
CRI ≥80
Beam Angle (°) 24° / 36° / 60°
UGR < 19 (not available for 25/35W 60°beam angle)
LED Driver Built-in
Dimming Option Traic/Dali
Electrical Class Class I
Ingress Protection (IP Rating) IP54
Product Finishing(Base) White RAL 9016,BlackRAL9005
Materials of Optics PC
Materials of Housing Aluminum Die-casting
Lifetime (hr) 50,000h
Glow wire test (℃ ) 850℃
Operating Temp. (℃ ) -20℃ ~40℃
Storage Temp. (℃ ) -20℃ ~65℃
Installation Surface mount
