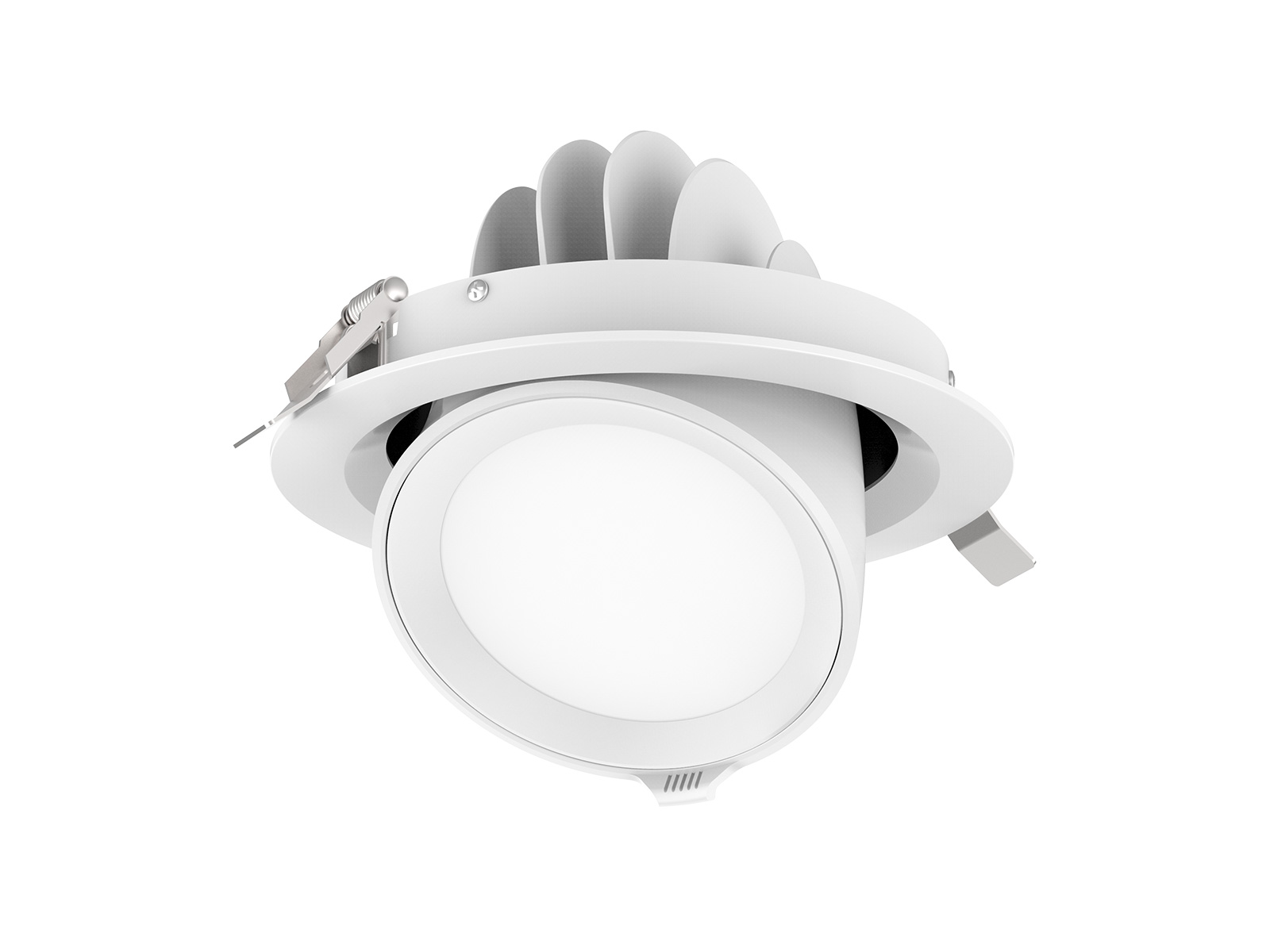

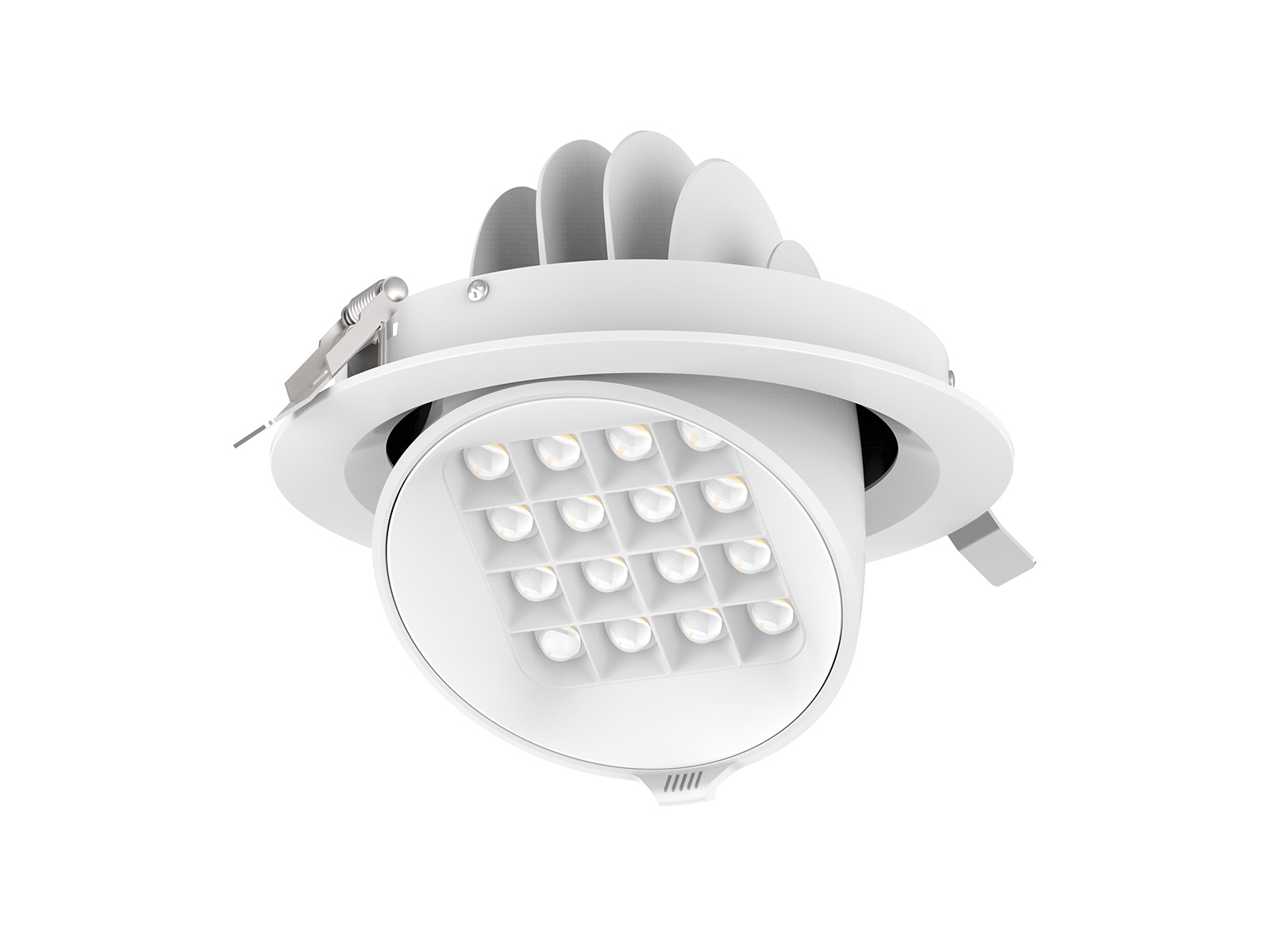

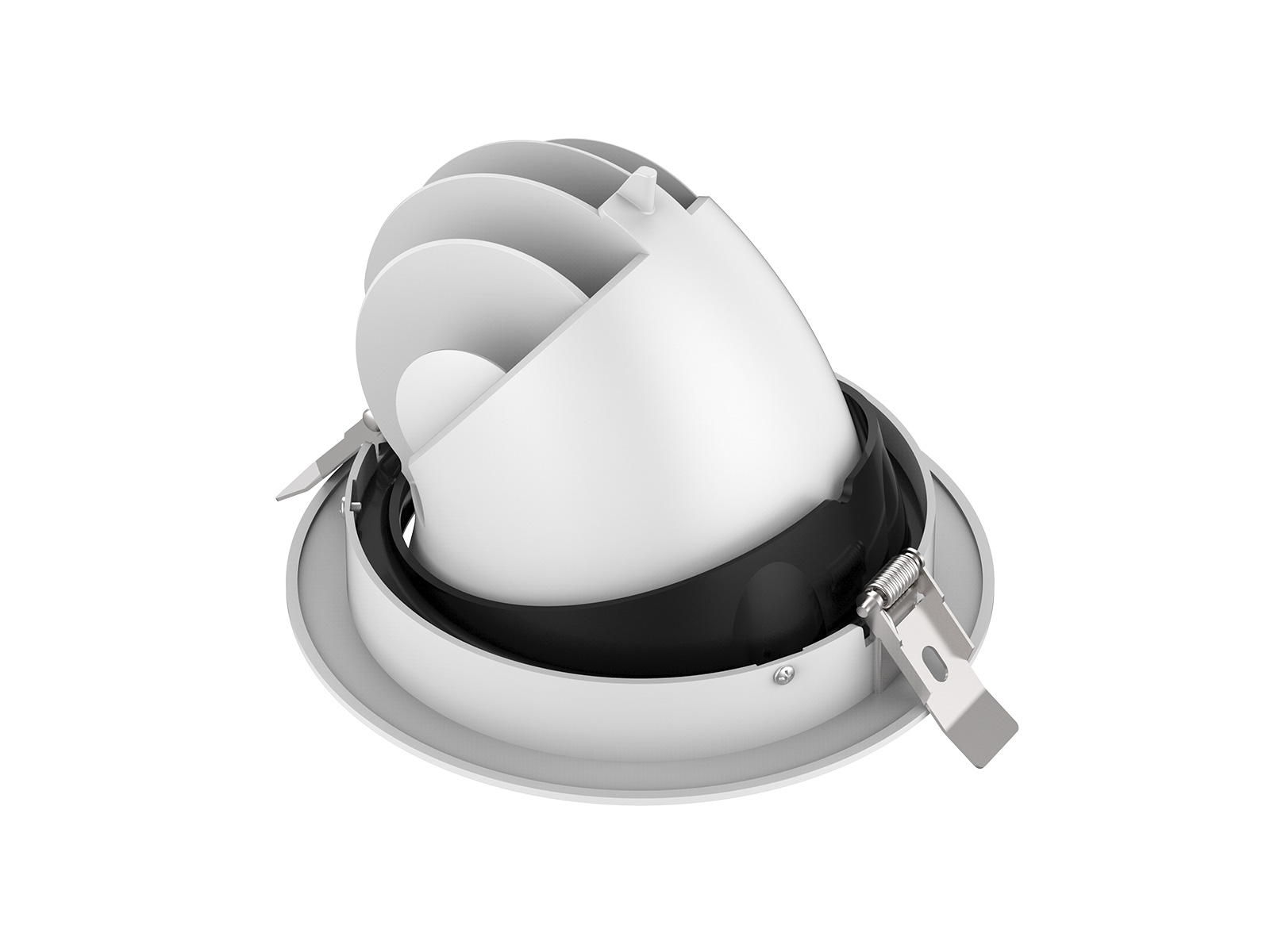

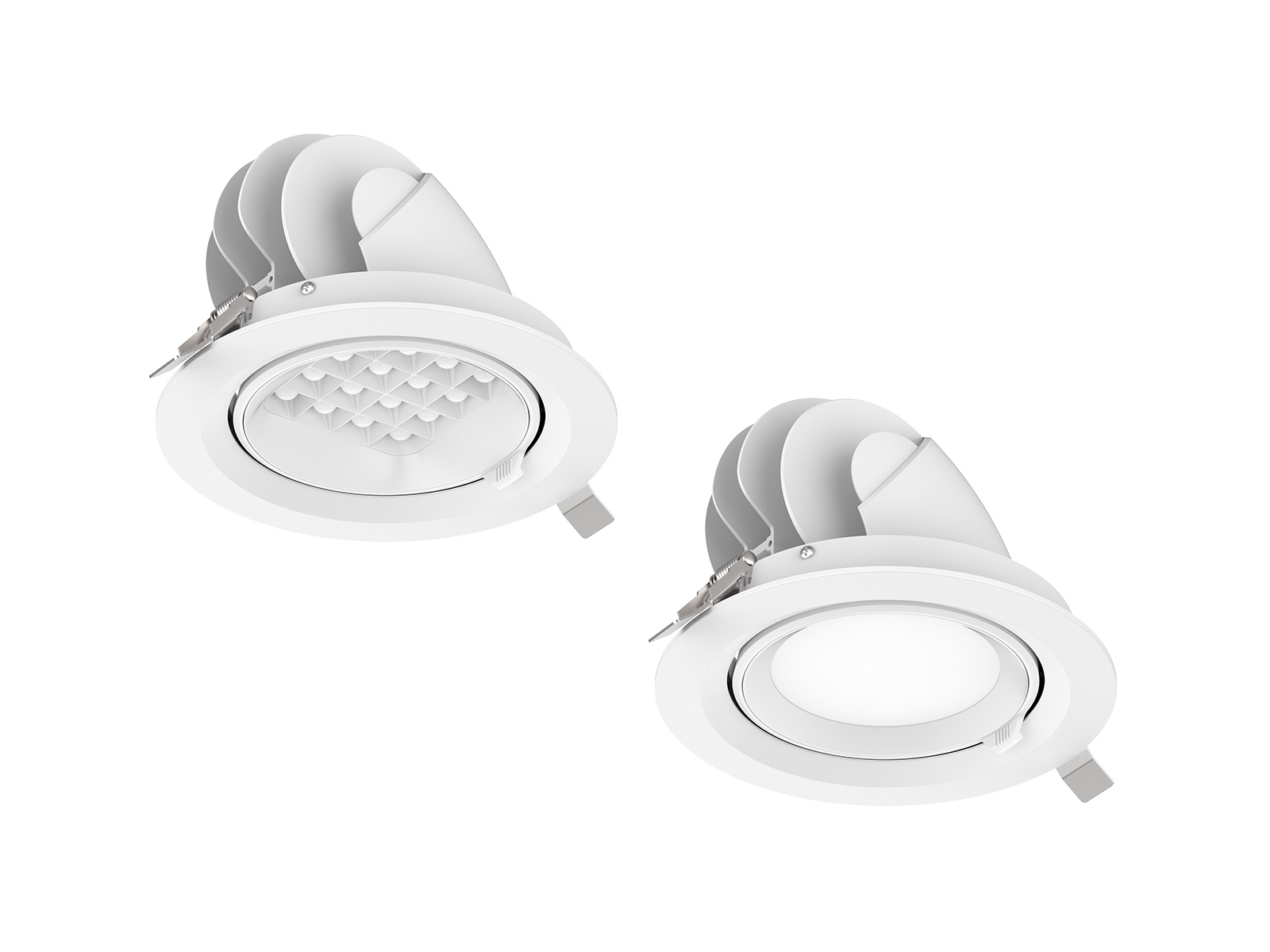

This scoop gimbal downlight with louver design and diffuser design options. Model A: Lens+louver reflector which is anti-glare design with comfortable eye visual. Model B: Adopt 1W 2835 LED chip and diffuser which offer a uniform light output and high light efficiency. ADC housing provides excellent thermal dissipation. 350 degree rotate horizontally and 40 degree rotate vertically, dimmable version achieves great dimming compatibility with worldwide brand dimmers, can be used in various applications.
Recessed downlight features:
| Dimension(mm) | Ø180*128 | |||
|---|---|---|---|---|
| Cutout (mm) | Ø165-170 | |||
| Watt(W) | 25W | 25W | 33W | 33W |
| Rated Input Voltage(V) | AC200-240V | |||
| Input Voltage(V) | AC230V | |||
| Light Source | SMD | |||
| SDCM | <5 | |||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K II 3-CCT: 3000K + 4000K + 5700K | |||
| CCT Selection DIP Switch | YES | |||
| Non-DIM 1-CCT Luminous Flux (lm) ±5% | 2550~2950 | 2300~2450 | 2850~3100 | 2850~3100 |
| DIM 1-CCT Luminous Flux (lm) ±5% | 2450~2900 | 2250~2400 | 3350~3850 | 2800~3000 |
| Non-DIM 3-CCT Luminous Flux (lm) ±5% | - | 2300~2550 | - | 2850~3200 |
| DIM 3-CCT Luminous Flux (lm) ±5% | - | 2250~2500 | - | 2800~3150 |
| CRI | CRI>80/CRI>90 | |||
| Beam Angle (°) | 60° | 110° | 60° | 110° |
| LED Driver | Built-out | |||
| Dimming Option | YES | |||
| Electrical Class | Class Ⅱ | |||
| Ingress Protection (IP Rating) | IP20 | |||
| Impact Resistance (IK Rating) | IK06 | |||
| Product Finishing(Base) | White RAL 9016/BlackRAL 9005 | |||
| Materials of Optics | PC | |||
| Materials of Housing | PC/Aluminium | |||
| Lifetime (hr) | 50,000h | |||
| Glow wire test (℃) | 850℃ | |||
| Operating Temp. (℃) | -20℃~45℃ | |||
| Storage Temp. (℃) | -20℃~60℃ | |||
| Installation | Recessed | |||
