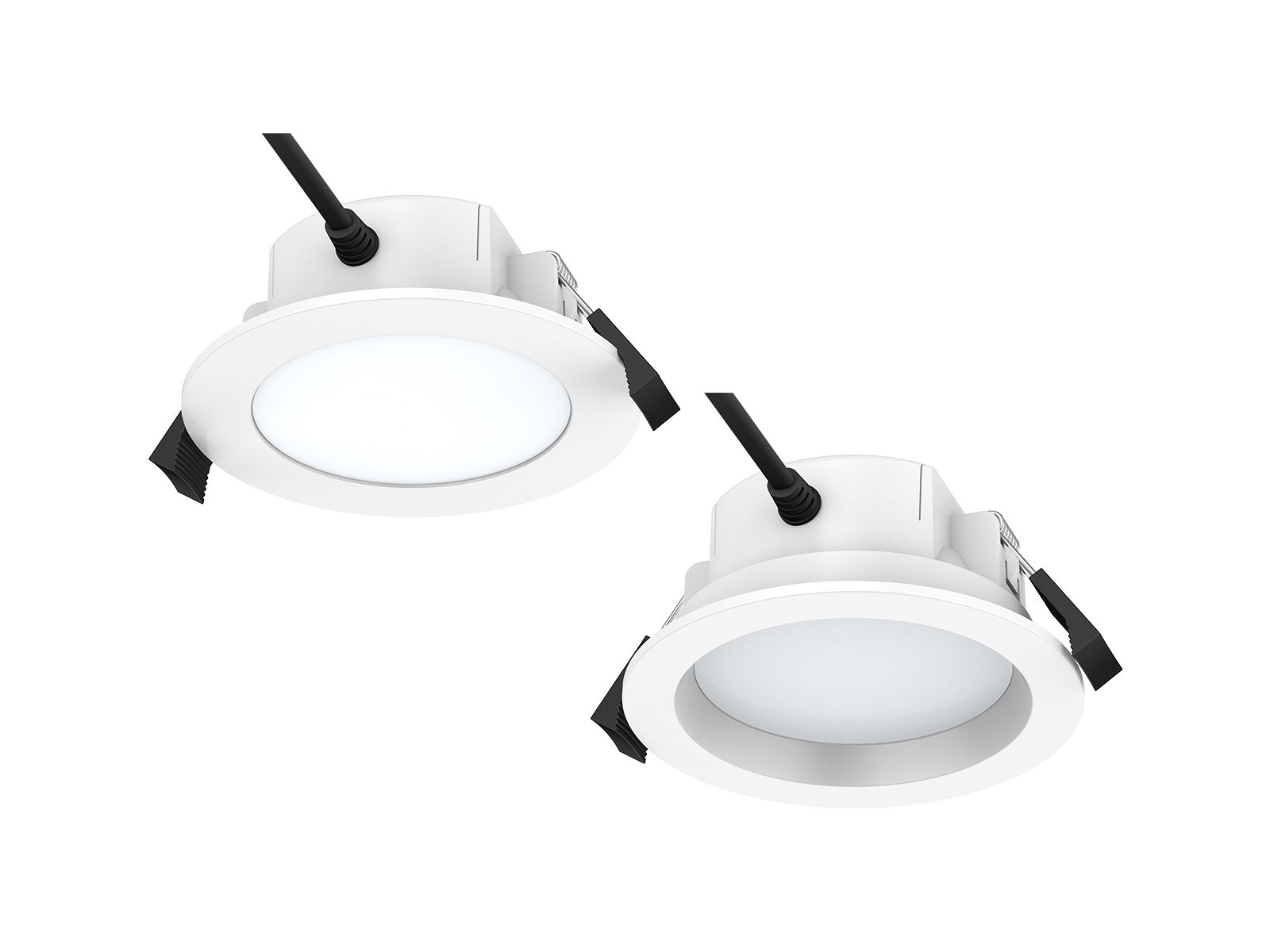

DL241 Replaceable trim SMD Led Downlight

This downlight is 3CCT or 5CCT changeable, super slim with built-in driver. It adopts high lumen SMD chip and PC diffuser which provide a uniform light output. Aluminum coated plastic housing with great heat management and high cost performance. Replaceable cover design, very convenient for maintenance.

Recessed downlight features:

  • Low mounting depth(DL241A:40mm and DL241B:49.5mm)
  • IP54 protection

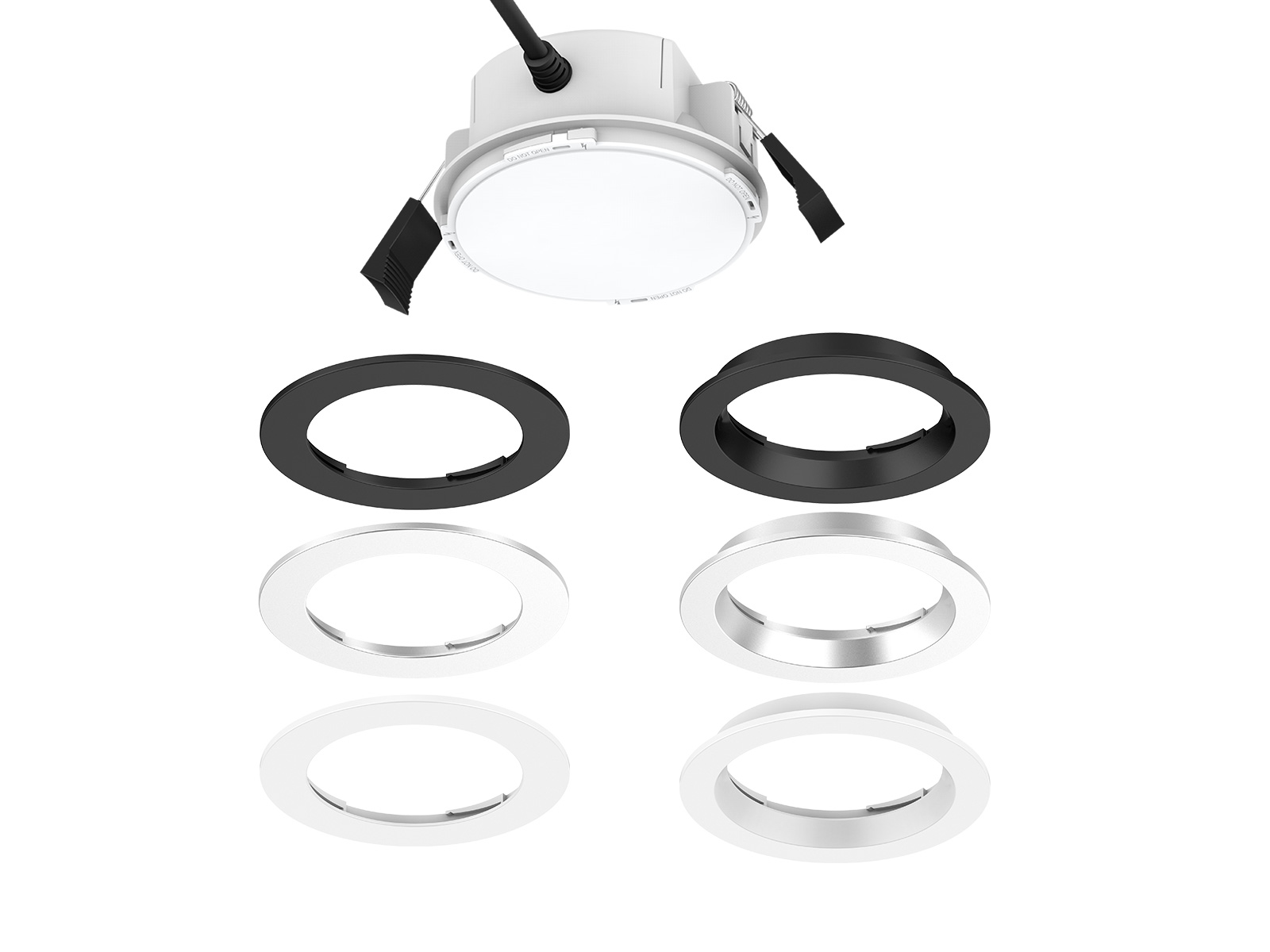

  • Replaceable cover design.
  • Internal triac dimmable driver.
  • Interchangeable CCT(2700K + 4000K + 5000K) and (2700K+3000K+3500K+4000K+5000K) option
Model No. DL241A-3-8W  DL241B-3-8W
Dimension(mm) 110*40 110*49.5
Cutout (mm)  90-95 90-95
Watt(W) 8W 8W
Rated Input Voltage(V)  AC230V
Input Voltage(V)   AC200-240V
LED Module Input  DC51-61V
Light Source  SMD
SDCM <6
CCT(K)   1-CCT: 2700K/3000K/4000K/5000K   ||  3-CCT: 2700K + 4000K + 5000K  ||  5-CCT: 2700K+3000K+3500K+4000K+5000K
CCT Selection DIP Switch  YES
Luminous Flux
(lm)  ±5%
Non-DIM   1-CCT
DIM 760Lm-800Lm 740Lm-780Lm
Non-DIM   3-CCT
DIM 760Lm-820Lm 740Lm-800Lm
Non-DIM   5-CCT
DIM 730Lm-760Lm 710Lm-740Lm
CRI 80
Beam Angle (°) 90°
UGR -
LED Driver  built-out
Dimming  Option Triac
Sensor  -
Emergency Kits  -
Electrical Class  Class I I
Ingress Protection(IP Rating) IP54/IP40
Impact Resistance(IK Rating)  IK06
Product Finishing(Base) White RAL 9016
Materials of Optics PC
Materials of Housing PC/PP
Lifetime (hr)  50,000h
Glow wire test (°C) 750℃
Operating Temp.(°C) -20℃~45℃
Storage Temp.(°C) -20℃~65℃
Installation  Recessed
