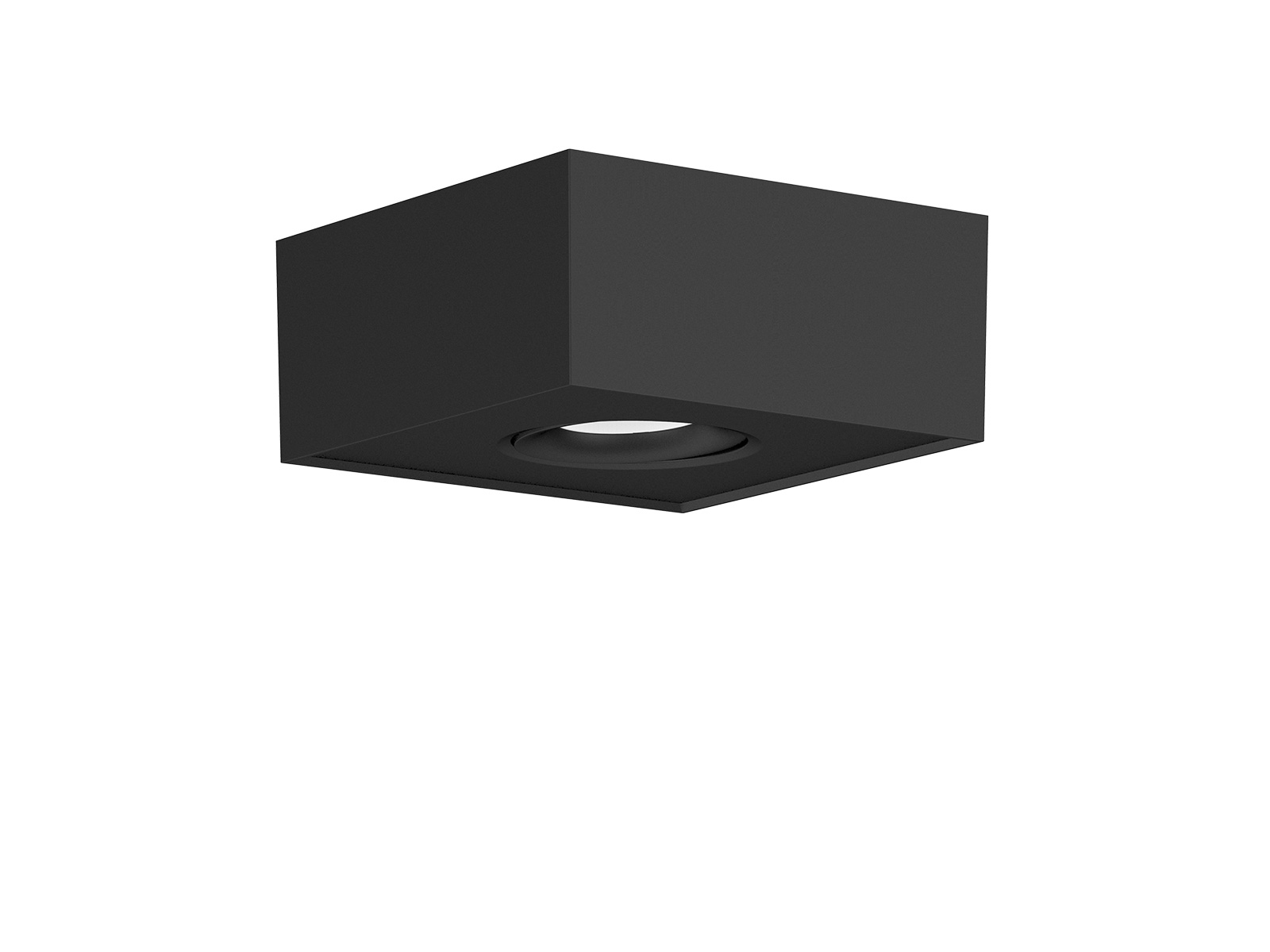

DL259 Black Dimming COB LED Downlight

This is a gyro as design cube downlight, clean outlooking without any screws. It adopts a high-lumen COB LED light source, and high CRI90 CRI95 options, also available as a Dim to Warm version (2000K~3000K). The aluminum housing provides great thermal management, which ensures a long lifespan. The luminaire is tilted 23° in all directions (360°), perfectly meeting the demands of different lighting angles. Slide mounting design makes for easier installation and maintenance.

  • Quick install: fast connector on bracket, and slide mounting design make an easier installation.
  • Gyro design in all directions 360°.
  • Dim to warm 2000-3000K option.
  • CRI90 for single CCT, CRI97 for Dim-to-Warm version.
  • Finished color: White/Black/Silver.
  • Flicker-free internal driver.
  • Triac dimming is available.
Code No. DL259-8W-D DL259-16W-D DL259-16W-DW DL259-8W-DW
Dimension(mm) 135*135*60 224*135*60 224*135*60 135*135*60
Watt(W) 8W 16W 16W 8W
Rated Input Voltage(V) AC230V
Input Voltage(V) AC200-240V
LED Module Input DC33-38V
Light Source COB
SDCM <6
CCT(K) 1-CCT: 2700K/3000K/4000K/5000K WW: 2000-3000K
CCT Selection DIP Switch NO YES
Non-DIM 1-CCT Luminous Flux (lm) ±5% 600-850 1400-1600 -
DIM 1-CCT Luminous Flux (lm) ±5% 570-800 1350-1550 -
DIM Change Luminous Flux (lm) ±5% 880-950 350-450
CRI 90/95 90-97
Beam Angle (°) 15º30º36º60º 15º24º36º60º
LED Driver Built-in
Dimming Option Triac
Electrical Class Class I
Ingress Protection (IP Rating) IP20
Product Finishing(Base) White/Black/Silver
Materials of Optics PC
Materials of Housing PC/Die-casting
Lifetime (hr) 50,000h
Glow wire test (℃ ) 750℃
Operating Temp. (℃ ) -20℃~ 40℃
Storage Temp. (℃ ) -20℃~ 65℃
Installation Surface mount
