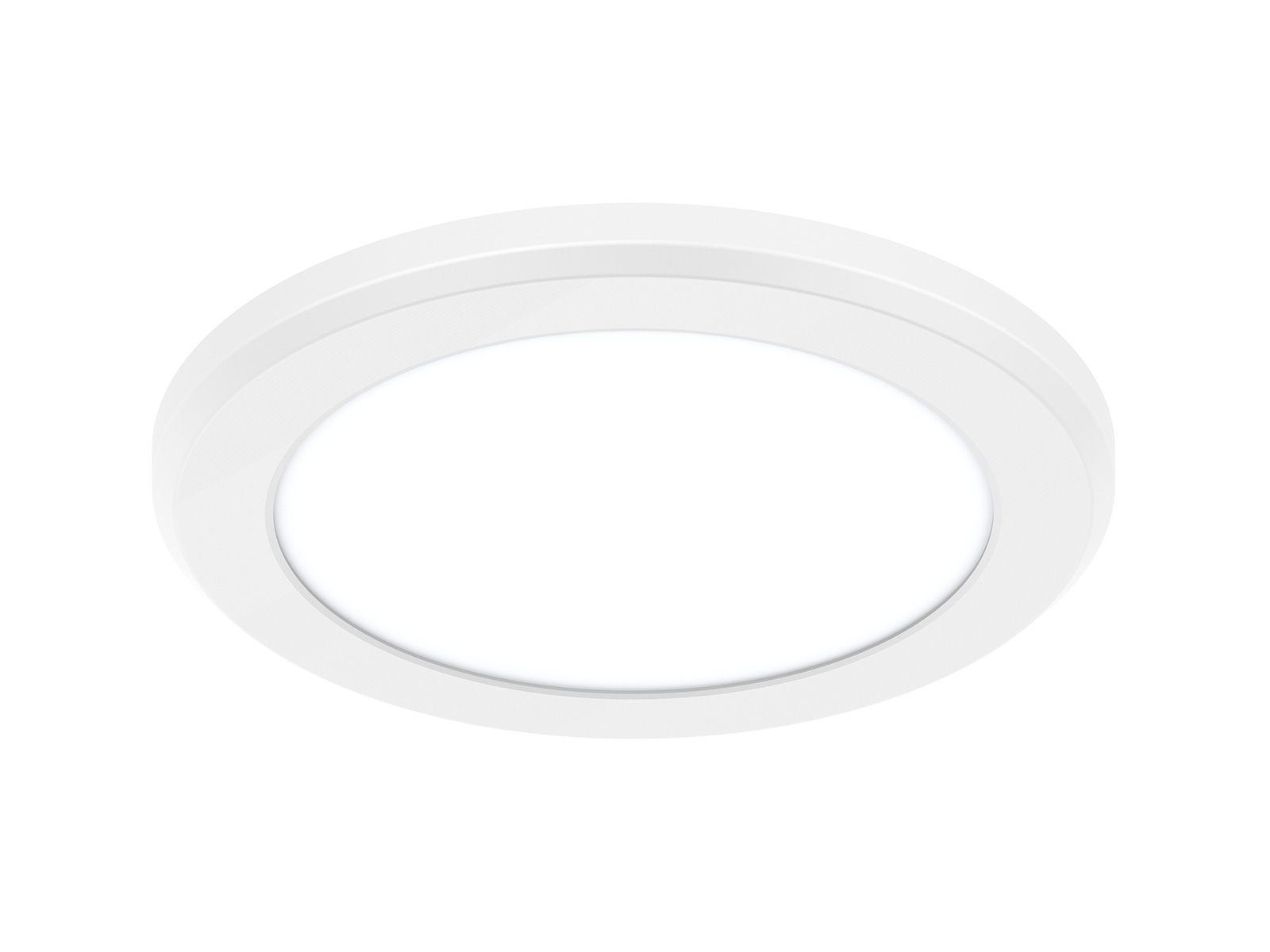

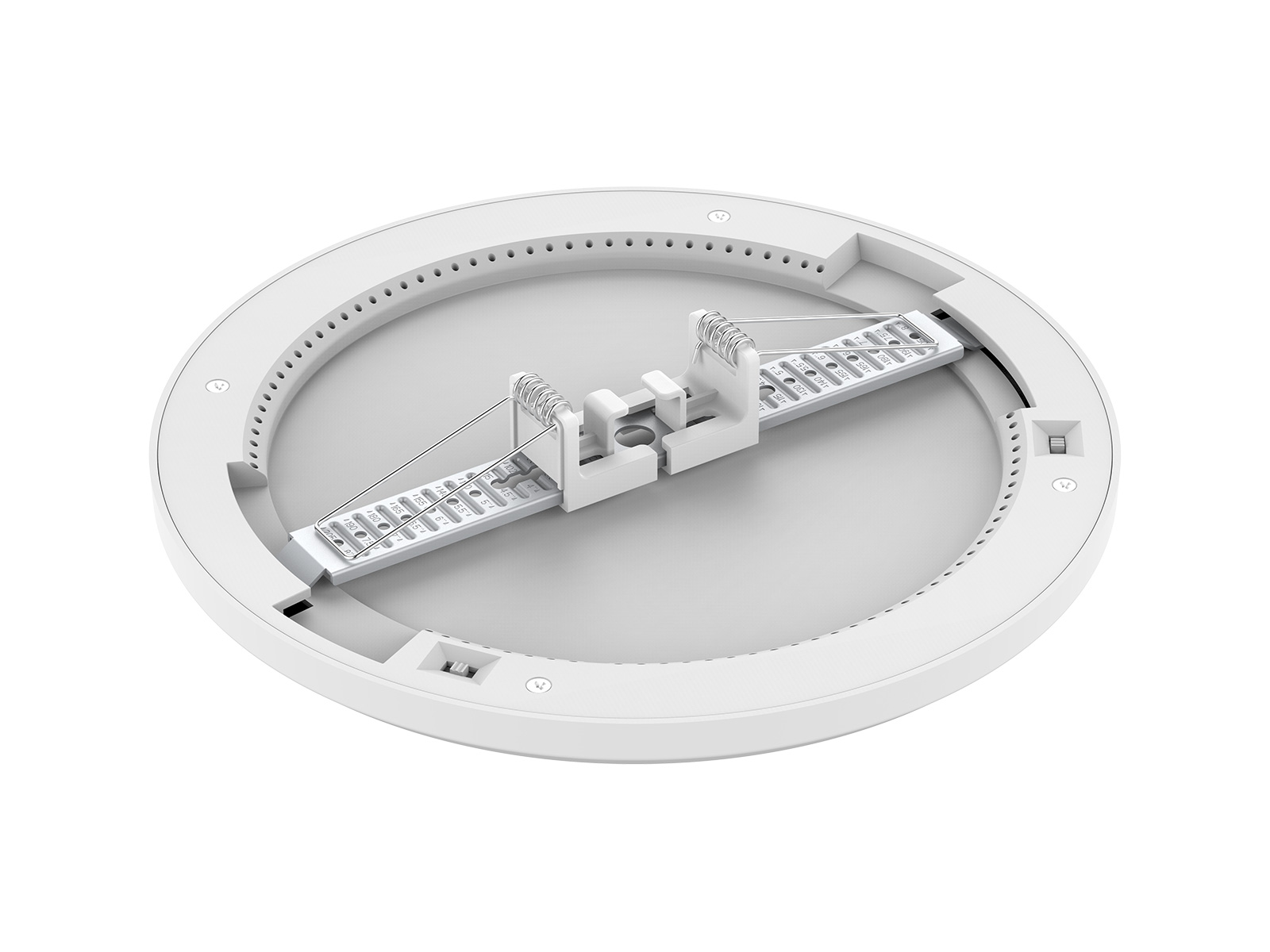

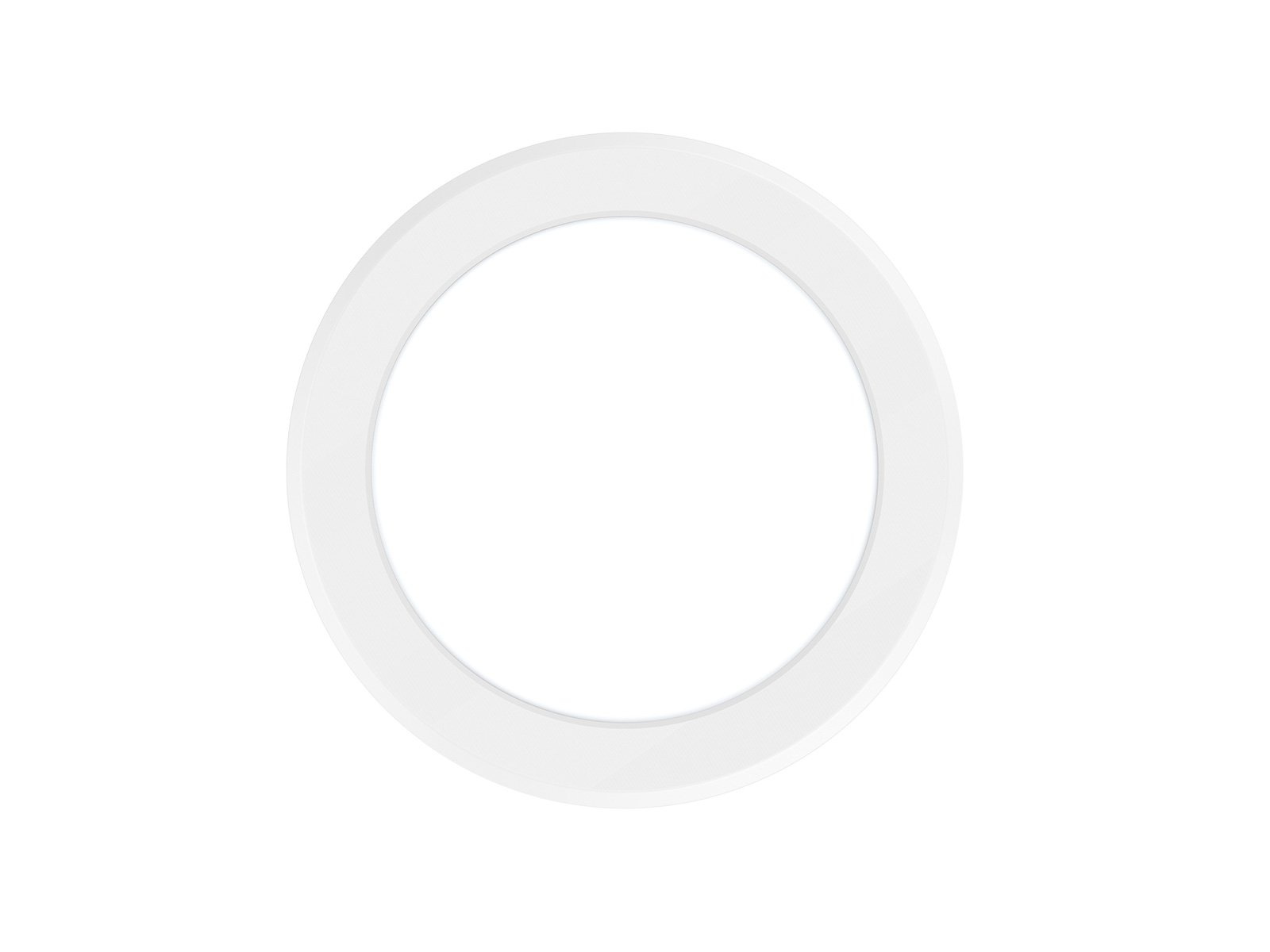

This downlight featured with adjustable cutout size. Adopt high lumen SMD LED and edge lighting design with even light output. AL1060 Aluminum profile provides excellent thermal dissipation. Super slim with internal driver, can be widely used in various application. Recessed and surface mounted installation optional.
LED recessed downlight features:
| Code No. | DL265-8-16W | DL265-8-16W-A3 | ||
| Dimension(mm) | Ø235*16 | |||
| Cutout (mm) | Ø65-Ø205 | |||
| Watt(W) | 16W | 10W / 13W / 16W | ||
| Rated Input Voltage(V) | AC100-240V | AC230V | ||
| Input Voltage(V) | AC85-265V | AC200-240V | ||
| LED Module Input | – | |||
| Light Source | SMD | |||
| SDCM | <6 | |||
| CCT(K) | 1-CCT: 3000K / 4000K / 5000K / 5700K || 3-CCT: 3000K + 4000K + 5700K | |||
| CCT Selection DIP Switch | YES | |||
| Luminous Flux (lm) ±5% | Non-DIM | 1-CCT | 1500~1650 | 10W:950~1000 / 13W:1200~1450 / 16W:1500~1650 |
| DIM | 1500~1650 | – | ||
| Non-DIM | 3-CCT | 1500~1800 | 10W:950~1000 / 13W:1200~1450 / 16W:1500~1800 | |
| DIM | 1500~1800 | – | ||
| CRI | ≥80 | |||
| Beam Angle (°) | 120° | |||
| UGR | – | |||
| LED Driver | Built-in | |||
| Dimming Option | Triac | |||
| Sensor | – | |||
| Emergency Kits | – | |||
| Electrical Class | Class Ⅱ | |||
| Ingress Protection (IP Rating) | IP20 | |||
| Impact Resistance (IK Rating) | – | |||
| Product Finishing(Base) | White RAL 9016 | |||
| Materials of Optics | PS | |||
| Materials of Housing | Aluminum coated plastic | |||
| Lifetime (hr) | 5,0000h | |||
| Glow wire test (℃ ) | 650℃ | |||
| Operating Temp. (℃ ) | -20℃ ~45℃ | |||
| Storage Temp. (℃ ) | -20℃ ~65℃ | |||
| Installation | Surface mount / Recessed | |||
