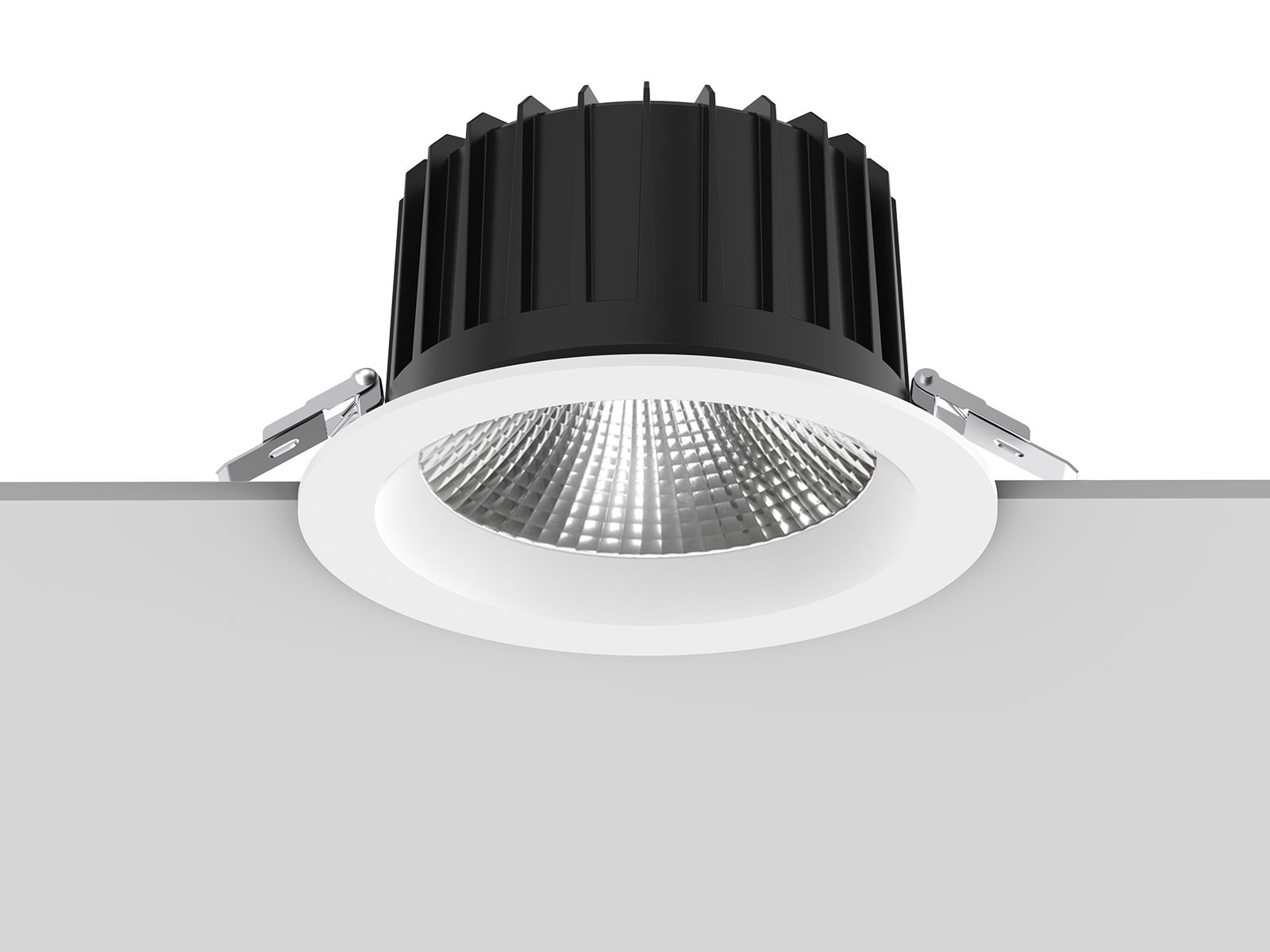

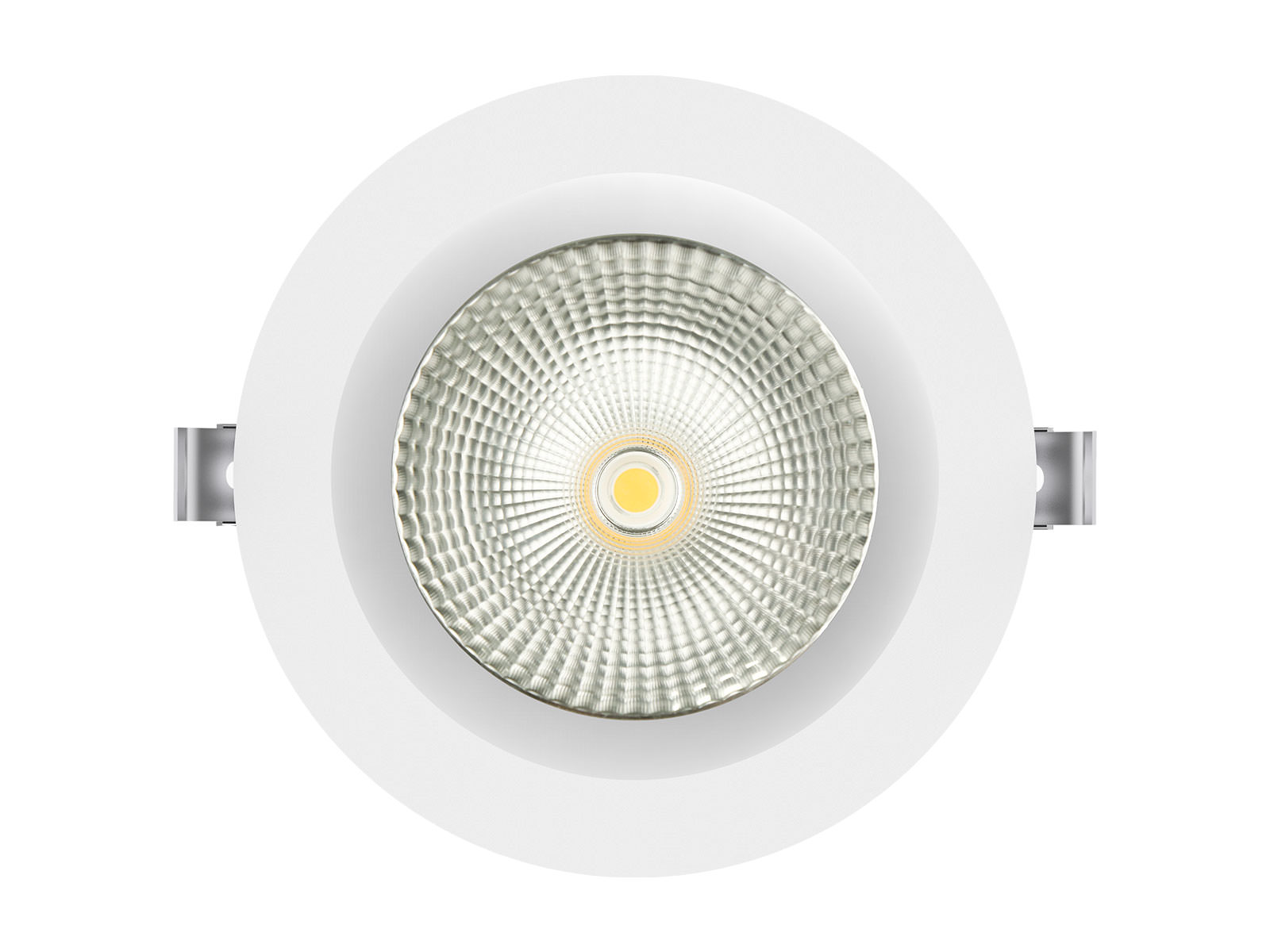

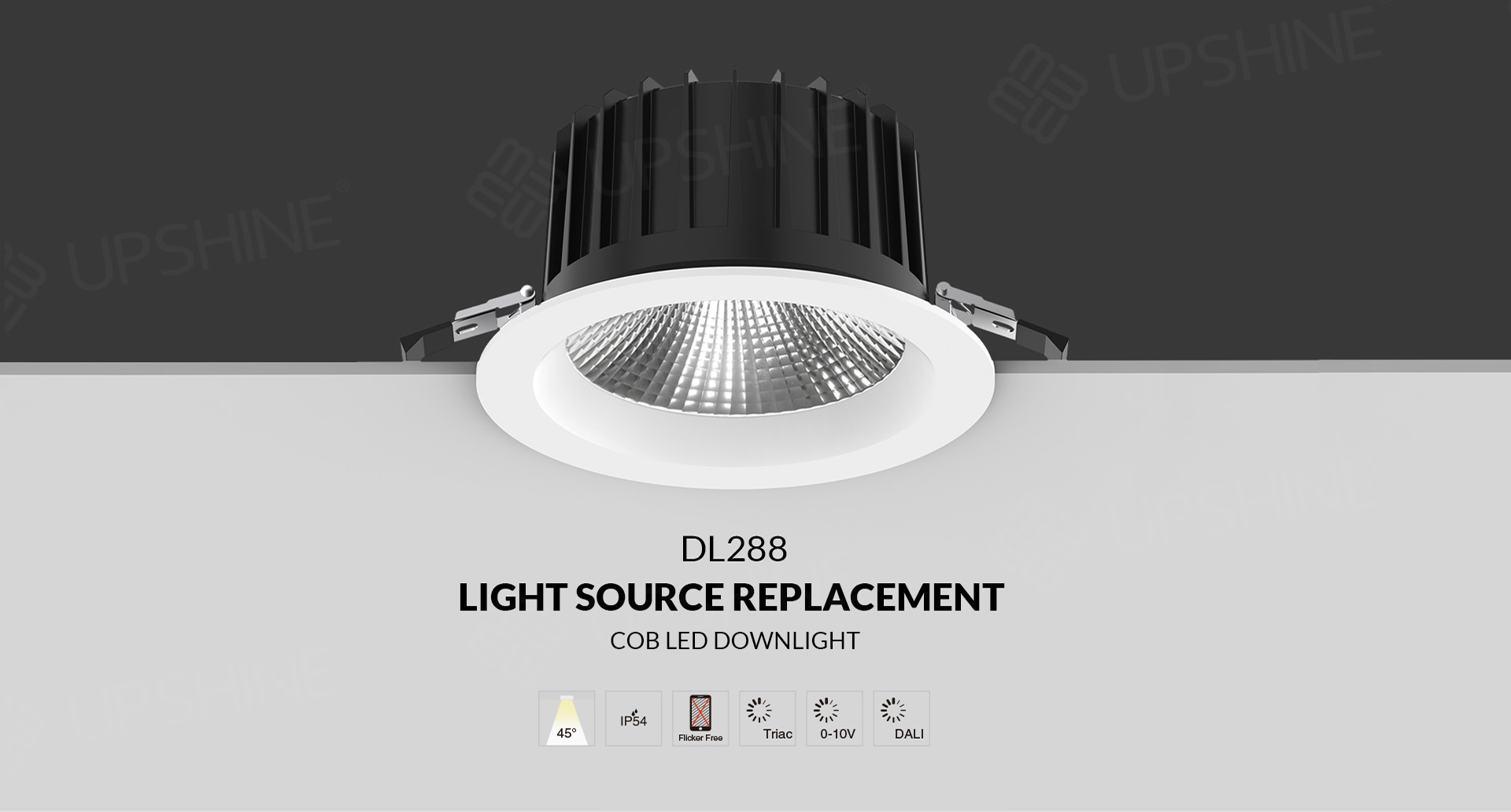

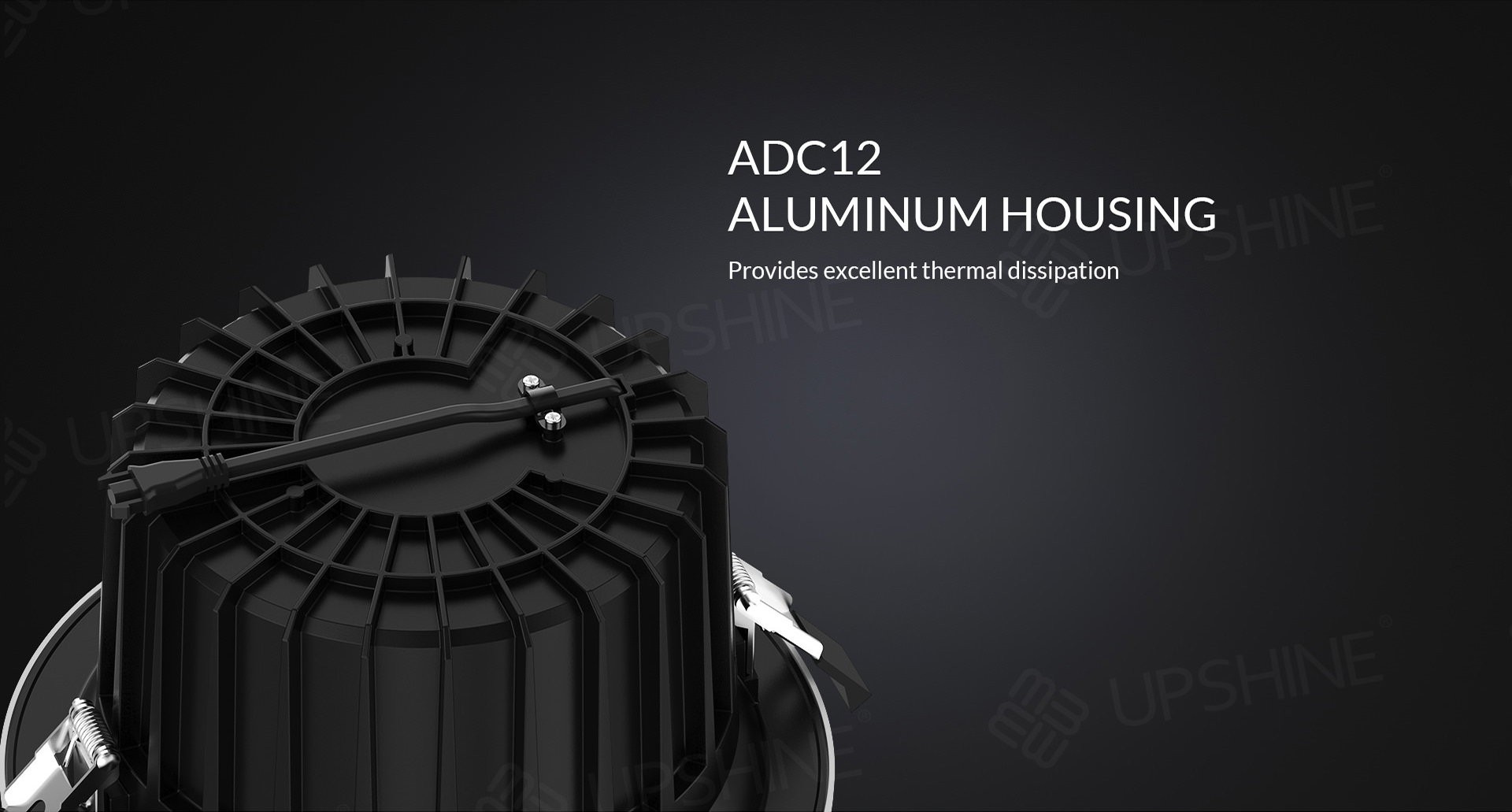

This downlight is unique designed with reflector and COB high power LED chip. ADC12 aluminum housing provides

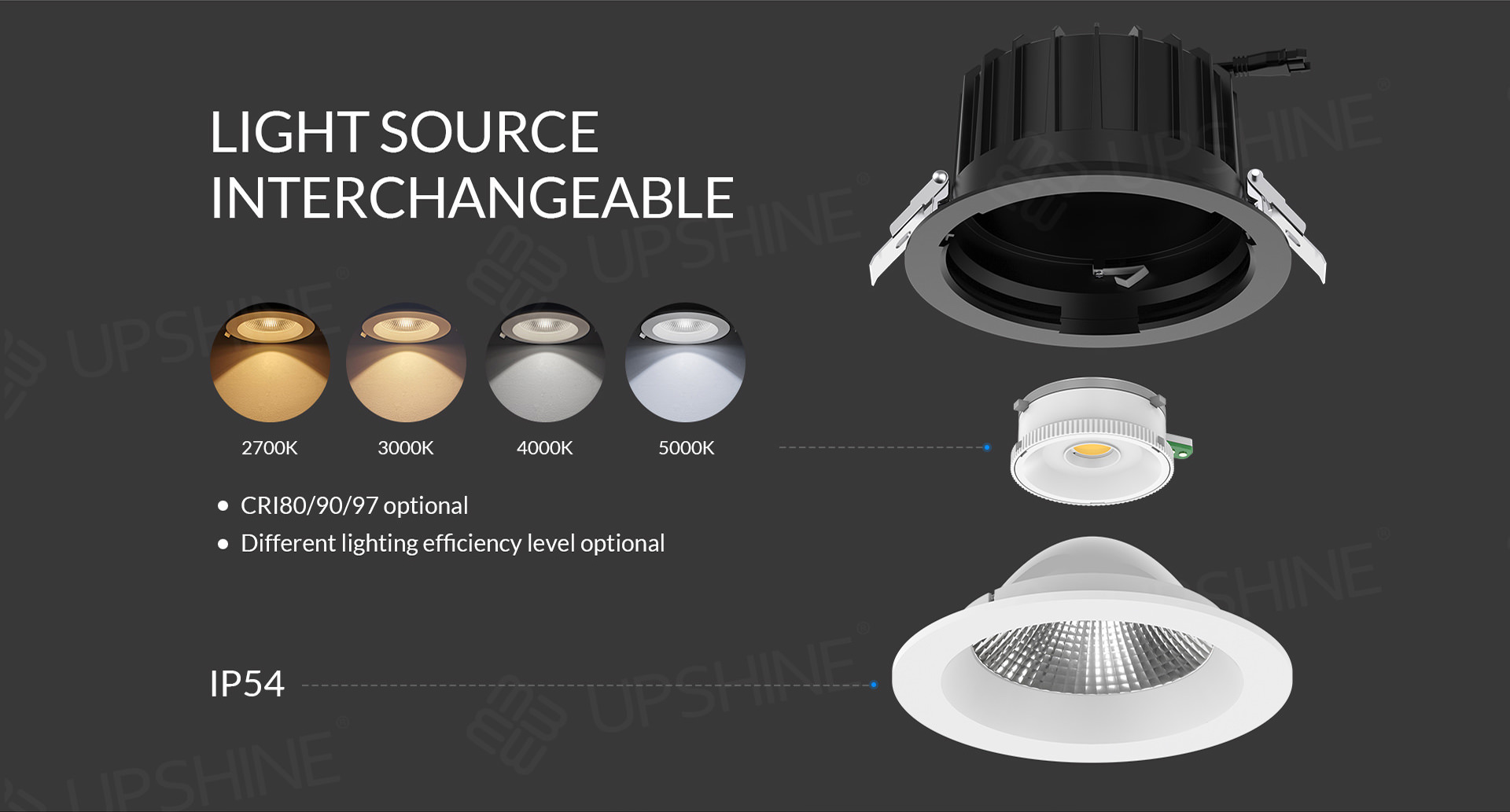

excellent thermal dissipation. LED Module design could save SKU and offer an easy module replacement. It supports
a great compatibility for non- dim, triac dim, 0-10V, DALI dim with worldwide dimmers.

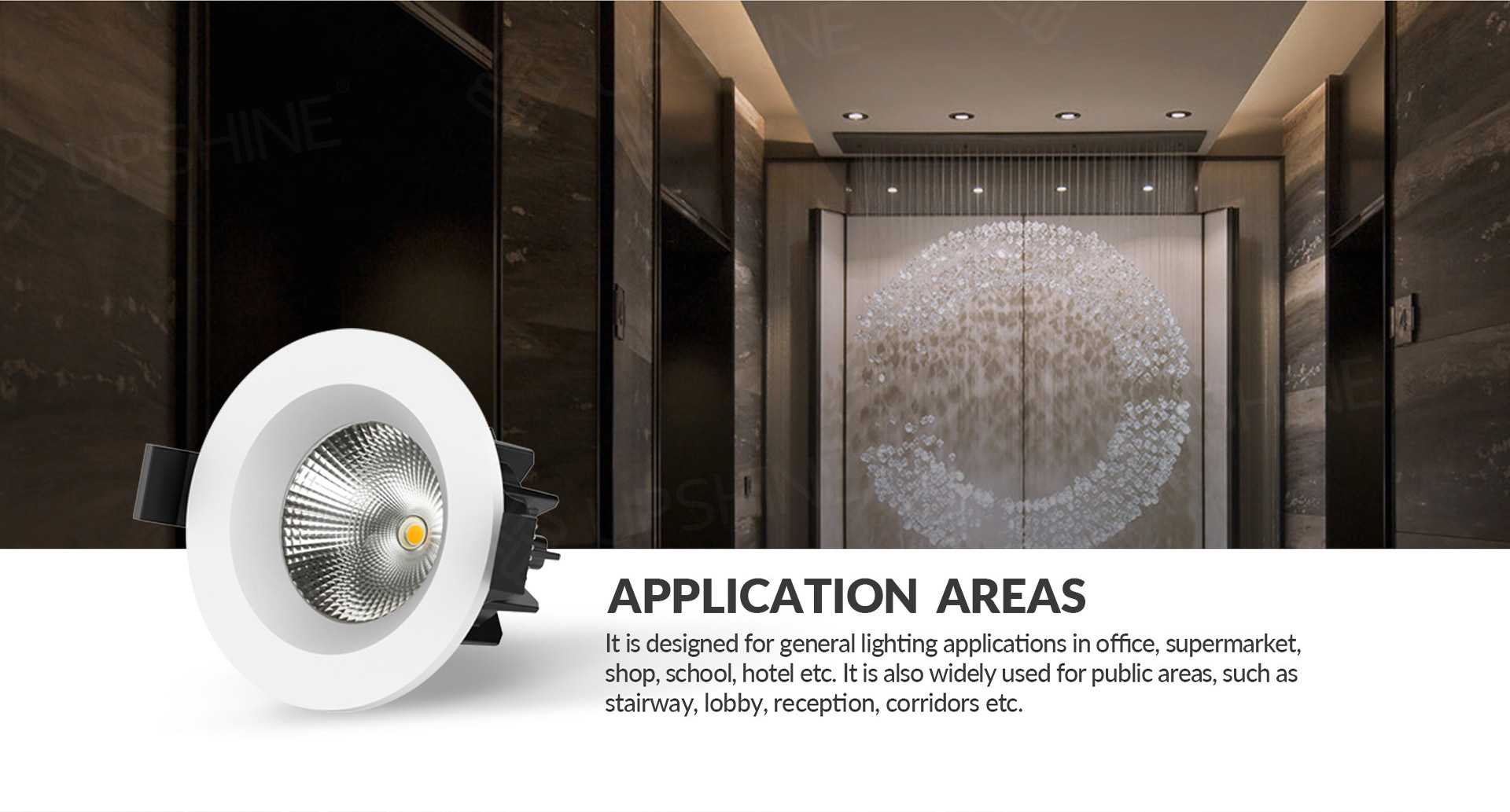

Application Areas：It is designed for general lighting applications in office, supermarket, shop, school, hotel etc. It is also
widely used for public areas, such as stairway, lobby, reception, corridors etc.

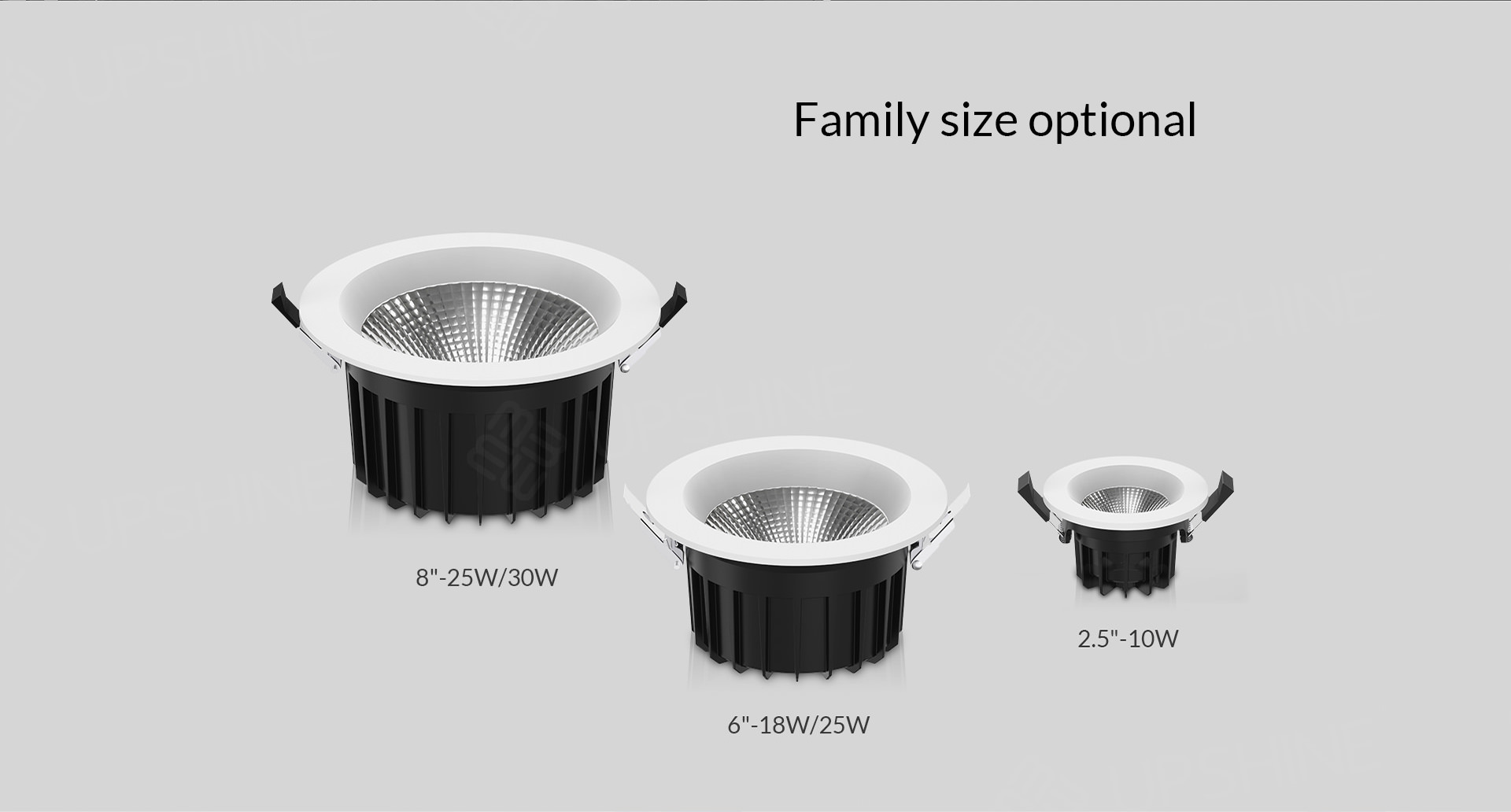

| Code No. | DL288-2.5-10W | DL288-6-18W | DL288-6-25W | DL288-8-25W | DL288-8-30W |
|---|---|---|---|---|---|
| Dimension(mm) | Ø90*60 | Ø172*96 | Ø228*125 | ||
| Cutout (mm) | 75-83 | 150- 160 | 195-210 | ||
| Watt(W) | 10W | 18W | 25W | 25W | 30W |
| Rated Input Voltage(V) | AC230V | ||||
| Input Voltage(V) | AC220-240V | ||||
| LED Module Input | DC33-38V | ||||
| Light Source | COB | ||||
| SDCM | <5 | ||||
| CCT(K) | 1-CCT: 2700K/3000K/4000K/5000K | ||||
| CCT Selection DIP Switch | NO | ||||
| Non-DIM 1-CCT Luminous Flux (lm) ±5% | 1070- 1180 | 2030-2290 | 2870-3070 | 2870-3070 | 3230-3600 |
| Luminous Flux | 990- 1100 | 1940-2200 | 2770-2970 | 2770-2970 | 3010-3480 |
| CRI | ≥80 | ||||
| Beam Angle (°) | 60° | ||||
| LED Driver | Built-out | ||||
| Dimming Option | Triac/0- 10V/DALI | ||||
| Electrical Class | Class II | ||||

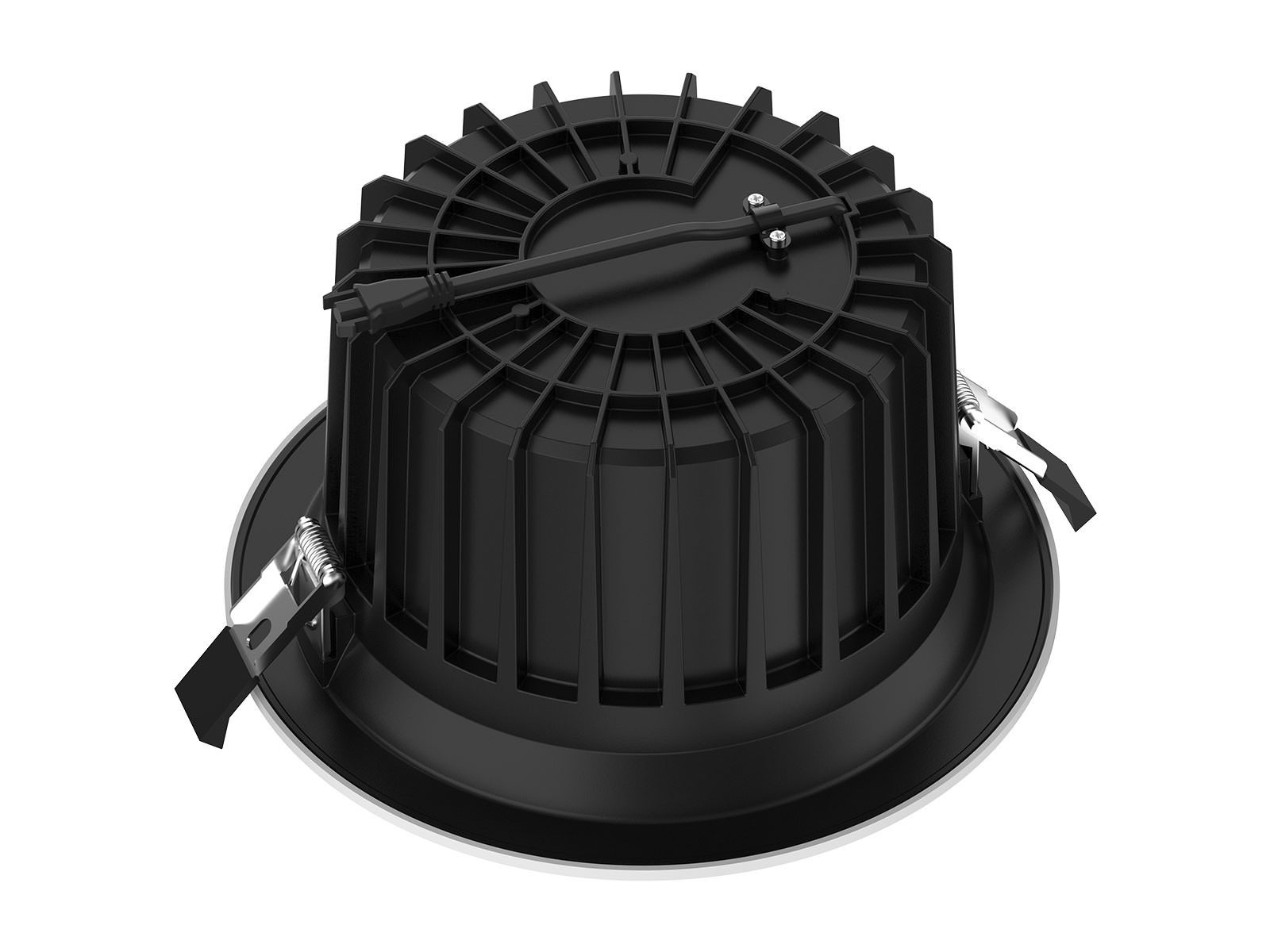

| Ingress Protection (IP Rating) | IP54(only for the LED cover) IP40(for other part) | ||||
| Product Finishing(Base) | White RAL 9016 /Black RAL9005 | ||||
| Materials of Optics | Aluminum + Tempered Glass | ||||
| Materials of Housing | Aluminum Die-casting | ||||
| Lifetime (hr) | 50,000h | ||||
| Glow wire test (°C) | 750°C | ||||
| Operating Temp. (°C) | -20°C~45°C | ||||
| Storage Temp. (°C) | -20°C~65°C | ||||
| Installation | Recessed | ||||
