DL297B Surface Mounted Led Spot Light

This downlight adopts high lumen COB light source, the special optic lens and reflector design offer a uniform light output and low glare effect. It can do 320 degree horizontal rotation and 90 degree vertically rotation which meet more application lighting demand. What’s more, the reflector is a modular design, very convenient for replacement. It has square shape with single/ double/triple heads which is suitable for various application area. Surface mounted and wall mounted installation with quick clips, easy for installation and maintenance.

  • Modular design for reflector, 24º/36º options.

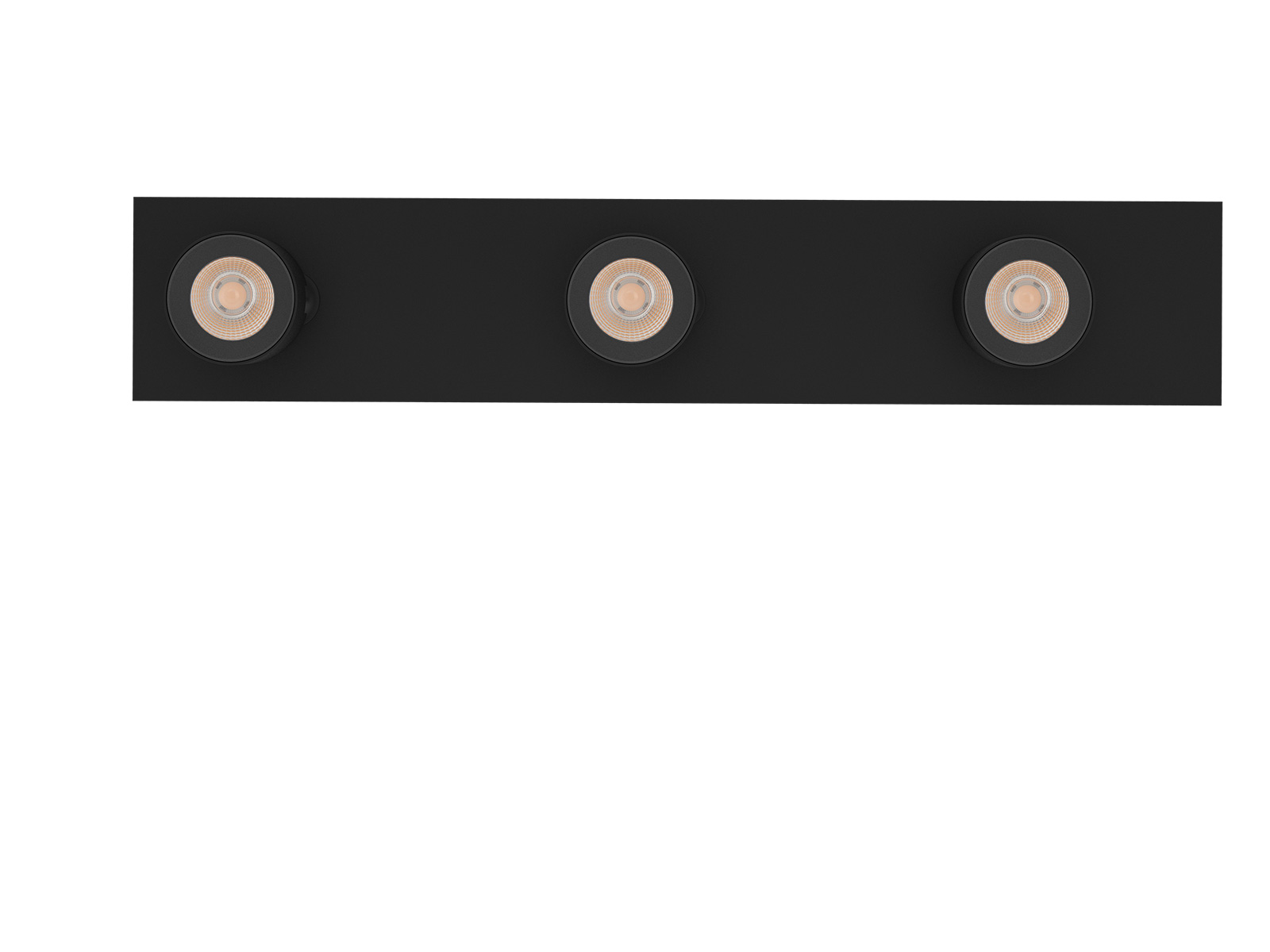

  • Shape option: Square with single/double/triple light heads.
  • AL6063 aluminium housing provides a great thermal management.
  • Special lens design offers low glare effect.
  • RA80/RA90 options.
  • Internal flicker free driver.
  • Triac dimming available.
  • Surface mounted and wall mounted installation with quick clips.
Code No DL297B-0911 DL297B-0911 DL297B-0930 DL297B -093 0- 28W DL297B-0948 30W DL297B-0948
1UW 14W 20W 42W
Dimension(mm 110*90*134 305*90*134 480*90*134
Cutout  (mm)
Watt(W 10W 14W 20W 28W 30W 42W
Rated Input Voltage(V) AC230V
nput Voltage(V) AC220-240V
LED Module Inpu DC33-38V
Light Source COB
SDCM <6
CCT(K) 2700K/3000K/4000K/5000K
CCT Selection DIP Switch
Non-DIM 1-CCT Luminous Flux (lm)±5% 700-900 1000-1250 1400-1800 1950-2500 2100-2700 2950-3800
DIM 1-CCT Luminous Flux (lm)±5% 650-850   1300-1700   1950-2550
CRI 80/90
Beam Angle() 24°/36°
JGR JGR<19@24
ED Driver Driver built-in
Dimming Option Triac
Electrical Class Class
Ingress Protection (IP Rating IP20
Product Finishing(Base) White RAL9016/Black RAL9005
Materials of Optics PC
Materials of Housinç PC&Aluminum
_ifetime(hr) 50,000h
Glow wire test (℃) 850℃
Operating Temp.(℃ -20°C~40℃
Storage Temp.(C -20°℃~65℃
nstallation Surface mounted
