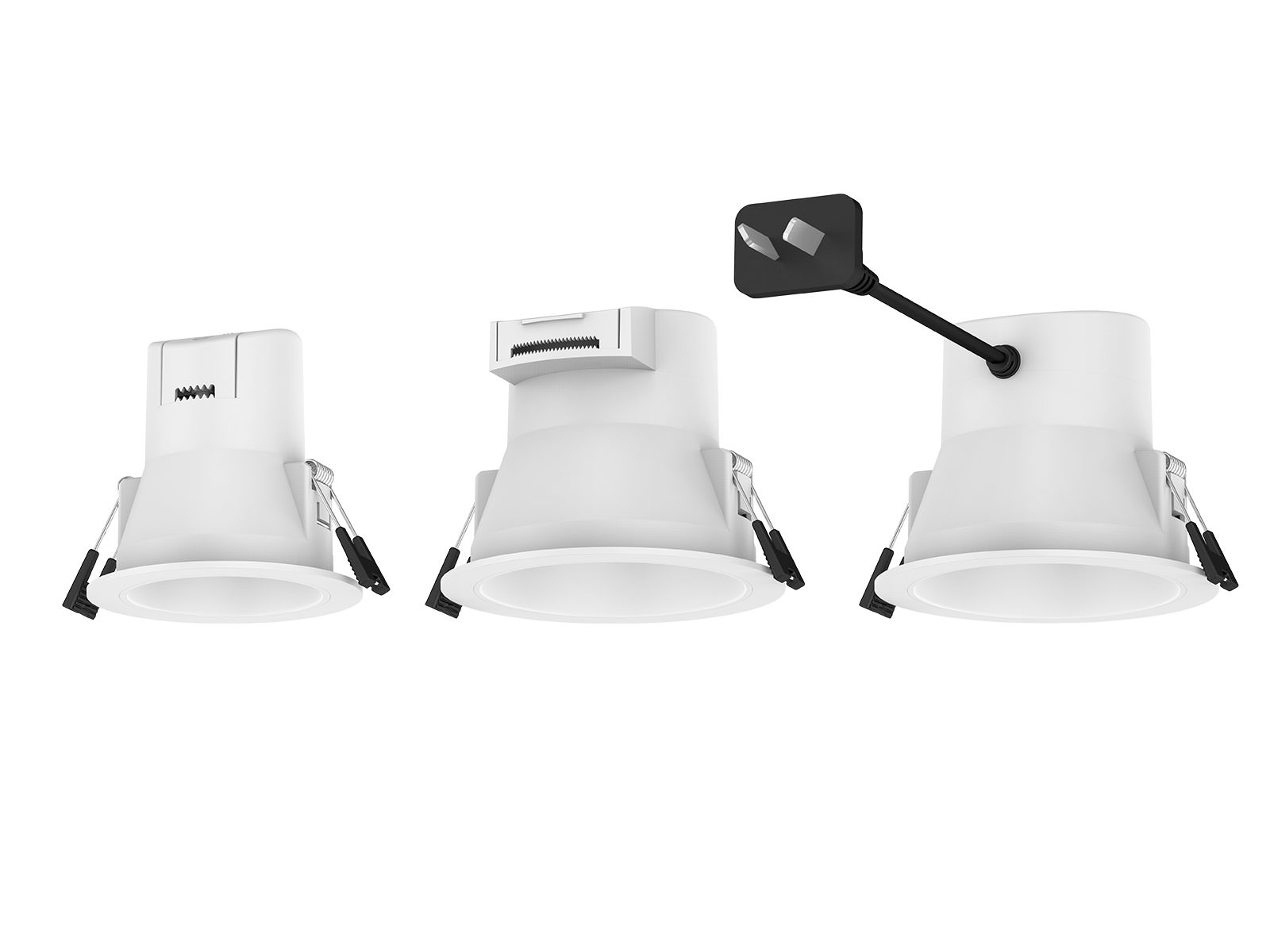

Up-shine SMD LED Down light adopts high lumen SMD LED, PC diffuser with even light output. Plastic-coated aluminum housing with deep reflector design to reduce the glare, adjustable CCT for a wider application. Dimmable driver shares great popularity by the excellent dimming effect.
Application Areas: It is designed for general lighting applications in offices, supermarkets, shops, schools, hotels, etc. It is also widely used for public areas, such as stairways, lobbies, reception, corridors, etc.
| Code No. | DL304A-2.5-6W | DL304A-3-8W | DL304B-3-8W | |||
|---|---|---|---|---|---|---|
| Dimension(mm) | Ø85*84mm | Ø106*84mm | ||||
| Cutout (mm) | Ø70-75mm | Ø90-95mm | ||||
| Watt(W) | 6W | 8W | ||||
| Rated Input Voltage(V) | AC230V | |||||
| Input Voltage(V) | AC220-240V | |||||
| Light Source | SMD2835 | |||||
| SDCM | <6 | |||||
| CCT(K) | 1-CCT: 3000K/4000K/5700K || 3-CCT: 3000K + 4000K + 5700K | |||||
| CCT Selection DIP Switch | YES | |||||
| DIM 1-CCT Luminous Flux (lm) ±5% | 500-655(White) | 400-540(Black) | 760-950(White) | 500-680(Black) | 760-950(White) | 500-680(Black) |
| DIM 3-CCT Luminous Flux (lm) ±5% | 500-655(White) | 400-540(Black | 760-950(White) | 500-680(Black) | 760-950(White) | 500-680(Black) |
| CRI | ≥80 | |||||
| Beam Angle (°) | 36° / 60° | 45°/ 60° | ||||
| UGR | <19 (Black) / <23(White) | |||||
| LED Driver | Built-in | |||||
| Dimming Option | Triac | |||||
| Electrical Class | Class II | |||||
| Ingress Protection (IP Rating) | IP54(Below Ceiling) IP20(Inside Ceiling) | |||||
| Product Finishing(Base) | White RAL 9016 / Black RAL9005 | |||||
| Materials of Optics | PC | |||||
| Materials of Housing | PA46/Aluminum /PC | |||||
| Lifetime (hr) | 50,000h | |||||
| Glow wire test (℃ ) | 750℃ | |||||
| Operating Temp. (℃ ) | -20℃ ~45℃ | |||||
| Storage Temp. (℃ ) | -20℃ ~65℃ | |||||
| Installation | Recessed | |||||
