DL31 Scoop COB Downlight
DL31 3 led retrofit downlight
DL31 1 Recessed Led Down Light
COB Led Down Light DL31 2
DL31 Scoop COB Downlight
DL31 3 led retrofit downlight
DL31 1 Recessed Led Down Light
COB Led Down Light DL31 2

DL31 Scoop COB Downlight

Up-shine DL31 COB downlight is unique designed with reflector and COB high power LED chip. ADC12 die-casting aluminium profile provides excellent thermal dissipation.

Adjustable lighting direction provides all possible lighting effects. Isolated driver solution both in dimmable and non-dimmable version achieves great dimming compatibility with worldwide brand dimmers.

Overview
Specifications

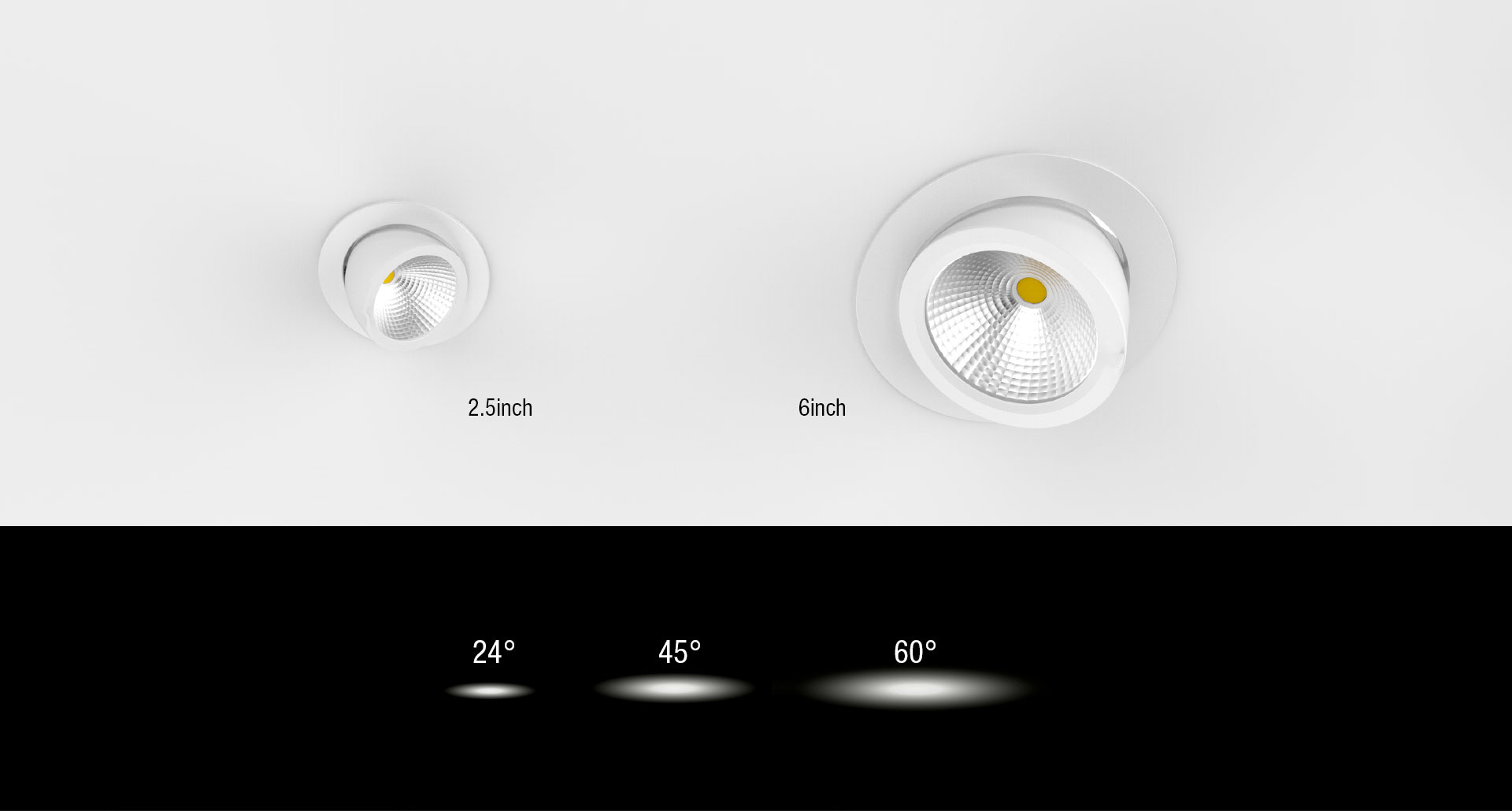

DL31 Reflector COB LED Downlights_01Adjustable LED Downlights_02Aluminum Heatsink LED Downlight_036inch Recessed LED Downlighting_04Retail Store LED Downlight_05

DL31 SmaTrunk Adjustable LED Downlights
CE, RoHS, SAA approved Adjustable Downlights

CE, RoHS, SAA approved

COB Adjustable Downlights

COB LED chips with excellent color rendering index

Dimmable Adjustable LED Downlights

Triac, 0-10V dimmable

Adjustable LED Downlights

45° vertical rotatable

COB Adjustable Downlights

Branded COB Chips & Diamond Reflector

Original Branded LED chips, high luminous flux density, less glare. Excellent thermal dissipation and stable light output;
Diamond quality aluminium reflector, lattice pattern. Reflectivity up to 93%, make the light soft, uniform, no black spots. Maximize the efficiency of COB light source.
Adjustable Downlights Heat Sink

Excellent Heat Sink Design

Short heat sink suitable for all kinds of installations.
Die casting aluminum thermal conductivity up to 96 W/(mxk), provides excellent thermal dissipation.
Code LEDChip Wattage BeamAngle CCT Lumens(±5%) Dimension Download
UP-DL31-2.5-13W CITIZEN/COB 13W 24°/60° 2700K,3000K,4000K,5000K 950-1120lm Ø96*115*67mm cutout Ø85-88mm Specification
UP-DL31-6-18W CITIZEN/COB 18W 45°/60° 2700K,3000K,4000K,5000K 1300-1550lm Ø180*100mm cutout Ø160-170mm Specification
UP-DL31-6-25W CITIZEN/COB 25W 45°/60° 2700K,3000K,4000K,5000K 2100-2500lm Ø180*100mm cutout Ø160-170mm Specification
UP-DL31-6-35W CITIZEN/COB 35W 45°/60° 2700K,3000K,4000K,5000K 3150-3550lm Ø180*100mm cutout Ø160-170mm Specification
