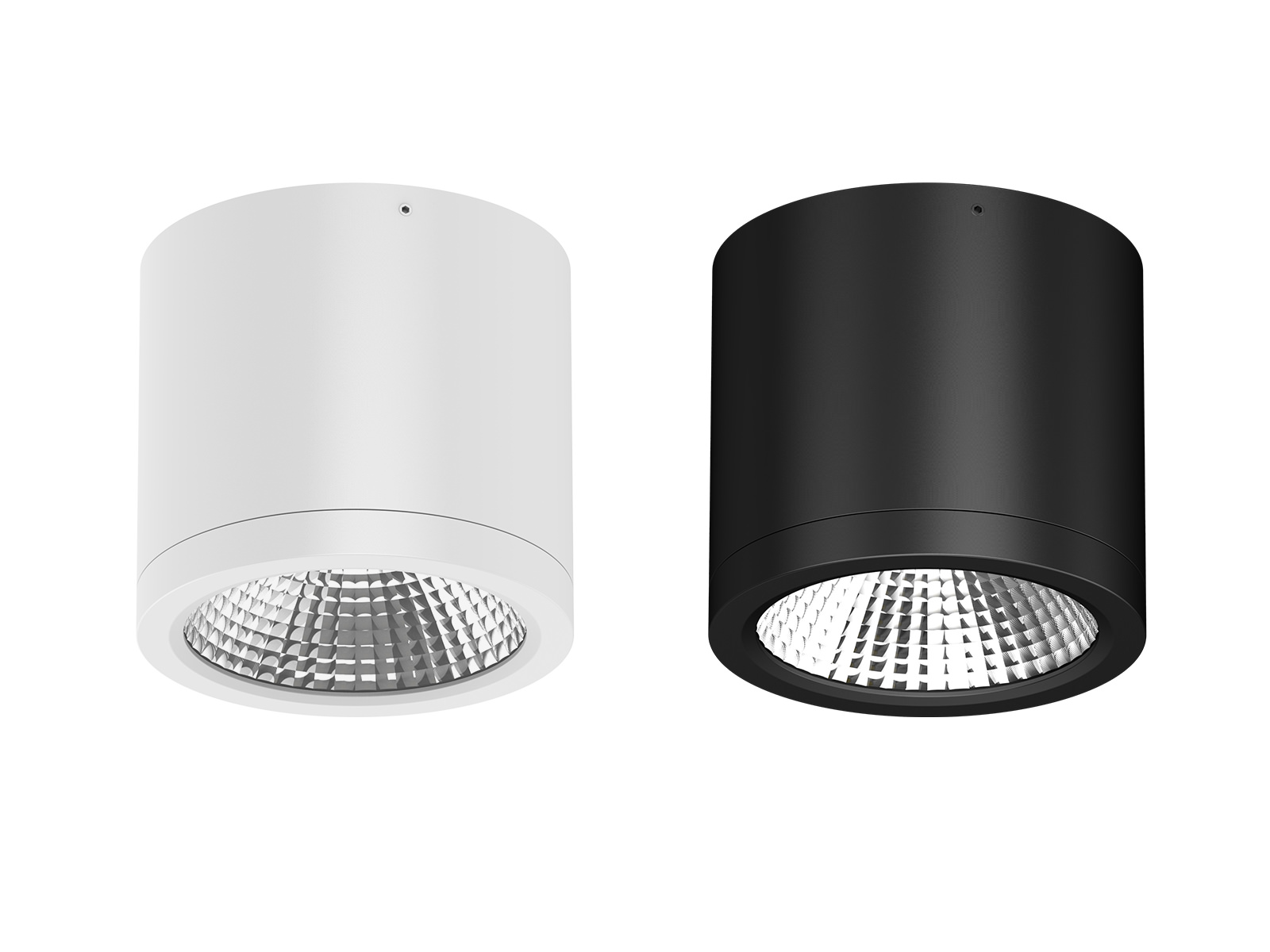

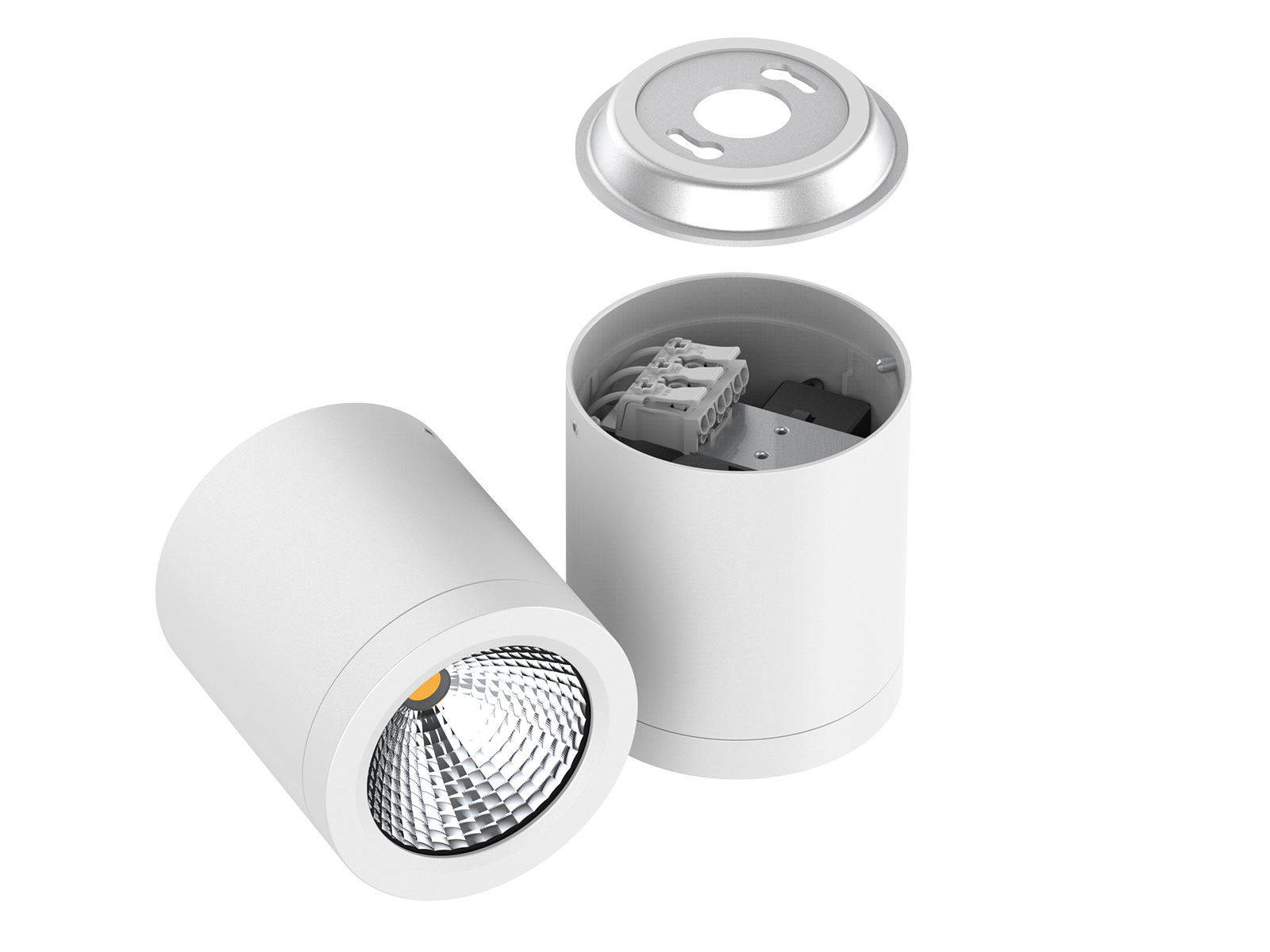

DL38B Surface mounted downlight adopts a straightforward design with a stylish appearance, easy to install. The lamp adopts high quality reflector which has a good reflective rate and light output > 86%. AL6063 Aluminum body with oxidation treatment provides corrosion resistance and excellent heat dissipation performance. LEDs are high-lumen COB chips with CRI>90. The built-in driver is independent and replaceable, which is friendly maintenance. PF>0. 9, THD<20%, passed the EMC test with strong anti-jamming capability. Besides, it possesses short-circuit protection and overvoltage protection functions, showing high safety performance. The interchangeable CCT function will save SKUs and offer wider options for various application areas.
Application Areas: Downlight is designed for general lighting applications in hotels, homes, offices, shops, etc. It is also widely used in public areas
| Dimension(mm) | Ø90*100 | Ø120*110 | Ø160*120 | |||||
|---|---|---|---|---|---|---|---|---|
| Watt(W) | 10W | 15W | 10W | 15W | 20W | 25W | 25W | 32W |
| Rated Input Voltage(V) | AC230V | |||||||
| Input Voltage(V) | AC220V—240V | |||||||
| Light Source | COB | |||||||
| CCT(K) | 1-CCT: 2700K/3000K/4000K/5000K | |||||||
| Non-DIM 1-CCT Luminous Flux (lm) ±5% | 770-1150 | 1300-1600 | - | 1600-1700 | 2000-2450 | 2500-2700 | 2600-2950 | 3340-3580 |
| DIM 1-CCT Luminous Flux (lm) ±5% | 750-1100 | 1200-1500 | 1000-1200 | 1580-1680 | 2000-2380 | 2450-2650 | 2550-2800 | 3200-3400 |
| CRI | ≥80 | |||||||
| Beam Angle (°) | 60° | 24° /45°/ 60° | 24° /45° / 36°/ 60° | |||||
| LED Driver | Built-in | |||||||
| Dimming Option | Triac | Dali | Triac/ Dali | |||||
| Electrical Class | Class I | |||||||
| Ingress Protection (IP Rating) | IP54 | |||||||
| Product Finishing(Base) | White RAL9016 / Black RAL9005 | |||||||
| Materials of Optics | PC | |||||||
| Materials of Housing | Aluminum Die-casting | |||||||
| Lifetime (hr) | 50,000h | |||||||
| Glow wire test (°) | 850°C | |||||||
| Operating Temp. (°) | -20° ~40°C | |||||||
| Storage Temp. (°) | -20° ~65°C | |||||||
| Installation | Surface mount | |||||||
