DL391 LED Downlight
CL391 3 IP40 for DOWNLIGHT surface
CL391 RAL902
CL391 1 IP54
DL391 LED Downlight
CL391 3 IP40 for DOWNLIGHT surface
CL391 RAL902
CL391 1 IP54

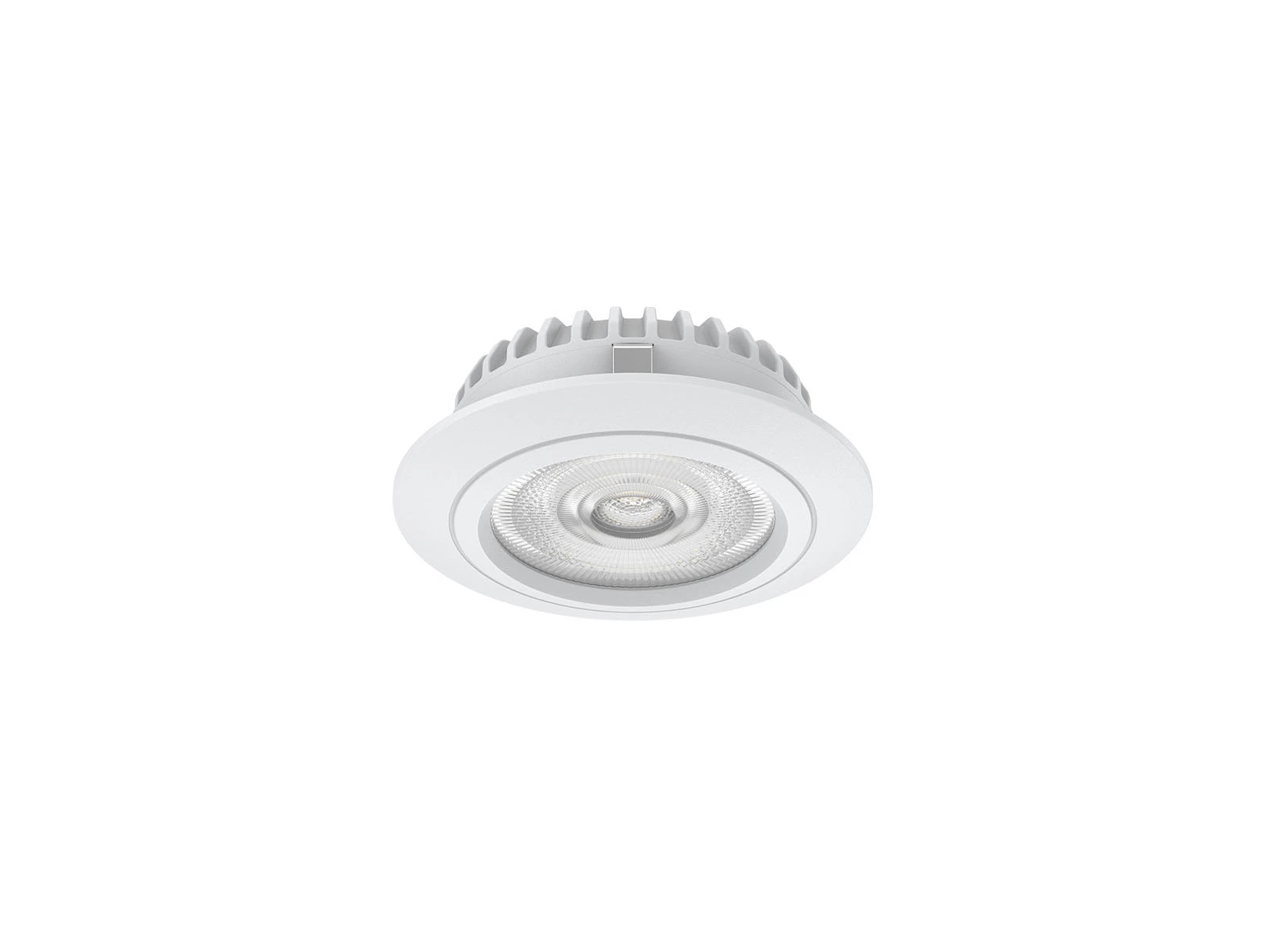

DL391 LED Downlight

This  cabinet light with  ADC12  aluminum light body, providing  good heat dissipation.70  degree  beam  angle with lens. It  has  two  kinds of  driver, AC220  driver and  DC24V  constant voltage  driver,3-way  and  6-way  distributor for options. Adjustable  CCT  for different  applications, also  it  supports  both  recessed  and surface-mounted installation

  • sewing

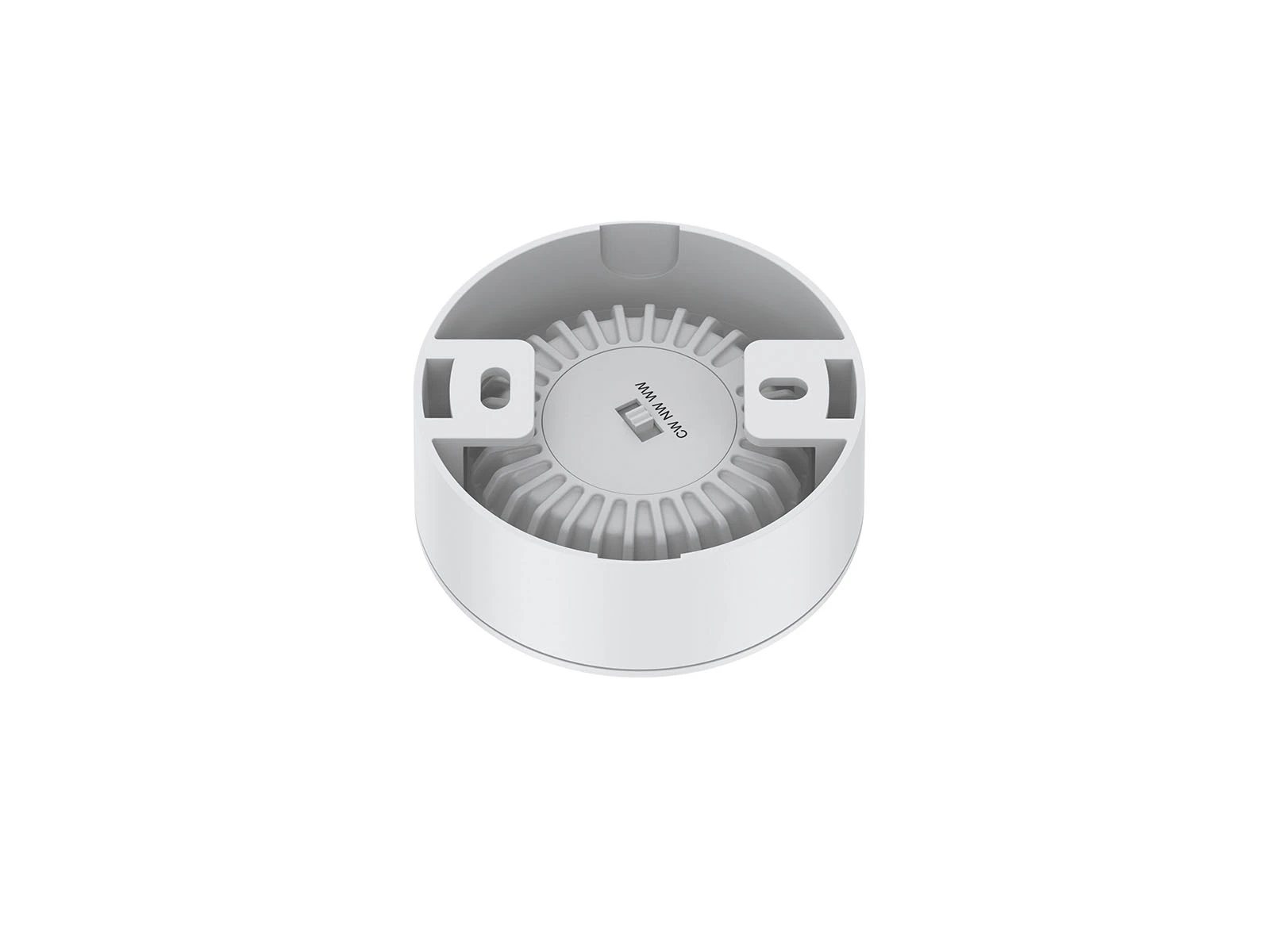

  • IP54 for recessed install,IP40 for surface-mounted
  • DC24V  driver:3-way  and  6-way  distributor  for  options
  • Finishing  color: White  RAL9016/Nickel  brushed


Application Areas: LTs widely used in hotels, bars, cafes, museums, boutiques,show windows, exhibition halls etc.


  DL391-3W
Dimension(mm) 070*25mm
Cutout  (mm) 058-60mm
Watt(W) 3W
Rated Input Voltage DC24V
Input Voltage DC24V
LED Module Input DC24V
Light Source SMD
SDCM <6
CCT(K) 1-CCT:3000K/4000K/5000K/5700K|I 2-CCT:3000K+4000K
CCT Selection DIP Switch YES
Non-DIM 1-CC Luminous Flux (lm )±5% CRI80 220-470

Non-DIM 2-CC Luminous Flux (lm )±5% CRI80 240-580

CRI ≥80
Beam Angle (°) 70°
UGR
LED Driver Built-out
Electrical Class Class Ⅲ
Ingress Protection(IP Rating) IP54(only for the LED cover)IP40(for other part)
Impact Resistance(IK Rating)
Product Finishing White RAL 9016/Nickel brushed
Optics Material PC
Housing Material Aluminium
lifetime(hr) 50,000h
Glow wire test (℃) 750℃
Operating Temp.(C) -20℃-45℃
Storage Temp.(C) -20℃-60℃

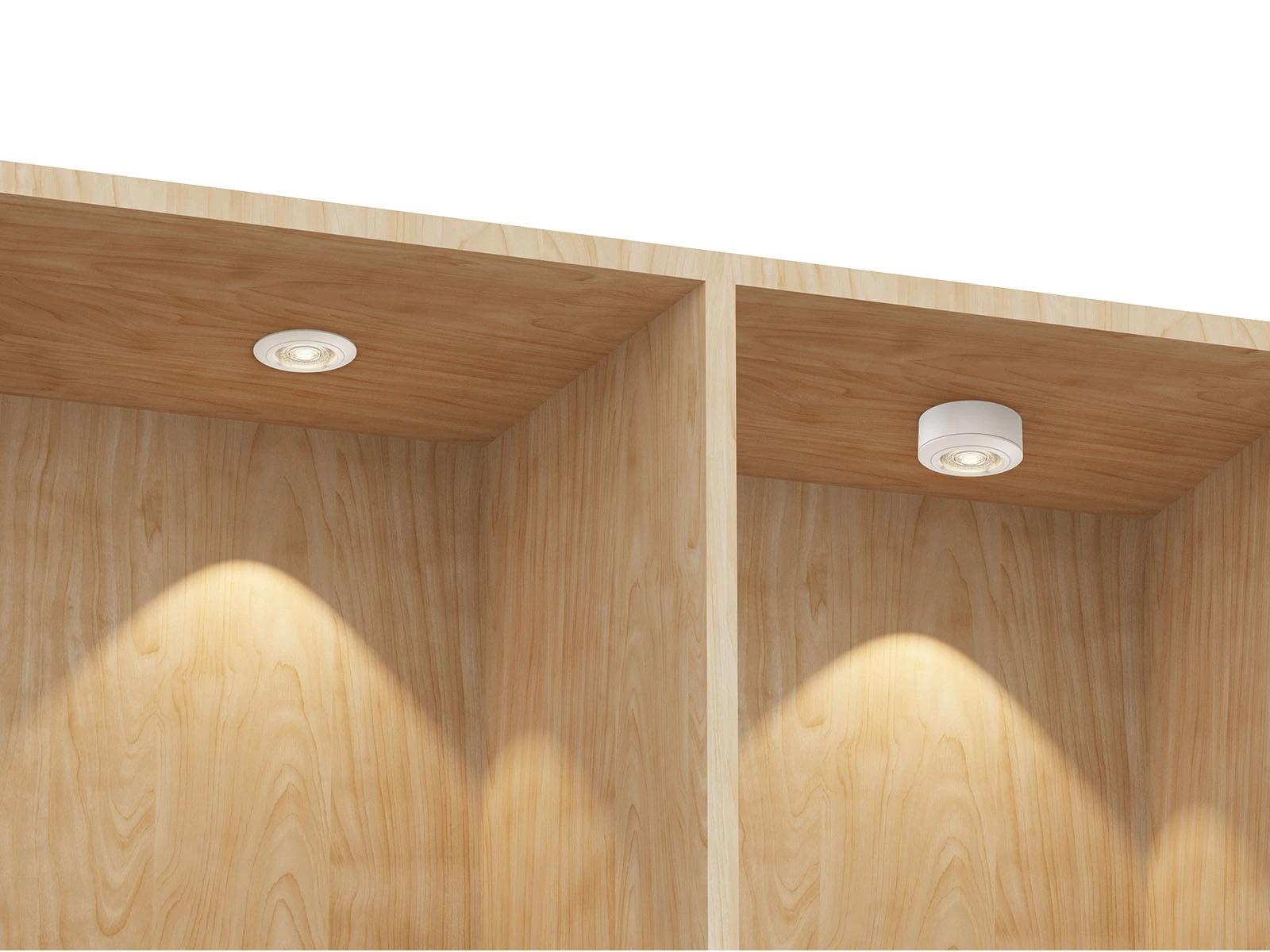

Installation Recessed /Surface Mount



Code DL391-3W
Dimension(mm) 070*25mm
Cutout  (mm) 058-60mm
Watt(W) 3W
Rated Input Voltage AC230V
Input Voltage AC220-240V
LED Module Input DC15-20V
Light Source SMD
SDCM <6
CCT(K) 1-CCT:3000K/4000K/5000K/5700K 3-CCT:3000K+4000K+5700K
CCT Selection DIP Switch YES
Non-DIM 1-CC Luminous Flux CR180 240-250
DIM 1-CC Luminous Flux CR180 240-270
CRI ≥80
Beam Angle () 70°
UGR
LED Driver Built-out
Dimming Option Triac
Electrical Class Class l
ngress Protection(IP Rating IP54(only for the LED cover)IP40for other part)
Impact Resistance(IK Rating)
Product Finishing White RAL 9016/Nickel brushed
Optics Material PC
Housing Material Aluminium
Lifetime (hr) 50,000h
Glow wire test (C 750℃
Operating Temp.CO) -20℃—45℃
Storage Temp.(C) -20℃—60℃
Installation Recessed /Surface Mounted
