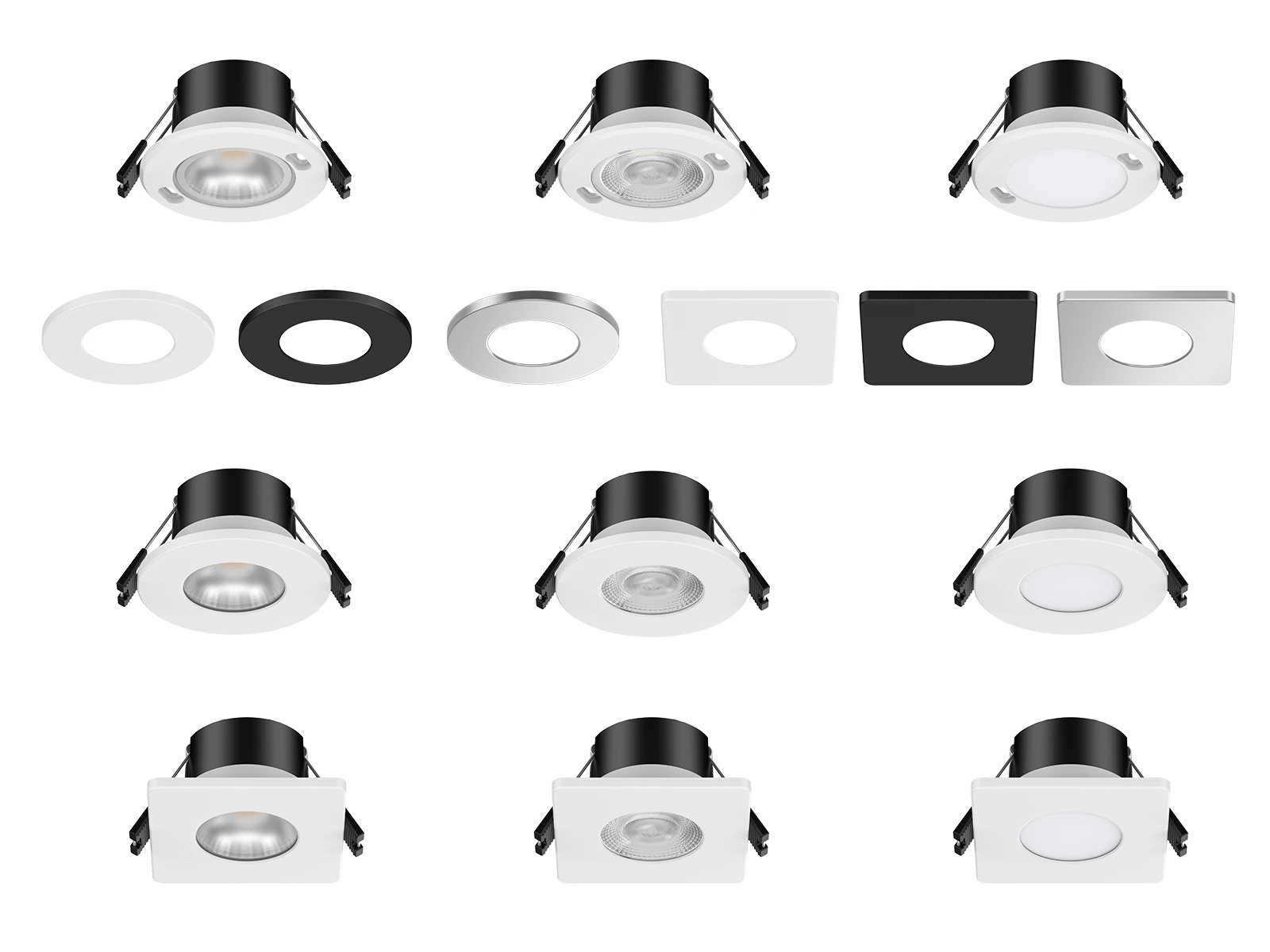

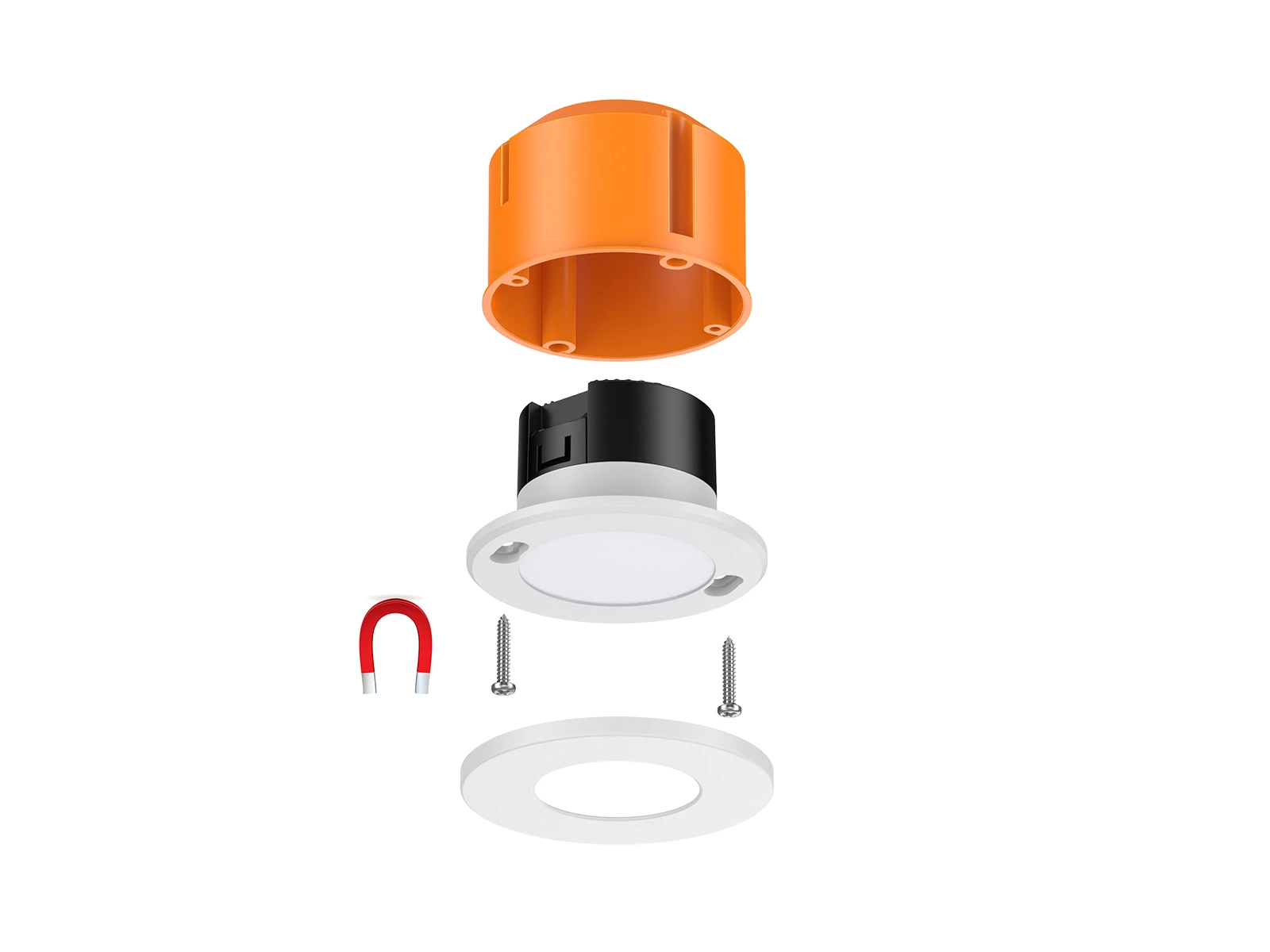

This is a recessed downlight that can replace traditional MR16 bulbs in lighting applications. It has three versions available: Type A with COB LED chip and lens, Type B with COB LED chip and reflector, and Type C with SMD LED chip and diffuser. It is specifically designed to suit narrow spaces. With its stylish design and compact appearance, this light offers a modern aesthetic. The magnetic design can be easy to change trim, saving on SKU and providing more options.
Application Areas: It is designed for general lighting applications in office, supermarket, shop, school, hotel, etc. It is also widely use d for public areas, such as stairway, lobby, reception, corridors etc.
|
Code |
DL423A-2-6W |
DL423B-2-6W |
DL423C-2-6W |
||
|---|---|---|---|---|---|
|
Dimension(mm) |
Ø80*48 |
||||
|
Cutout(mm) |
Ø55 |
||||
|
Watt(W) |
6W |
||||
|
Rated Input Voltage |
AC220-240V |
||||
|
Input Voltage |
AC198-264V |
||||
|
LED Module Input |
DC72V |
||||
|
Light Source |
COB |
SMD |
|||
|
SDCM |
<5 |
<6 |
|||
|
CCT(K) |
1-CCT: 3000K/4000K/5000K/ || 3-CCT: 3000K + 4000K + 5000K |
||||
|
CCT Selection DIP Switch |
YES |
||||
|
Luminous Flux (lm) ±5% CRI80 |
1-CCT |
Non-DIM |
- |
||
|
|
|
DIM |
650-700 |
650-700 |
600-620 |
|
|
3-CCT |
Non-DIM |
- |
||
|
|
|
DIM |
620-670 |
610-650 |
610-640 |
|
CRI |
80 |
||||
|
Beam Angle (°) |
36° |
110° |
|||
|
UGR |
- |
||||
|
LED Driver |
Driver built-in |
||||
|
Dimming Option |
Triac |
||||
|
Sensor |
No |
||||
|
Emergency Kits |
No |
||||
|
Electrical Class |
Class II |
||||
|
Ingress Protection(IP Rating) |
IP54(Below Ceiling), IP20(Inside Ceiling) |
||||
|
Impact Resistance(IK Rating) |
IK03 |
||||
|
Product Finishing |
White / Black / Nickel Brushed |
||||
|
Optics Material |
PC |
||||
|
Housing Material |
Die-Casting Aluminium & PC |
||||
|
Lifetime (hr) |
50,000h |
||||
|
Glow wire test (°C) |
750°C |
||||
|
Operating Temp.(°C) |
-20°C-40°C |
||||
|
Storage Temp.(°C) |
-20°C~65°C |
||||
|

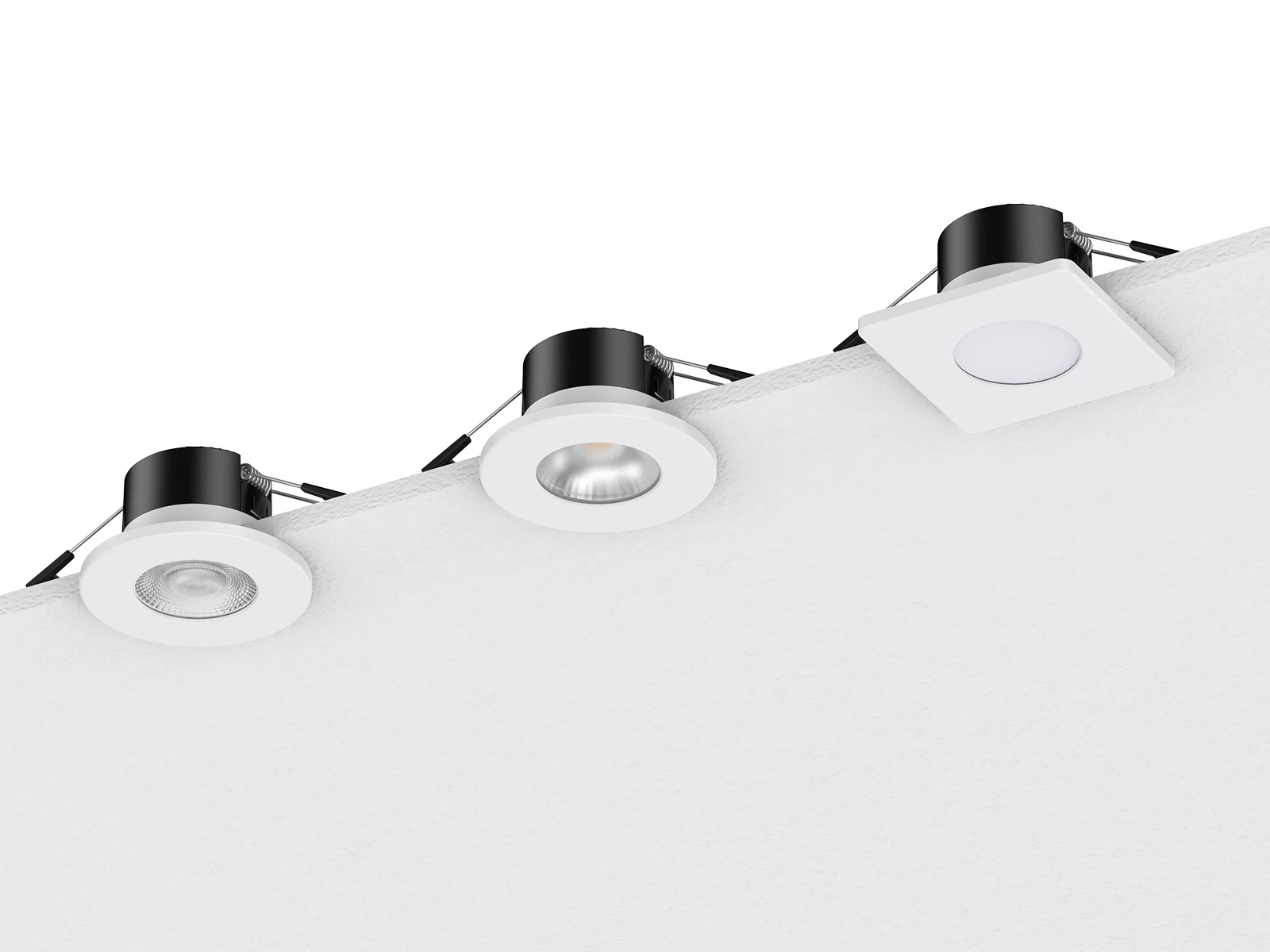

Installation |
Recessed / Surface mount |
||||
