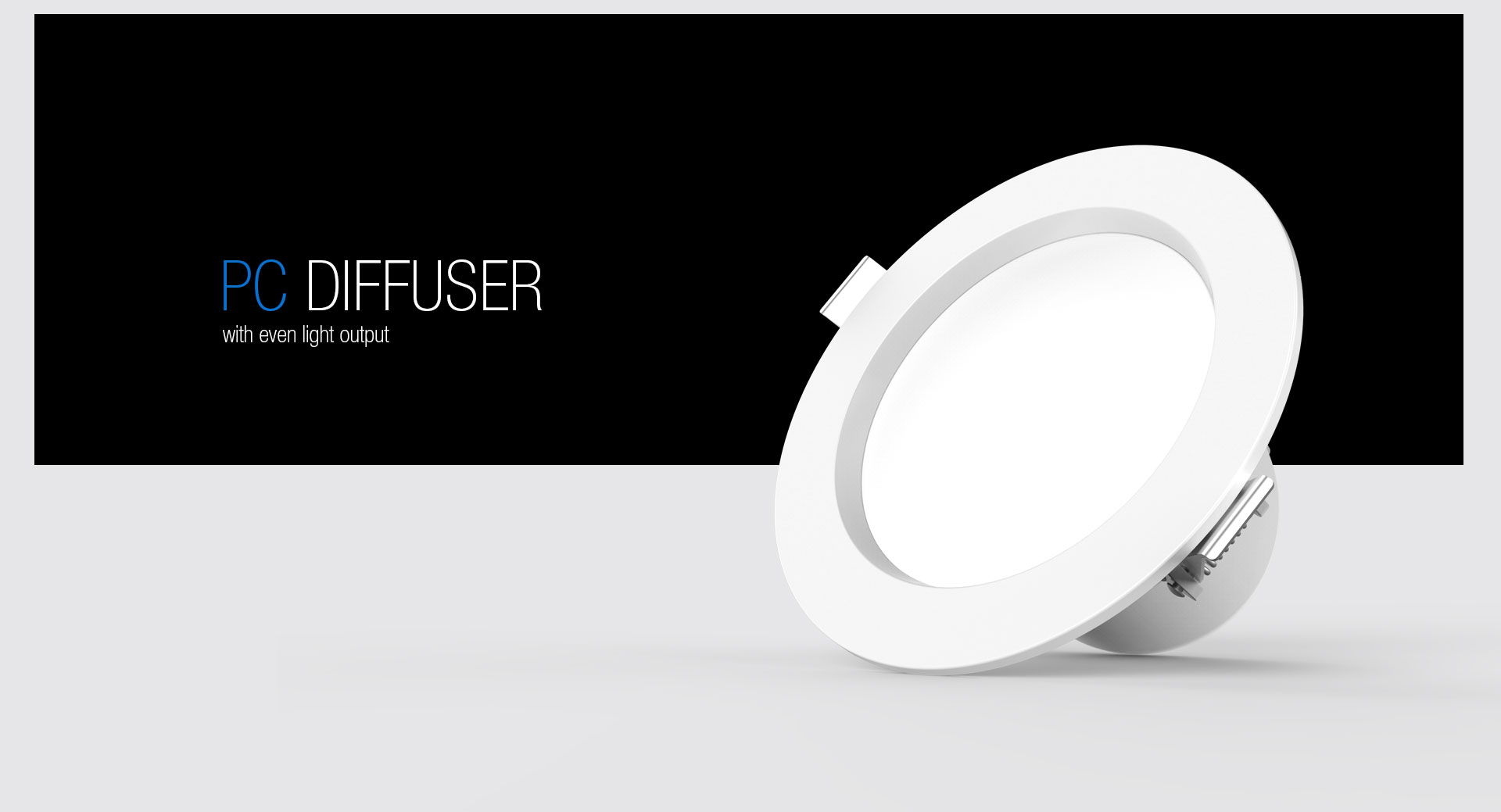

Upshine DL54 SMD LED Down light adopts high lumen SMD LED, PC diffuser with even light output.
V0fire-rated plastic housing with internal driver design; It is our most economical and practical downlight version. The dimmable version available shares great popularity with the excellent dimming effect.
| Code | LEDChip | Wattage | BeamAngle | CCT | Lumens(±5%) | Dimension | Download |
|---|---|---|---|---|---|---|---|
| UP-DL54-3-10W | SMD | 10W | 90° | 3000K,4000K,5000K,5700K | 840-920lm | Ø115*61mmcutout90-95mm | Specification |
UP-DL54-3-10W-B1 |
SMD | 10W | 90° | 3000K,4000K,5700K | 800-940lm | Ø115*61mmcutout90-95mm | Specification |
| UP-DL54-3-10W-B2 |
SMD | 10W | 90° | 3000K,4000K,5000K,5700K | 840-920lm | Ø115*61mmcutout90-95mm | Specification |
| UP-DL54-3-10W-P3 | SMD | 10W | 90° | 3000K,4000K,5700K | 800-870lm | Ø115*61mmcutout90-95mm | Specification |
| UP-DL54-4-13W-D | SMD | 13W | 90° | 3000K,4000K,5000K,5700K | 1060-1100lm | Ø145*61mmcutout120-130mm | Specification |
| UP-DL54-6-16W-D | SMD | 16W | 90° | 3000K,4000K,5000K,5700K | 1400-1550lm | Ø190*74mmcutout160-170mm | Specification |
| UP-DL54-8-20W-P3 | SMD | 20W | 90° | 3000K,4000K,5700K | 1800-2100lm | Ø225*84mmcutout200-210mm | Specification |
