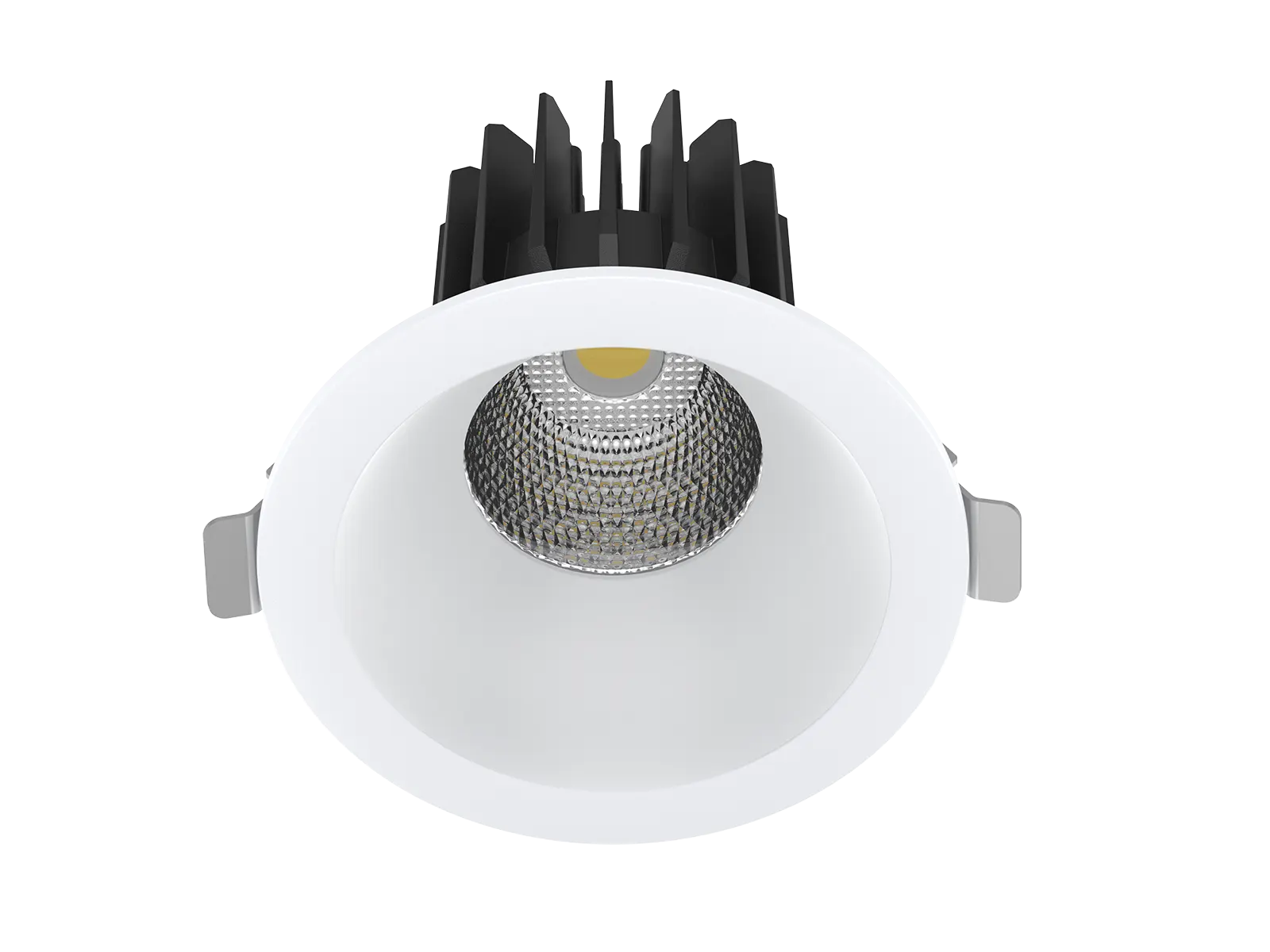

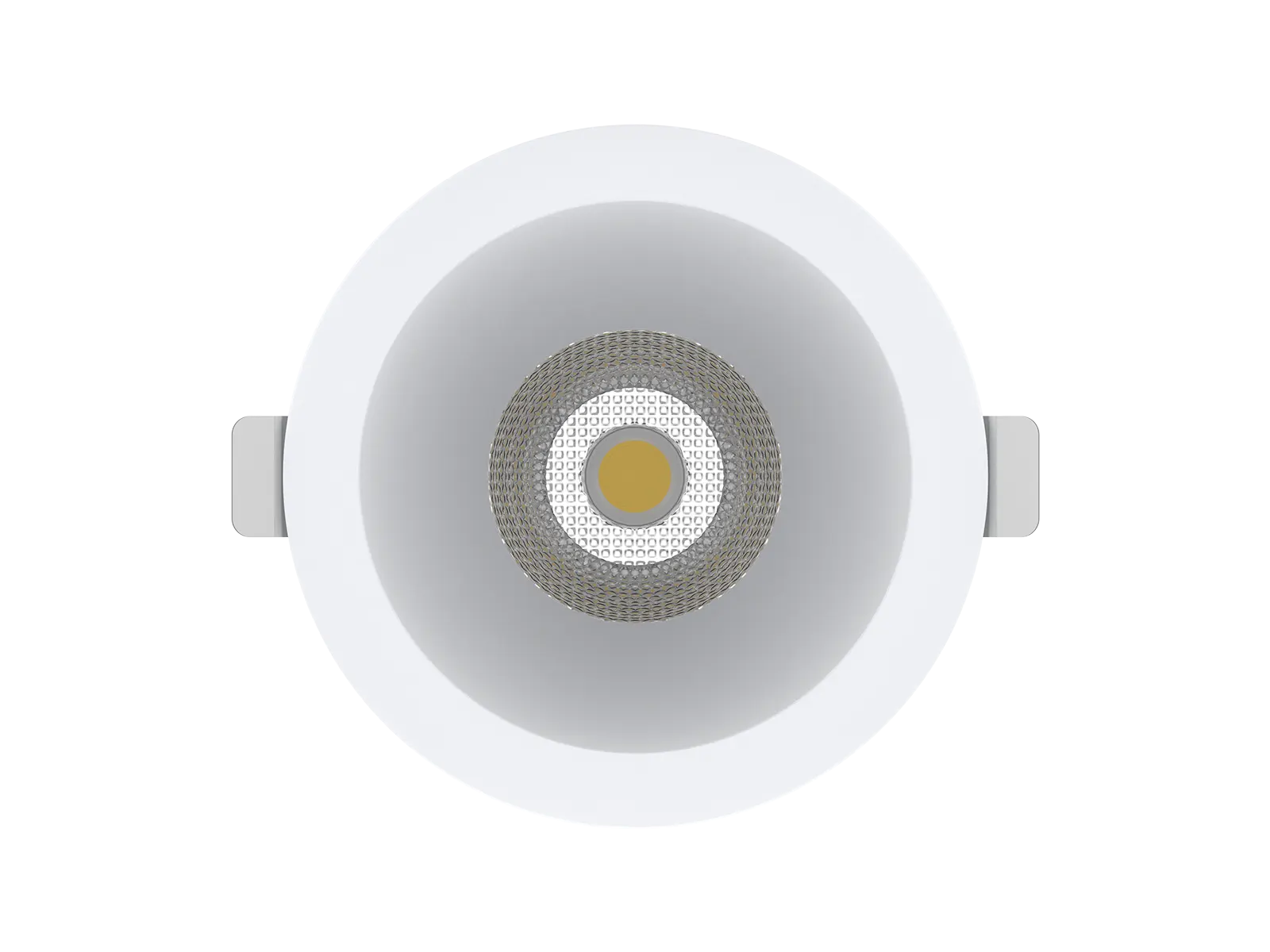

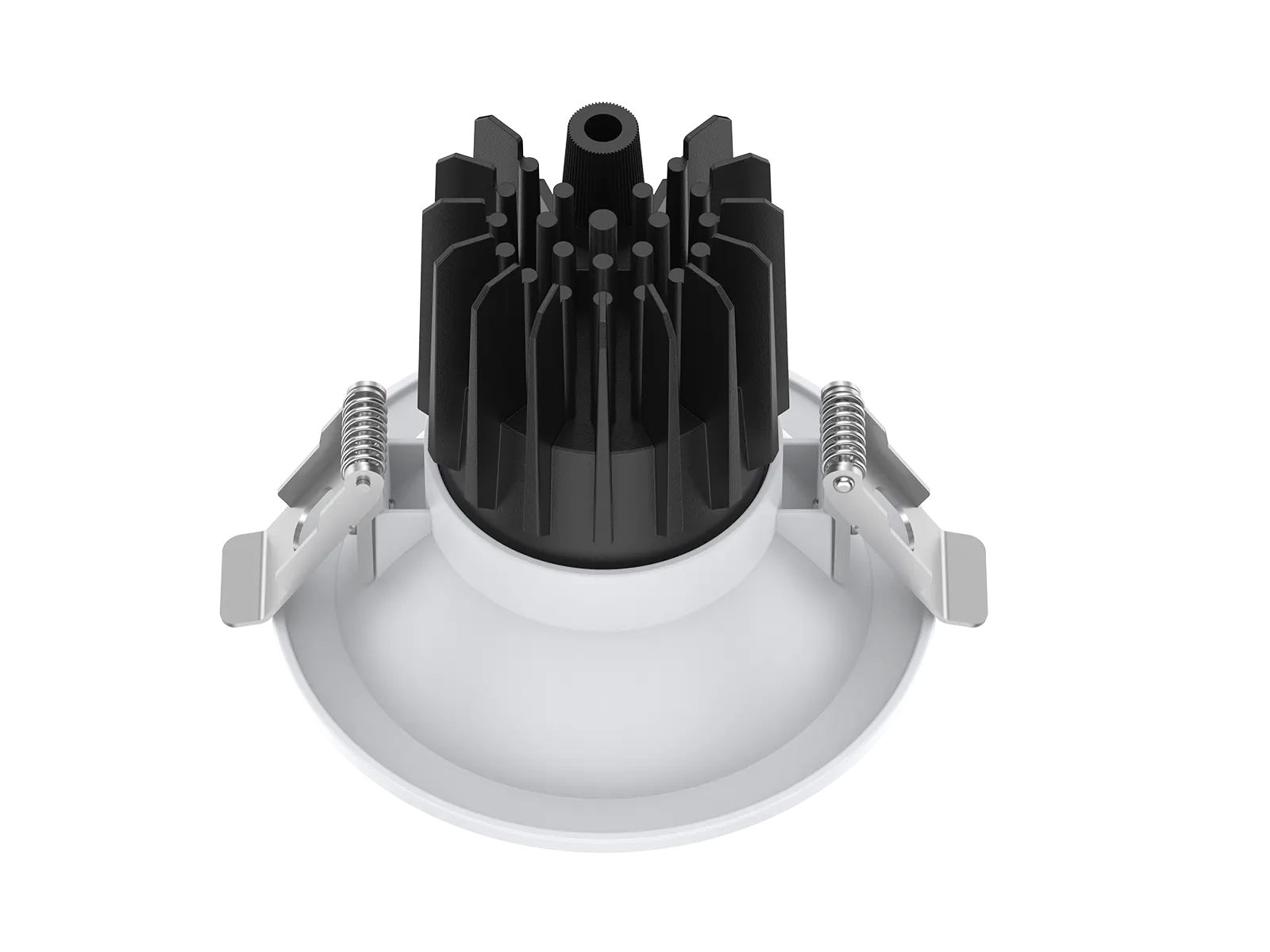

DL88 COB downlight is unique designed with reflector and COB high power LED chip. ADC12 Aluminum profile provides excellent thermal dissipation. Short heatsink designed for any ceiling installations.
Isolated driver solution both in dimmable and non-dimmable version achieves great dimming compatibility with worldwide brand dimmers.
| Code | LEDChip | Wattage | BeamAngle | CCT | Lumens(±5%) | Dimension | Download |
| UP-DL88-2.5-10W/UP-DL88-2.5-10W-D | COB | 10W | 24°/60° | 2700K,3000K,4000K,5000K | 700-800lm | Ø85*89mm cutout 68-75mm | Specification |
| UP-DL88-2.5-13W | COB | 13W | 24°/60° | 2700K,3000K,4000K,5000K | 1040-1100lm | Ø85*89mm cutout 68-75mm | Specification |
| UP-DL88-3-13W/UP-DL88-3-13W-D | COB | 13W | 24°/60° | 2700K,3000K,4000K,5000K | 970-1060lm | Ø110*98mm cutout 90-95mm | Specification |
