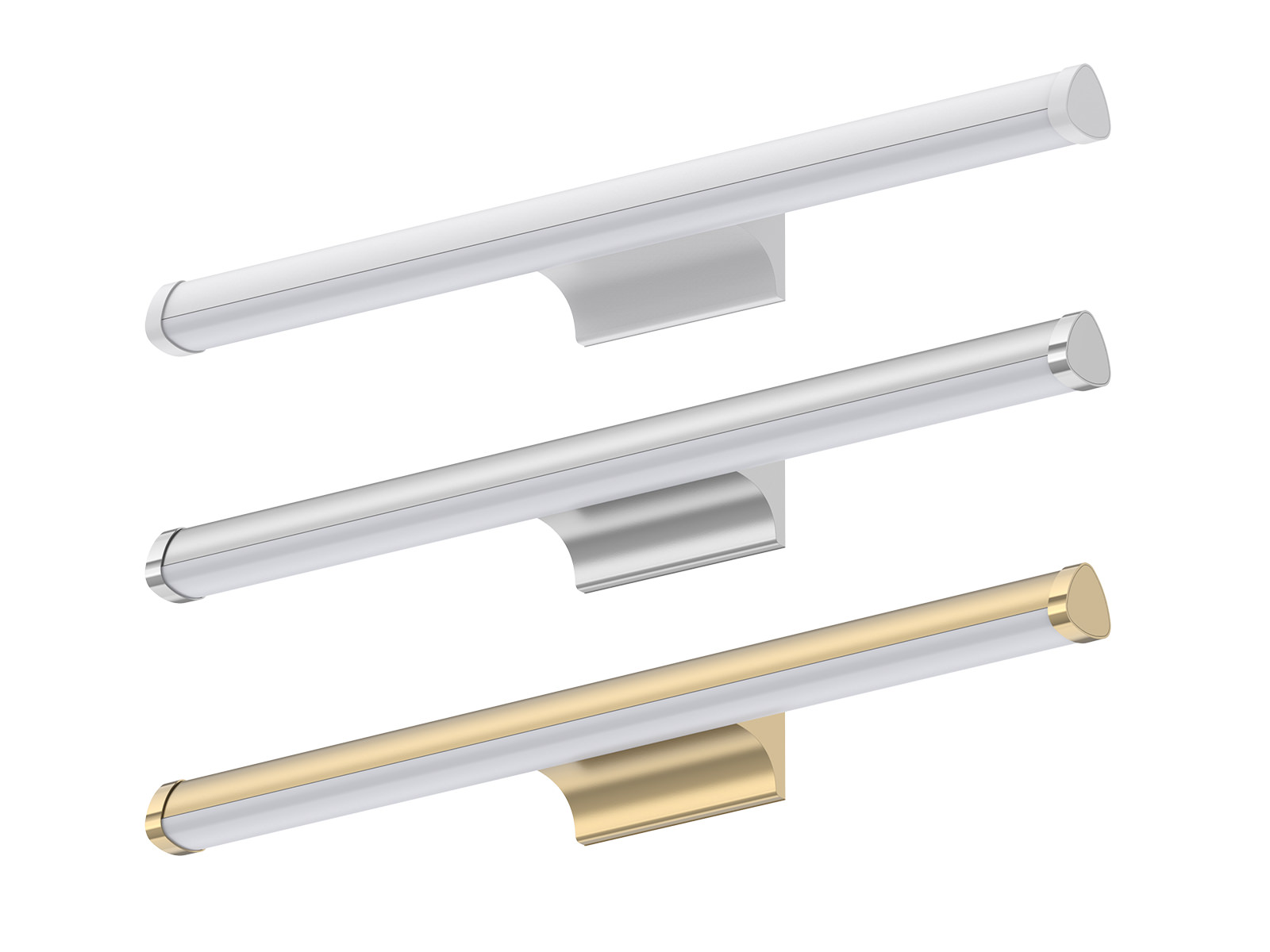

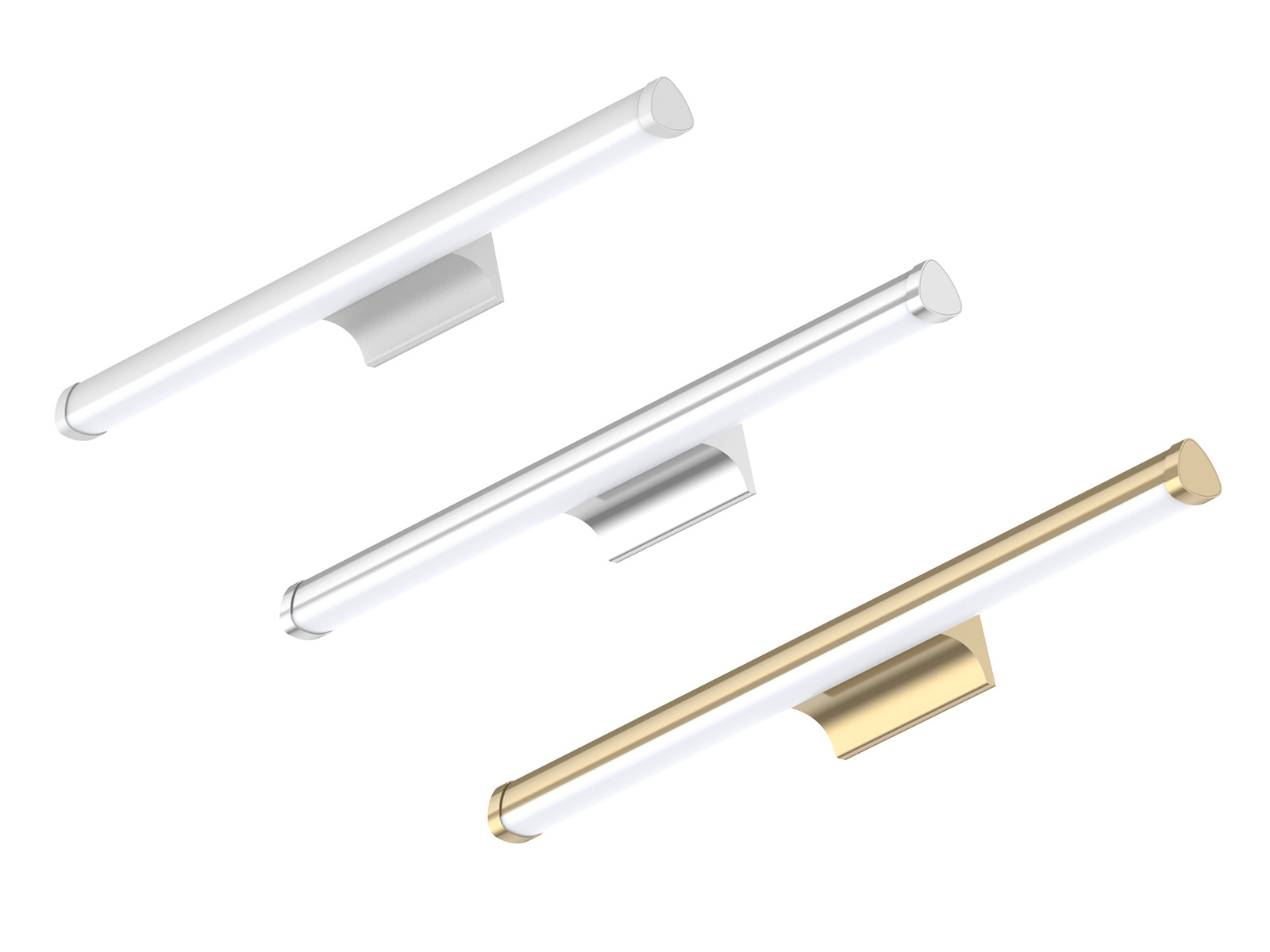

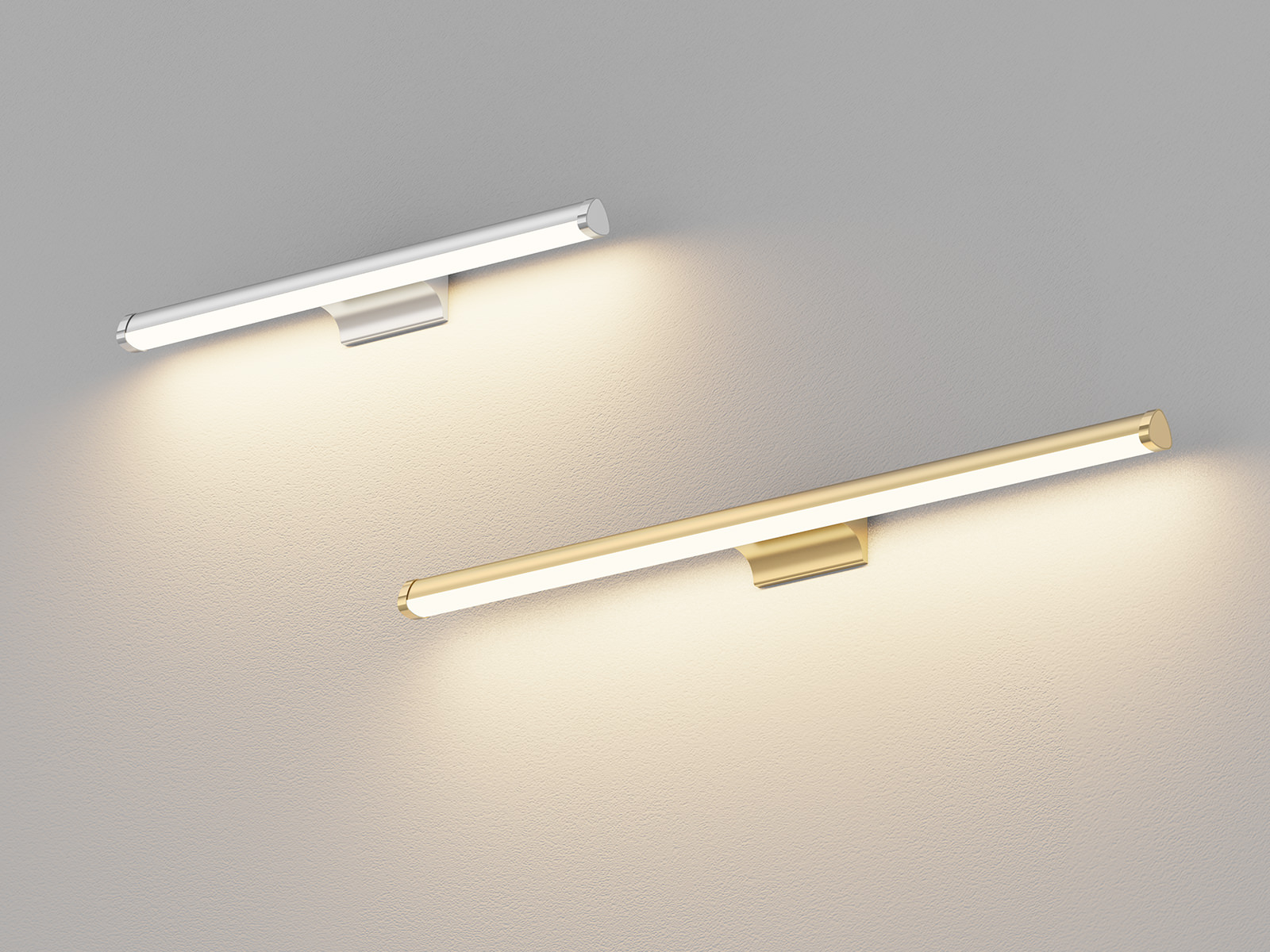

This is a slim and refined LED mirror light. It adopts lighter-weight fireproof material to ensure better heat resistance and corrosion resistance. There are three color options white, silver, and gold to suit different usage environments. The side shape is the shape of water droplets, which is elegant and delicate.
Application Areas: It is widely used in bathrooms, dressing tables, hotel rooms, etc.
| Model No. | ML31-600-10W | ML31-900-15W | ||
|---|---|---|---|---|
| Dimension(mm) | 600*61*81 | 900*61*81 | ||
| Watt(W) | 10W | 15W | ||
| Rated Input Voltage(V) | 100-240V | |||
| Input Voltage(V) | AC85-265V | |||
| Light Source | SMD | |||
| SDCM | ≤6 | |||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT: 3000K + 4000K+5700K | |||
| CCT Selection DIP Switch | YES | |||
| Non-DIM 1-CCT Luminous Flux (lm) ±5% (White) | Non-DIM | 1-CCT | 1130-1300 | 1740-2130 |
| Non-DIM 3-CCT Luminous Flux (lm) ±5% (White) | Non-DIM | 3-CCT | 1140-1340 | 1760-2140 |
| Non-DIM 1-CCT Luminous Flux (lm) ±5% (Gloden / Silver) | Non-DIM | 1-CCT | 900-1200 | 1450-1880 |
| Non-DIM 3-CCT Luminous Flux (lm) ±5% (Gloden / Silver) | Non-DIM | 3-CCT | 920-1220 | 1450-1900 |
| CRI | ≥80 | |||
| Beam Angle (°) | 110° | |||
| LED Driver | Built-in | |||
| Electrical Class | Class Ⅱ | |||
| Ingress Protection (IP Rating) | IP54 | |||
| Product Finishing(Base) | White RAL9016 / Gloden RAL1001 / Silver RAL9006 | |||
| Materials of Optics | PC | |||
| Materials of Housing | Aluminum | |||
| Lifetime (hr) | 50,000h | |||
| Glow wire test (°C) | 750°C | |||
| Operating Temp. (°C) | -20°C~45°C | |||
| Storage Temp. (°C) | -20°C~65°C | |||
| Installation | Wall mount | |||
