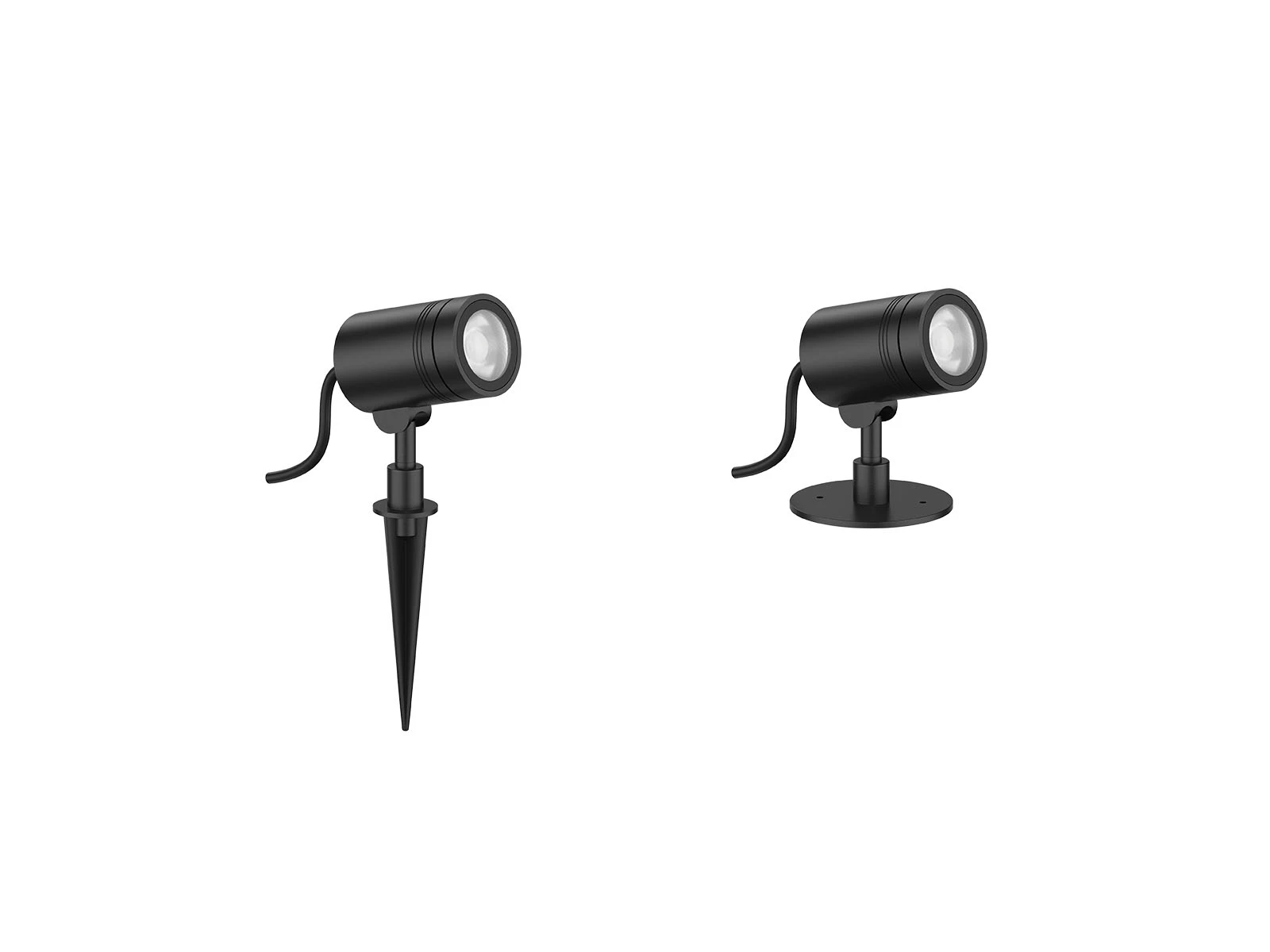

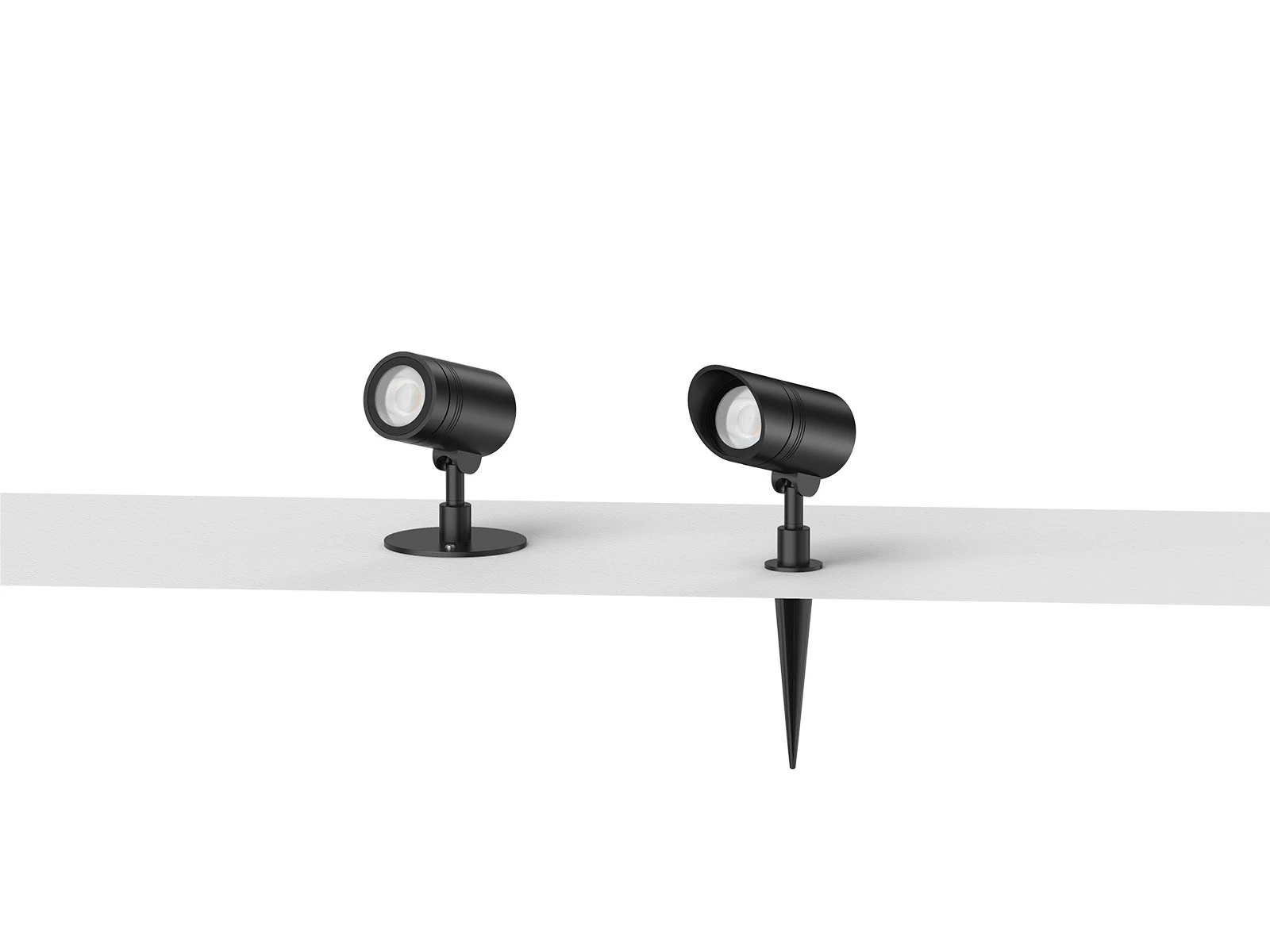

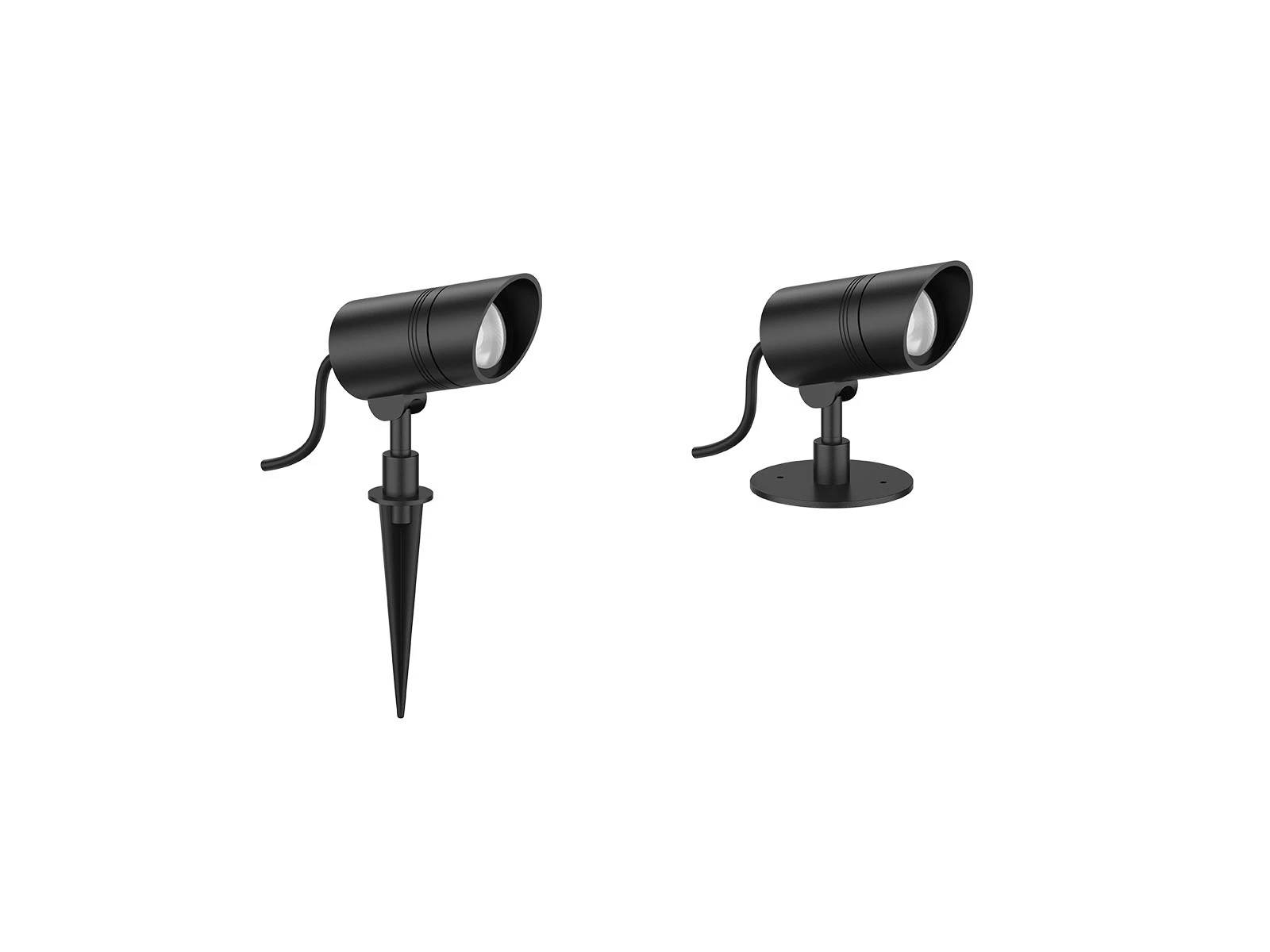

This is an IP65 spike light which has standard version and anti-glare version, it adopts Bridgelux COB light source with optic lens design, beam angles of 36 degrees and 60 degrees for option. The lamp head can be rotated 350 degrees horizontally and 90 degrees vertically, so it can do a flexible lighting direction adjustment. The lamp body is made of ADC12 aluminum, which has strong heat dissipation, corrosion resistance and anti-aging ability. AC220V and DC24V for option, it’s a good lighting choice for gardens, exterior walls, fences etc.
Application Areas: It applies to landscaping embellishment lighting for residence and community and all kind of parks.
|
Code |
NL154A-8W(Spike) |
NL154A-8W(Surface) |
NL154B-8W(Spike) |
NL154B-8W(Surface) |
|||
|---|---|---|---|---|---|---|---|
|
Dimension(mm) |
268*97*62 |
123*97*62 |
268*134*62 |
123*134*62 |
|||
|
Cutout (mm) |
- |
||||||
|
Watt(W) |
8W |
||||||
|
Rated Input Voltage |
AC220-240V |
||||||
|
Input Voltage |
AC198-264V |
||||||
|
LED Module Input |
DC30-40V |
||||||
|
Light Source |
COB |
||||||
|
SDCM |
<5 |
||||||
|
CCT(K) |
1-CCT: 3000K/4000K/5000K || 2-CCT: 3000K+4000K |
||||||
|
CCT Selection DIP Switch |
- |
||||||
|
Luminous Flux (lm) ±5% CRI80 |
1-CCT |
Non-DIM |
780-880 |
750-810 |
|||
|
|
|
DIM |
- |
||||
|
|
2-CCT |
Non-DIM |
840-950 |
820-880 |
|||
|
|
|
DIM |
- |
||||
|
CRI |
≥80 |
||||||
|
Beam Angle (°) |
36°/ 60° |
36°/ 50° |
|||||
|
UGR |
- |
||||||
|
LED Driver |
Driver built-in |
||||||
|
Dimming Option |
- |
||||||
|
Sensor |
NO |
||||||
|
Emergency Kits |
NO |
||||||
|
Electrical Class |
Class II |
||||||
|
Ingress Protection(IP Rating) |
IP65 |
||||||
|
Impact Resistance(IK Rating) |
IK06 |
||||||
|
Product Finishing |
Black RAL9005 |
||||||
|
Optics Material |
PMMA |
||||||
|
Housing Material |
Aluminium |
||||||
|
Lifetime (hr) |
50,000h |
||||||
|
Glow wire test (°C) |
750°C |
||||||
|
Operating Temp.(°C) |
-20°C~40°C |
||||||
|
Storage Temp.(°C) |
-20°C~65°C |
||||||
|
Installation |
Board mounted / Groumd mounted |
||||||
|
Code |
DC-NL154A-8W(Spike) |
DC-NL154A-8W(Surface) |
DC-NL154B-8W(Spike) |
DC-NL154B-8W(Surface) |
|||
|---|---|---|---|---|---|---|---|
|
Dimension(mm) |
268*97*62 |
123*97*62 |
268*134*62 |
123*134*62 |
|||
|
Cutout (mm) |
- |
||||||
|
Watt(W) |
8W |
||||||
|
Rated Input Voltage |
DC24V |
||||||
|
Input Voltage |
DC24V |
||||||
|
LED Module Input |
DC30-40V |
||||||
|
Light Source |
COB |
||||||
|
SDCM |
<5 |
||||||
|
CCT(K) |
1-CCT: 3000K/4000K/5000K || 2-CCT: 3000K+4000K |
||||||
|
CCT Selection DIP Switch |
- |
||||||
|
Luminous Flux (lm) ±5% CRI80 |
1-CCT |
Non-DIM |
830-890 |
720-840 |
|||
|
|
|
DIM |
- |
||||
|
|
2-CCT |
Non-DIM |
850-960 |
800-900 |
|||
|
|
|
DIM |
- |
||||
|
CRI |
≥80 |
||||||
|
Beam Angle (°) |
36°/ 60° |
36°/ 50° |
|||||
|
UGR |
- |
||||||
|
LED Driver |
Driver built-in |
||||||
|
Dimming Option |
- |
||||||
|
Sensor |
NO |
||||||
|
Emergency Kits |
NO |
||||||
|
Electrical Class |
Class III |
||||||
|
Ingress Protection(IP Rating) |
IP65 |
||||||
|
Impact Resistance(IK Rating) |
IK06 |
||||||
|
Product Finishing |
Black RAL9005 |
||||||
|
Optics Material |
PMMA |
||||||
|
Housing Material |
Aluminium |
||||||
|
Lifetime (hr) |
50,000h |
||||||
|
Glow wire test (°C) |
750°C |
||||||
|
Operating Temp.(°C) |
-20°C~40°C |
||||||
|
Storage Temp.(°C) |
-20°C~65°C |
||||||
|
Installation |
Board mounted / Groumd mounted |
||||||
