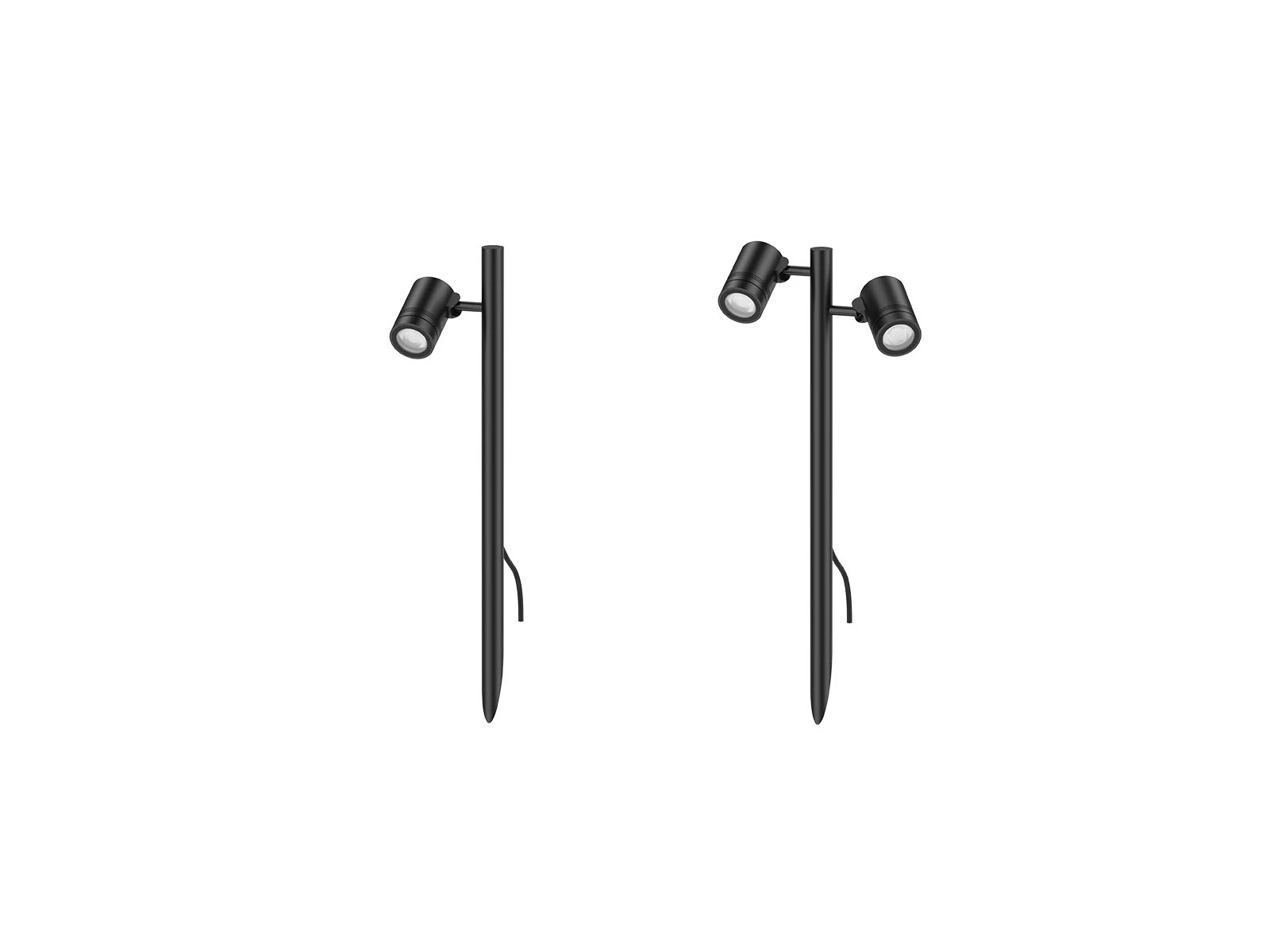

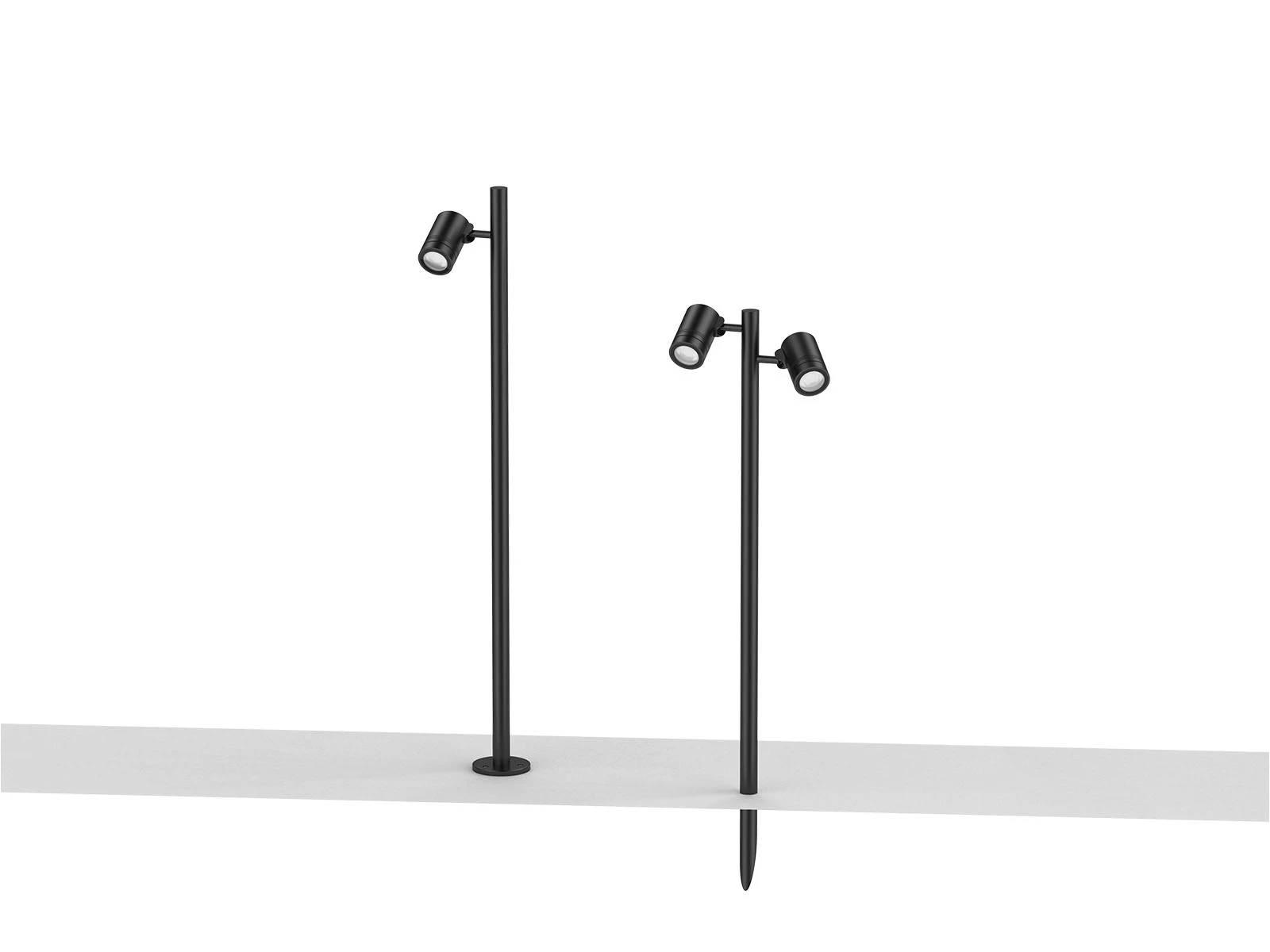

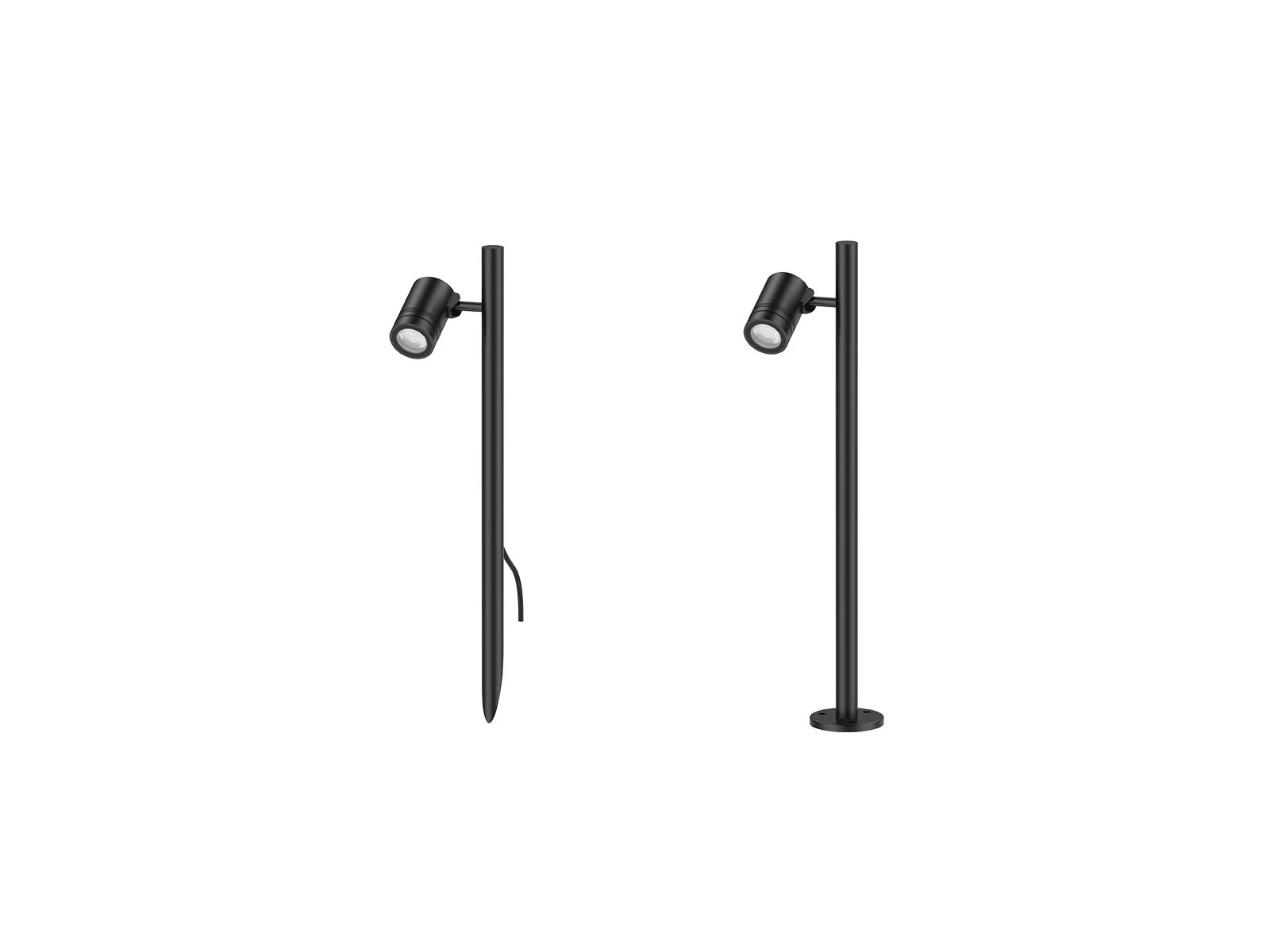

This is a garden light with 650mm/1010mm height option, lamp head can be rotated 350 degrees horizontally and 90 degrees vertically, so it can do a flexible lighting direction adjustment. It adopts Bridgelux COB light source with optic lens design, the lamp body is made of ADC12 aluminum, which has strong heat dissipation, corrosion resistance and anti-aging ability. For installation, it has surface mount and spike versions, the bottom installation part can be accessory kit, the lamp pole is segment design for transport convenience.
Application Areas: The garden light is designed for general lighting applications in courtyard, park, garden,lawn etc.
|
Code |
NL154C-650-8W(Spike) |
NL154C-650-16W(Spike) |
NL154C-1010-8W(Spike) |
NL154C-1010-16W(Spike) |
||
|---|---|---|---|---|---|---|
|
Dimension(mm) |
650*136*62 |
650*241*62 |
1010*136*62 |
1010*241*62 |
||
|
Cutout (mm) |
- |
|||||
|
Watt(W) |
8W |
2*8W |
8W |
2*8W |
||
|
Rated Input Voltage |
AC220-240V |
|||||
|
Input Voltage |
AC198-264V |
|||||
|
LED Module Input |
DC33-38V |
|||||
|
Light Source |
COB |
|||||
|
SDCM |
<5 |
|||||
|
CCT(K) |
1-CCT: 3000K / 4000K / 5000K || 2-CCT: 3000K+4000K |
|||||
|
CCT Selection DIP Switch |
- |
|||||
|
Luminous Flux (lm) ±5% CRI80 |
1-CCT |
Non-DIM |
800-880 |
1580-1740 |
800-880 |
1580-1740 |
|
|
|
DIM |
- |
|||
|
|
2-CCT |
Non-DIM |
840-890 |
1650-1850 |
840-890 |
1650-1850 |
|
|
|
DIM |
- |
|||
|
CRI |
≥80 |
|||||
|
Beam Angle (°) |
36°/ 60° |
|||||
|
UGR |
- |
|||||
|
LED Driver |
Driver built-in |
|||||
|
Dimming Option |
- |
|||||
|
Sensor |
NO |
|||||
|
Emergency Kits |
NO |
|||||
|
Electrical Class |
Class II |
|||||
|
Ingress Protection(IP Rating) |
IP65 |
|||||
|
Impact Resistance(IK Rating) |
IK06 |
|||||
|
Product Finishing |
Black RAL9005 |
|||||
|
Optics Material |
PMMA |
|||||
|
Housing Material |
Aluminium |
|||||
|
Lifetime (hr) |
50,000h |
|||||
|
Glow wire test (°C) |
650°C |
|||||
|
Operating Temp.(°C) |
-20°C~40°C |
|||||
|
Storage Temp.(°C) |
-20°C~65°C |
|||||
|
Installation |
Board mounted |
|||||
|
Code |
NL154C-650-8W(Surface) |
NL154C-650-16W(Surface) |
NL154C-1010-8W(Surface) |
NL154C-1010-16W(Surface) |
||
|---|---|---|---|---|---|---|
|
Dimension(mm) |
650*136*62 |
650*241*62 |
1010*136*62 |
1010*136*62 |
||
|
Cutout (mm) |
- |
|||||
|
Watt(W) |
8W |
2*8W |
8W |
2*8W |
||
|
Rated Input Voltage |
AC220-240V |
|||||
|
Input Voltage |
AC198-264V |
|||||
|
LED Module Input |
DC30-40V |
|||||
|
Light Source |
COB |
|||||
|
SDCM |
<5 |
|||||
|
CCT(K) |
1-CCT: 3000K / 4000K / 5000K || 2-CCT: 3000K+4000K |
|||||
|
CCT Selection DIP Switch |
- |
|||||
|
Luminous Flux (lm) ±5% CRI80 |
1-CCT |
Non-DIM |
800-880 |
1580-1740 |
800-880 |
1580-1740 |
|
|
|
DIM |
- |
|||
|
|
2-CCT |
Non-DIM |
840-890 |
1650-1850 |
840-890 |
1650-1850 |
|
|
|
DIM |
- |
|||
|
CRI |
≥80 |
|||||
|
Beam Angle (°) |
36°/ 60° |
|||||
|
UGR |
- |
|||||
|
LED Driver |
Driver built-in |
|||||
|
Dimming Option |
- |
|||||
|
Sensor |
NO |
|||||
|
Emergency Kits |
NO |
|||||
|
Electrical Class |
Class II |
|||||
|
Ingress Protection(IP Rating) |
IP65 |
|||||
|
Impact Resistance(IK Rating) |
IK06 |
|||||
|
Product Finishing |
Black RAL9005 |
|||||
|
Optics Material |
PMMA |
|||||
|
Housing Material |
Aluminium |
|||||
|
Lifetime (hr) |
50,000h |
|||||
|
Glow wire test (°C) |
750°C |
|||||
|
Operating Temp.(°C) |
-20°C~40°C |
|||||
|
Storage Temp.(°C) |
-20°C~65°C |
|||||
|
Installation |
Ground mounted |
|||||
