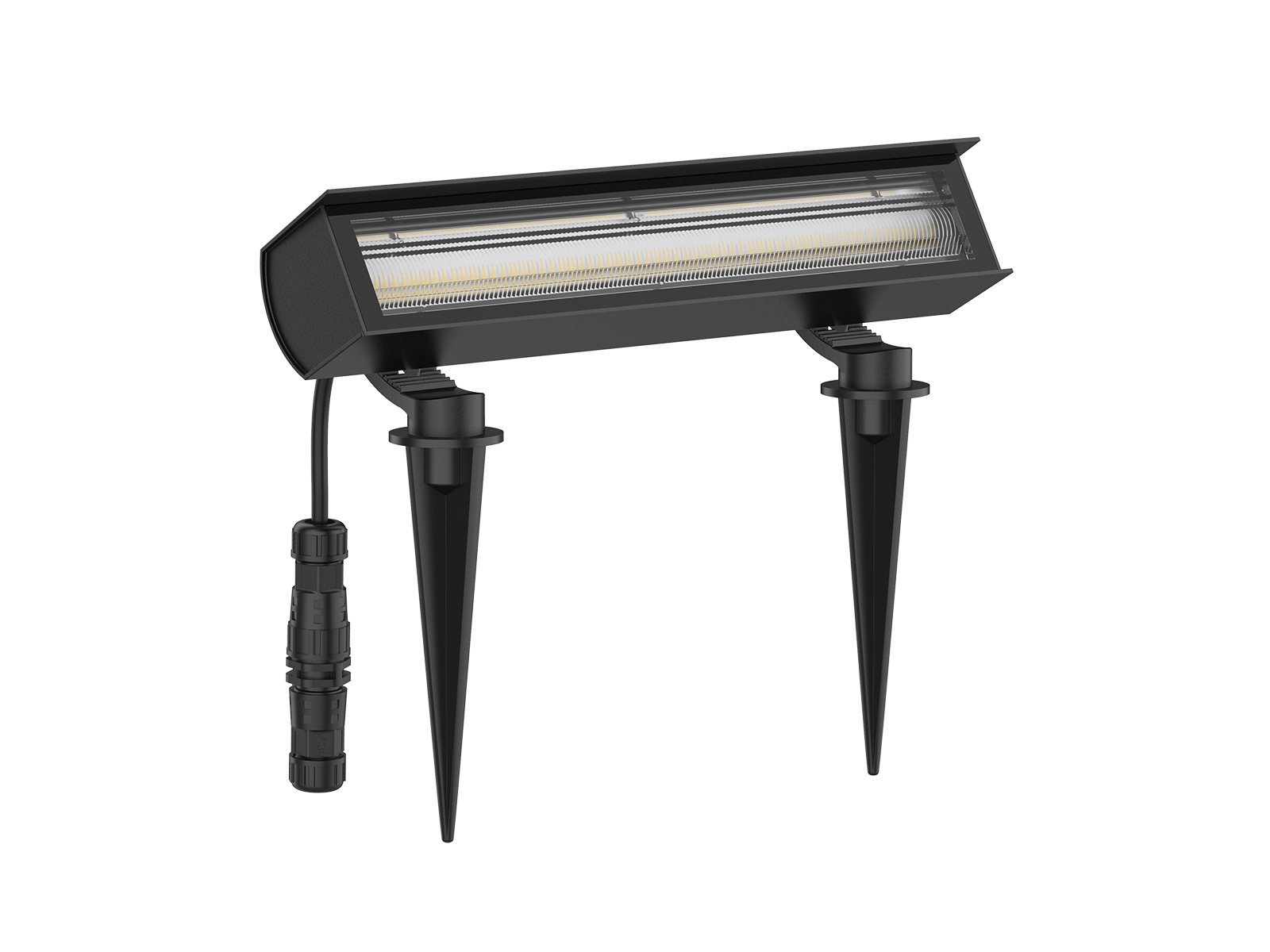

NL16 LED Spike Light

This is an adjustable spike light with 0-60-degree rotation. The lamp body is made of ADC12 aluminum, which has strong heat dissipation, corrosion resistance, and anti-aging ability. To meet wider application areas, this is a DC24V design for easier maintenance, also it supports multiple lamp connections with a waterproof T-junction accessory(1. 5meter/3meter /5-meter cable options).

  • High lumen efficiency, 130ImW
  • ADC12 aluminum housing for better heat dissipation
  • IP65 IK06
  • 0-60 degree lighting direction adjustable
  • T-junction accessory with 1. 5m/3m/5m cable for multiple lamp connection
  • Internal flicker-free driver

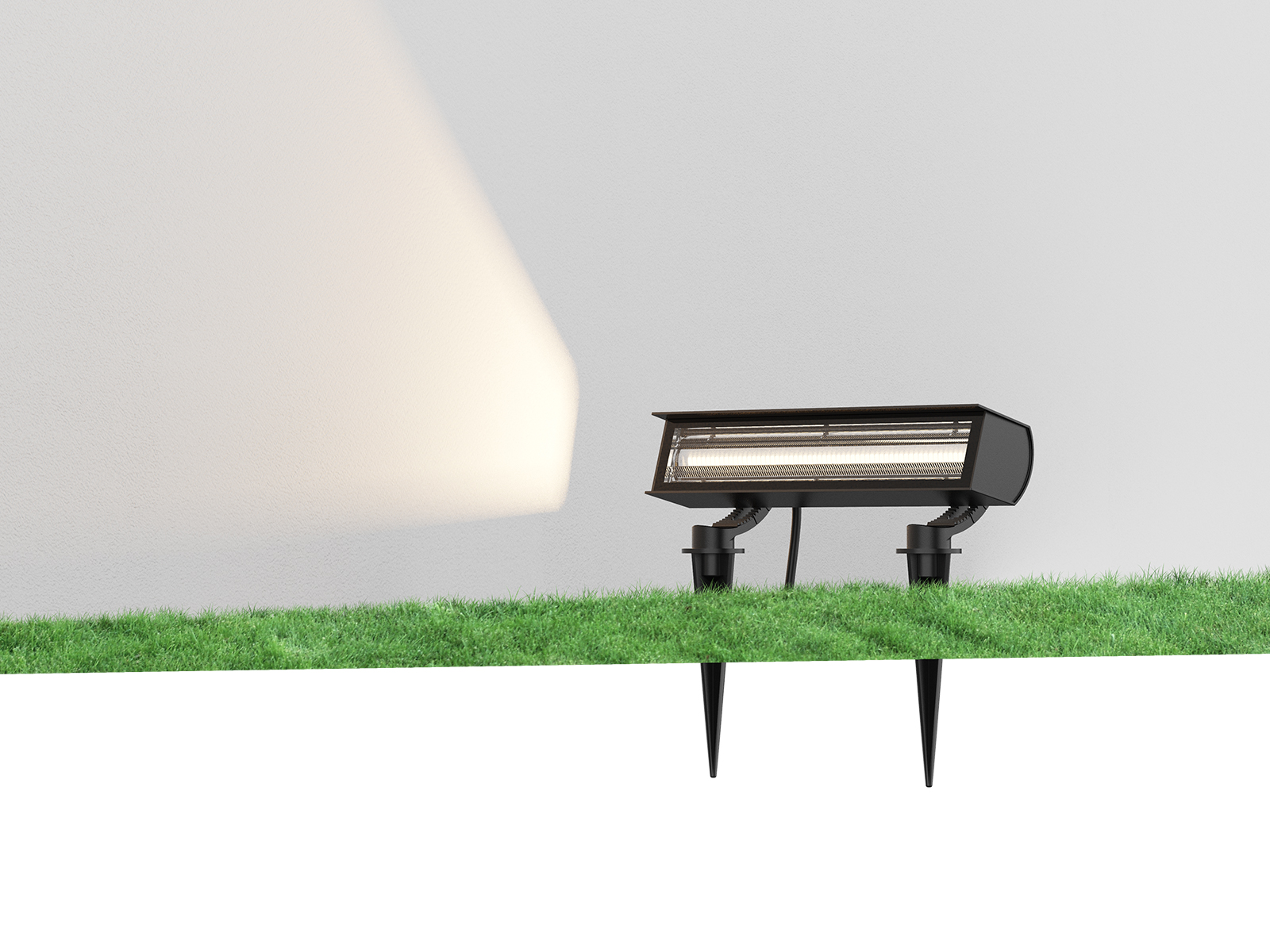

Application Areas: it's widely used in outdoor application areas such as courtyards, parks, gardens, lawns, etc.

Code DC-NL16-8W DC-NL16-12W
Dimension(mm) 303*230*83
Watt(W) 8W 12W
Rated Input Voltage DC24V
Input Voltage DC24V
Light Source SMD
SDCM <6
CCT(K) 1-CCT: 3000K/4000K/5000K/5700K
CCT Selection DIP Switch NO
  900-1000 1400-1500
Non-DIM 1-CCT Luminous Flux (lm) ±5% CRI80

CRI 80
Beam Angle (°) 60*100°
LED Driver Driver built-in
Electrical Class Class III
Ingress Protection(IP Rating) IP65
Impact Resistance(IK Rating) IK06
Product Finishing Black RAL9005/Grey RAL7014
Optics Material PC
Housing Material Aluminium
Lifetime (hr) 50,000h
Glow wire test (°C) 750°C
Operating Temp.(°C) -20°C~45°C
Storage Temp.(°C) -20°C~65°C
Installation Spike for soft ground installation
