OL02 UGR<14 LED Freestanding Luminaire
OL02 1
OL02 2
OL02 3
OL02 UGR<14 LED Freestanding Luminaire
OL02 1
OL02 2
OL02 3

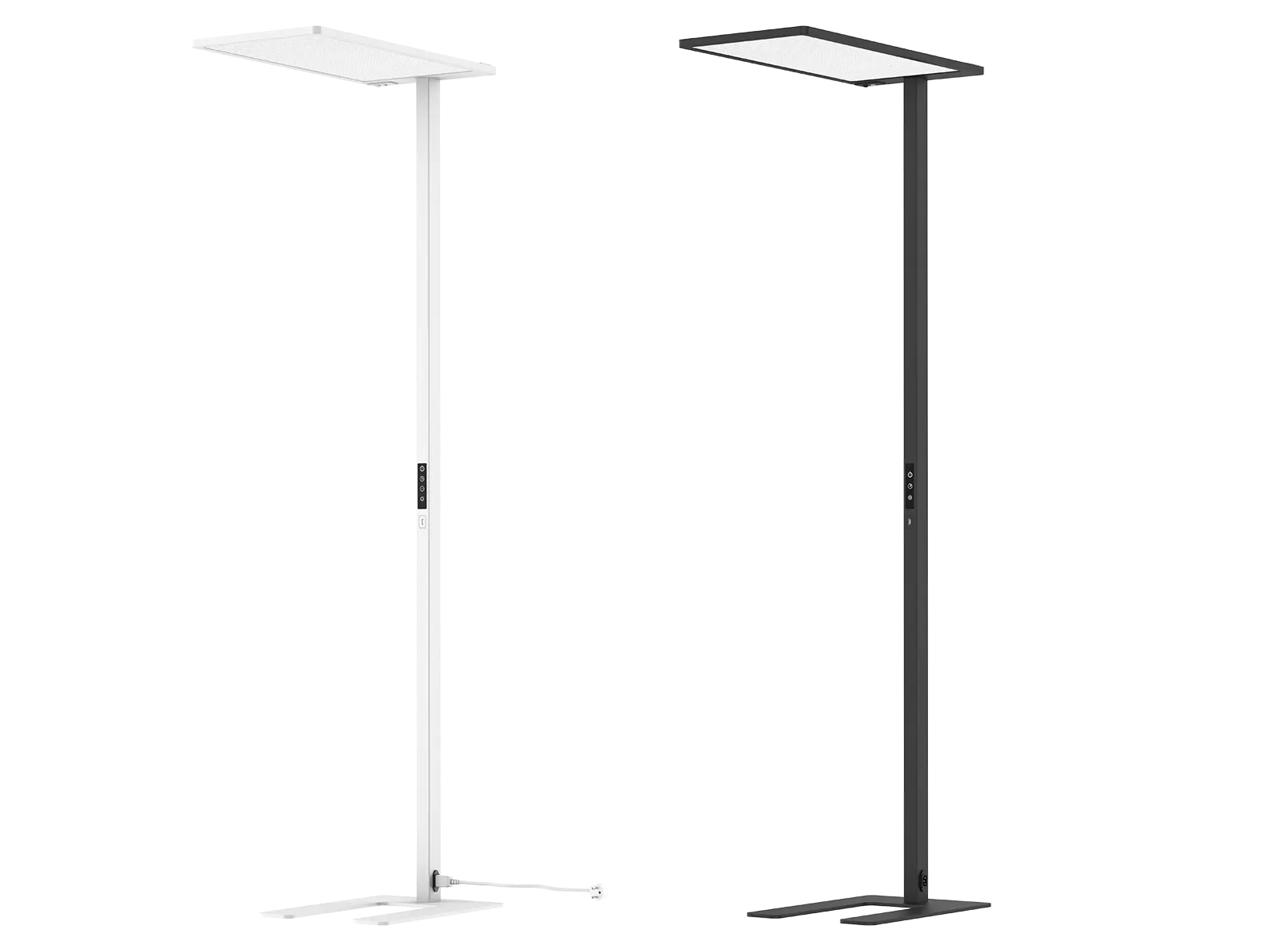

OL02 UGR<14 LED Freestanding Luminaire

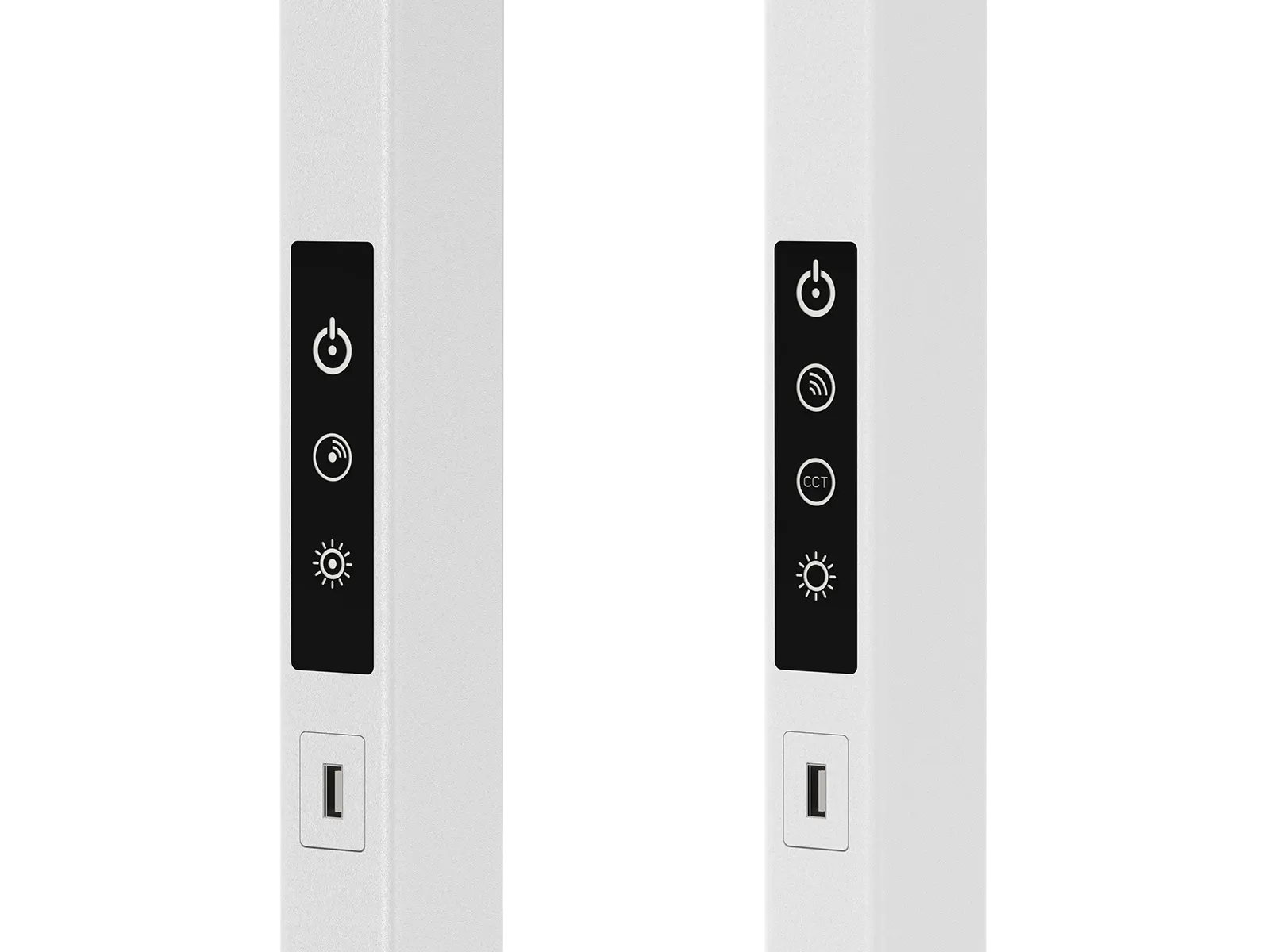

This OL02 freestanding lamp is composed of three parts: a flat lamp body, lamp pole, and lamp base. With a precise optical design (UGR<14, up 75% & down 25% lighting), it can ensure a more uniform and more comfortable lighting effect. Lamp Pole with Plug, touchable 0-10V dimmer, light sensor, and PIR sensor module. The configuration of the luminaire is triggered by pressing a button and then it’s fully automatic, the lighting control modules are interchangeable, which is very suitable for modern office environments.

Freestanding lamp features:

  • Easy for assembly and maintenance.
  • Precise optical design: UGR<14, up 75% & down 25% lighting.
  • The lighting sensor and PIR sensor modes are interchangeable.
  • Plug and play, convenient for different positions.
  • Touchable 0-10V dimming way.

Application: It is specially designed for general lighting applications in offices, meeting rooms, hotels, etc.


Code No. OL02-75W -DOS OL02B-75W-DOS OL02C-75W-DOS OL02D-75W -DOS
Dimension(mm) 1925*720*340 1288*720*340
Watt(W) 75W
Rated Input Voltage(V) AC230V
Input Voltage(V) AC220-240V
Light Source SMD2835
SDCM <6
CCT(K) 1-CCT: 3000K/4000K/5000K/5700K
CCT Selection DIP Switch NO
CRI ≥80
Beam Angle (°) 120°
UGR UGR<14
LED Driver Driver built-in
Dimming Option 0-10V
Sensor PIR sensor / Light sensor
Electrical Class Class I
Ingress Protection (IP Rating) IP20
Product Finishing(Base) White  RAL9016
Materials of Optics PMMA
Materials of Housing Aluminum
Lifetime (hr) 50,000h
Operating Temp. (℃ ) -10℃ ~30℃
Storage Temp. (℃ ) -20℃ ~60℃
Installation Pedestal mounted / Desktop mounted
