OL06A-B Freestanding Luminaire LED Lamp

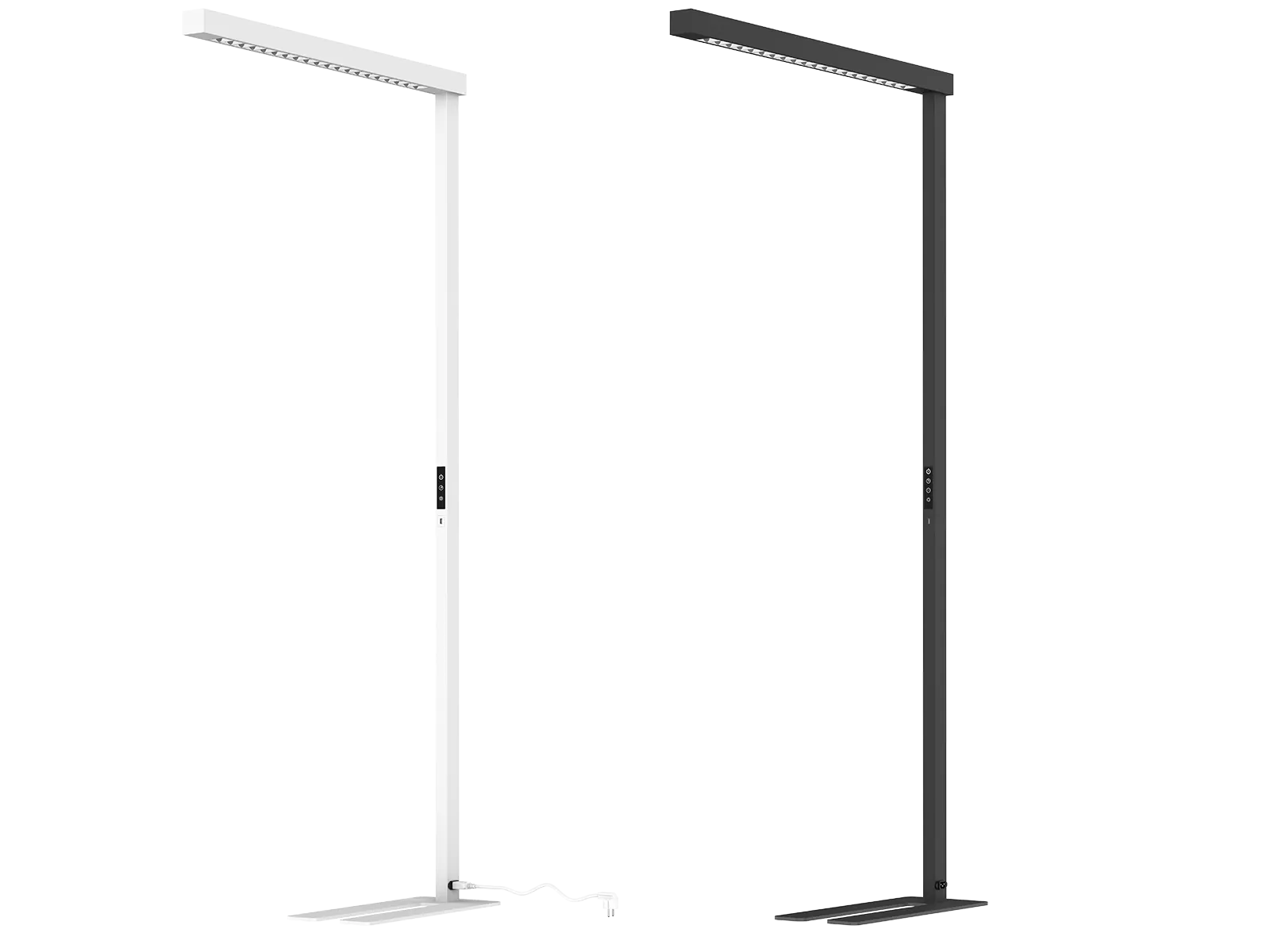

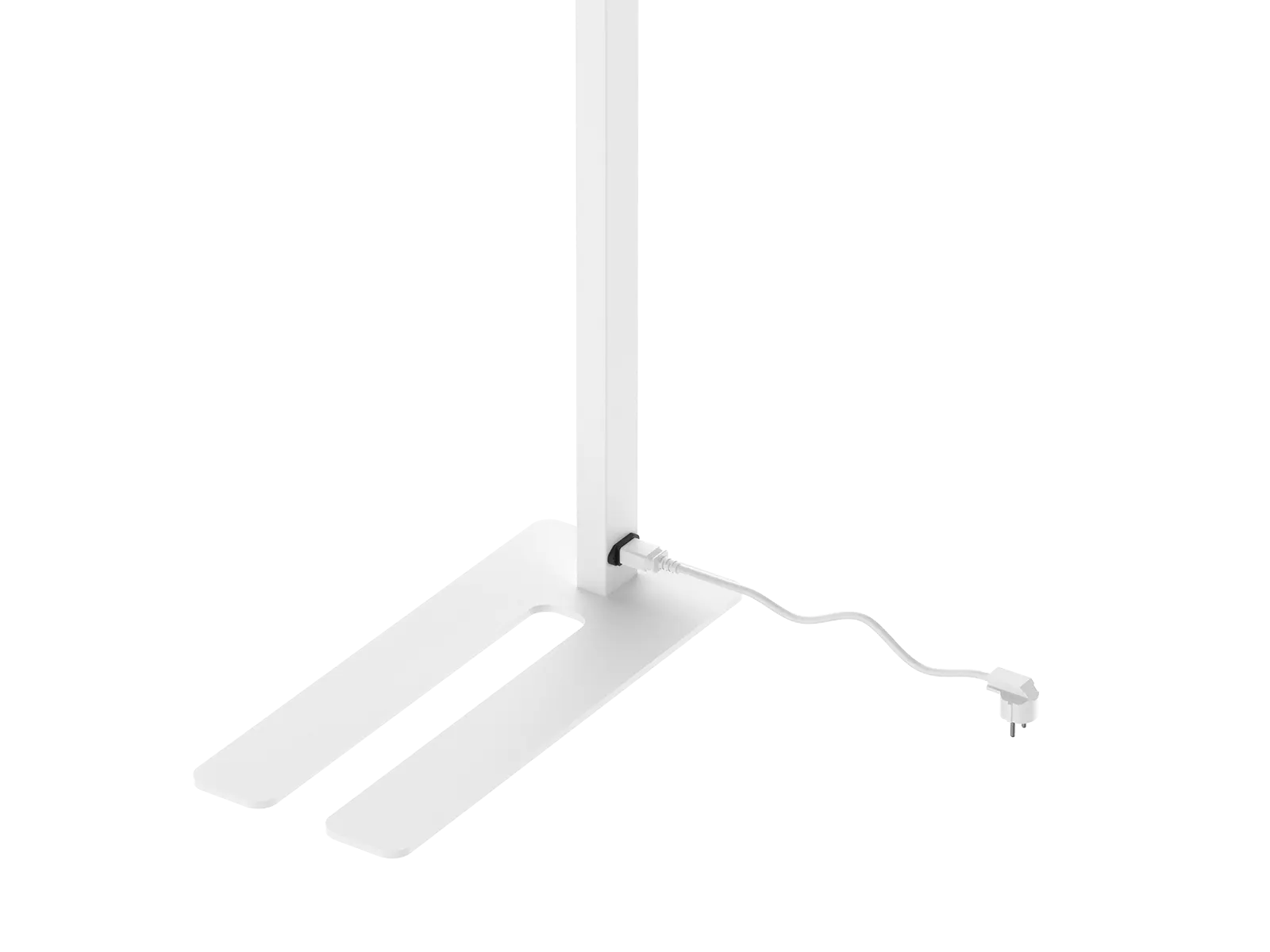

Free-standing luminaires can be placed easily anywhere in the room, providing direct and indirect light wherever the user needs it. This OL06 free-standing luminaire is composed of three parts: Linear lamp body, lamp pole, and U-shaped lamp base. OL06A is for floor standing, and OL06B is for desk installation. Direct and indirect optic design, UGR<16, up 75% & down 25% lighting, up to 125lm/W high light efficiency, can ensure a more uniform and more comfortable lighting effect. Besides, for direct lighting, it has Symmetrical polarized light and forward polarized light options, which could meet more lighting demands. Lamp Pole with Plug and play, touchable 0-10V dimmer, light sensor, PIR sensor module, and USB connector, and adjustable CCT. The configuration of the luminaire is triggered by pressing a button and then it’s fully automatic, the lighting control modules are interchangeable, which is very suitable for modern office environments.

  • Easy for assembly and maintenance.
  • OL06A floor standing, OL06B desk installation.
  • Symmetrical polarized light and forward polarized light options.
  • High lighting efficiency, 125lm/W.
  • Precise optical design: UGR<16, up 75% & down 25% lighting.

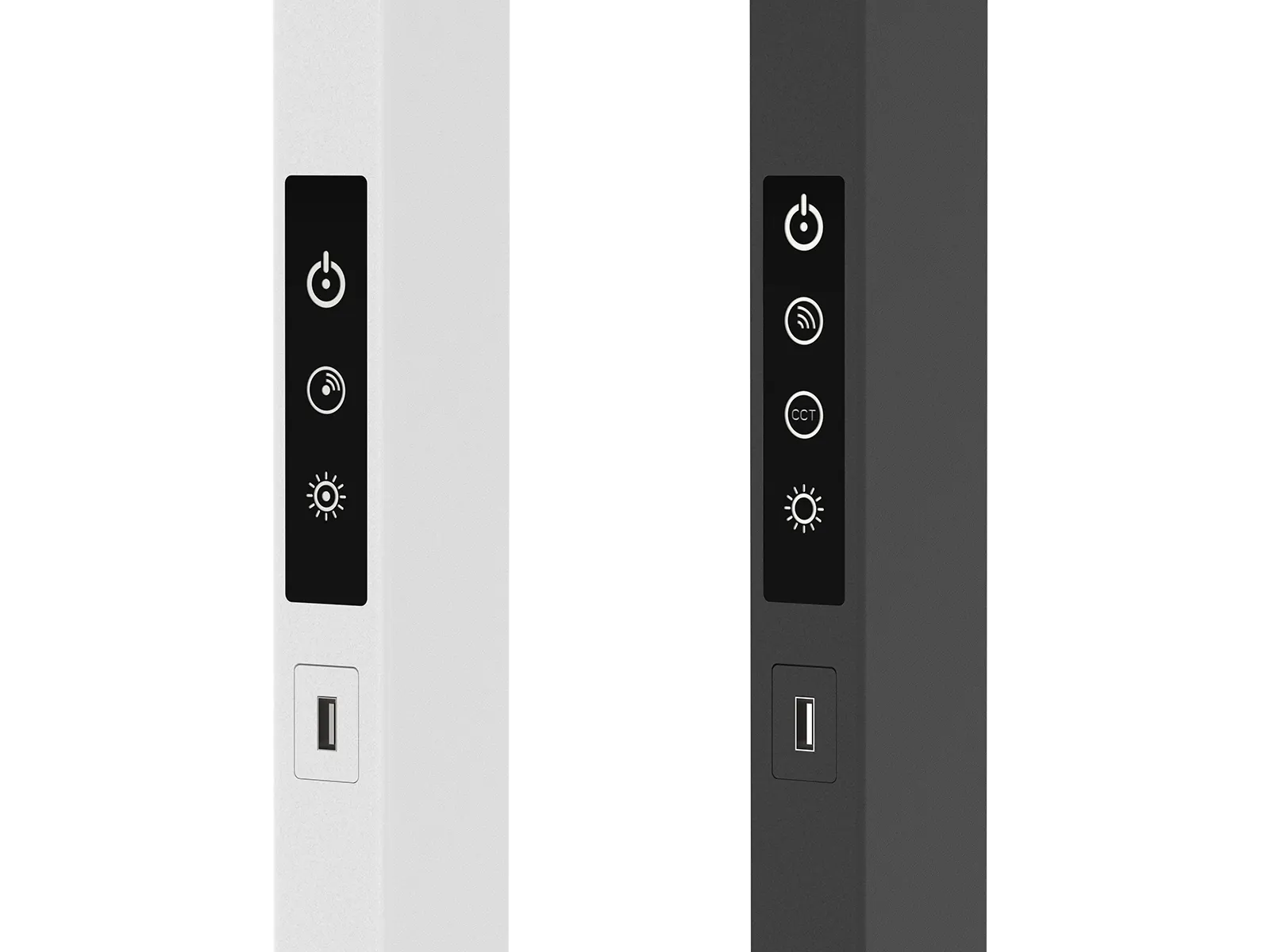

  • Plug and play, light sensor, PIR sensor, USB charging functions.
  • Touchable 0-10V dimming way.
  • Interchangeable CCT by switch: 3000K+4000K+5700K

Application Areas: It is specially designed for general lighting applications in offices, meeting rooms, hotels, etc.



Code No. OL06A-80W -DOS OL06A-80W -OSC OL06B-80W-DOS OL06B-80W -OSC
Dimension(mm) 2050*1085*240 1380*1115*70
Watt(W) 80W
Rated Input Voltage(V) AC230V
Input Voltage(V) AC220-240V
Light Source SMD2835
SDCM <6
CCT(K) 1-CCT: 3000K/4000K/5000K/5700K 3-CCT:3000K+4000K+5700K 1-CCT: 3000K/4000K/5000K/5700K 3-CCT:3000K+4000K+5700K
CCT Selection DIP Switch - YES - YES
DIM 1-CCT Luminous Flux (lm) ±5% 9000-10500lm - 9000-10500lm -
DIM 3-CCT Luminous Flux (lm) ±5% - 8200-9300lm - 8200-9300lm
CRI ≥80
Beam Angle (°) 80°*50°/60°*60*15°
UGR <16
LED Driver Driver built-in
Dimming Option 0-10V
Sensor PIR sensor / Daylight sensor
Electrical Class Class I
Ingress Protection (IP Rating) IP20
Product Finishing(Base) White  RAL9016
Optics Material PC/PET
Housing Material Aluminum
Lifetime (hr) 50,000h
Glow wire test (℃ ) 750°C
Operating Temp. (℃ ) -10℃ ~40℃
Storage Temp. (℃ ) -20℃ ~60℃
Installation Pedestal mounted / Desktop mounted
