OL07B Series

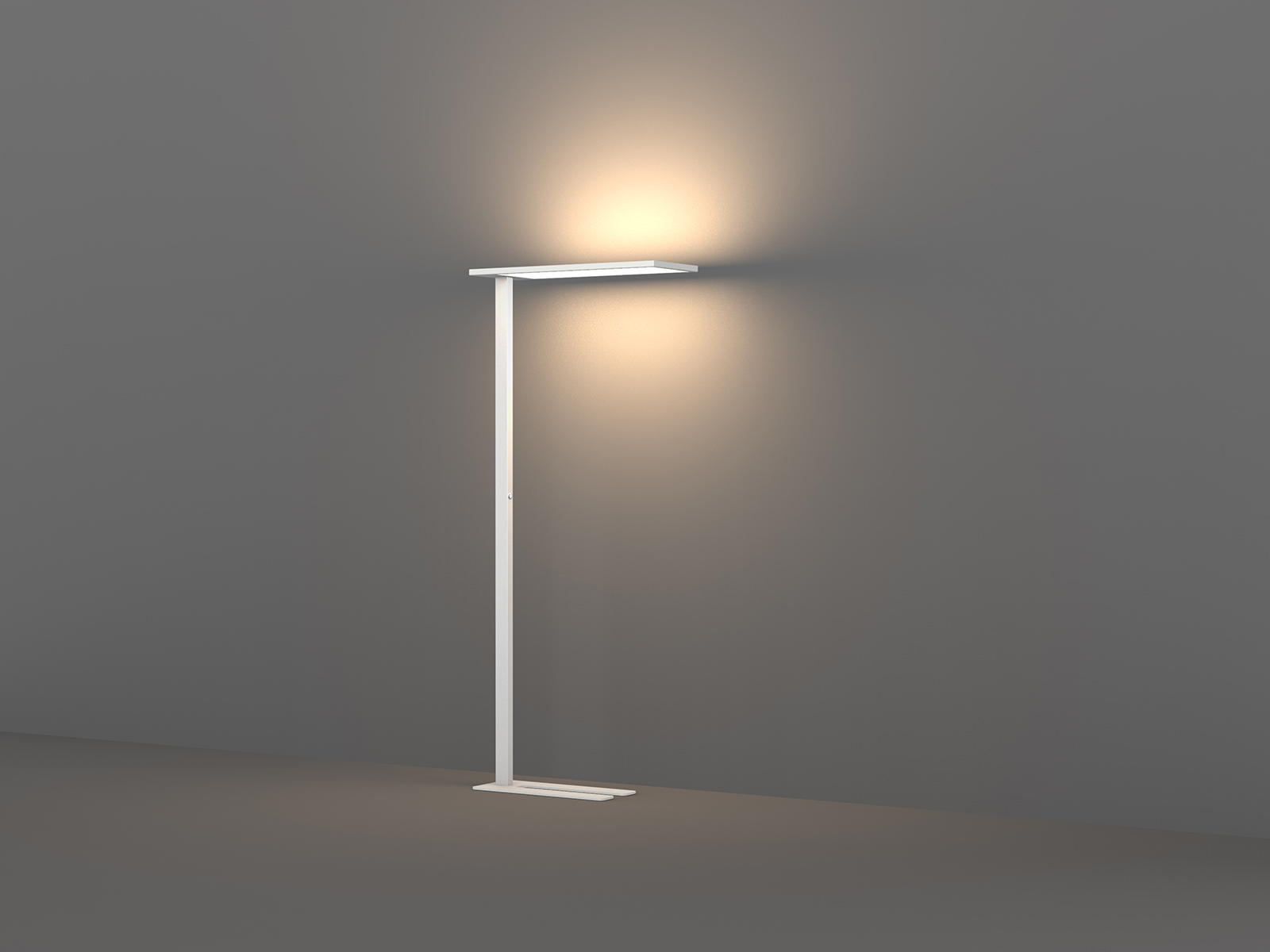

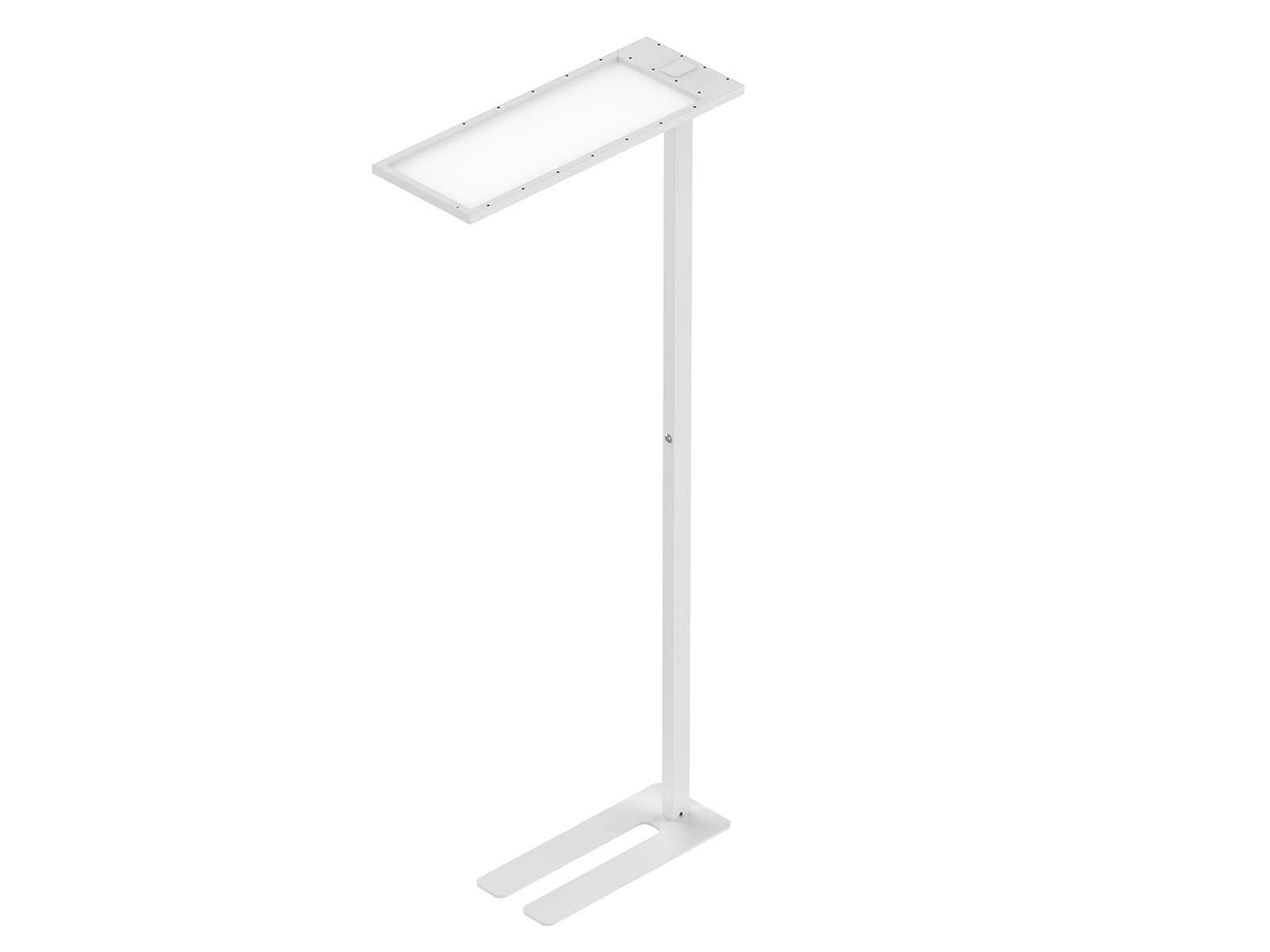

This OL07 freestanding lamp is composed of three parts: flat lamp body, lamp pole and lamp base. With a precise optical design (UGR<16, up 75% & down 25% lighting), it has direct lighting and indirect lighting, which ensures a more uniform and more comfortable lighting effect. Lamp Pole with Casambi Bluetooth wireless control module, it can be controlled wirelessly through smart phone and tablet PC to realize tunable white function or brightness ad.justment, which is very suitable for modern office environments.

  • Tunable white(Brightness and CCT adjustment) or brightness adjustment.
  • Easy for assembly and maintenance.
  • High lighting efficiency, 115lm/W.
  • Precise optical design: Direct and indirect lighting, UGR<16, up 75% & down 25% lighting.
  • Plug and play, convenient for different position.
  • Casambi Bluetooth wireless control.
  • Tridonic DALI dimming.

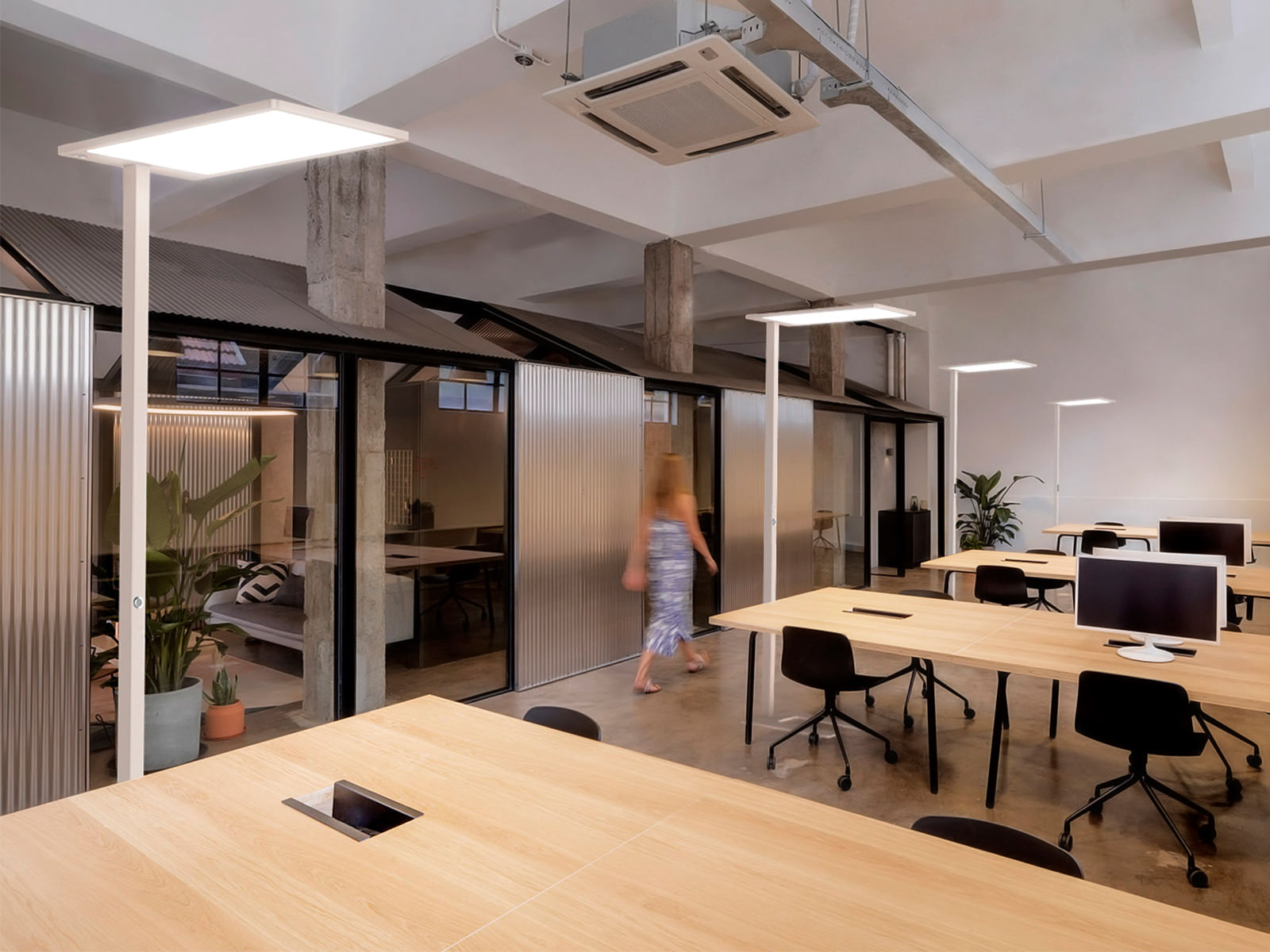

Application Areas: It is specially designed for general lighting applications in office, meeting room, hotel etc.

Code No. OL07B-100W-B OL07B-100W-B1
Dimension(mm) 1925*920*300
Watt(W) 100W 100W
Rated Input Voltage(V) AC230V
Input Voltage(V) AC220-240V
Light Source SMD2835
SDCM <6
CCT(K) 2700K-6500K 3000K/4000K/5000K/5700K
CCT Selection DIP Switch wireless signal control
Luminous Flux (lm) ±5% 8200-10800 10500-11800
CRI ≥80
Beam Angle (°) 120°
UGR <16
LED Driver Driver built-in
Dimming Option Analog/Digital dimming control
Electrical Class Class I
Ingress Protection (IP Rating) IP20
Product Finishing(Base) White  RAL9016
Optics Material PMMA/PC
Housing Material Aluminium
Lifetime (hr) 50,000h
Glow wire test (℃ ) 750°C
Operating Temp. (℃ ) -10℃ ~40℃
Storage Temp. (℃ ) -20℃ ~60℃
Installation Pedestal mounted
