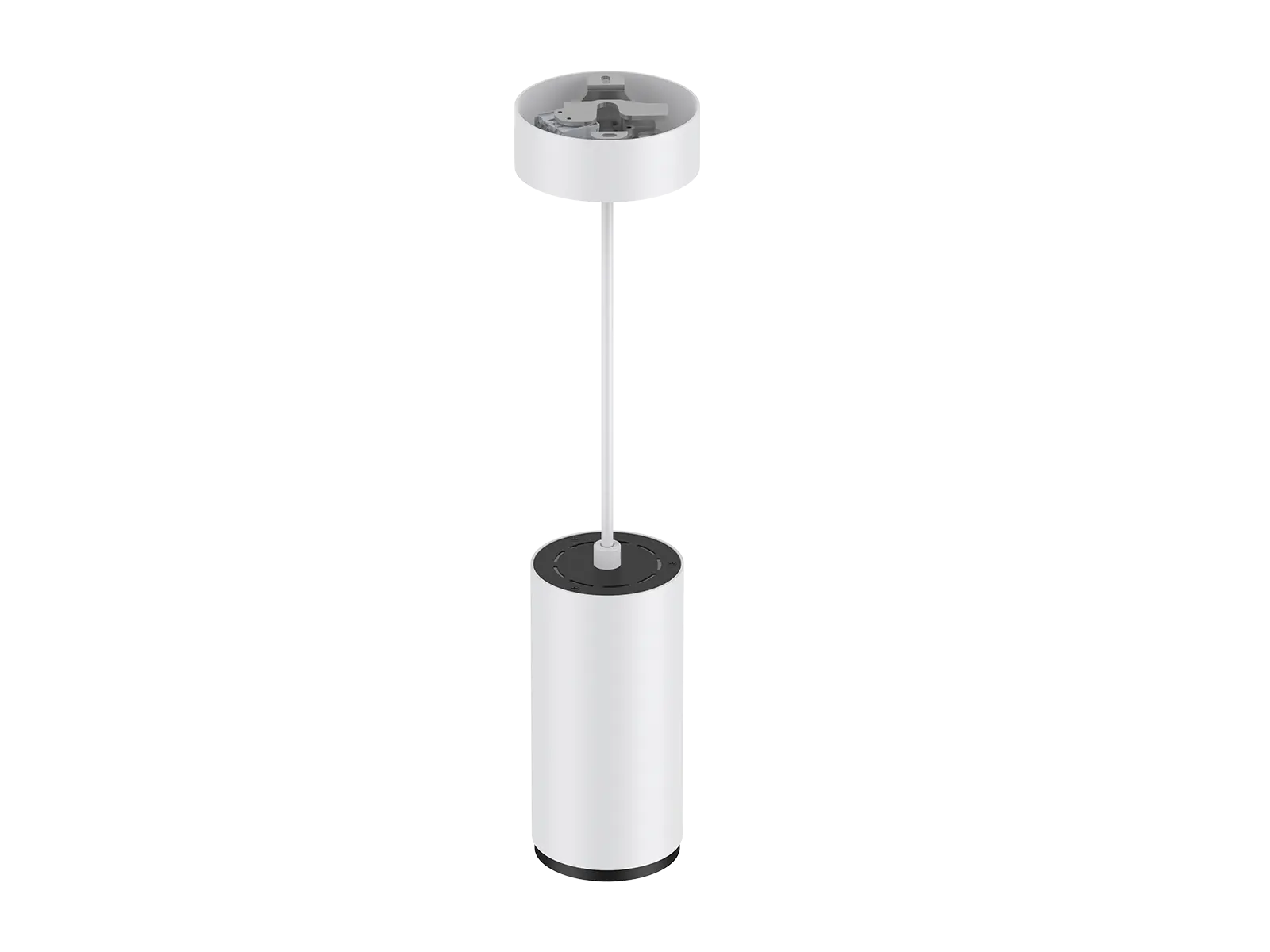

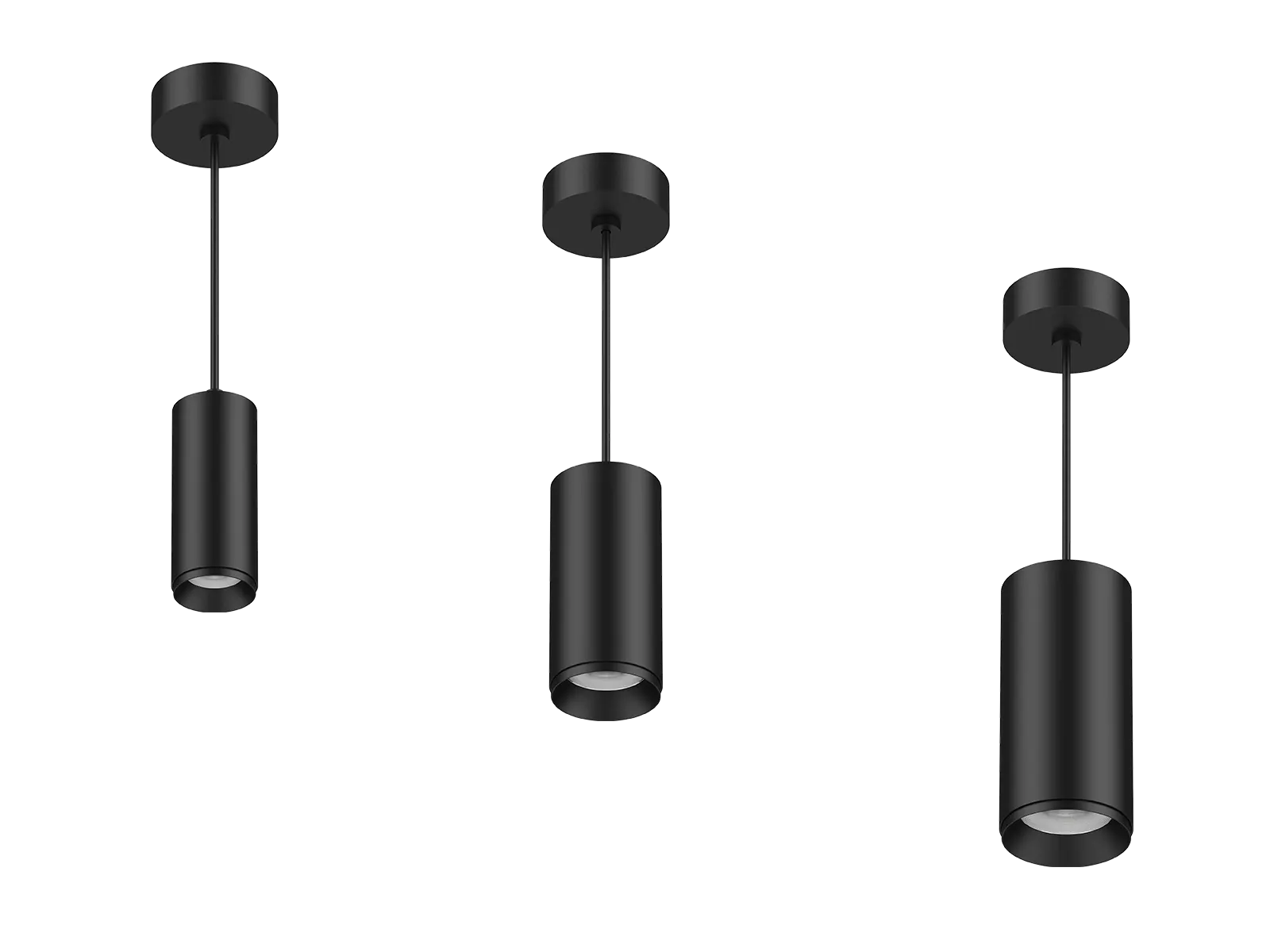

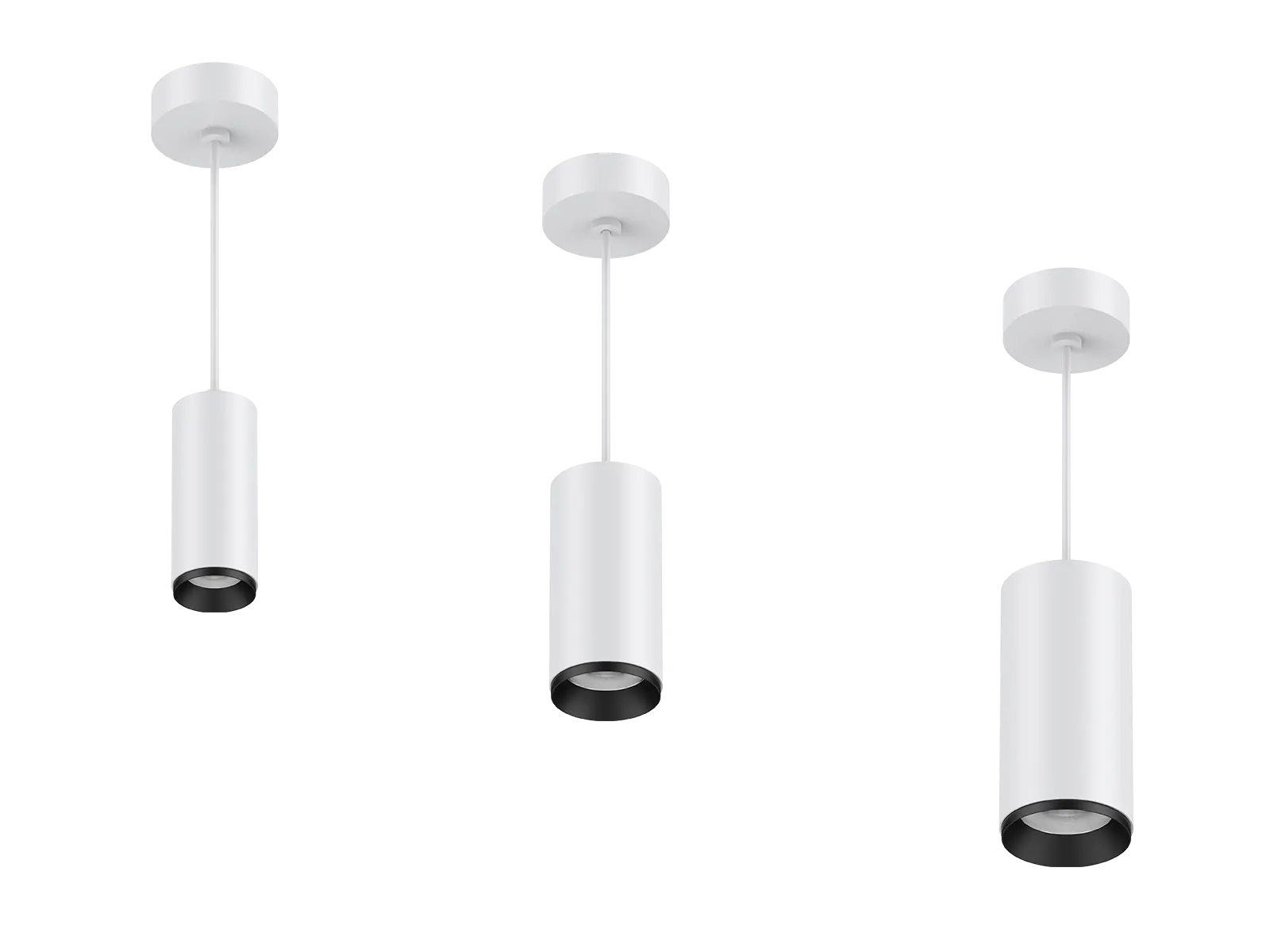

This pendant light is an anti-glare design. A high-lumen COB chip and PMMA lens offer a uniform lighting output. AL6063 aluminum lamp body provides excellent heat dissipation. Special lens design reaches an anti-glare effect and creates a comfortable visual experience. Multiple beam angle lens optional, and the modular lens design makes it convenient for maintenance. Easy installation, recreational for various applications.
Application Areas: Applicable for residential lighting in bedrooms, living rooms, and corridors etc, also suitable for commercial lighting in offices, hotel, restaurants, etc.
| Code No. | Technical Data Sheet (Non-Dimmable) | |||||
|---|---|---|---|---|---|---|
| PD228-10W | PD228-15W | PD228-20W | PD228-25W | PD228-30W | PD228-40W | |
| Dimension(mm) | Ø65*1265 | Ø85*1285 | Ø100*1320 | |||
| Watt(W) | 10W | 15W | 20W | 25W | 30W | 40W |
| Rated Input Voltage(V) | AC230V | |||||
| Input Voltage(V) | AC200-240V | |||||
| Light Source | COB | |||||
| SDCM | <6 | |||||
| CCT(K) | 1-CCT: 2700K/3000K/4000K/5000K|| 3-CCT: 3000K + 4000K + 5000K | |||||
| CCT Selection DIP Switch | Yes | No | ||||
| Non-DIM 1-CCT Luminous Flux (lm) ±5% | 900-1100 | 1350-1650 | 1800-2250 | 2150-2700 | 2650-3050 | 3550-4200 |
| DIM 1-CCT Luminous Flux (lm) ±5% | - | |||||
| Non-DIM 3-CCT Luminous Flux (lm) ±5% | 750-950 | 1050-1400 | 1750-2100 | 2150-2600 | 2300-2850 | - |
| DIM 3-CCT Luminous Flux (lm) ±5% | - | |||||
| CRI | 80/90/97（ 1-CCT) /90（3-CCT) | |||||
| Beam Angle (°) | 24°/36°/60° | |||||
| LED Driver | Built-in | |||||
| Electrical Class | Class Ⅰ | |||||
| Ingress Protection (IP Rating) | IP20 | |||||
| Product Finishing(Base) | White RAL 9016/Black RAL9005 | |||||
| Materials of Optics | PMMA | |||||
| Materials of Housing | Aluminum | |||||
| Lifetime (hr) | 50,000h | |||||
| Glow wire test (°C) | 650°C | |||||
| Operating Temp. (°C) | -20°C~40°C | |||||
| Storage Temp. (°C) | -20°C~65°C | |||||
| Installation | Pendant | |||||
| Code No. | Technical Data Sheet (Triac Dimmable) | ||||
|---|---|---|---|---|---|
| PD228-10W | PD228-15W | PD228-20W | PD228-25W | PD228-30W | |
| Dimension(mm) | Ø65*1265 | Ø85*1285 | Ø100*1320 | ||
| Watt(W) | 10W | 15W | 20W | 25W | 30W |
| Rated Input Voltage(V) | AC230V | ||||
| Input Voltage(V) | AC200-240V | ||||
| Light Source | COB | ||||
| SDCM | <6 | ||||
| CCT(K) | 1-CCT: 2700K/3000K/4000K/5000K|| 3-CCT: 3000K + 4000K + 5000K | ||||
| CCT Selection DIP Switch | Yes | ||||
| Non-DIM 1-CCT Luminous Flux (lm) ±5% | - | ||||
| DIM 1-CCT Luminous Flux (lm) ±5% | 850-1050 | 1350-1650 | 1750-2150 | 1950-2450 | 2450-2800 |
| Non-DIM 3-CCT Luminous Flux (lm) ±5% | - | ||||
| DIM 3-CCT Luminous Flux (lm) ±5% | 700-890 | 1050-1400 | 1700-2050 | 1950-2350 | 2100-2650 |
| CRI | 80/90/97（ 1-CCT) /90（3-CCT) | ||||
| Beam Angle (°) | 24°/36°/60° | ||||
| LED Driver | Built-in | ||||
| Electrical Class | Class Ⅰ | ||||
| Ingress Protection (IP Rating) | IP20 | ||||
| Product Finishing(Base) | White RAL 9016/Black RAL9005 | ||||
| Materials of Optics | PMMA | ||||
| Materials of Housing | Aluminum | ||||
| Lifetime (hr) | 50,000h | ||||
| Glow wire test (°C) | 650°C | ||||
| Operating Temp. (°C) | -20°C~40°C | ||||
| Storage Temp. (°C) | -20°C~65°C | ||||
| Installation | Pendant | ||||
| Code No. | Technical Data Sheet (DALI Dimmable) | ||||
|---|---|---|---|---|---|
| PD228-10W | PD228-15W | PD228-20W | PD228-25W | PD228-30W | |
| Dimension(mm) | Ø65*1265 | Ø85*1285 | Ø100*1320 | ||
| Watt(W) | 10W | 15W | 20W | 25W | 30W |
| Rated Input Voltage(V) | AC230V | ||||
| Input Voltage(V) | AC200-240V | ||||
| Light Source | COB | ||||
| SDCM | <6 | ||||
| CCT(K) | 1-CCT: 2700K/3000K/4000K/5000K | ||||
| CCT Selection DIP Switch | NO | ||||
| Non-DIM 1-CCT Luminous Flux (lm) ±5% | - | ||||
| DIM 1-CCT Luminous Flux (lm) ±5% | 900-1200 | 1350-1650 | 1800-2250 | 2150-2700 | 2500-3250 |
| Non-DIM 3-CCT Luminous Flux (lm) ±5% | - | ||||
| DIM 3-CCT Luminous Flux (lm) ±5% | - | ||||
| CRI | 80(90/97 optional) | ||||
| Beam Angle (°) | 24°/36°/60° | ||||
| LED Driver | Built-in | ||||
| Electrical Class | Class Ⅰ | ||||
| Ingress Protection (IP Rating) | IP20 | ||||
| Product Finishing(Base) | White RAL 9016/Black RAL9005 | ||||
| Materials of Optics | PMMA | ||||
| Materials of Housing | Aluminum | ||||
| Lifetime (hr) | 5,0000h | ||||
| Glow wire test (°C) | 650℃ | ||||
| Operating Temp. (°C) | -20℃ ~40℃ | ||||
| Storage Temp. (°C) | -20℃ ~65℃ | ||||
| Installation | Pendant | ||||
