The product has been discontinued online. Please contact our sales representative for more information.

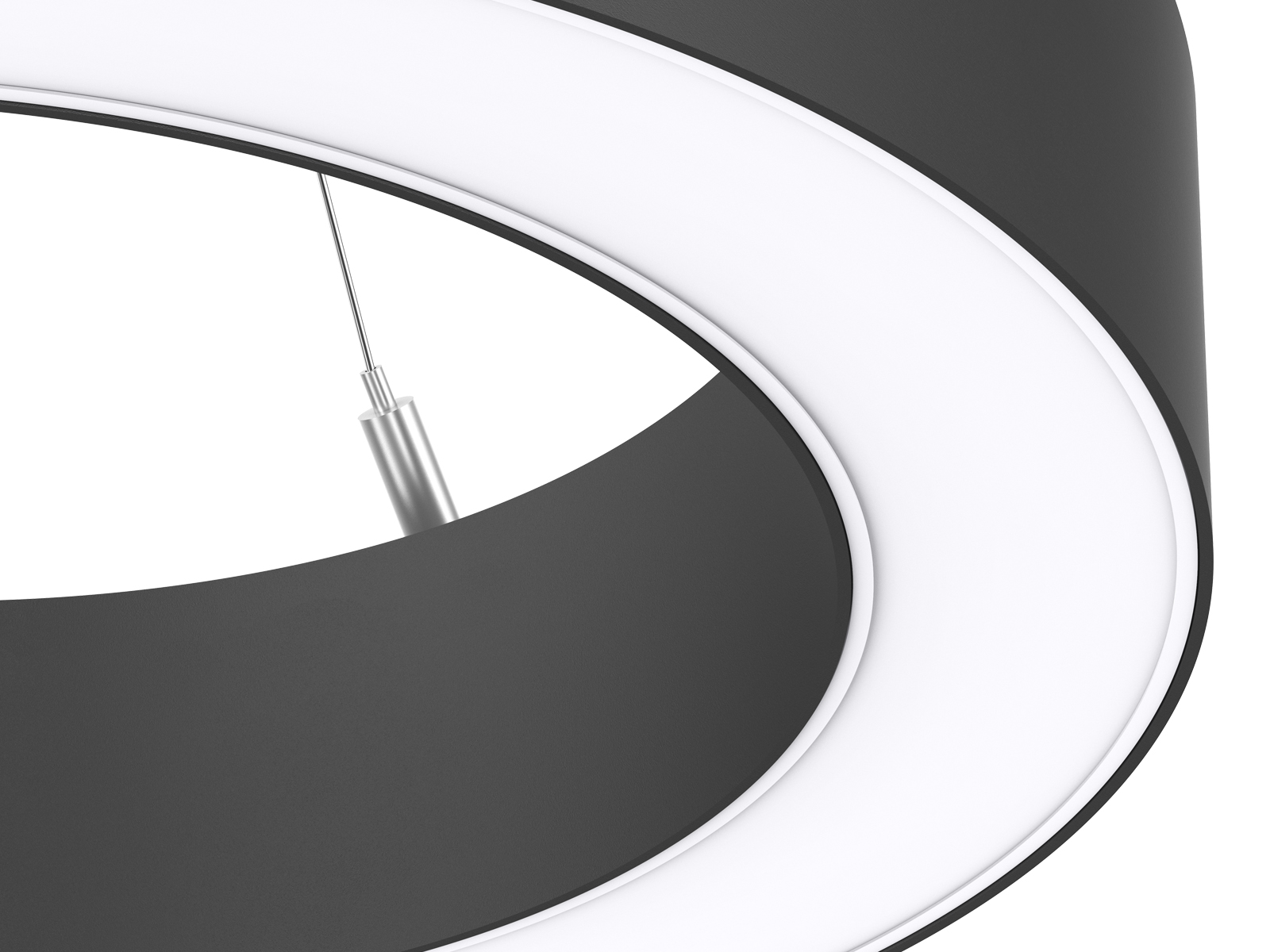

PD26 is a big size pendant light. It’s adopted high lumen SMD LED light source, circle cut method makes PC shade without light leakage, which also offers a softer and uniform light output. AL6063 aluminium housing provides an excellent thermal management. Size options: 400mm, 600mm, 800mm, 1000mm.

LED pendant light feature:

  • High lumen efficiency 90-100lm/W.
  • Uniform light output without any light leakage.
  • AL6063 aluminium provides a great heat dissipation.
  • Size options: 400mm, 600mm, 800mm, 1000mm.
  • Osram flicker free internal driver.

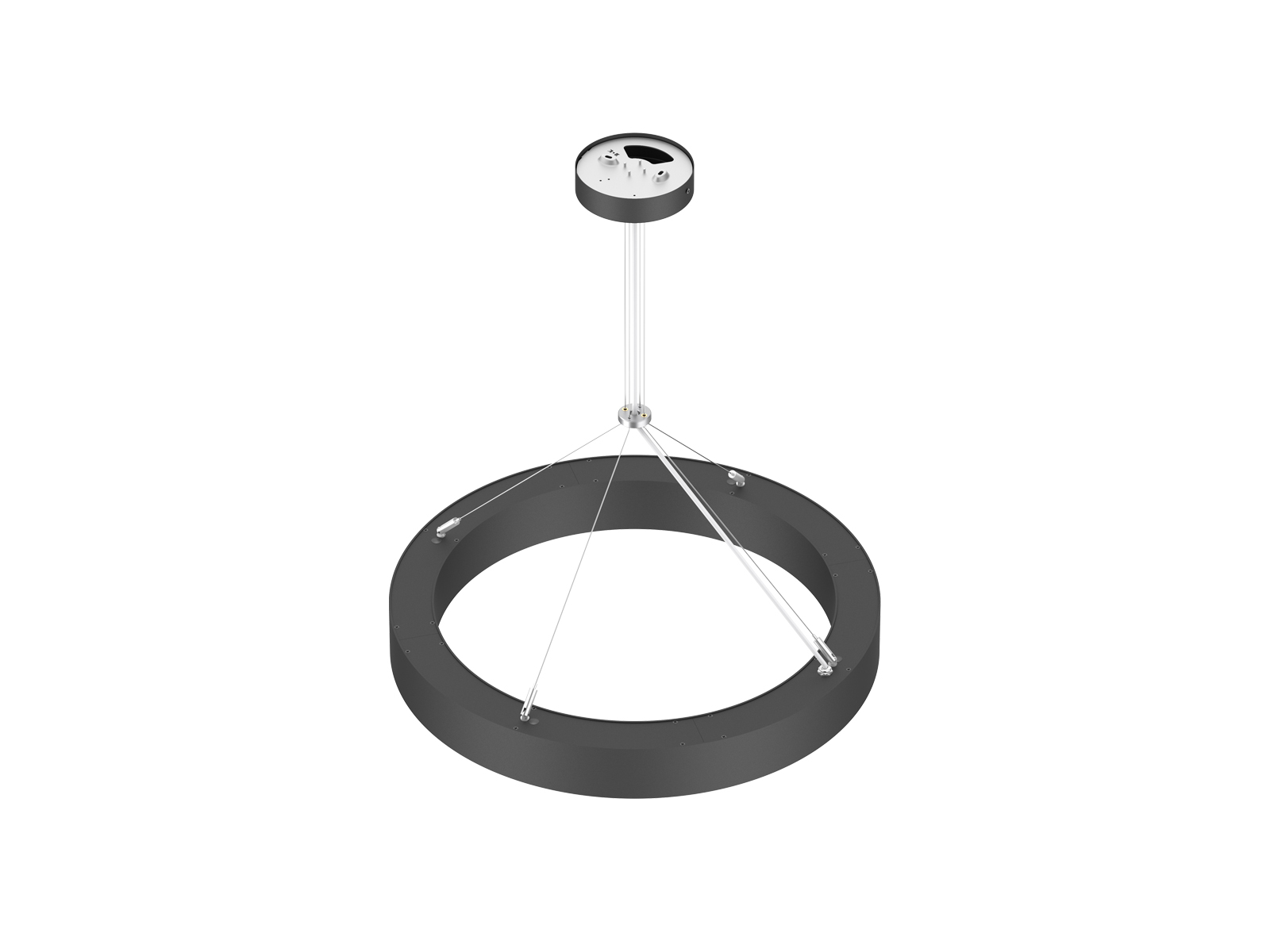

  • Multiple pendant ways: ceiling box on center, no ceiling box.
Code No. PD26A-35W PD26A-54W PD26A-70W PD26A-84W
Dimension(mm) Ø400×75 Ø600×75 Ø800×75 Ø1000×75
Watt(W) 35W 54W 70W 84W
Rated Input Voltage(V) AC220-240V
Input Voltage(V) AC180-264V
LED Module Input DC36V 900mA DC36V 700mA×2 DC36V 900mA×2 DC36V 1100mA×2
Light Source SMD
SDCM <6
CCT(K) 3000K/4000K/5000K/5700K
Non-DIM 1-CCT Luminous Flux (lm) ±5% 3100-3400 4900-5300 6300-6700 7600-8000
CRI Ra>80
Beam Angle (°) 105°
LED Driver Built-in
Electrical Class Class I
Ingress Protection (IP Rating) IP20
Product Finishing(Base) Black RAL9005
Materials of Optics PC
Materials of Housing Aluminum
Lifetime (hr) 50,000h
Glow wire test (C ) 750C
Operating Temp. (C ) -20C ~40C
Storage Temp. (C ) -20C ~65C
Installation Pendant
