LED Panel Light PL-DE Modular Design with UGR<19

This new panel light is a modular design with UGR<19. Its adopted high-lumen SMD LED light source, special optic design make it a uniform and low-glare visual experience. Prism diffuser module and Louver reflector module options, the luminous module can be replaced, which ensures easy maintenance. Slot design option for better ventilation and dissipation. This panel offers the ideal combination of stylish design and optimum performance for both task and general lighting.

Panel light feature:

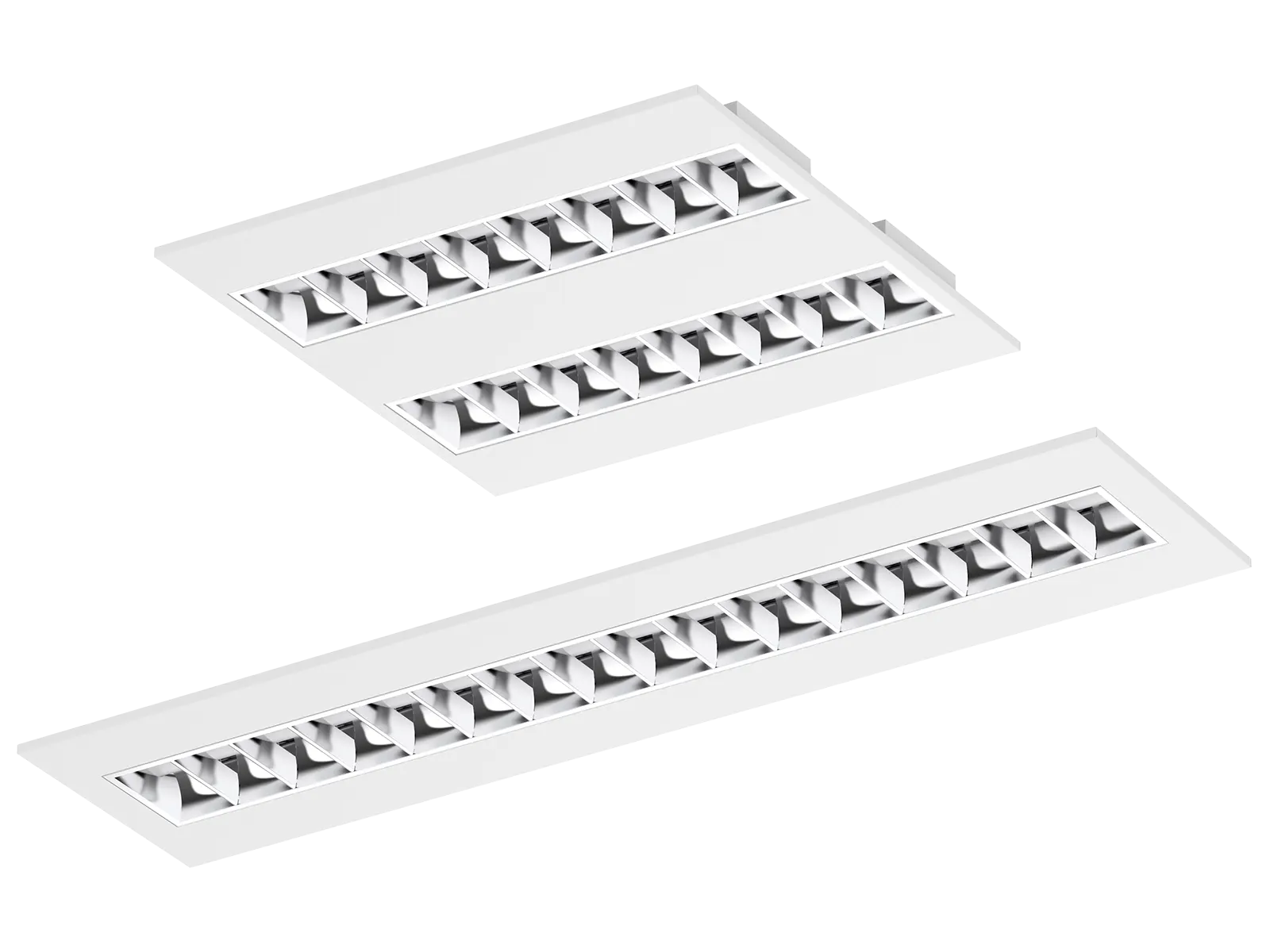

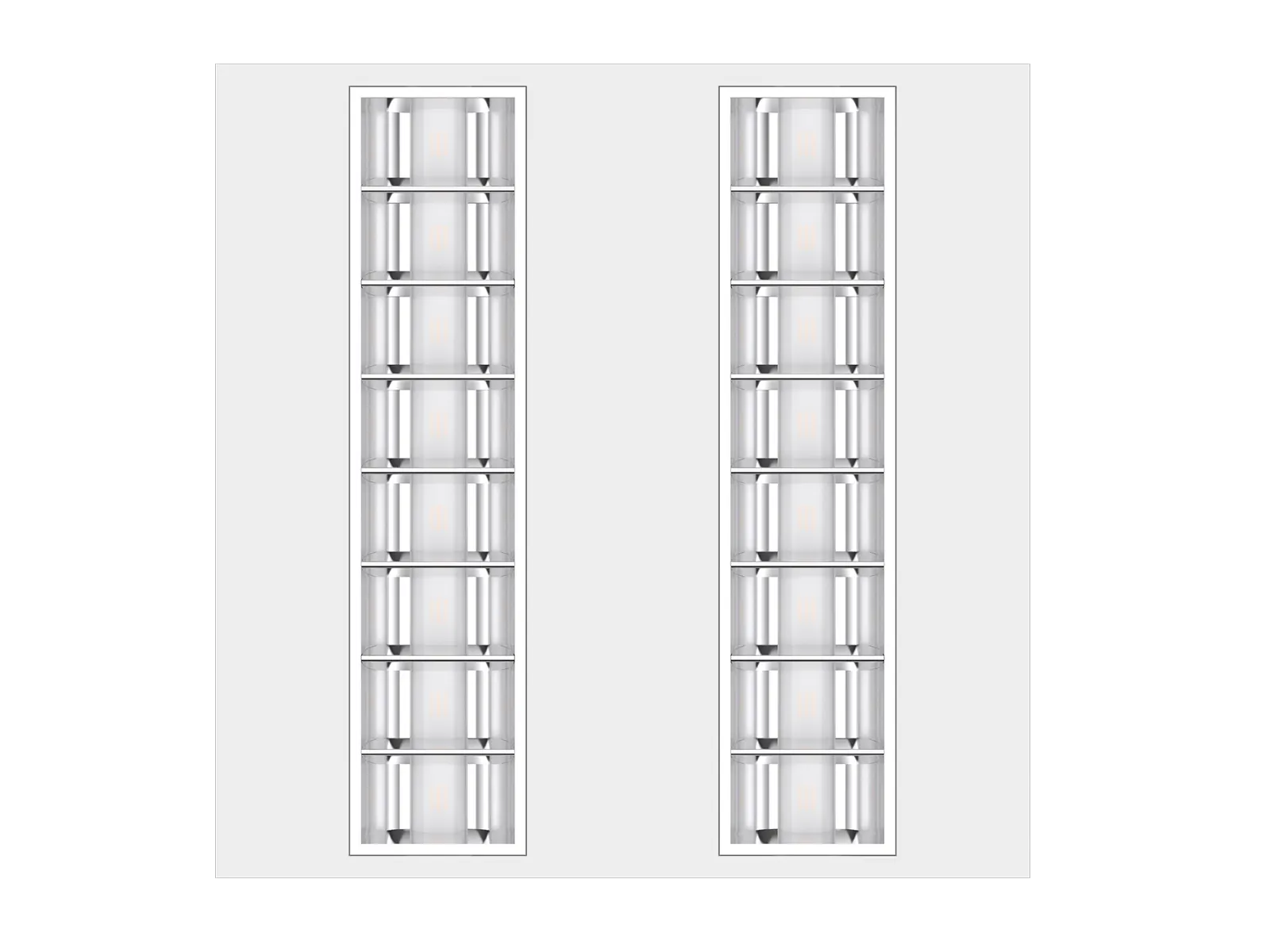

  • Module replaceable, prism diffuser, and louver reflector options.

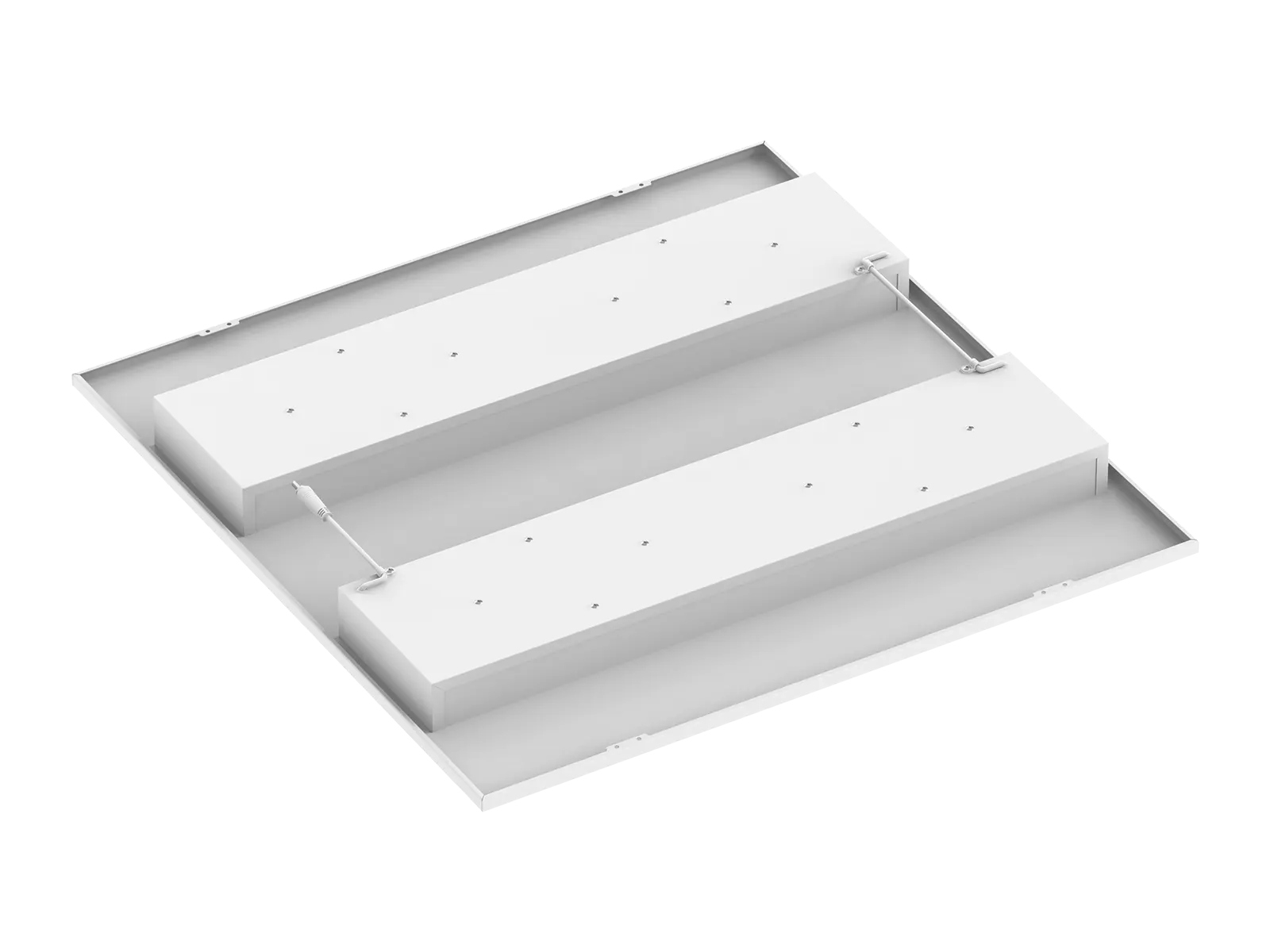

  • A slot version is available for better ventilation and dissipation.
  •  Anti-glare UGR<19.
  • External flicker-free driver.
  • Dimming: Traic dim, 0-10V, DALI
Code No. PL3060-13W-DE PL6060-28W-DE PL30120-28W-DE PL40120-28W-DE PL30150-40W-DE
Dimension(mm) 292*592*48 592*592*48 292*1192*48 392*1192*48 292*1492*48
Watt(W) 13W 28W 40W
Rated Input Voltage(V) AC230V
Input Voltage(V) AC220-240V
LED Module Input DC33-38V
Light Source SMD2835
SDCM <6
CCT(K) 1-CCT: 3000K/4000K/5000K/5700K
CCT Selection DIP Switch -
Non-DIM Luminous Flux (lm) ±5% louver    reflector  1220-1400 2810-2960 2810-2960 2810-2960 4240-4320
DIM Luminous Flux (lm) ±5% louver    reflector  1120-1300 2710-2860 2710-2860 2710-2860 4140-4220
Non-DIM Luminous Flux (lm) ±5% prism    diffuser 1210-1340 2620-2890 2620-2890 2620-2890 3680-4000
DIM Luminous Flux (lm) ±5% prism    diffuser 1110-1240 2520-2790 2520-2790 2520-2790 3580-3900
CRI > 90
Beam Angle (°) 90°
UGR <19
LED Driver Built-out
Dimming  Option Triac/Dali/0-10V
Electrical Class Class I I
Ingress Protection (IP Rating) IP20
Product Finishing(Base) White RAL 9003
Materials of Optics Diffuser(PS)/Louver(PC cover+Aluminium reflector)
Materials of Housing Steel
Lifetime (hr) 50,000h
Glow wire test (℃ ) 650℃
Operating Temp. (℃ ) -10℃ ~40℃
Storage Temp. (℃ ) -20℃ ~65℃
Installation Recessed / Supended
