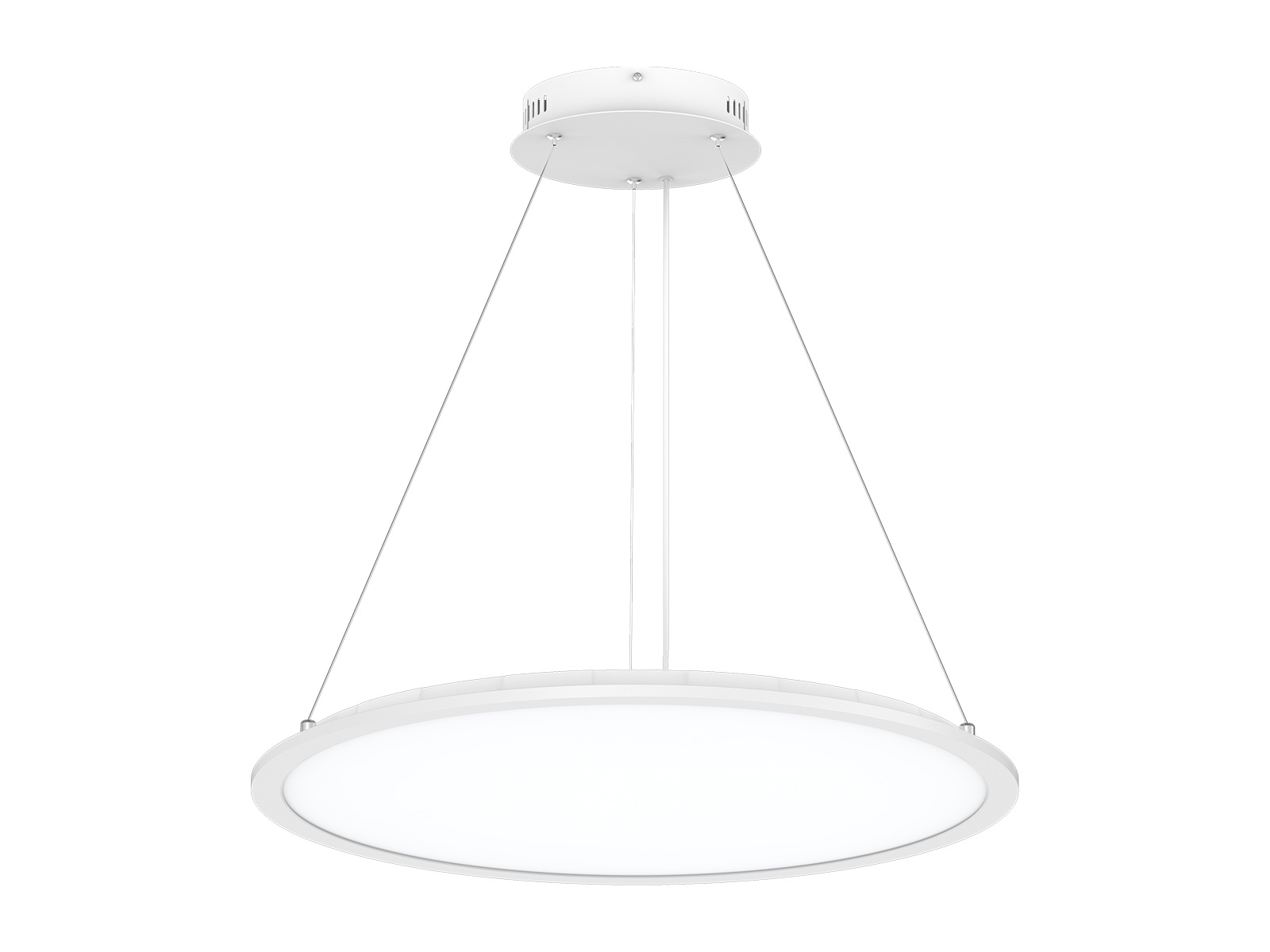

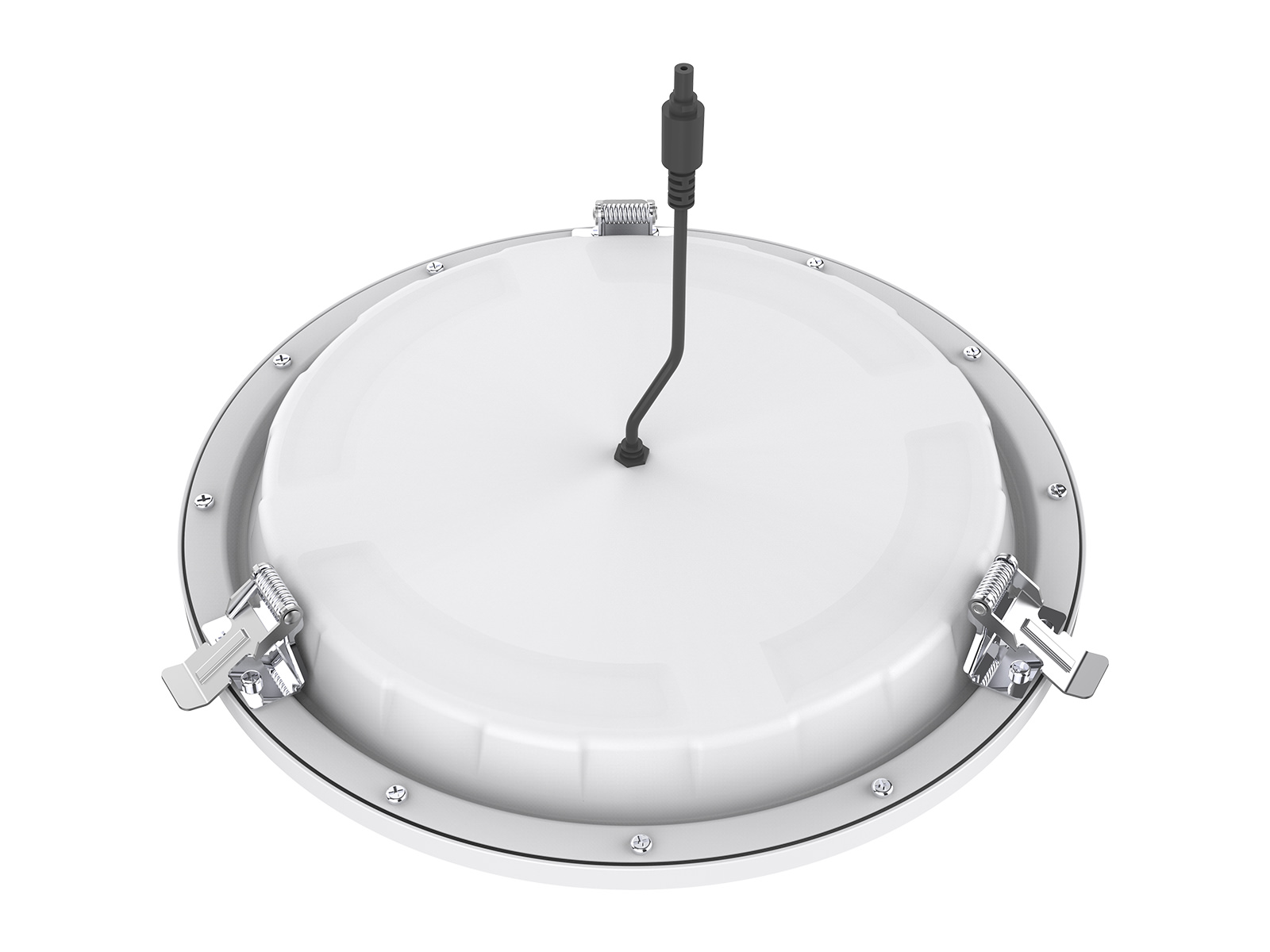

This is a direct lighting panel with a circle appearance patent. It’s adopted a 2835 SMD light source and PMMA lens which generated a great uniform light output. For structure, it has a super slim lamp body and supports embedded surface mounted and suspended installation way. 400mm, 500mm, 600mm sizes for the embedded surface-mounted version, and 300mm, 400mm, 500mm, and 600mm for the suspended version.

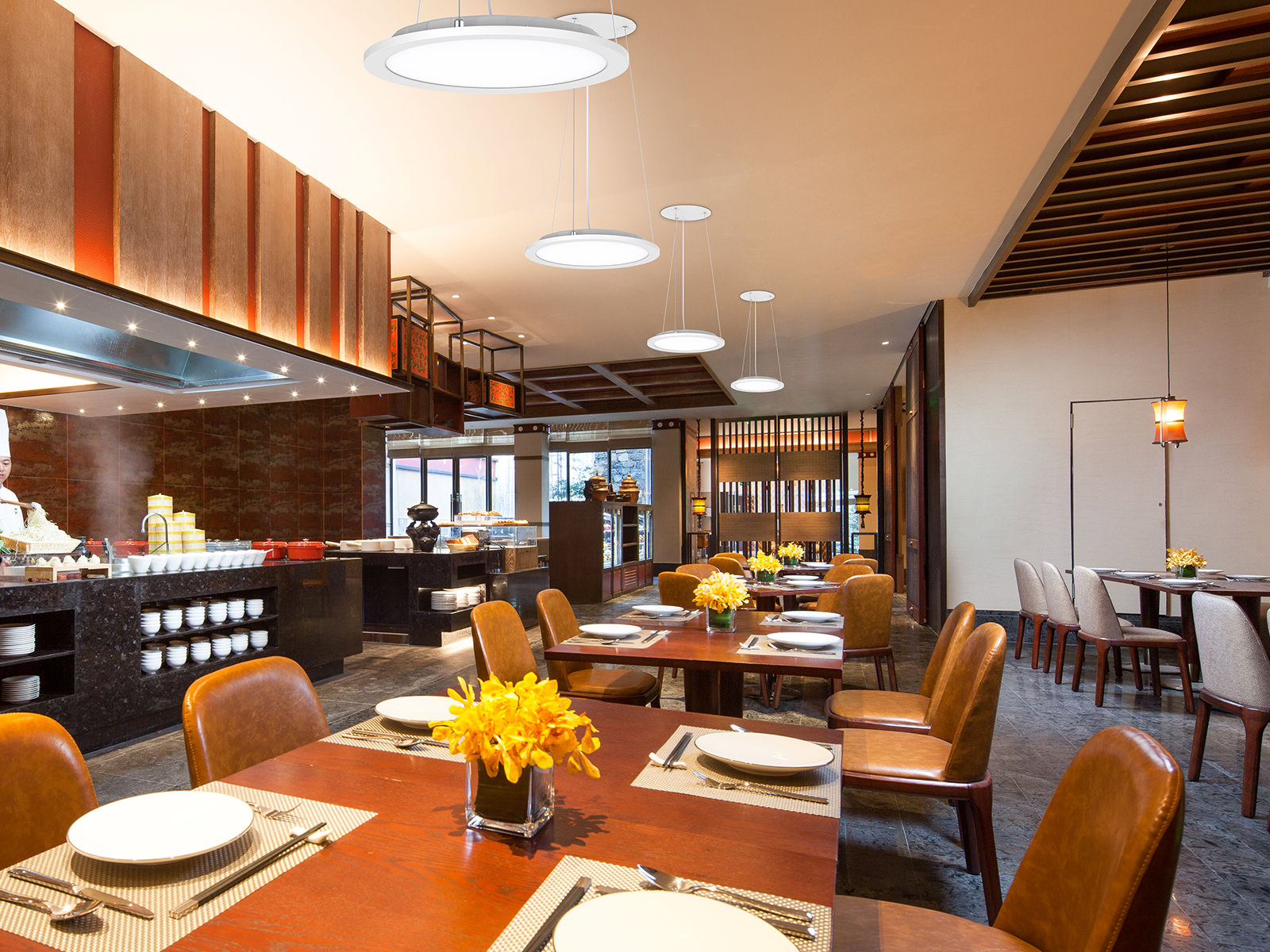

Office Lighting: Office room, meeting room, classroom etc.Commercial Lighting: Shopping mall, supermarket, hotel, etc.Another area: Canteen, theater, bank, etc.
Features:
| Code No. | PL300A-18W-DR | PL400A-25W-DR | PL400A-35W-DR | PL500A-30W-DR | PL500A-35W-DR | PL600A-35W-DR | PL600A-45W-DR | PL600A-55W-DR |
|---|---|---|---|---|---|---|---|---|
| Dimension(mm) | Ø300*13.8 | Ø400*13.8 | Ø400*13.8 | Ø500*13.8 | Ø500*13.8 | Ø600*13.8 | Ø600*13.8 | Ø600*13.8 |
| Watt(W) | 18W | 25W | 35W | 30W | 35W | 35W | 45W | 55W |
| Rated Input Voltage(V) | AC220-240V | |||||||
| Input Voltage(V) | AC198-264V | |||||||
| LED Module Input | 33-38V DC 500mA CC | 33-38V DC 650mA CC | 33-38V DC 900mA CC | 33-38V DC 800mA CC | 33-38V DC 900mA CC | 33-38V DC 900mA CC | 33-38V DC 1200mA CC | 33-38V DC 1500mA CC |
| Light Source | SMD | |||||||
| SDCM | ＜6 | |||||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K / 3-CCT:3000-5700K | |||||||
| CCT Selection DIP Switch | Yes | |||||||
| Non-DIM 1-CCT Luminous Flux (lm) ±5% | 1650-1800 | 2300-2500 | 3220-3500 | 3030-3300 | 3540-3850 | 3540-3850 | 4550-4950 | 5560-6050 |
| DIM 1-CCT Luminous Flux (lm) ±5% | 1550-1700 | 2200-2400 | 3120-3400 | 2930-3200 | 3440-3750 | 3440-3750 | - | - |
| Non-DIM 3-CCT Luminous Flux (lm) ±5% | 1550-1800 | 2200-2500 | 3120-3500 | 2930-3300 | 3440-3850 | 3440-3850 | 4450-4950 | 5460-6050 |
| DIM 3-CCT Luminous Flux (lm) ±5% | 1450-1700 | 2100-2400 | 3020-3400 | 2830-3200 | 3340-3750 | 3340-3750 | - | - |
| CRI | ≥80 | |||||||
| Beam Angle (°) | 120° | |||||||
| LED Driver | Built-out | |||||||
| Dimming Option | Triac /0- 10v /Dali dimming | |||||||
| Electrical Class | Class Ⅱ | |||||||
| Ingress Protection (IP Rating) | IP40 | |||||||
| Product Finishing(Base) | White | |||||||
| Materials of Optics | PMMA(Lens)+PS(Diffuser) | |||||||
| Materials of Housing | Aluminum(Frame) | |||||||
| Lifetime (hr) | 50,000h | |||||||
| Glow wire test ( | 650C | |||||||
 ) |
||||||||
| Operating Temp. ( | - 10C~40C | |||||||
 ) |
||||||||
| Storage Temp. ( | -20C~50C | |||||||
 ) |
||||||||
| Installation | Pendant | |||||||
