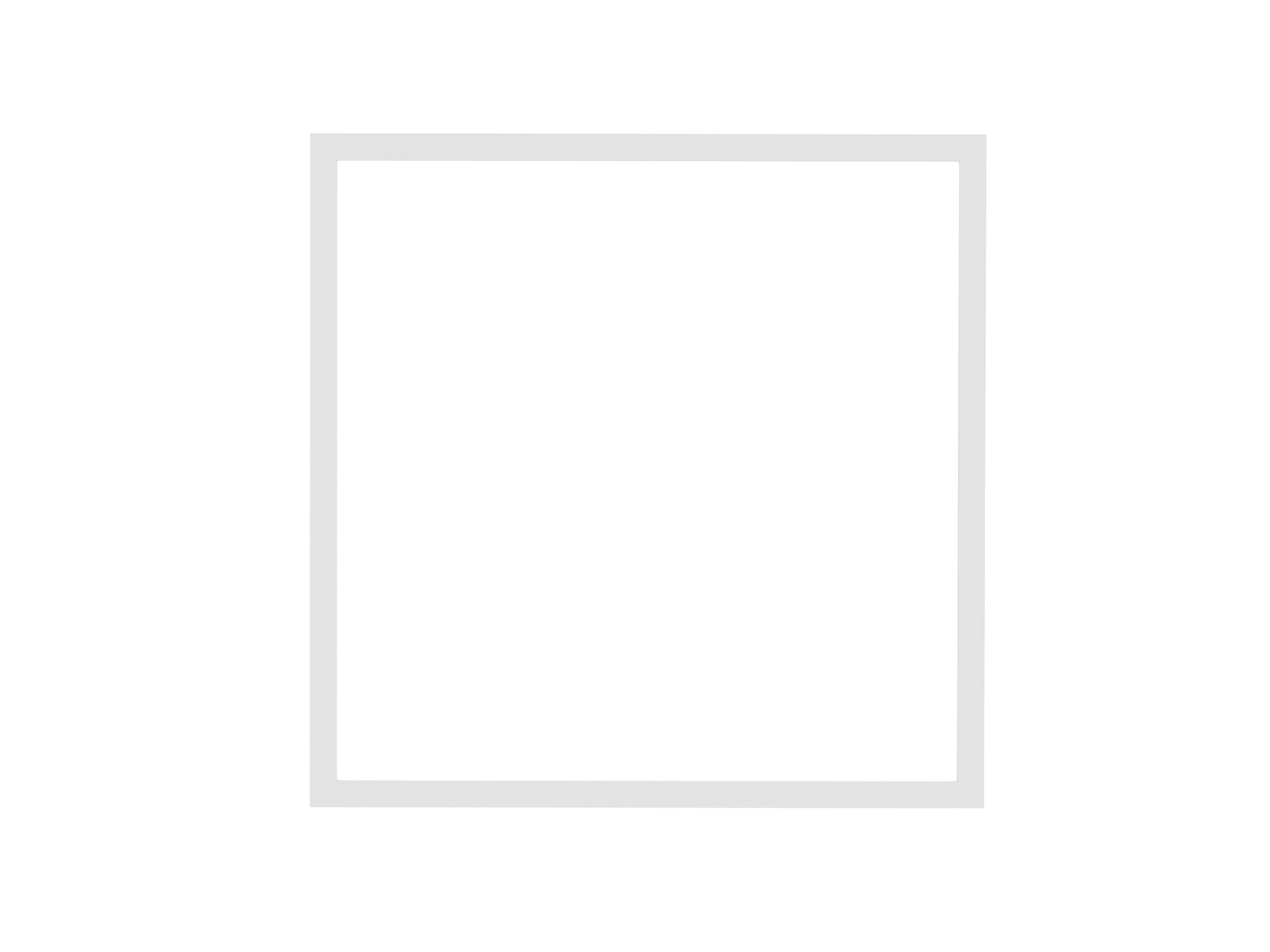

The panel light adopts upper and lower frame structure design to reach an IP65 waterproof effect, it has a strong structure with 10mm thickness. Upper and lower 6063 Aluminium frames provide a great thermal management to ensure a long lifespan. Besides, it has high lumen SMD light source and PMMA LGP which offer a uniform light output and avoid yellow risky. Multiple installation ways: recessed, suspended and surface mounted.
LED panel light features:
Code No. | PL3030-15W-DS | PL3060-20W-DS | PL6060-36W-DS | PL6262-36W-DS | PL30120-36W-DS | PL60120-60W-DS | ||
Dimension(mm) | 295*295*10 | 295*595*10 | 595*595*10 | 620*620*10 | 295*1195*10 | 595*1195*10 | ||
Cutout (mm) | – | |||||||
Watt(W) | 15W | 20W | 36W | 36W | 36W | 60W | ||
Rated Input Voltage(V) | AC230V | |||||||
Input Voltage(V) | AC200-240V | |||||||
LED Module Input | 33-38V DC 350mA CC | 33-38V DC 500mA CC | 33-38V DC 900mA CC | 33-38V DC 900mA CC | 33-38V DC 900mA CC | 33-38V DC 1500mA CC | ||
Light Source | SMD | |||||||
SDCM | <6 | |||||||
CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K | |||||||
CCT Selection DIP Switch | – | |||||||
Luminous Flux (lm) ±5% | Non-DIM | 1-CCT | 1125-1275 | 1600-1800 | 3240-3600 | 3240-3600 | 3240-3600 | 5700-6300 |
DIM | – | |||||||
Non-DIM | 3-CCT | – | ||||||
DIM | – | |||||||
CRI | ≥80 | |||||||
Beam Angle (°) | 120° | |||||||
LED Driver | Built-out | |||||||
Electrical Class | Class Ⅱ | |||||||
Ingress Protection (IP Rating) | IP65 | |||||||
Impact Resistance (IK Rating) | – | |||||||
Product Finishing(Base) | White RAL 9016 | |||||||
Materials of Optics | PMMA (LGP) / PS(Diffuser) | |||||||
Materials of Housing | Aluminum(Frame) | |||||||
Lifetime (hr) | 40,000h | |||||||
Glow wire test (℃) | – | |||||||
Operating Temp. (℃) | -10℃~40℃ | |||||||
Storage Temp. (℃) | -20℃~50℃ | |||||||
Installation | Surface mount/ Pendant/ Recessed |
