This is a medical antibacterial clean panel lamp. It adopts high quality AL6063 aluminum for frame, and the light source is high lumen SMD4014, which has a great heat dissipation to ensure a long lifespan. CRI90 light source ensures a better color rendering, R9>50 ensures a richer color saturation of the lamp. The lamp adopts PMMA light guide plate, which has the advantages of anti yellowing, high optical conversion efficiency, uniform luminous effect, and can effectively relieve eye fatigue. Besides, the lamp is high strength for structure, the diffuser is made of PS antibacterial material, which can effectively prevent the residual bacteria on lamp surface, especially suitable for the operating room, medical room, corridor lamps and places with viruses and germs.

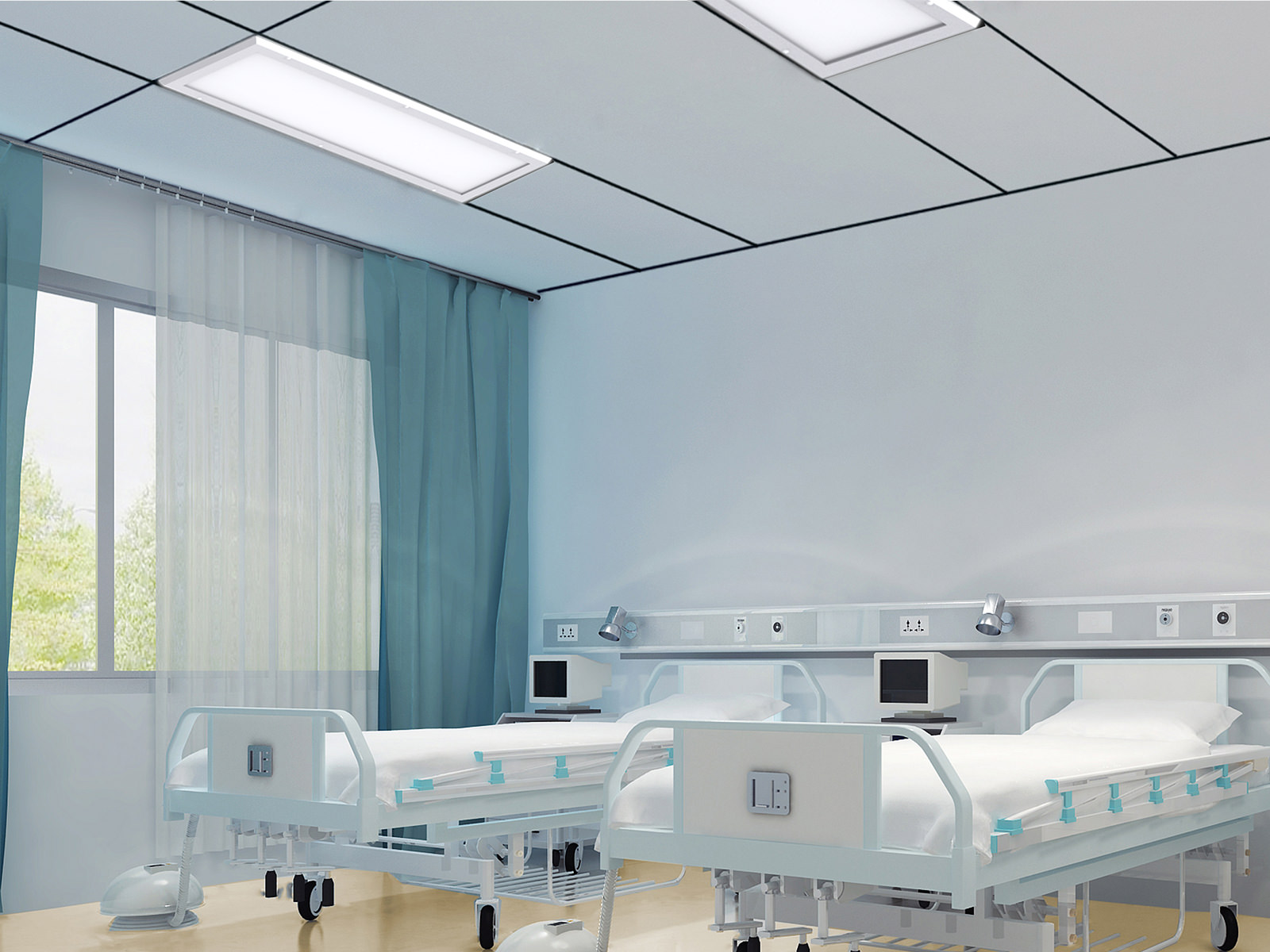

Application Areas: It’s specially designed for medical locations, such as hospital corridor, nurse station, therapeutic room, pharmacy, clinical process room, private clinic etc.
Code No. | PL3090-33W-EC | PL30120-40W-EC | PL6060-40W-EC |
---|---|---|---|
Dimension(mm) | 300*900*13 | 300*1200*13 | 600*600*13 |
Watt(W) | 33W | 40W | 40W |
Rated Input Voltage(V) | AC230V | ||
Input Voltage(V) | AC220-240V | ||
LED Module Input | 33-38V DC 850mA CC | 33-38V DC 1000mA CC | 33-38V DC 1000mA CC |
Light Source | SMD | ||
SDCM | <3 | ||
CCT(K) | 3000K/4000K/5000K | ||
Non-DIM 1-CCT Luminous Flux (lm) ±5% | 2900-3470 | 3440-4200 | 3440-4200 |
DIM 1-CCT Luminous Flux (lm) ±5% | 2800-3400 | 3300-4100 | 3300-4100 |
CRI | ≥90 | ||
Beam Angle (°) | 120° | ||
LED Driver | Built-out | ||
Dimming Option | Triac/ DALI/ 0-10V | ||
Electrical Class | Class Ⅱ | ||
Ingress Protection (IP Rating) | IP44 in front | ||
Product Finishing(Base) | White | ||
Materials of Optics | PS(diffuser)+PMMA(LGP) | ||
Materials of Housing | Aluminum(frame) | ||
Lifetime (hr) | 50,000h | ||
Glow wire test (℃ ) | 650℃ | ||
Operating Temp. (℃ ) | -10℃ ~40℃ | ||
Storage Temp. (℃ ) | -10℃ ~50℃ | ||
Installation | Surface mounted(With screws) |
