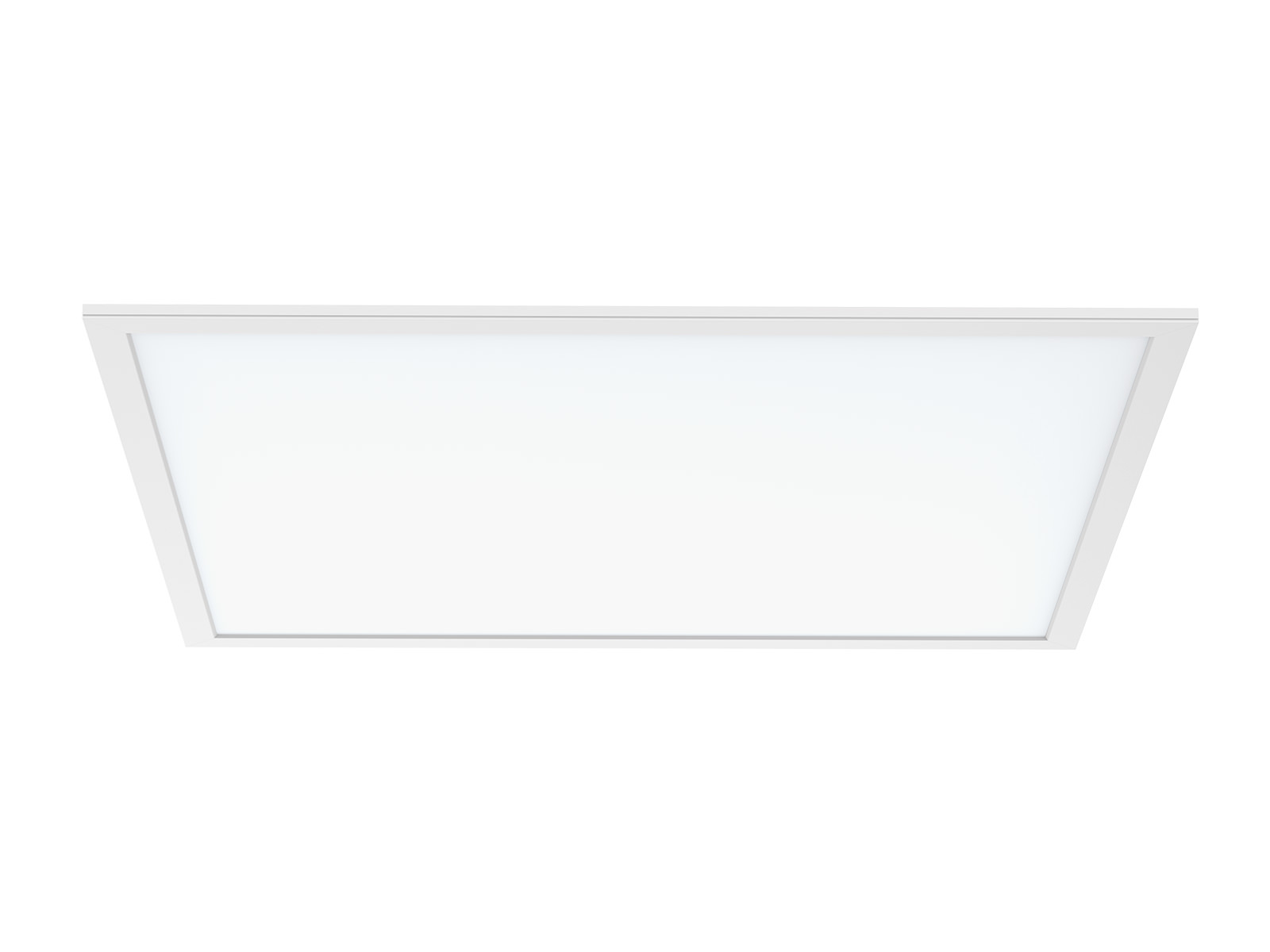

PL009 is a new panel light solution with strong aluminum frame structure, which offers a great thermal conductivity. It adopts PMMA LGP, high lumen SMD with CRI>80, the overall luminous effect of the panel lamp is uniform, which can effectively relieve eye fatigue and restore the color of the object illuminated more truly. Besides, it can fit seamlessly into any work place, available in various installation ways: recessed, suspended and surface mounted.
Application Areas:Office Lighting: Office room, meeting room, class room, library etc. Commercial Lighting: Shopping mall, supermarket, hotel etc. Other area: Hospital, canteen, theater, bank, subway station etc.

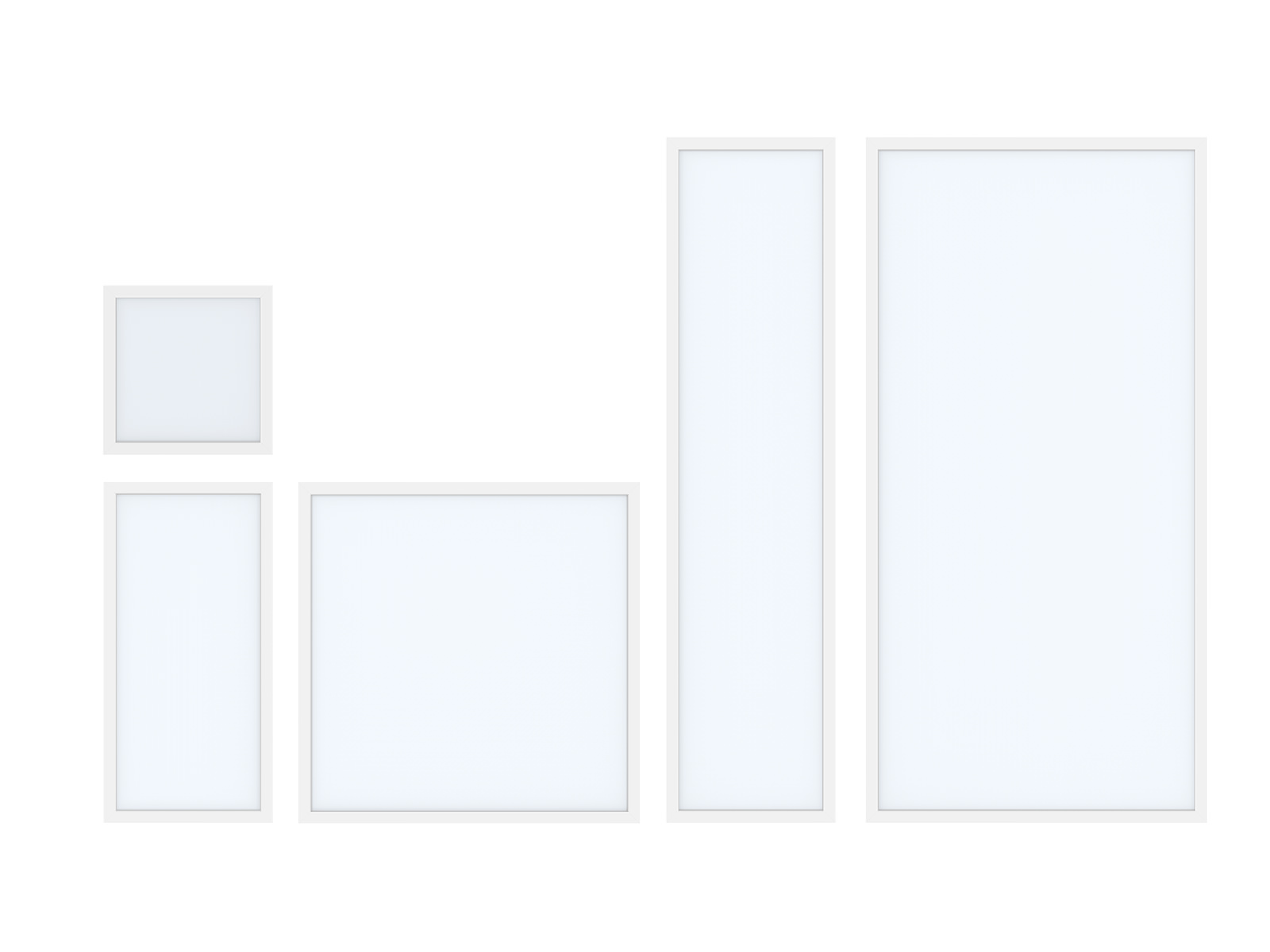

Code No. | PL009-3030-16W | PL009-3060-18W | PL009-6060-33W | PL009-6262-33W | PL009-30120-33W |
---|---|---|---|---|---|
Dimension(mm) | 295*295*8.5 | 295*595*8.5 | 595*595*8.5 | 620*620*8.5 | 295*1195*8.5 |
Cutout (mm) | 270*270 | 270*570 | 570*570 | 595*595 | 270*1170 |
Watt(W) | 16W | 18W | 33W | ||
Rated Input Voltage(V) | AC230V | ||||
Input Voltage(V) | AC220-240V | ||||
LED Module Input | 33-38V | ||||
Light Source | SMD | ||||
COI | <5 | ||||
CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K | ||||
Non-DIM 1-CCT Luminous Flux (lm) ±5% | 1320-1440 | 1570-1710 | 3030-3300 | ||
DIM 1-CCT Luminous Flux (lm) ±5% | 1220-1340 | 1470-1610 | |||
Non-DIM 3-CCT Luminous Flux (lm) ±5% | 1220-1440 | 1470-1710 | 2930-3300 | ||
DIM 3-CCT Luminous Flux (lm) ±5% | 1120-1340 | 1370-1610 | |||
CRI | ≥80 | ||||
Beam Angle (°) | 120° | ||||
LED Driver | Driver built-out | ||||
Dimming Option | Triac/ 0-10V/ Dali | ||||
Electrical Class | Class Ⅱ | ||||
Ingress Protection (IP Rating) | IP40 | ||||
Product Finishing(Base) | White RAL 9016 | ||||
Materials of Optics | PS(diffuser)+PMMA ( LGP) | ||||
Materials of Housing | Aluminum(Frame) | ||||
Lifetime (hr) | 50,000h | ||||
Glow wire test (C ) | 650C | ||||
Operating Temp. (C ) | -10 C~40C | ||||
Storage Temp. (C ) | -20 C~50C | ||||
Installation | Recessed / Pendant / Surface mount |
