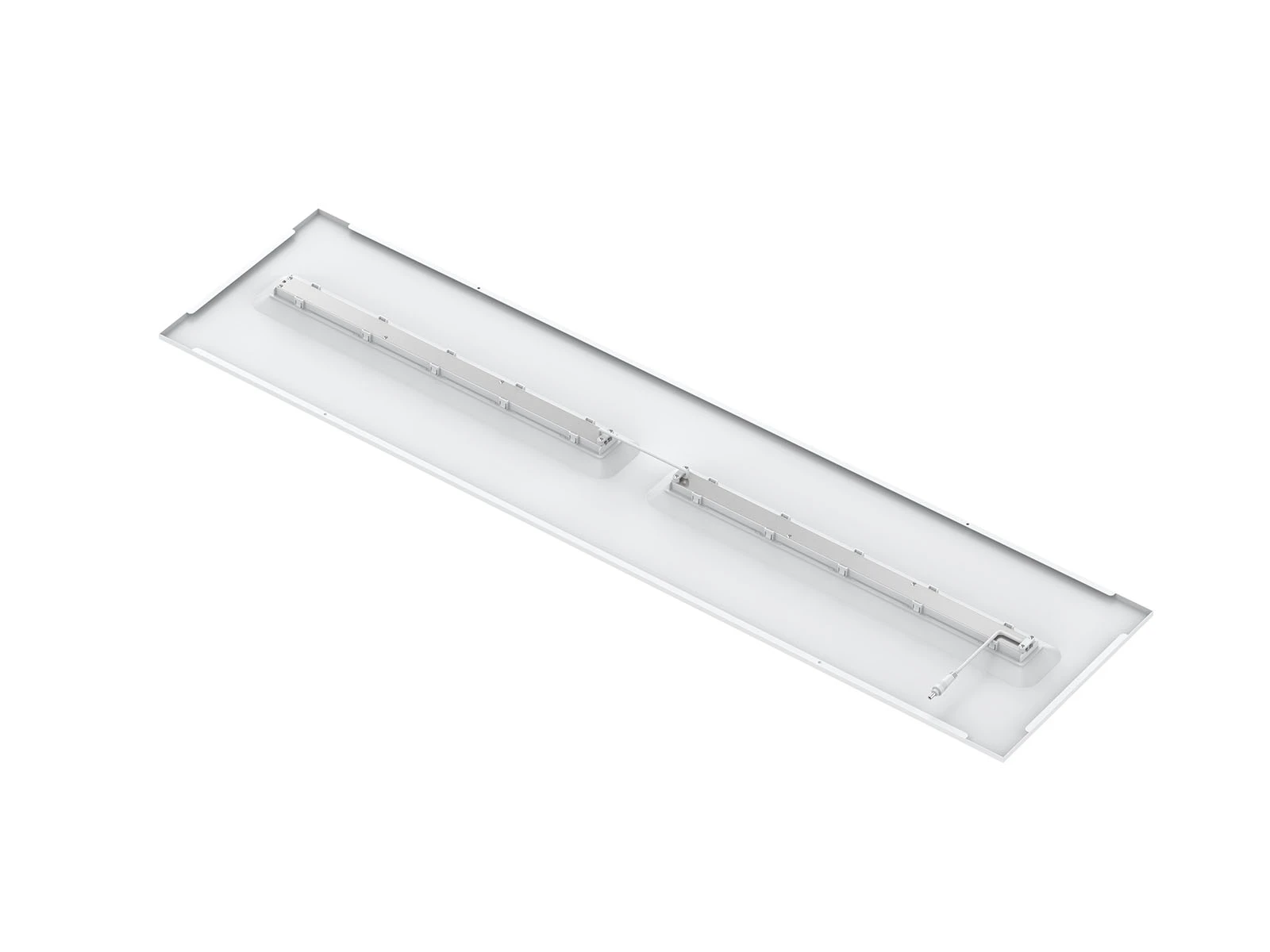

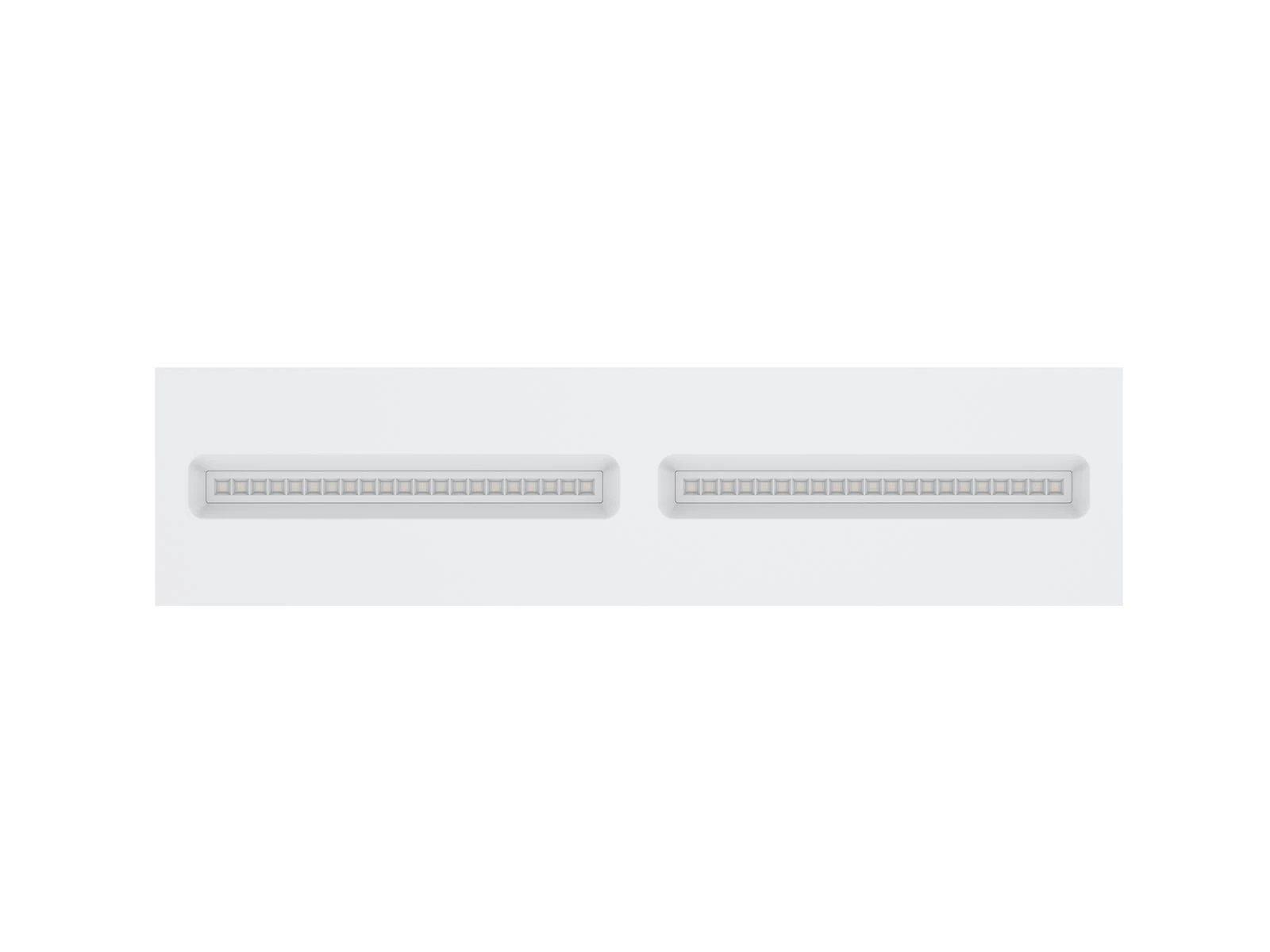

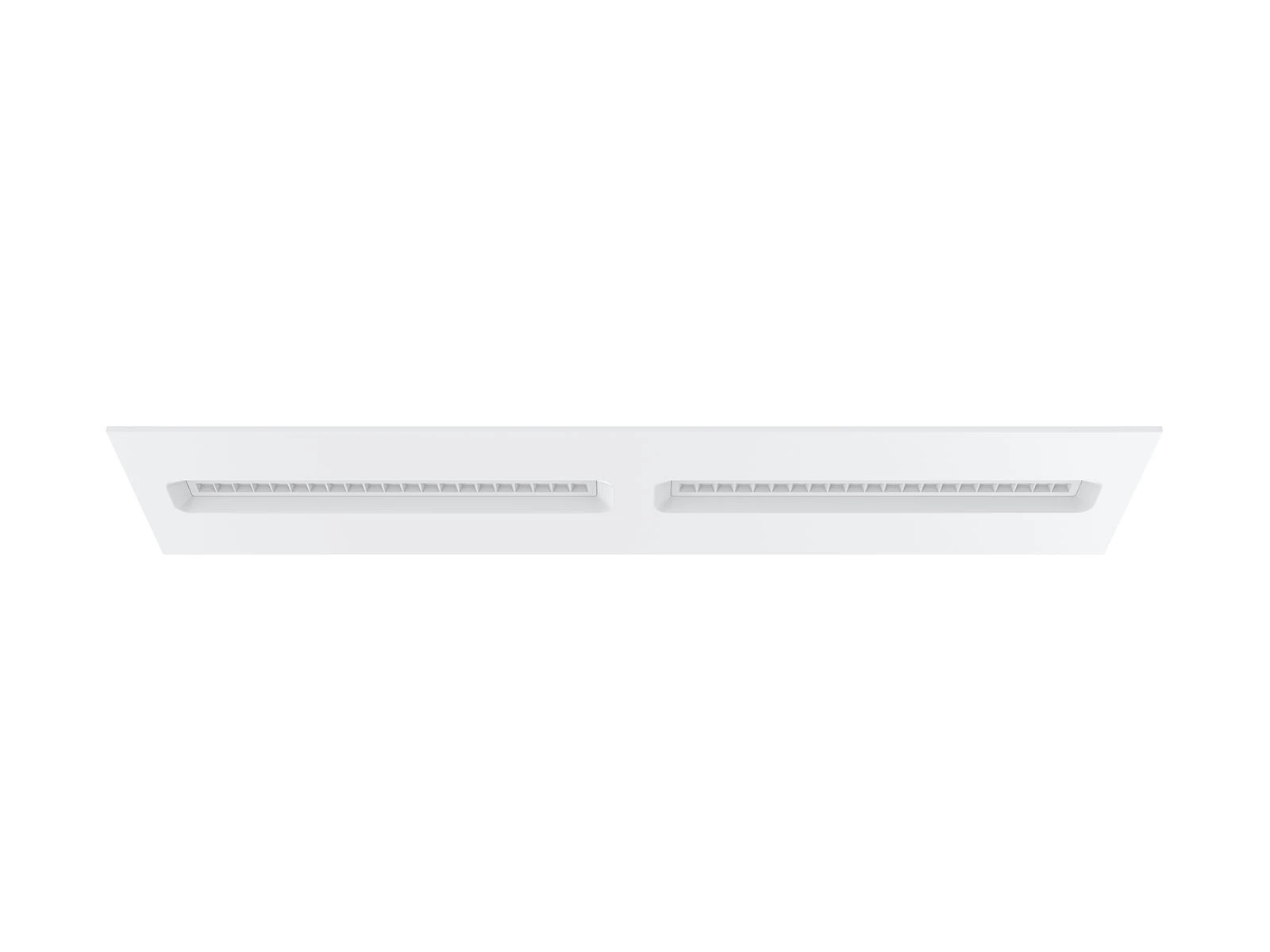

PL18 LED Panel Light


Featuring louver reflectors design technology makeslow glare, this panel offers the ideal combination of stylish design and optimum performance for both task and general lighting. It adopts high lumen led chip for high efficiency and energy saving, the luminous module can be replaced, which ensures the easy maintenance. The lamp is suitable for recessed, suspended, and surface-mounted installations, which can meet more application area demand.

  • High lumen efficiency, 120Imw@30W and 140Im/w@25W for option. -Modular design for lighting part, easy for replacement.
  • Anti-glare design, UGR<16.
  • Interchangeable CCT(3000K+4000K+5700K)with DIP switch.
  • Installation ways: Recessed, suspended, surface mounted.
  • Dimming way: Triac, 0-10V, DALI.
  • External ficker free driver.


Application Areas: Office &school lighting: office room, meeting room, classroom etc. Commercial lighting: shopping malls, supermarkets, retail shops, etc. Other situations: hospital, laboratory, dust-free workshop etc.



Code No. PL18-6060-25W PL18-6060-30W
Dimension(mm) 595*595*31
Cutout(mm) 570*570
Watt(W) 25W 30W
Rated Input Voltage(V) AC220-240V
Input Voltage(V) AC198-264V
LED Module Input DC 33-38V
Light Source SMD
SDCM <6
CCT(K) 1-CCT:3000K/4000K/5000K/5700K|3-CCT:3000K/4000K/5700K
CCT Selection DIP Switch YES
Non-DIM 1-CCT  _uminous Flux (lm)±5% 3360-3890 3275-3795
DIM 1-CCT  _uminous Flux (lm)±5% 3260-3790 3175-3695
Non-DIM 1-CCT  _uminous Flux (lm)±5% 3280-3890 3175-3795
DIM 1-CCT  _uminous Flux (lm)±5% 3180-3790 3075-3695
CRI ≥80
Beam Angle() 90°
JGR UGR<16
LED Driver Driver built-out
Dimming Option Triac/DALI/O-10V
Electrical Class ClassⅡ
Ingress Protection (IP Rating) IP20
Impact Resistance (IK Rating) K06
Product Finishing(Base) White RAL9016
Materials of Optics PC+PET
Materials of Housing SPCC
lifetime(hr) 50,000h
Glow wire test (C) 750℃
Operating Temp.(C) -10℃~40℃
Storage Temp.(C) -20℃~50℃
Installation Recessed /Pendant /Surface mount
