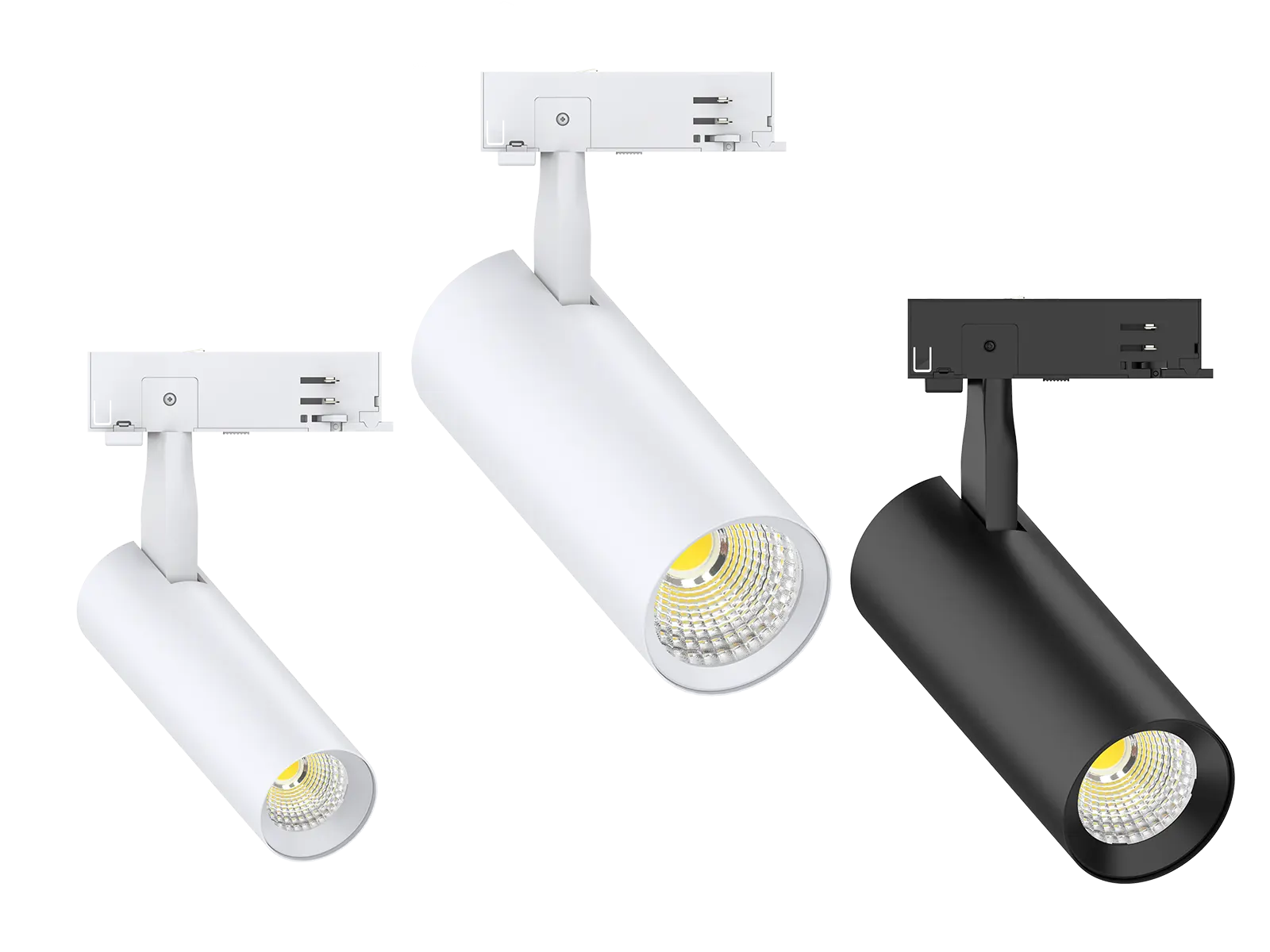

This new design track light adopts a high-lumen COB chip and faceted reflector to create a diversified and dramatic atmosphere. It’s a modular design with multiple beam angle reflector DIY replacement, so it can save stock and meet more application areas' lighting demand. AL6063 aluminum housing offers great thermal management so it can ensure a long lifespan. Adjustable lighting orientation with 350° in the horizontal direction and 90° in the vertical direction will bring a flexible exposure.
Application Areas: It is suitable for supermarkets, specialty stores, show windows, and exhibition halls; focus lighting, decorative and background lighting, where attention is focused on subjects to emphasize special visual points.
| Code No. | TL119-47-10W | TL119-68-20W | TL119-68-25W | TL119-75-25W | TL119-75-30W |
|---|---|---|---|---|---|
| Dimension(mm) | Ø47*241 | Ø68*268 | Ø75*286 | ||
| Watt(W) | 10W | 20W | 25W | 30W | |
| Rated Input Voltage(V) | AC230V | ||||
| Input Voltage(V) | AC220-240V | ||||
| Light Source | COB | ||||
| SDCM | <5 | ||||
| CCT(K) | 1-CCT: 2700K/3000K/4000K/5000K| | 3-CCT: 3000K + 4000K + 5000K | ||||
| CCT Selection DIP Switch | YES | ||||
| Non-DIM 1-CCT Luminous Flux (lm) ±5% | 1000-1200 | 1900-2150 | 2400-2750 | 2600-3000 | 3050-3550 |
| DIM 1-CCT Luminous Flux (lm) ±5% | 900-1100 | 1900-2150 | 2300-2650 | 2500-2880 | 2850-3300 |
| Non-DIM 3-CCT Luminous Flux (lm) ±5% | 850-1000 | 1650-1900 | 2000-2450 | 2000-2450 | 2450-2900 |
| DIM 3-CCT Luminous Flux (lm) ±5% | 780-920 | 1650-1900 | 1950-2350 | 1950-2350 | 2350-2700 |
| CRI | 80/90/97 ( 1-CCT) /90(3-CCT) | ||||
| Beam Angle (°) | 24°/30°/38°/60° | 30°/38°/60° | 24°/38°/45°/60° | ||
| LED Driver | Built-in | ||||
| Dimming Option | Triac | ||||
| Electrical Class | Class I | ||||
| Ingress Protection (IP Rating) | IP20 | ||||
| Impact Resistance (IK Rating) | IK03 | ||||
| Product Finishing(Base) | White RAL 9016/Black RAL9005 | ||||
| Materials of Optics | PC | ||||
| Materials of Housing | Aluminium | ||||
| Lifetime (hr) | 50,000h | ||||
| Glow wire test (°C) | 750°C | ||||
| Operating Temp. (°C) | -20°C~40°C | ||||
| Storage Temp. (°C) | -20°C~65°C | ||||
| Installation | Track | ||||
