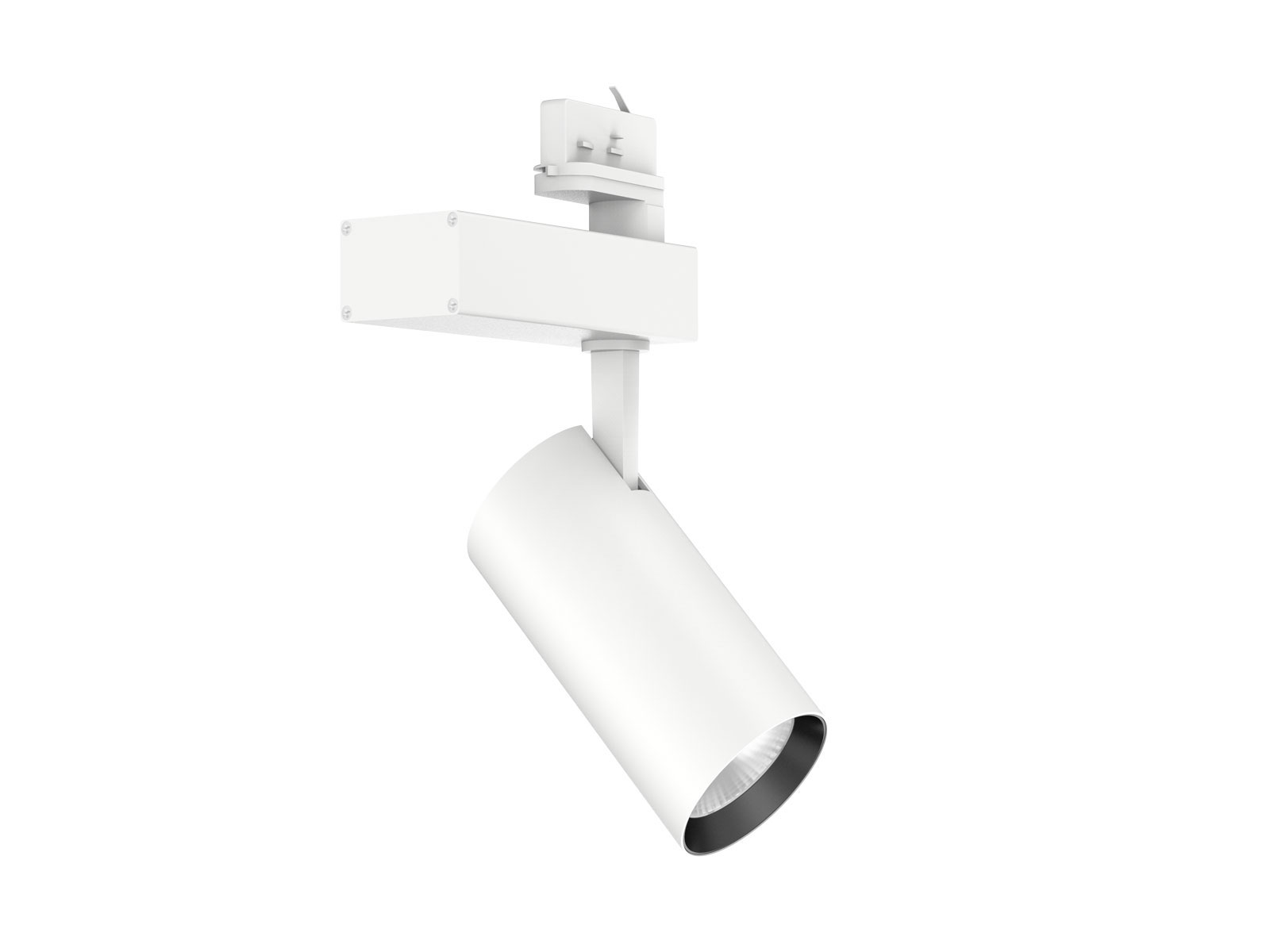

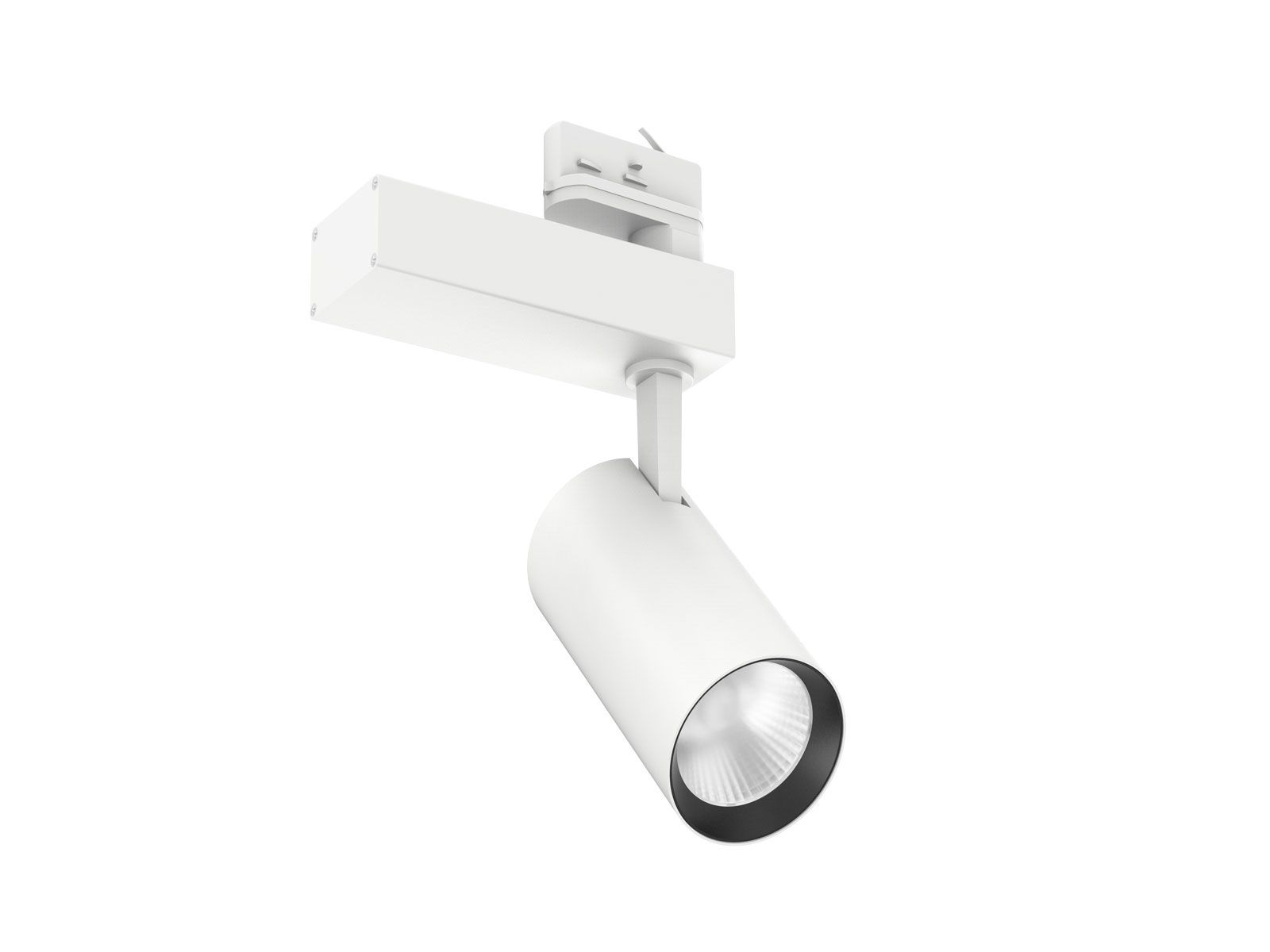

Modern led track lighting fixtures are ideal for hotels, offices, schools and domestic, with supreme 6063 aluminum heat sink with great heat dissipation. track lighting replacement heads, it can provide powerful, energy-efficient lighting for up to longer lifetime. These tracklighting fixtures come with Tridonic DALI solution and Citizen chip ensure reliable quality. Wide beam angle 15D/24D/36D are available. Good quality and reliable track lights from high performance UPSHINE lighting company, get quotes now!
Features:
Code
|
TL29F-25W
|
TL29F-35W
|
TL29F-42W
|
|
Watt(W)
|
25W
|
35W
|
42W
|
|
Dimension(mm)
|
298*198*85
|
328*198*85
|
328*198*100
|
|
Rated Input Voltage(V)
|
AC230V
|
|||
Input Voltage(V)
|
AC220-240V
|
|||
LED
|
COB
|
|||
SDCM
|
–
|
|||
CCT(K)
|
2700K / 3000K / 4000K / 5000K
|
|||
"Luminous Flux (lm) ±10%"
|
Non-DIM
|
–
|
–
|
–
|
DIM
|
2255~2610
|
2995~3490
|
3995~4110
|
|
LED Driver
|
Built-out (Tridonic)
|
|||
Protection Class
|
Class Ⅰ
|
|||
CRI
|
≥80
|
|||
Beam Angle (°)
|
15° / 24° / 36°
|
|||
DIM
|
DALI Dimmable
|
|||
IP Rating
|
IP20
|
|||
IK Rating
|
–
|
|||
Finishing color
|
White RAL9003
|
|||
Material
|
PC / Aluminium
|
|||
Lifetime (hr)
|
50,000h
|
|||
Glow wire test (°C)
|
750°C
|
|||
Operating Temp.(°C)
|
-20°C~45°C
|
|||
Storage Temp.(°C)
|
25°C
|
|||
Installation
|
Track
|
|||
Brand Driver option
|
–
|
